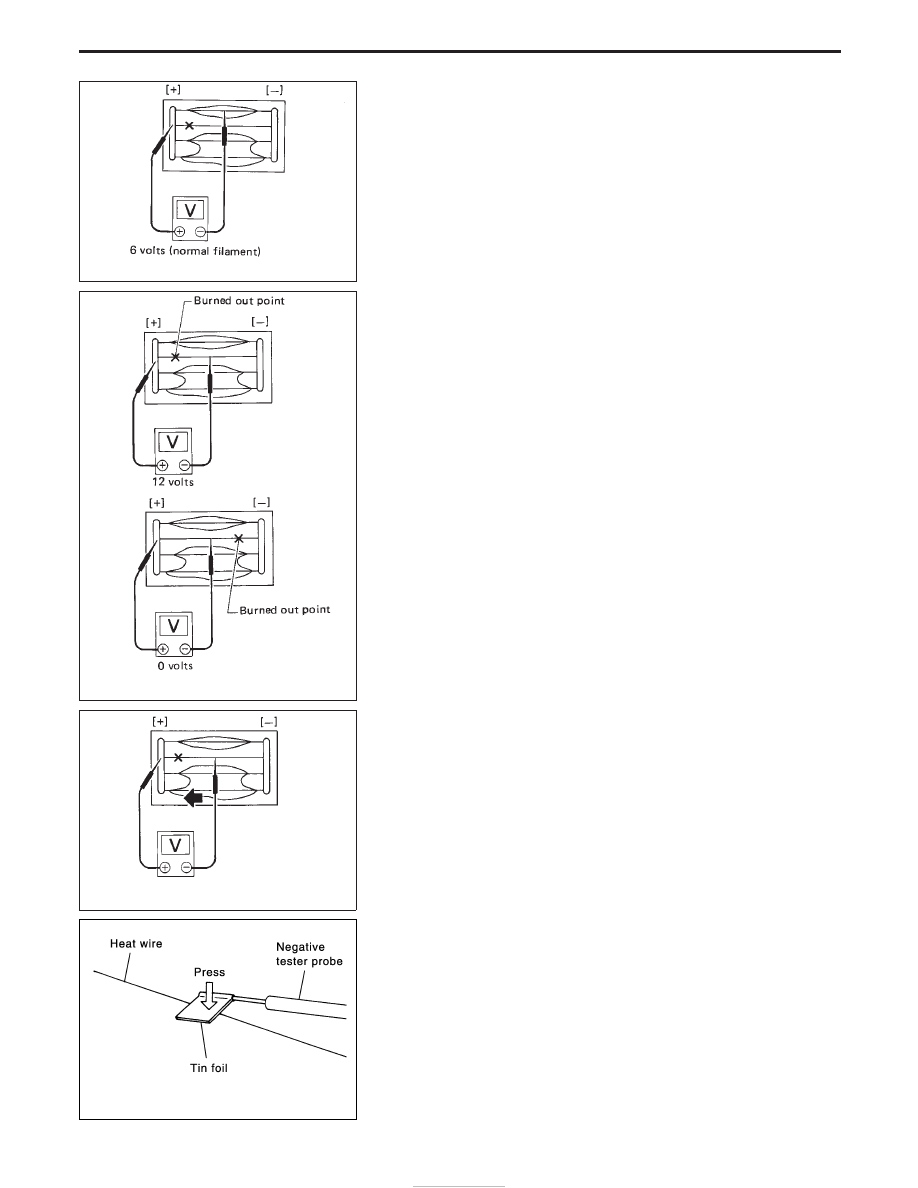

Filament Check

1. Attach probe circuit tester (in volt range) to middle portion of

each filament.

6 volts = Normal filament

2. If a filament is burned out, circuit tester registers 0 or 12 volts.

3. To locate burned out point, move probe to left and right along

filament to determine point where tester needle swings
abruptly.

I

When measuring voltage, wind a piece of tin foil around
the top of the negative probe and press the foil against the
wire with your finger.

SEL263

SEL265

SEL266

YEL553D

REAR WINDOW DEFOGGER AND DOOR MIRROR DEFOGGER

EL-132

Filament Repair

REPAIR EQUIPMENT

1. Conductive silver composition (Dupont No. 4817 or equivalent)
2. Ruler 30 cm (11.8 in) long
3. Drawing pen
4. Heat gun
5. Alcohol
6. Cloth

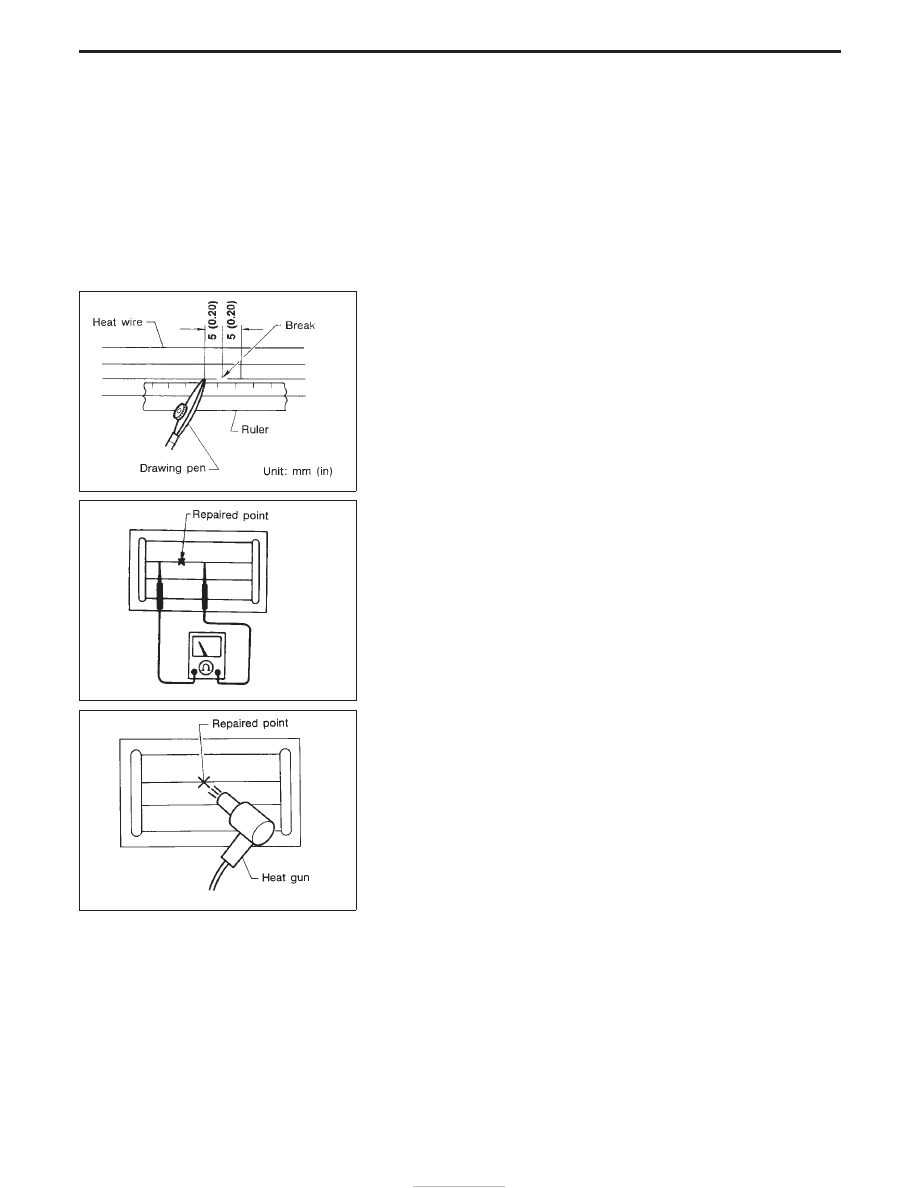

REPAIRING PROCEDURE

1. Wipe broken heat wire and its surrounding area clean with a

cloth dampened in alcohol.

2. Apply a small amount of conductive silver composition to tip of

drawing pen.

Shake silver composition container before use.
3. Place ruler on glass along broken line. Deposit conductive sil-

ver composition on break with drawing pen. Slightly overlap
existing heat wire on both sides [preferably 5 mm (0.20 in)] of
the break.

4. After repair has been completed, check repaired wire for con-

tinuity. This check should be conducted 10 minutes after silver
composition is deposited.

Do not touch repaired area while test is being conducted.

5. Apply a constant stream of hot air directly to the repaired area

for approximately 20 minutes with a heat gun. A minimum dis-
tance of 3 cm (1.2 in) should be kept between repaired area
and hot air outlet. If a heat gun is not available, let the repaired
area dry for 24 hours.

BE540

SEL012D

SEL013D

REAR WINDOW DEFOGGER AND DOOR MIRROR DEFOGGER

EL-133

System Description

Refer to Owner’s Manual for audio system operating instructions.
Power is supplied at all times

I

through 15A fuse (No. 33, located in the fuse and fusible link box)

I

to audio unit terminal 9

I

to CD auto changer terminal 32 (With CD auto changer).

With the ignition switch in the ACC or ON position, power is supplied

I

through 10A fuse [No. 3, located in the fuse block (J/B)]

I

to audio unit terminal 3,

I

to CD auto changer terminal 36 (With CD auto changer).

Ground is supplied

I

through body ground F53 (LHD models) or M761 (RHD models)

I

to audio unit terminal 8 and

I

to CD auto changer terminal 35 (With CD auto changer).

Audio signals are supplied

I

through audio unit terminals 7, 10, 11, 12, 13, 14, 15, 16

I

to terminals 1 and 2 of front door speaker LH and RH

I

to terminals 1 and 2 of rear door speaker LH and RH (Wagon models) or

I

to terminals 1 and 2 of rear speaker LH and RH (Hardtop models)

I

to terminals 1 and 2 of tweeter LH and RH.

NATS AUDIO LINK

Description

The link with the NATS IMMU implies that the audio unit can basically only be operated if connected to the
matching NATS IMMU to which the audio unit was initially fitted on the production line.
Since radio operation is impossible after the link with the NATS is disrupted, the stolen audio unit is basically
useless since special equipment is required to reset the audio unit.
Initialization process for audio units that are linked to the NATS IMMU
New audio units will be delivered to the factories in the “NEW” state, i.e. ready to be linked with the vehicle’s
NATS. When the audio unit in “NEW” state is first switched on at the factory, it will start up communication
with the vehicle’s immobiliser control unit (IMMU) and send a code (the “audio unit Code”) to the IMMU. The
IMMU will then store this code, which is unique to each audio unit, in its (permanent) memory.
Upon receipt of the code by the IMMU, the NATS will confirm correct receipt of the audio unit code to the audio
unit. Hereafter, the audio unit will operate as normal.
During the initialization process, “NEW” is displayed on the audio unit display. Normally though, communica-
tion between audio unit and IMMU takes such a short time that the audio unit seems to switch on directly
without showing “NEW” on its display.
Normal operation
Each time the audio unit is switched on afterwards, the audio unit code will be verified between the audio unit
and the NATS before the audio unit becomes operational. During the code verification process, “WAIT” is
shown on the audio unit display. Again, the communication takes such a short time that the audio unit seems
to switch on directly without showing “WAIT” on its display.
When the radio is locked
In case of a audio unit being linked with the vehicle’s NATS (immobiliser system), disconnection of the link
between the audio unit and the IMMU will cause the audio unit to switch into the lock (“SECURE”) mode in
which the audio unit is fully inoperative. Hence, repair of the audio unit is basically impossible, unless the audio
unit is reset to the “NEW” state for which special decoding equipment is required.
Clarion has provided their authorized service representatives with so called “decoder boxes” which can bring
the audio unit back to the “NEW” state, enabling the audio unit to be switched on after which repair can be
carried out. Subsequently, when the repaired audio unit is delivered to the final user again, it will be in the
“NEW” state as to enable re-linking the audio unit to the vehicle’s immobiliser system. As a result of the above,
repair of the audio unit can only be done by an authorized Clarion representative.

AUDIO

EL-134

Service instruction

Item

Radio linked with IMMU and/or SECU

Battery disconnection

No additional action required

Radio needs repair

Repair needs to be done by authorised representative of radio manufacturer since radio
cannot be operated unless it is reset to NEW state, using special decoding equipment

Replacement of radio by new part

Radio is delivered in NEW state. If possible, the radio will automatically link up with the
immobiliser system. If this appears not possible, CATS code needs to be manually input

Transferring radio to another vehicle/
replacement of radio by an “old” part

Radio needs to be reset to NEW state by authorised representative of radio manufac-
turer

Replacement of IMMU by new part

Radio will request for CATS code input prior to establishing the link with the IMMU

Replacement of IMMU by old part

If a radio code has already been stored in memory of the IMMU, the radio cannot be
linked to it. After switching on the radio, it will display “SECURE” after 1 minute. Opera-
tion can only be established after resetting the ratio by an authorised representative of
radio manufacturer

CATS code input procedure
1. Radio displays “CODE IN” after the power is switched ON.
2. Enter CATS code (4-digits) by pressing the preset buttons (using 1 to 4).

Press the preset buttons for the necessary amount of times for the number of each digits.
e.g. CATS code is “5432”
Press No. 1 preset button for 5 times
Press No. 2 preset button for 4 times
Press No. 3 preset button for 3 times
Press No. 4 preset button for 2 times

3. Press the

button.

4. If the code is OK, the radio will power ON.

If the code is NG, the radio will be locked up as below. After the lock up, the radio will display “CODE IN”
again.
1st to 3rd attempt: The radio will be locked for 10 seconds after each attempt
4th to 20th attempt: The radio will be locked for 60 minutes after each attempt
Over 20th attempt: The radio will be locked completely

SPEED DEPENDENT VOLUME CONTROL

Description

If activated, the radio output volume will be automatically adjusted to compensate for increased driving noises
at higher driving speeds. The radio receives a speed signal from the combination meter and selects the out-
put volume.

AUDIO

System Description (Cont’d)

EL-135
