Nissan Terrano model r20 series 2004. Manual - part 403





Installation

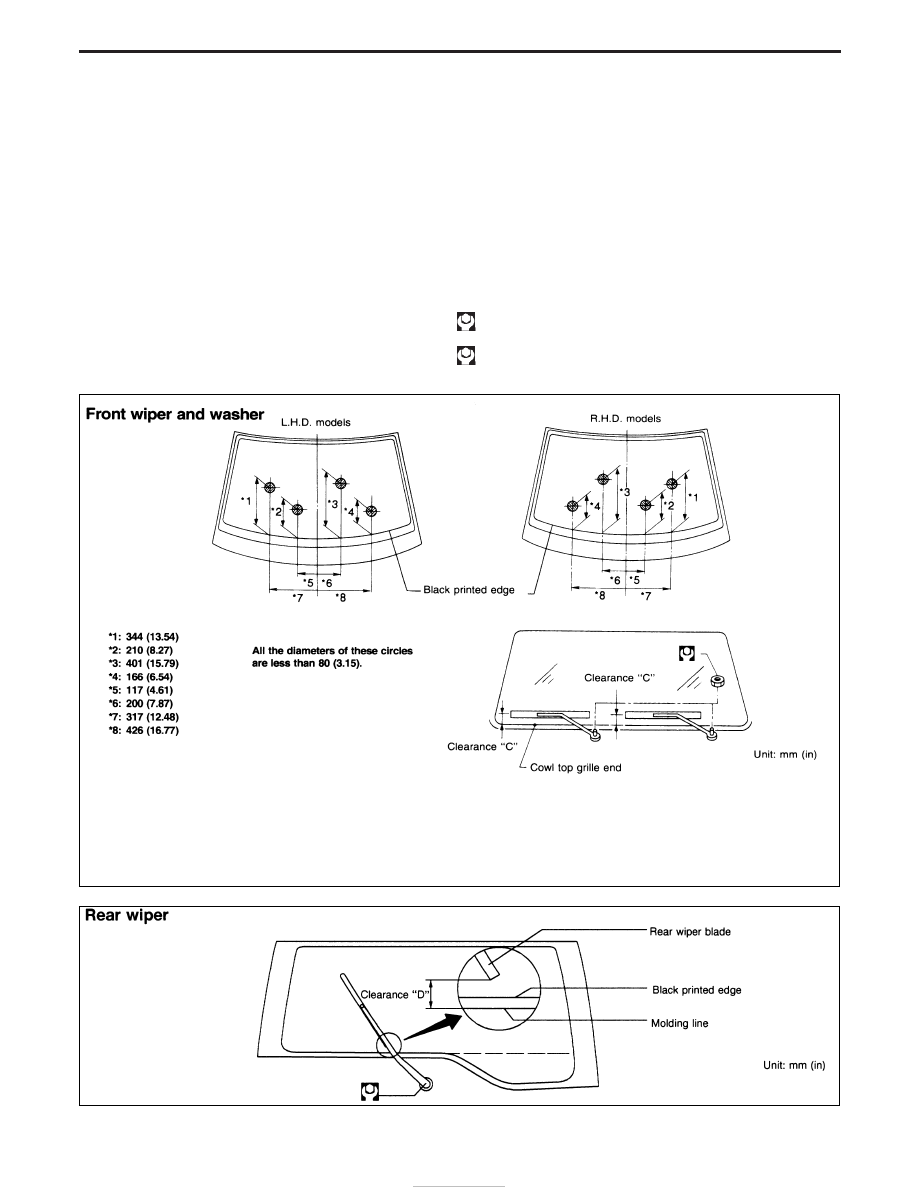

1. Prior to wiper arm installation, turn on wiper switch to operate

wiper motor and then turn it “OFF” (Auto Stop).

2. Lift the blade up and then set it down onto glass surface to set

the blade center to clearance “C” or “D” immediately before
tightening nut.

3. Eject washer fluid. Turn on wiper switch to operate wiper motor

and then turn it “OFF”.

4. Ensure that wiper blades stop within clearance “C” or “D”.

Clearance “C”: 25 - 35 mm (0.98 - 1.38 in)
Clearance “D”: 25 - 35 mm (0.98 - 1.38 in)

I

Tighten windshield wiper arm nuts to specified torque.

Front wiper:

: 20 - 30 N

m (2.1 - 3.0 kg-m, 15 - 22 ft-lb)

Rear wiper:

: 11.0 - 16.0 N

m

(1.12 - 1.63 kg-m, 8.1 - 11.8 ft-lb)

YEL077

NEL628

WIPER AND WASHER

EL-116

I

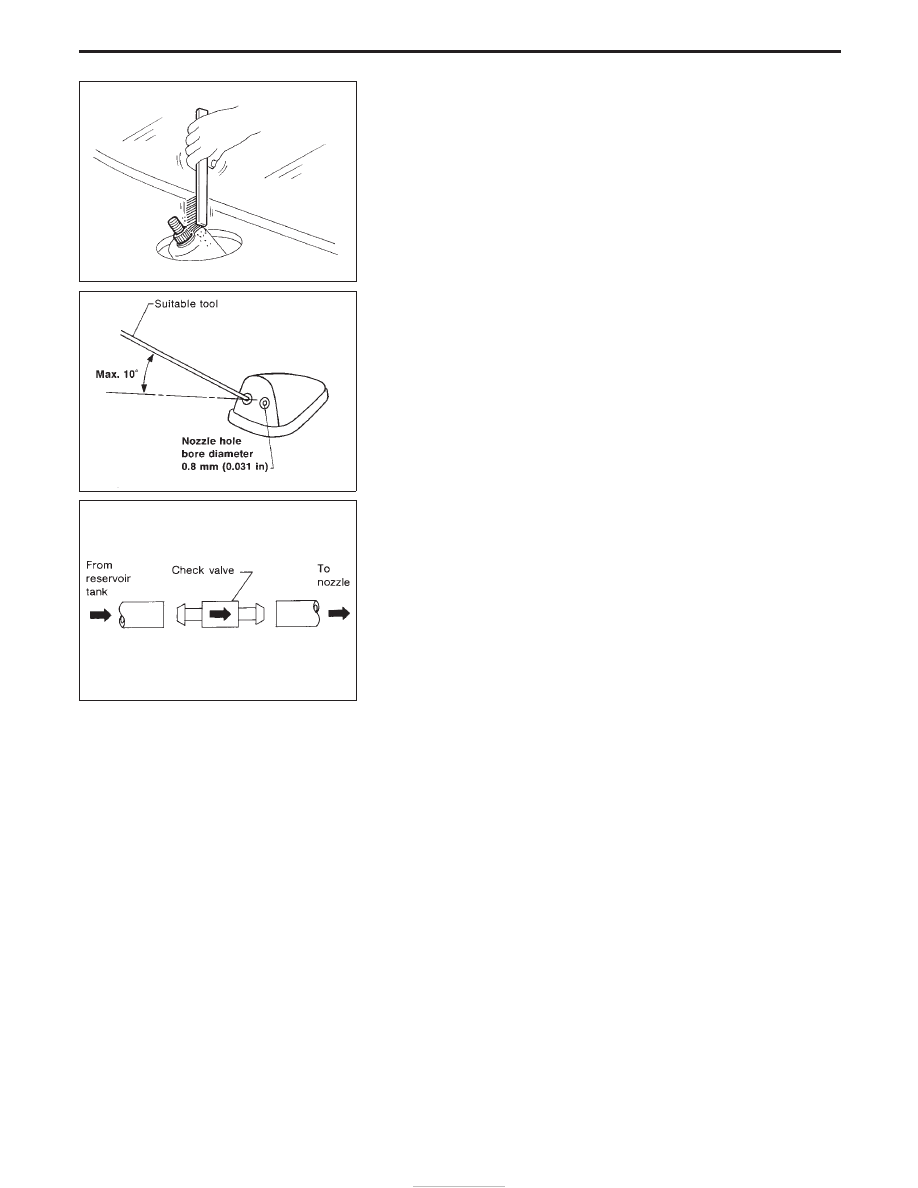

Before reinstalling wiper arm, clean up the pivot area as
illustrated. This will reduce possibility of wiper arm loose-
ness.

Washer Nozzle Adjustment

I

Adjust washer nozzle with suitable tool as shown in the figure
at left.

Adjustable range: ±10°

Check Valve

I

A check valve is provided in the washer fluid line. Be careful not
to connect check valve to washer tube in the wrong direction.

SEL024J

SEL241P

SEL411H

WIPER AND WASHER

Installation (Cont’d)

EL-117

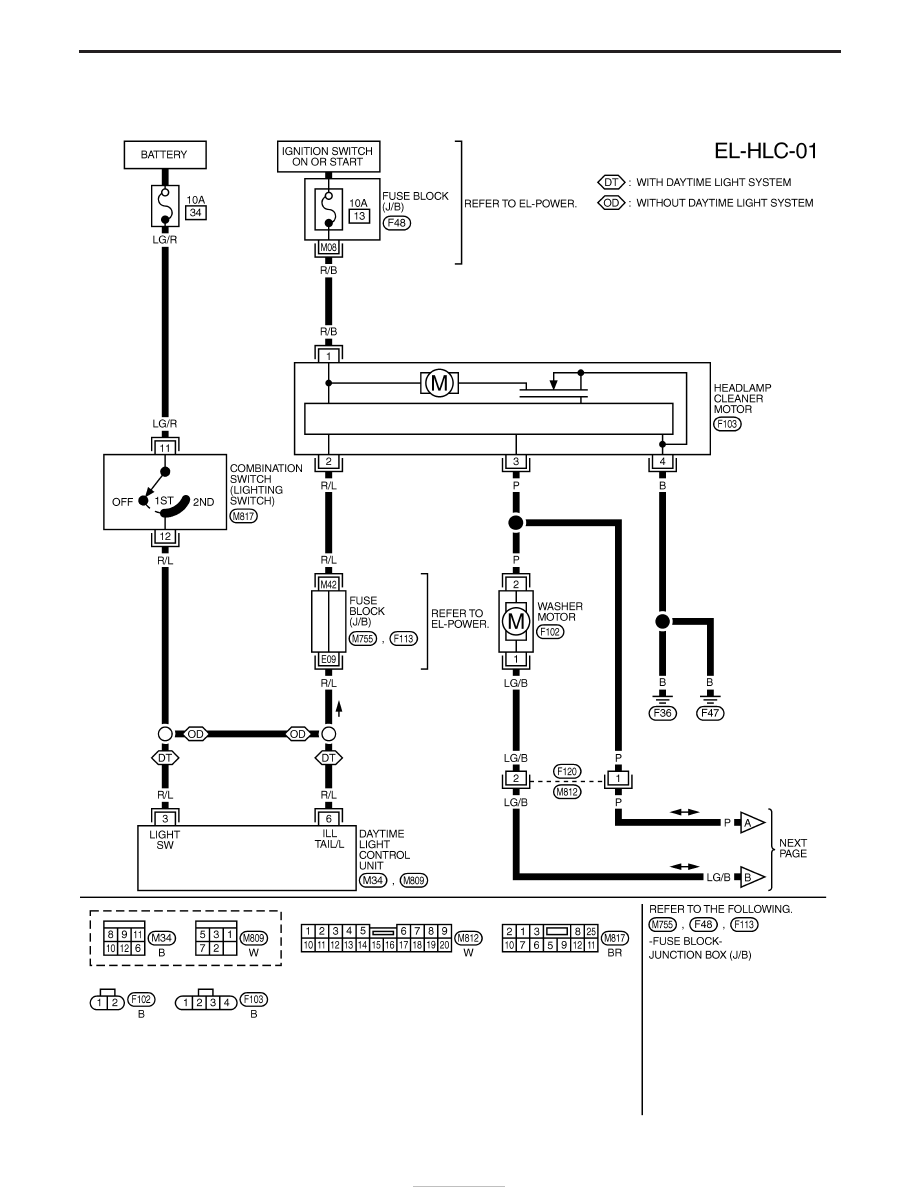

Wiring Diagram — HLC —

LHD MODELS

YEL114D

WIPER AND WASHER

EL-118

LHD MODELS

YEL115D

WIPER AND WASHER

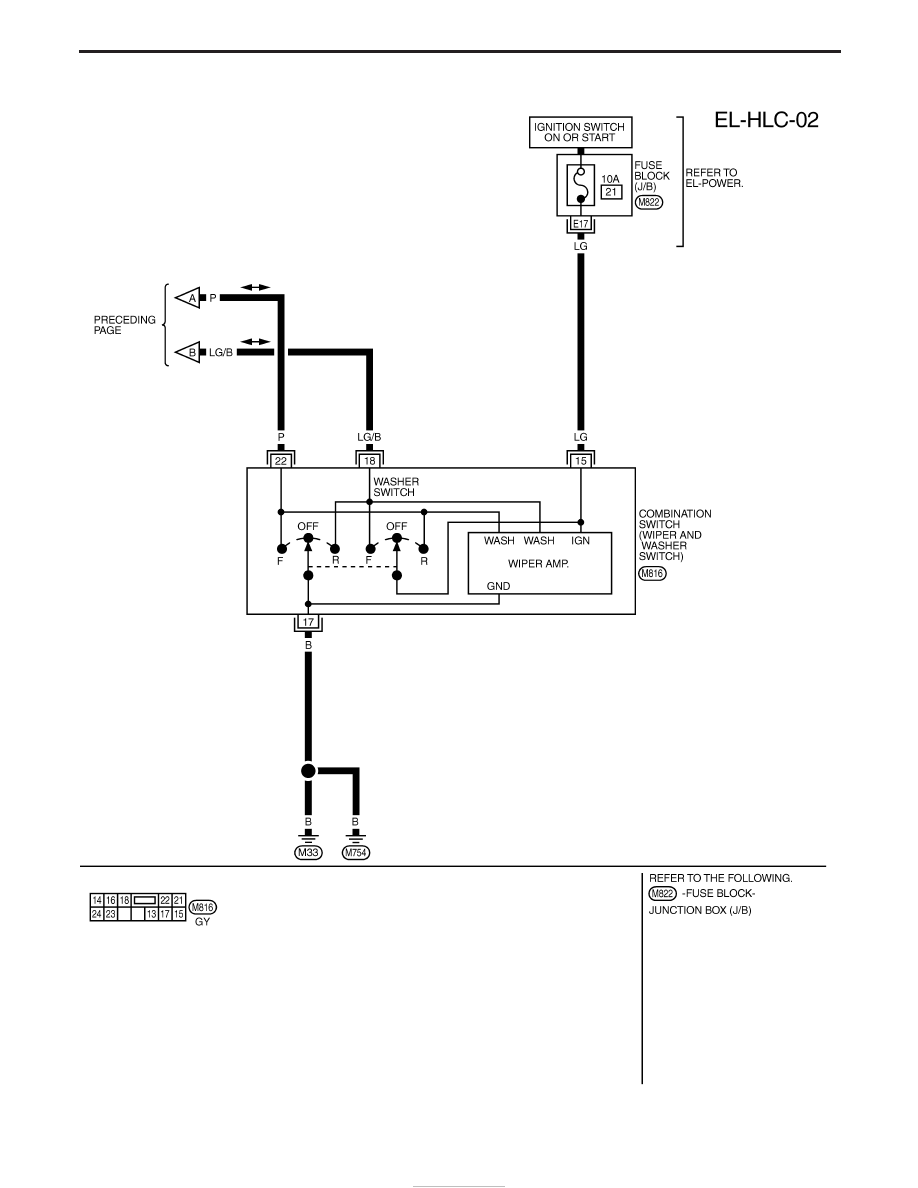

Wiring Diagram — HLC — (Cont’d)

EL-119
