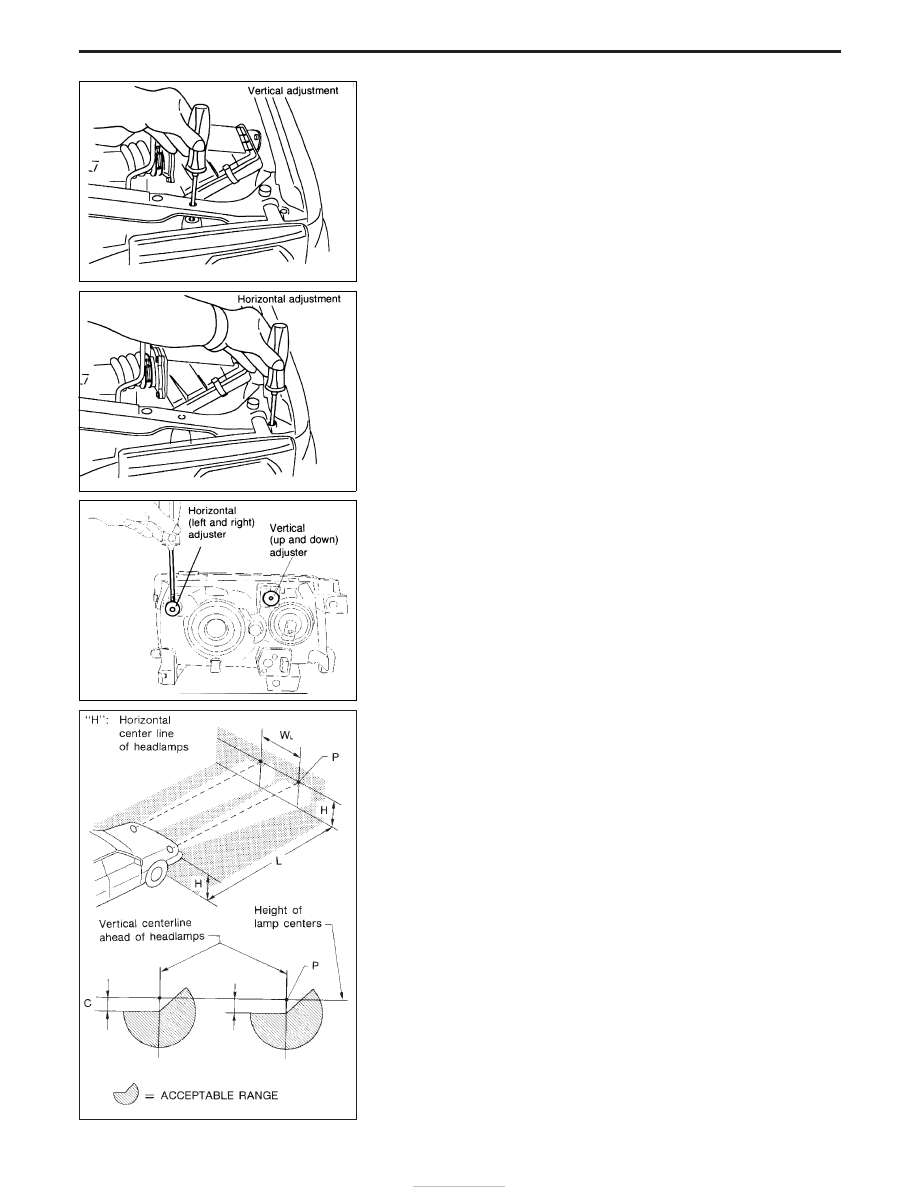

LOW BEAM
1. Turn headlamp low beam on.
2. Use aiming adjusters to perform aiming adjustment with screw
driver
!
as shown in figures.
I
First tighten the adjusting screws all the way and then
make adjustment by loosening the screws.
I
Adjust headlamps so that main axis of light is parallel to
center line of body and is aligned with point P shown in
illustration.
I
Figure to the left shows headlamp aiming pattern for driv-
ing on right side of road; for driving on left side of road,
aiming pattern is reversed.
I
Dotted lines to point P in illustration show center of head-
lamp.
“H”: Horizontal center line of headlamps
“W
L
”: Distance between each headlamp center
“L”: 5,000 mm (196.85 in)
“C”: 65 mm (2.56 in)
NEL619
NEL620
NEL621
SEL254I
HEADLAMP
Aiming Adjustment (Cont’d)
EL-48
