Nissan Terrano model r20 series 2004. Manual - part 381

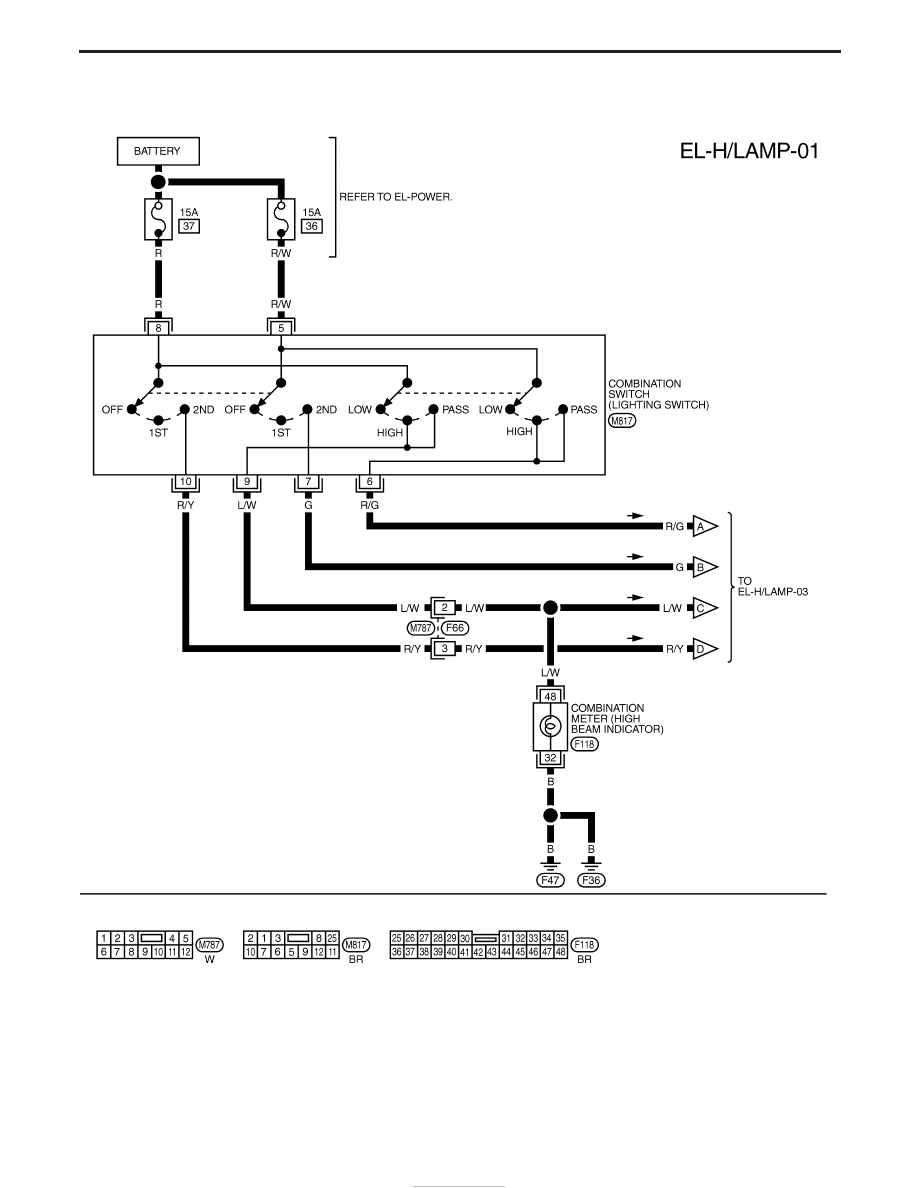

Wiring Diagram — H/LAMP —

LHD MODELS

YEL058D

HEADLAMP — Without Daytime Light System —

EL-28

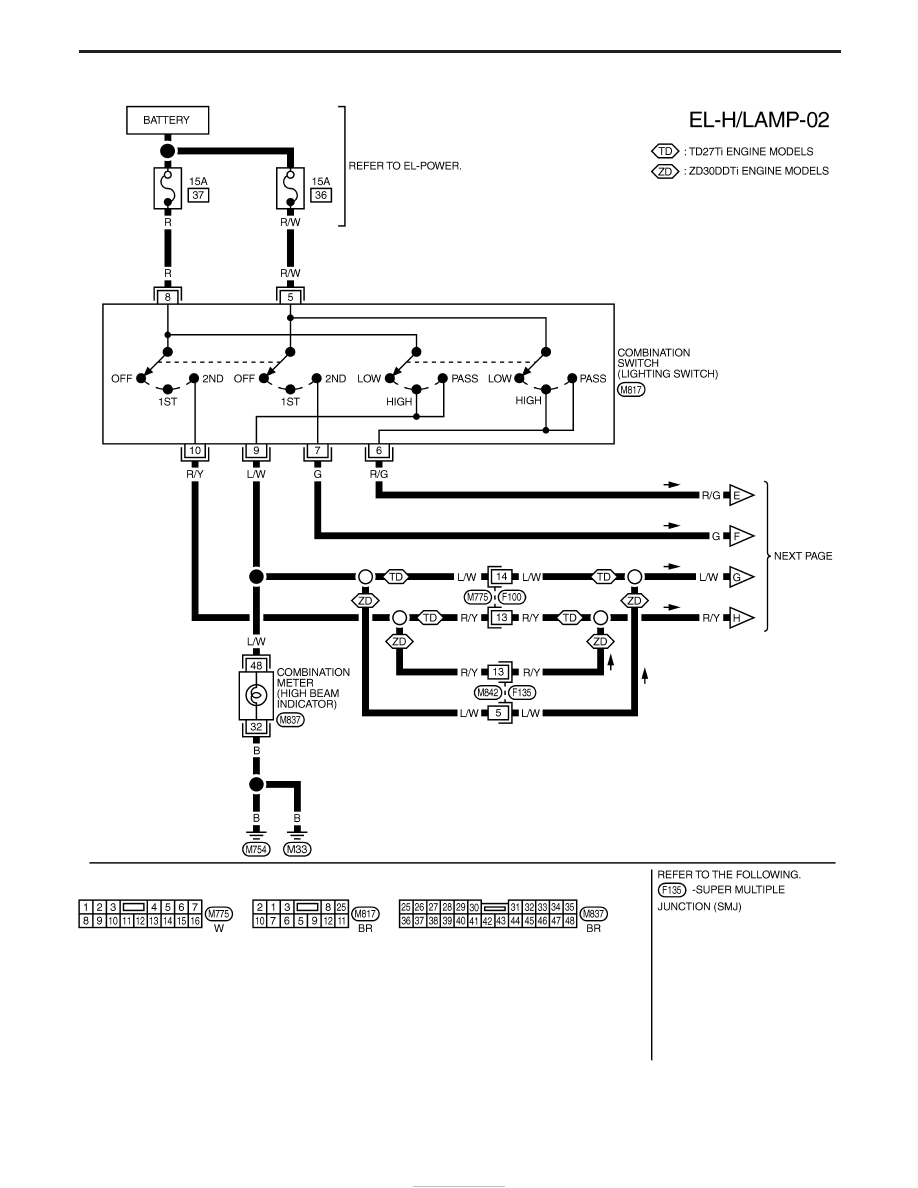

RHD MODELS

YEL059D

HEADLAMP — Without Daytime Light System —

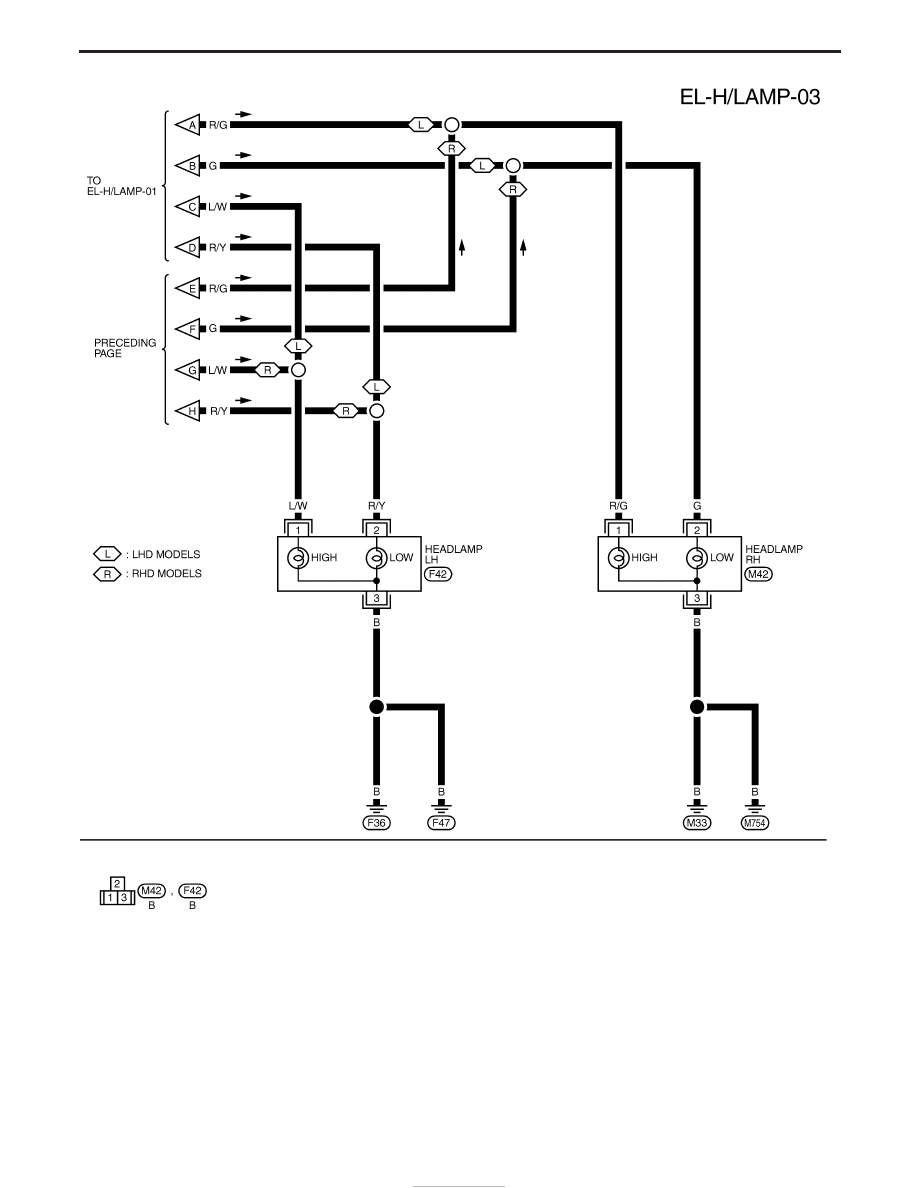

Wiring Diagram — H/LAMP — (Cont’d)

EL-29

YEL729E

HEADLAMP — Without Daytime Light System —

Wiring Diagram — H/LAMP — (Cont’d)

EL-30

Trouble Diagnoses

Symptom

Possible cause

Repair order

Neither headlamp operates.

1. Lighting switch

1. Check lighting switch.

LH headlamp (low and high beam)
does not operate, but RH headlamp
(low and high beam) operates.

1. 15A fuse (No. 37)

2. Headlamp LH ground circuit
3. Lighting switch

1. Check 15A fuse. Verify battery positive voltage is

present at lighting switch terminal 8.

2. Check headlamp LH ground circuit.
3. Check lighting switch.

RH headlamp (low and high beam)
does not operate, but LH headlamp
(low and high beam) does operate.

1. 15A fuse (No. 36)

2. Headlamp RH ground circuit
3. Lighting switch

1. Check 15A fuse. Verify battery positive voltage is

present at lighting switch terminal 5.

2. Check headlamp RH ground circuit.
3. Check lighting switch.

LH high beam does not operate, but
LH low beam does operate.

1. Bulb
2. Open in LH high beam circuit

3. Lighting switch

1. Check bulb.
2. Check the harness between lighting switch and

LH high beam for an open circuit.

3. Check lighting switch.

LH low beam does not operate, but
LH high beam does operate.

1. Bulb
2. Open in LH low beam circuit

3. Lighting switch

1. Check bulb.
2. Check the harness between lighting switch and

LH low beam for an open circuit.

3. Check lighting switch.

RH high beam does not operate, but
RH low beam does operate.

1. Bulb
2. Open in RH high beam circuit

3. Lighting switch

1. Check bulb.
2. Check the harness between lighting switch and

RH high beam for an open circuit.

3. Check lighting switch.

RH low beam does not operate, but
RH high beam does operate.

1. Bulb
2. Open in RH low beam circuit

3. Lighting switch

1. Check bulb.
2. Check the harness between lighting switch and

RH low beam for an open circuit.

3. Check lighting switch.

High beam indicator does not work.

1. Bulb
2. Ground circuit

3. Open in high beam circuit

1. Check bulb in combination meter.
2. Check harness between high beam indicator and

ground.

3. Check the harness between lighting switch and

combination meter for an open circuit.

HEADLAMP — Without Daytime Light System —

EL-31
