WATER COCK CONTROL ROD

I

When adjusting water cock control rod, first disconnect
temperature control cable from air mix door lever and then
adjust control rod. Reconnect temperature control cable
and readjust it. (Refer to next item.)

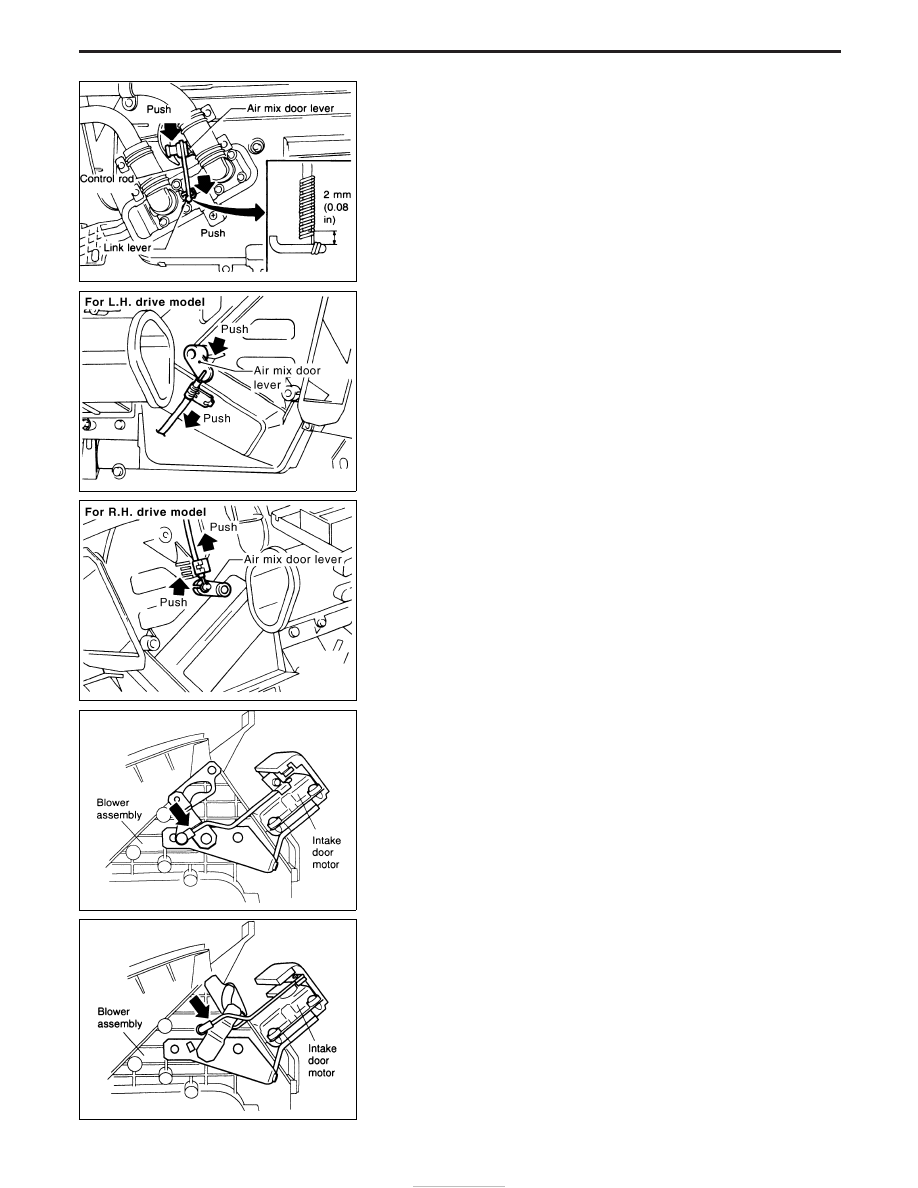

1. Push air mix door lever in direction of arrow.
2. Pull control rod of water cock in direction of arrow so as to make

clearance of about 2 mm (0.08 in) between ends of rod and link
lever and connect the rod to door lever.

After connecting control rod, check that it operates properly.

TEMPERATURE CONTROL CABLE

I

When adjusting ventilator door rod and defroster door rod,
first disconnect air control cable from side link.
Reconnect and readjust air control cable.

For L.H. drive model

I

Move temperature control lever to max. COLD position. Set air
mix door lever in full cold mode. Pull outer cable in direction of
arrow and then clamp it.

For R.H. drive model

I

Move temperature control lever to max. HOT position. Set air
mix door lever in full hot mode. Pull outer cable in direction of
arrow and then clamp it.

After positioning control cable, check it operates properly.

INTAKE DOOR CONTROL LINKAGE

I

Adjust the portion of connecting rod where indicated with arrow
as shown in figure.

RHA030E

RHA349I

RHA350I

NHA355

NHA356

TROUBLE DIAGNOSES

Control Linkage Adjustment (Cont’d)

HA-64

General Specifications

COMPRESSOR

Model

DKS-17CH

Type

Swash plate

Displacement

cm

3

(cu in)/Rev

168 (10.25)

Direction of rotation

Clockwise

(Viewed from drive end)

Drive belt

A type

LUBRICATION OIL

Model

ZEXEL make

DKS-17CH

Name

Nissan A/C System Oil

Type S

Part number

KLH00-PAGS0

Capacity

m



(Imp fl oz)

Total in system

TD ENGINE: 250 (8.8)
ZD ENGINE: 200 (7.0)

Compressor (Service parts)
charging amount

TD ENGINE: 250 (8.8)
ZD ENGINE: 200 (7.0)

REFRIGERANT

Type

R134a

Capacity

kg (lb)

0.60 - 0.70 (1.32 - 1.54)

Inspection and Adjustment

ENGINE IDLING SPEED

When A/C is ON
Refer to EF & EC section.

BELT TENSION

Refer to Checking Drive Belts (MA section).

COMPRESSOR

Model

DKS-17CH

Clutch disc-to-pulley clearance

mm (in)

0.3 - 0.6

(0.012 - 0.024)

SERVICE DATA AND SPECIFICATIONS (SDS)

HA-65
