Nissan Terrano model r20 series 2004. Manual - part 338





REAR DOOR

Wagon

I

For removal of rear door finisher, refer to “DOOR TRIM”, BT-19.

I

Remove sealing screen.

I

After adjusting door or door lock, make sure door lock properly.

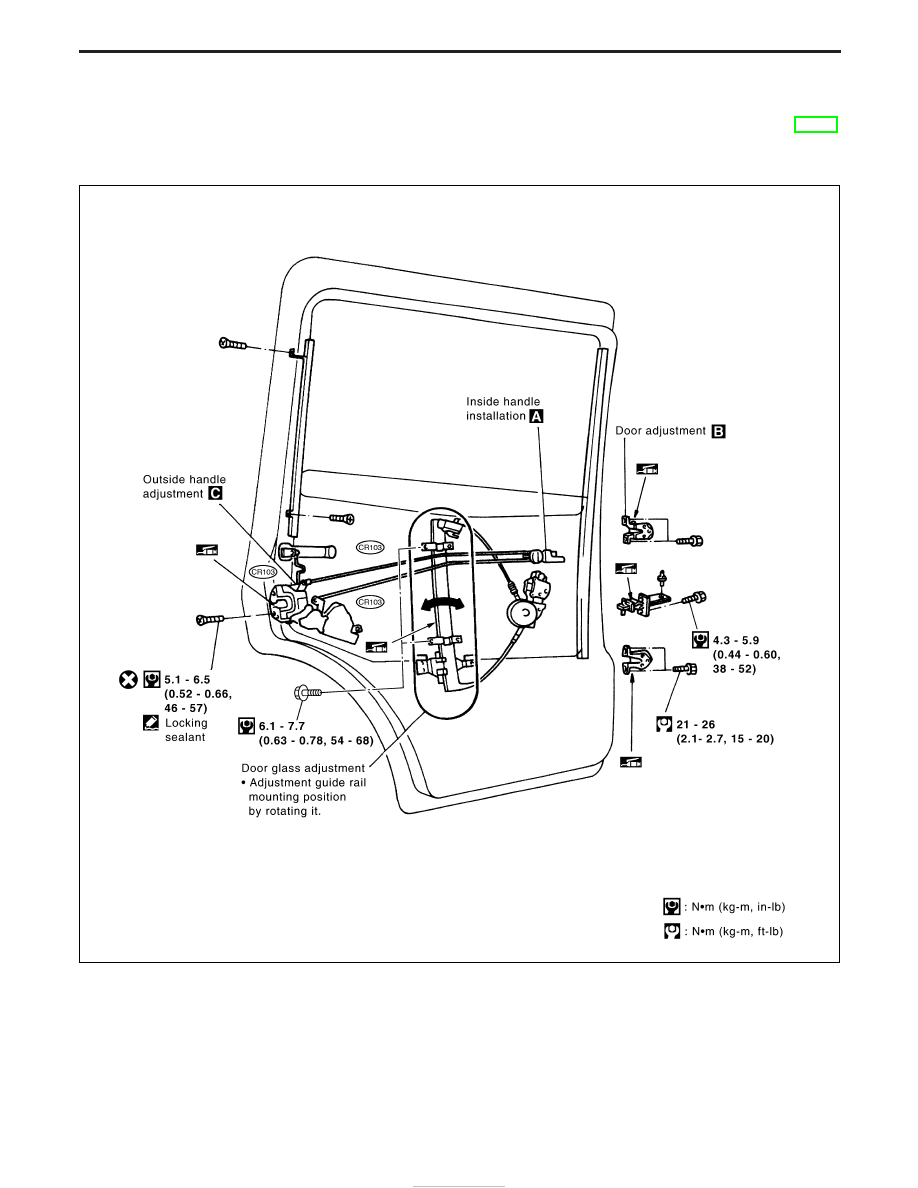

YBT125

DOOR

Removal and Installation (Cont’d)

BT-12

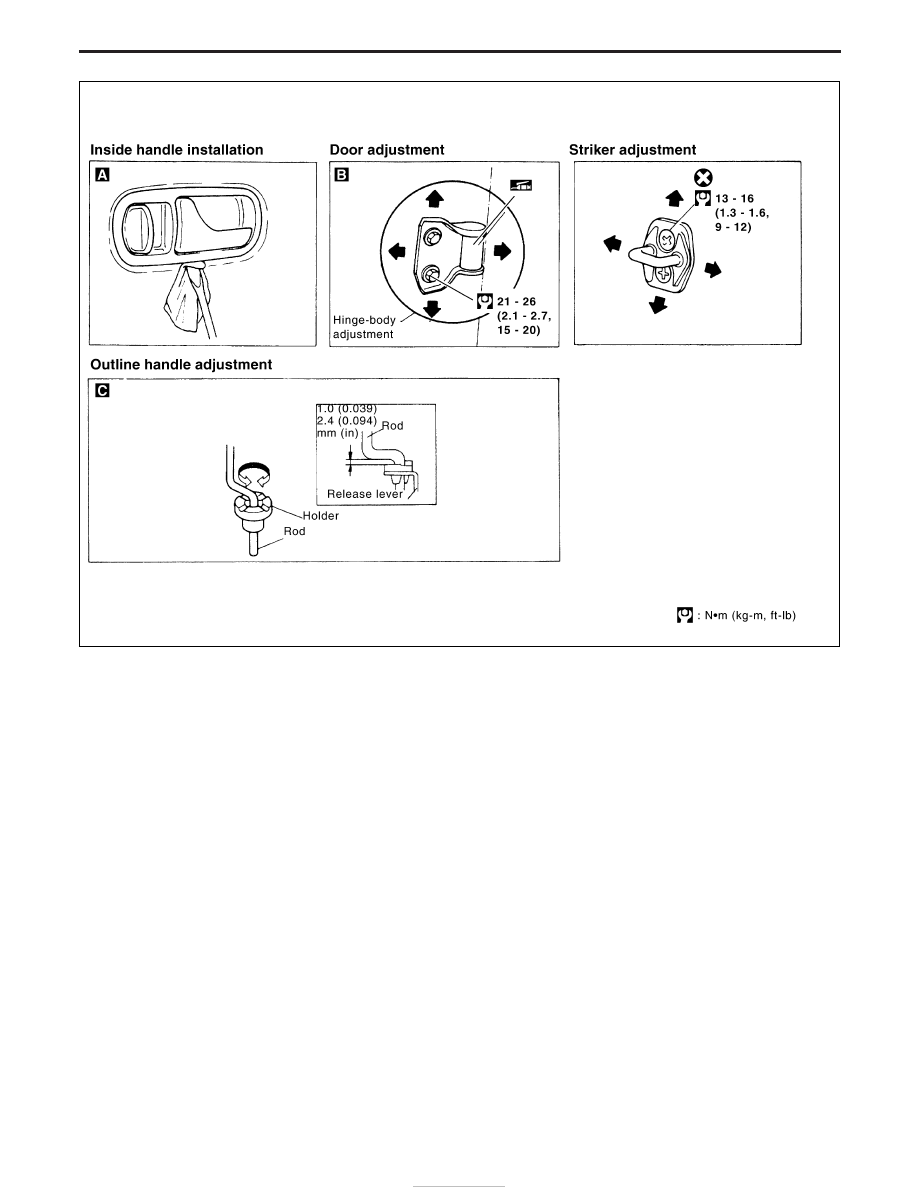

YBT121

DOOR

Removal and Installation (Cont’d)

BT-13

I

After adjusting door or door lock, make sure door locks prop-
erly.

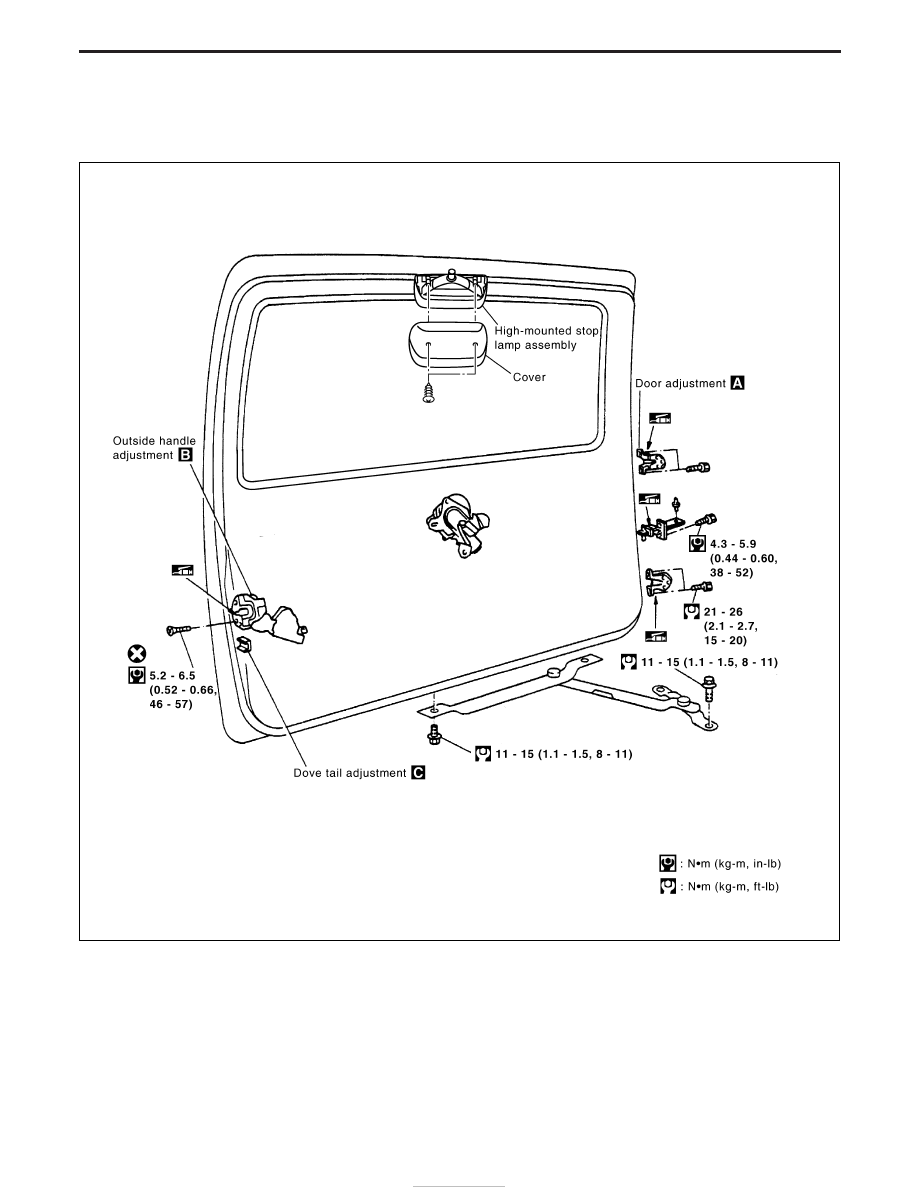

BACK DOOR

YBT122

DOOR

Removal and Installation (Cont’d)

BT-14

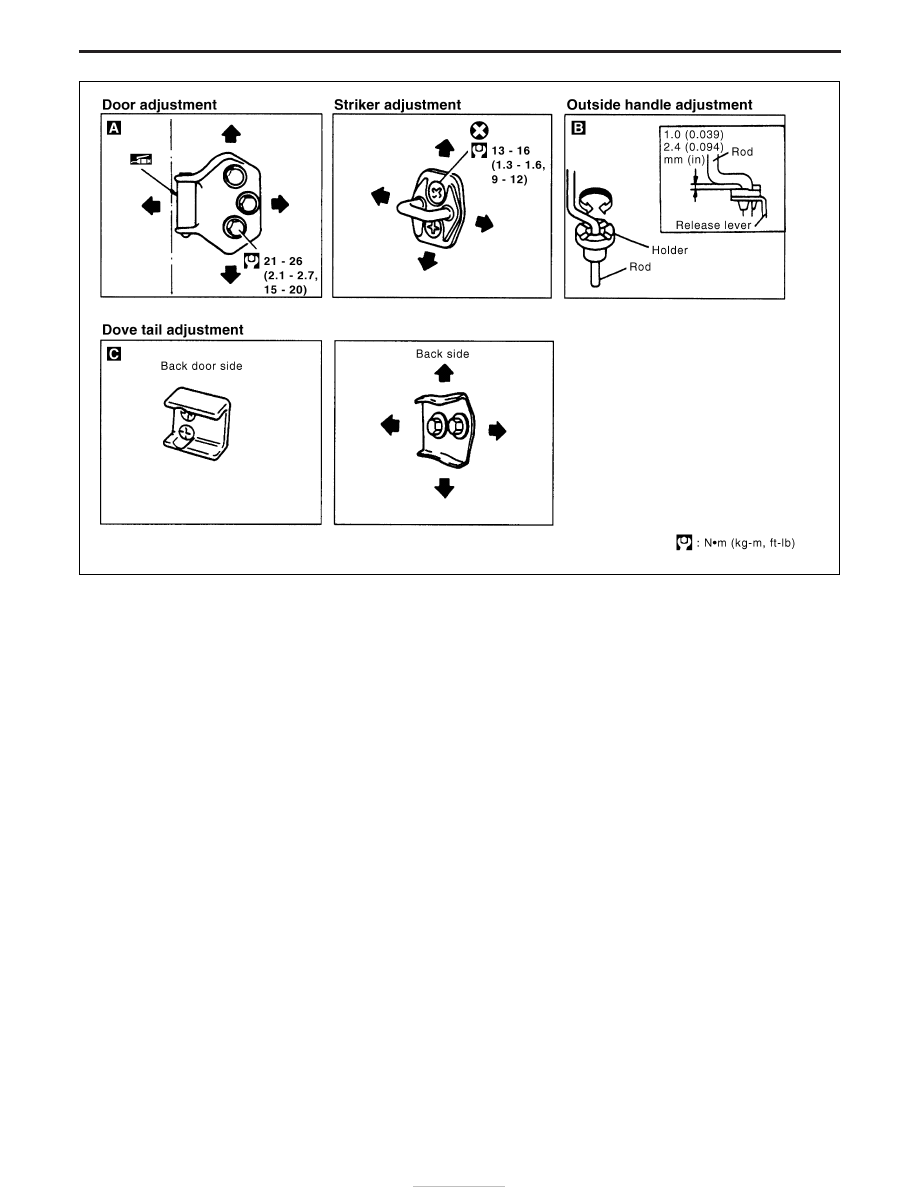

YBT123

DOOR

Removal and Installation (Cont’d)

BT-15
