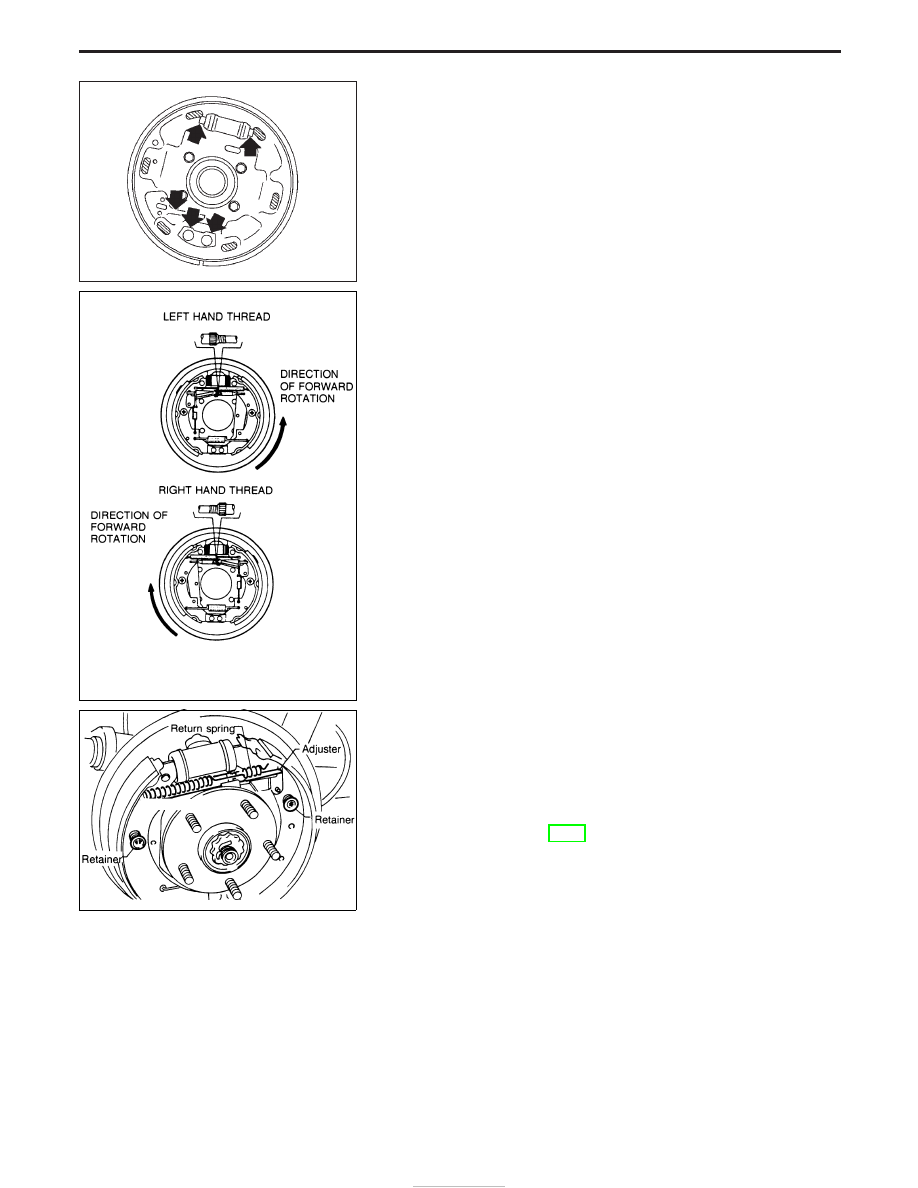

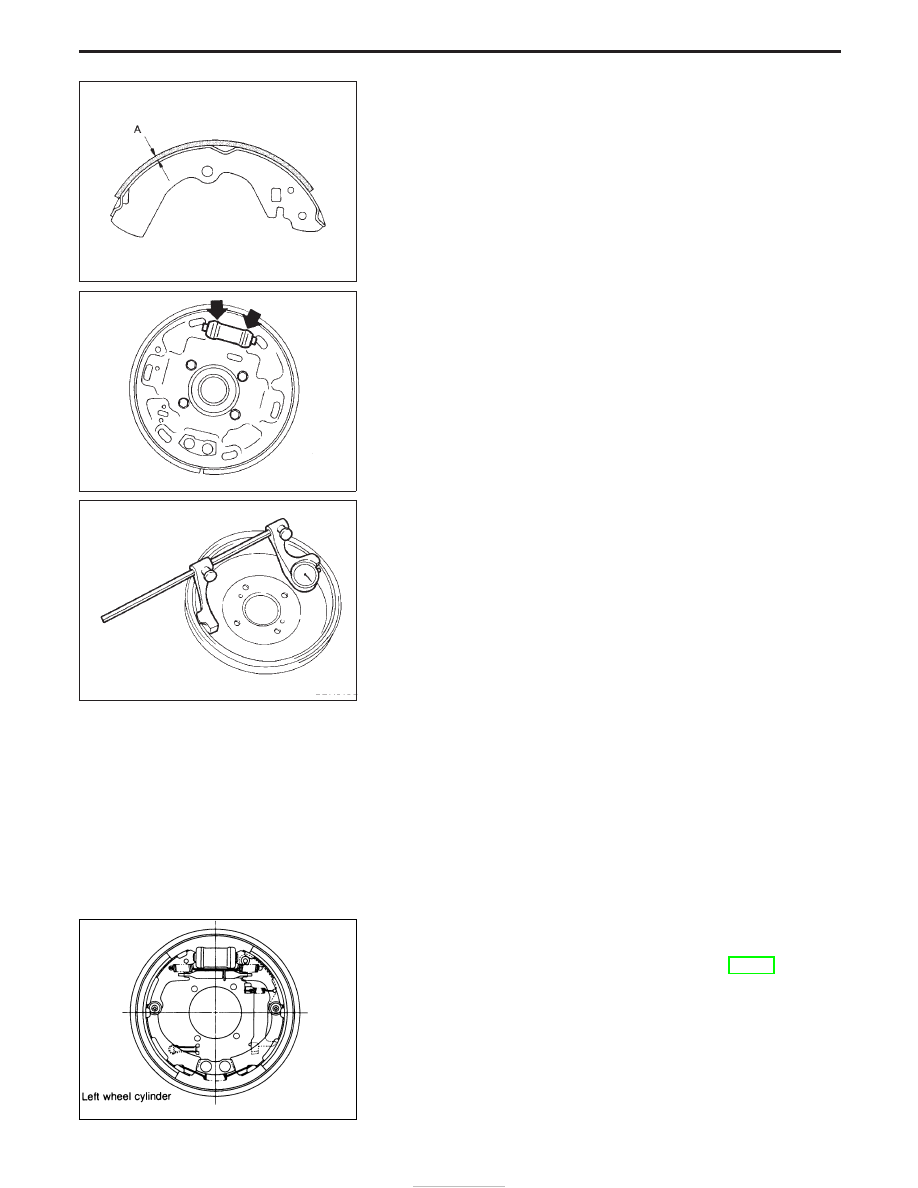

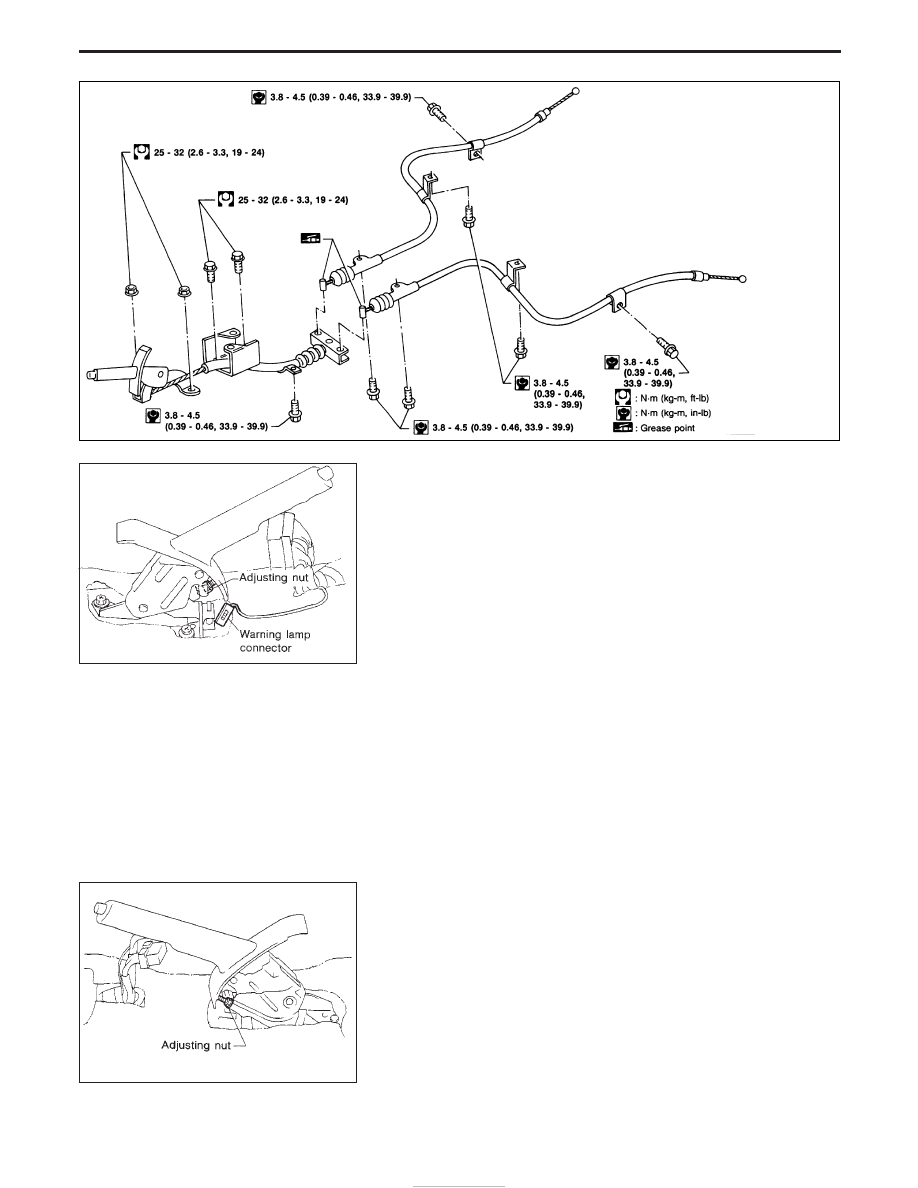

Shoe Replacement When installing new shoes, springs should be changed as well. Standard lining thickness: Trailing: 3.95 mm (0.156 in) Lining wear limit (A): 1.52 mm (0.0598 in) Inspection WHEEL CYLINDER I Check wheel cylinder for leakage. I Check for wear, damage and loose conditions. DRUM Maximum inner diameter: 282 mm (11.10 in) Out of roundness: 0.05 mm (0.019 in) or less I Contact surface should be fine finished with No. 120 to 150 I If any scratches or wear are detected, adjust the alignment of I After brake drum has been completely reconditioned or Installation Always perform shoe clearance adjustment. Refer to “Adjustment”, “PARKING BRAKE CONTROL”, BR-36. SBR021A SBR018C SBR019C EBR089 REAR DRUM BRAKE BR-34 |
