Nissan Terrano model r20 series 2004. Manual - part 298





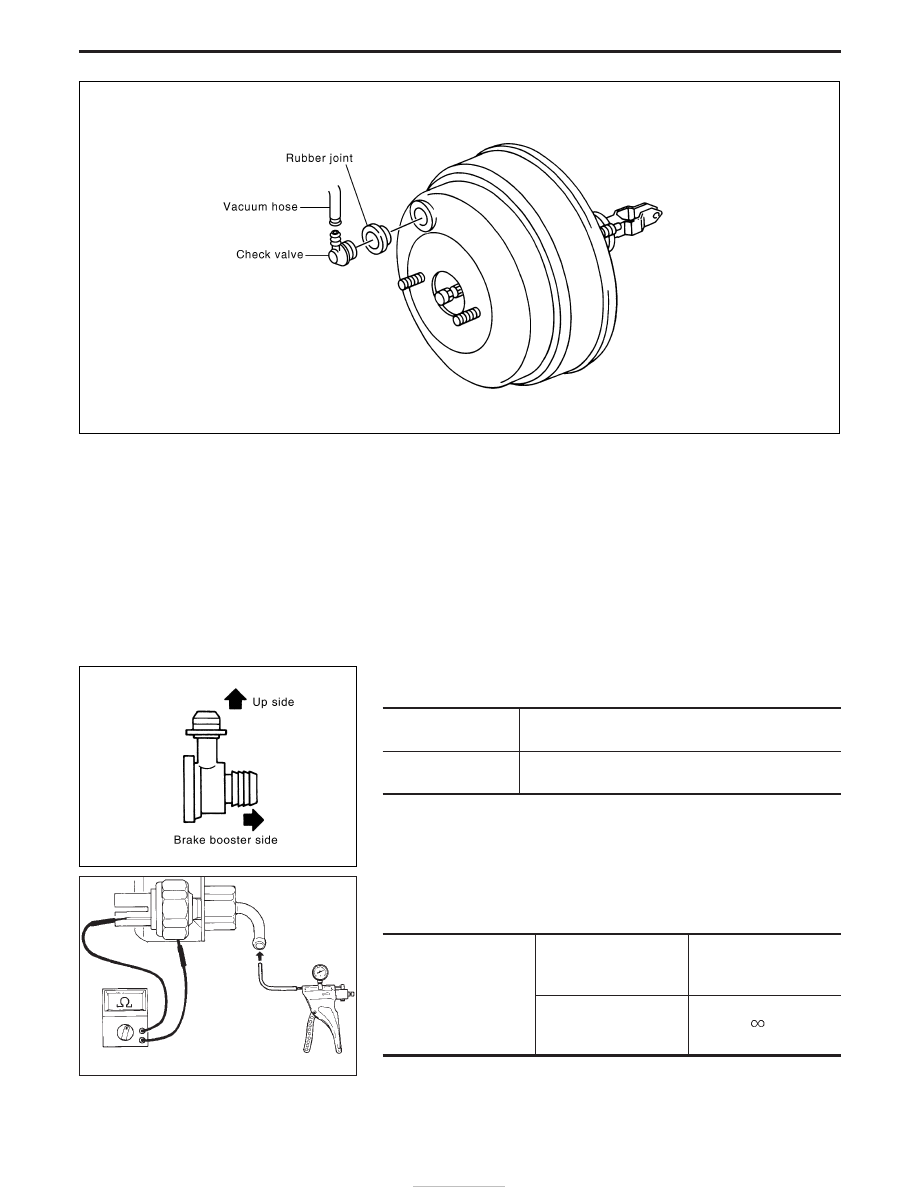

Inspection

HOSES AND CONNECTORS

I

Check condition of vacuum hoses and connectors.

I

Check vacuum hoses and check valve for air tightness.

CHECK VALVE

I

Check vacuum with a manual vacuum pump.

Connect to booster
side

Vacuum should exist.

Connect to engine
side

Vacuum should not exist.

VACUUM WARNING SWITCH

Test continuity though vacuum warning switch with an ohmmeter
and vacuum pump.

Vacuum

Less than 26.7 kPa

(267 mbar, 200 mmHg,

7.87 inHg)

0

33.3 kPa

(333 mbar, 250 mmHg,

9.84 inHg) or more

YBR447

YBR448

SBR007A

VACUUM HOSE

BR-22

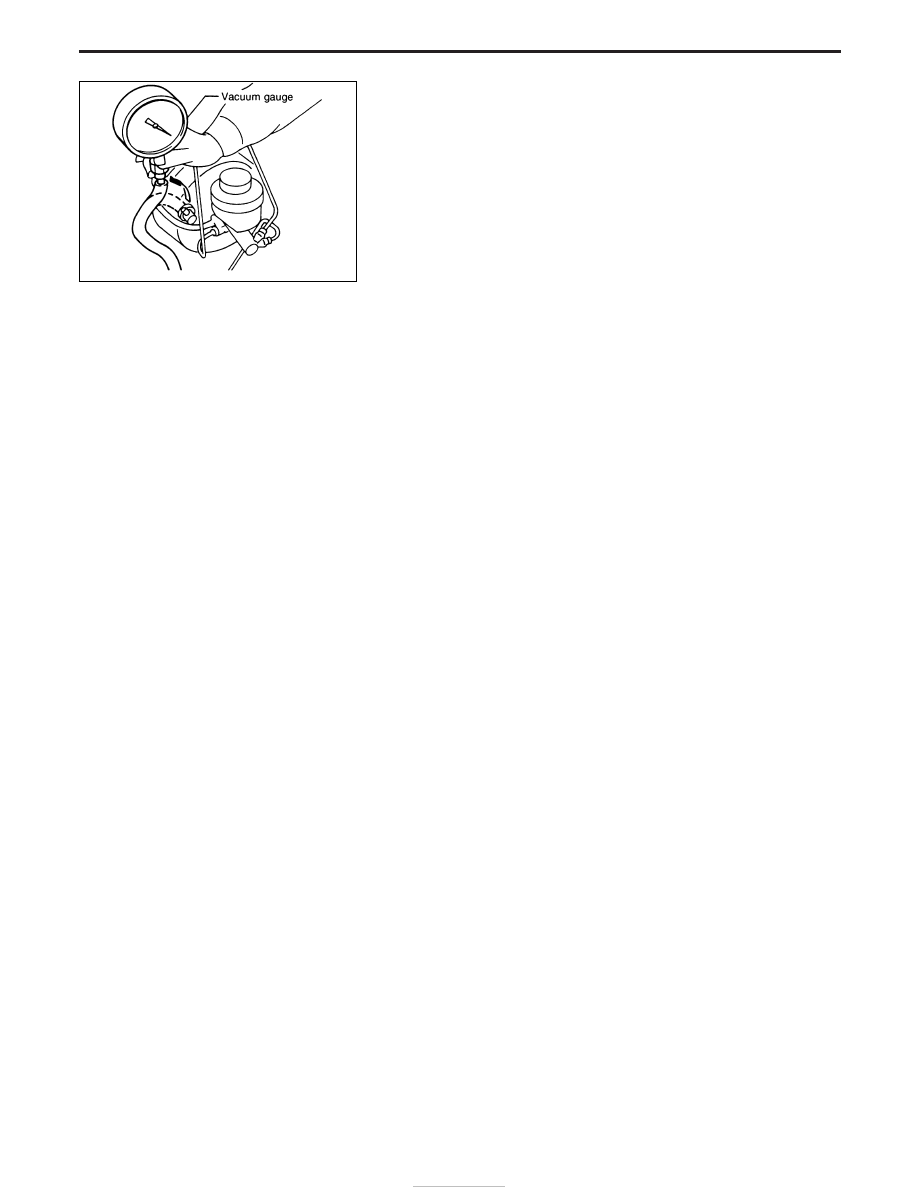

VACUUM PUMP (TD27Ti ENGINE)

1. Install vacuum gauge.
2. Run engine at 1,000 rpm or more.
3. Check vacuum.

Specified vacuum:

93.3 kPa
(933 mbar, 700 mmHg, 27.56 inHg) or more

VACUUM PUMP (ZD30DDTi ENGINE)

Refer to EM section, “INSPECTION” in “VACUUM PUMP —
Removal and Installation”.

NBR004

VACUUM HOSE

Inspection (Cont’d)

BR-23

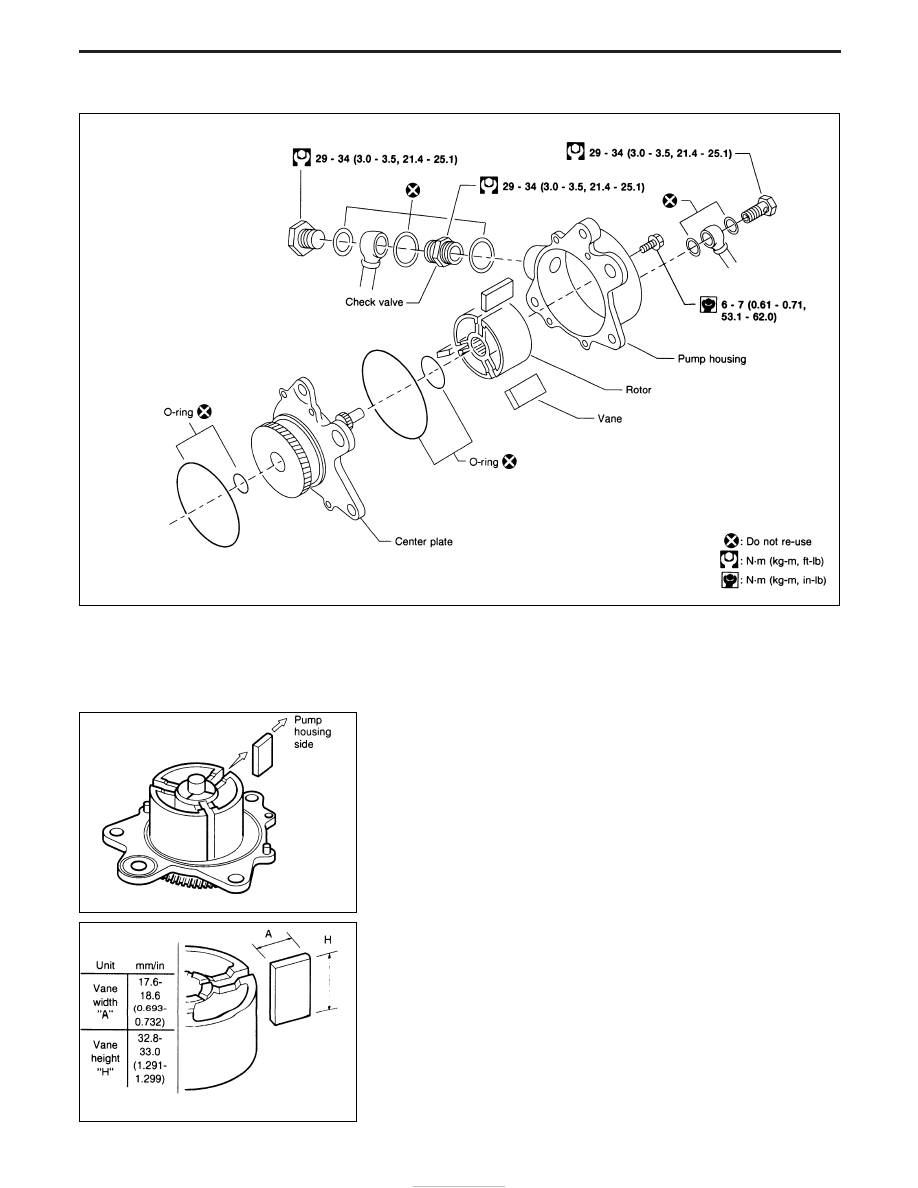

Removal and Installation

I

Drain oil from vacuum pump before removal.

Manually rotate fan belt clockwise to discharge any oil which
may have accumulated in vacuum pump.

I

Install vane so that its round surface faces pump housing.

I

After installing vacuum pump assembly, apply 5 m



(0.2 Imp fl

oz) of engine oil into vacuum pump assembly. Then, make sure
that pulley can be smoothly rotated by hand.

Inspection

Clean all parts and check them as follows:

I

Check for wear or scratches on mating surfaces of rotor and
vacuum pump housing and on rotor and center plate. If wear
or scratches are noted, replace those parts.

I

Check for wear or scratches on vanes. If necessary, replace.

NBR131

NBR132

NBR133

VACUUM PUMP (TD27Ti engine model)

BR-24

I

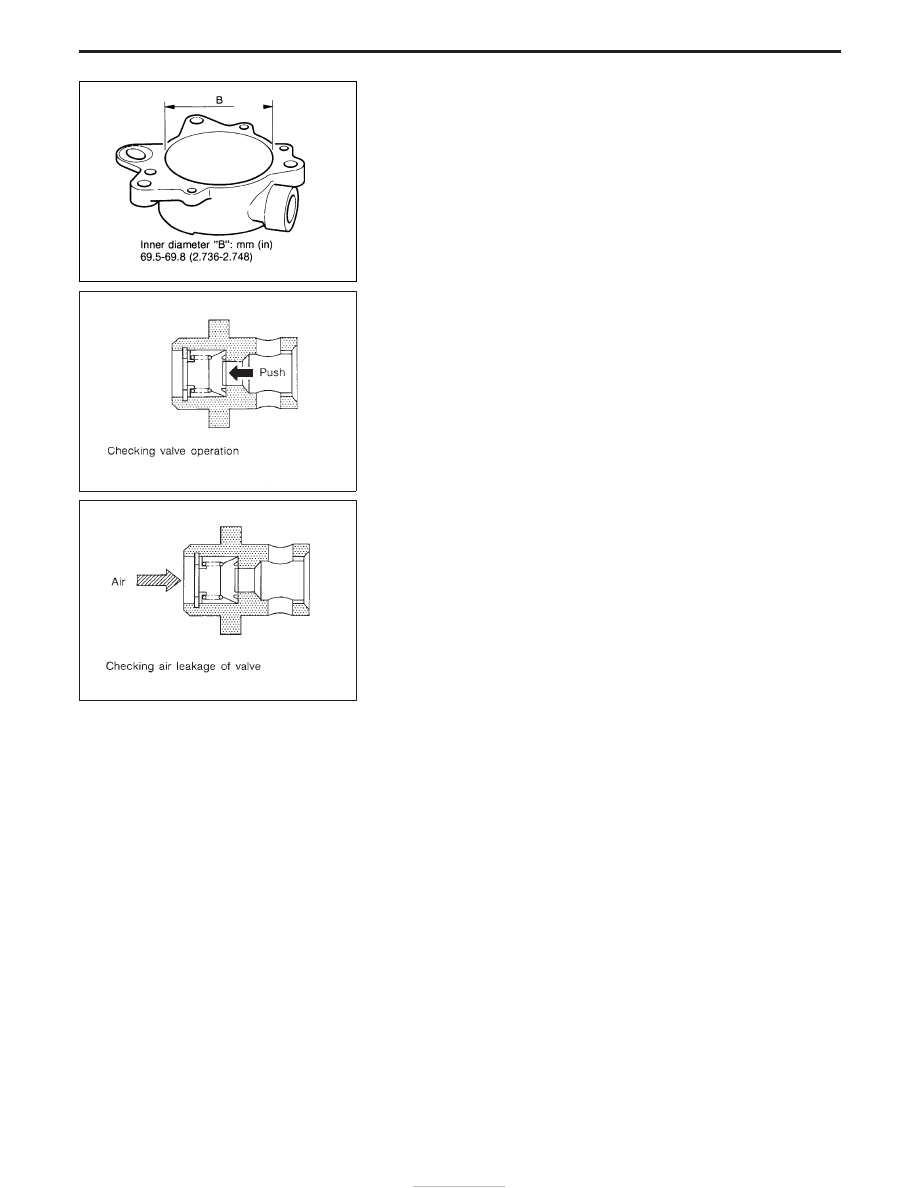

Check inner wall of vacuum pump housing for wear. If
necessary, replace.

I

Check rotor shaft for wear. If necessary, replace.

I

Check valve locations and copper washers for bends or defor-
mation. If necessary, replace.

I

Check that valve operates smoothly when slightly pushed.
Replace if necessary.

I

Check for air leakage with 98 to 490 kPa (1.0 to 4.9 bar, 1 to
5 kg/cm

2

, 14 to 71 psi) of air pressure.

Replace if necessary.

NBR134

SBR194

SBR195

VACUUM PUMP (TD27Ti engine model)

Inspection (Cont’d)

BR-25
