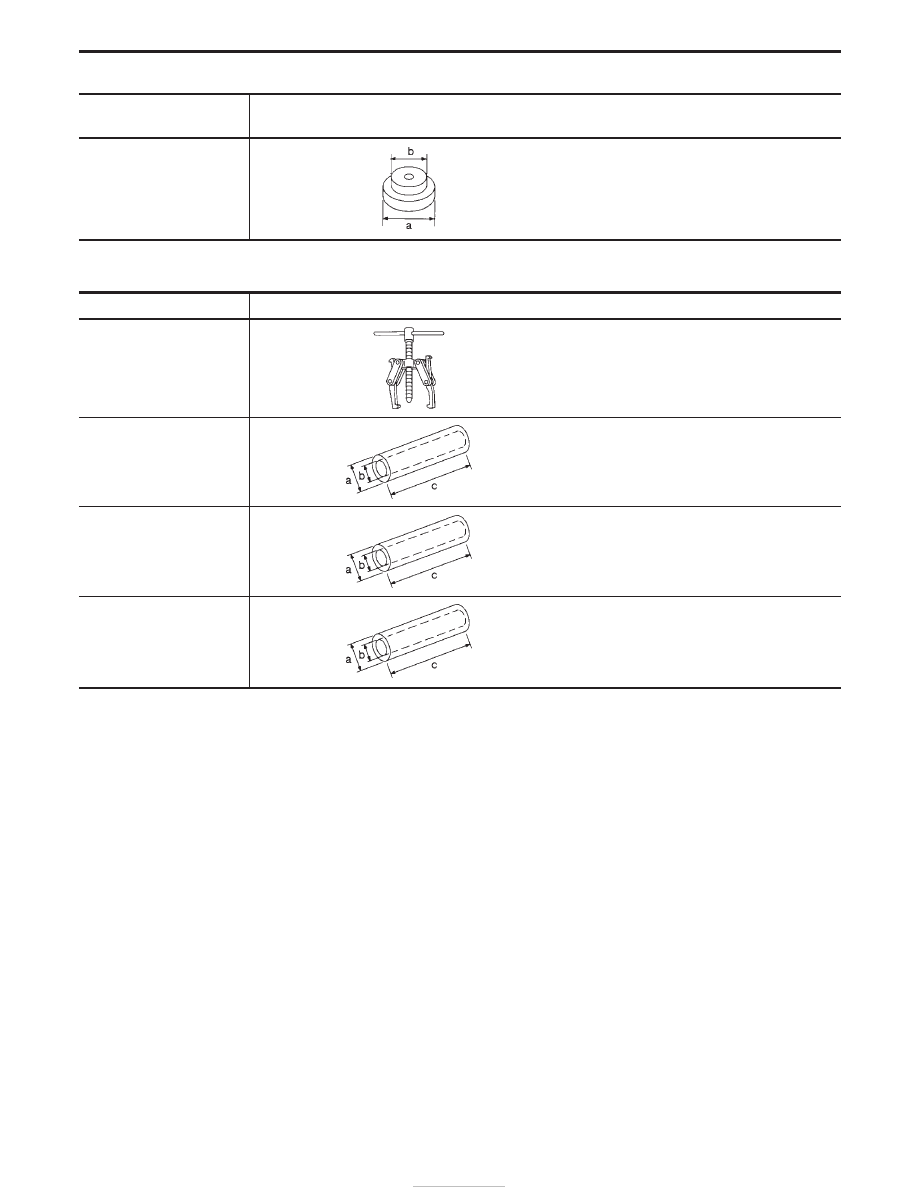

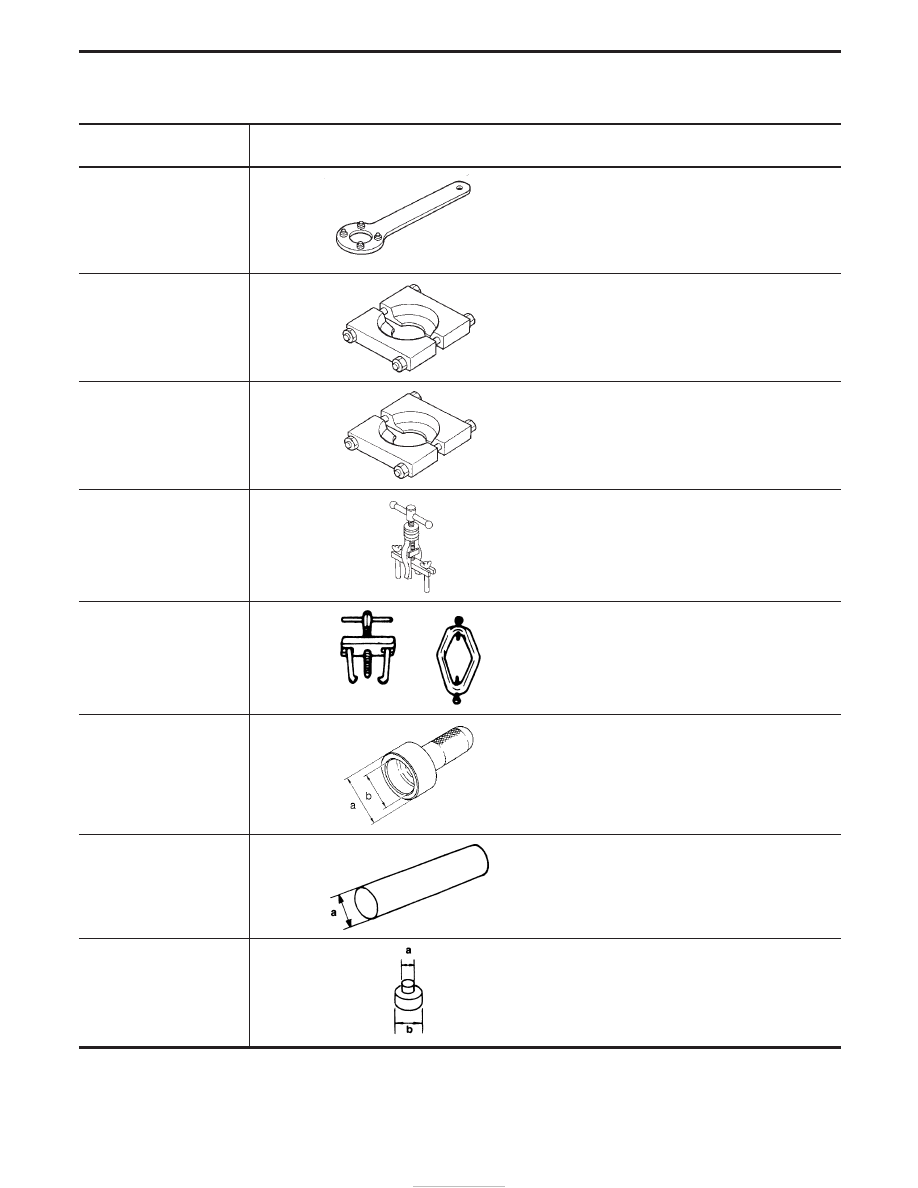

OIL PUMP AND LOW ONE-WAY CLUTCH
Oil pump clearance
mm (in)
Cam ring — oil pump housing
Standard
0.01 - 0.024 (0.0004 - 0.0009)
Rotor, vanes and control piston
— oil pump housing
Standard
0.03 - 0.044 (0.0012 - 0.0017)
Seal ring clearance
mm (in)
Standard
0.10 - 0.25 (0.0039 - 0.0098)
Allowable limit
0.25 (0.0098)
TOTAL END PLAY
Total end play “T
1
”
0.25 - 0.55 mm
(0.0098 - 0.0217 in)
Thickness of oil pump
cover bearing race
Thickness
mm (in)
Part number
0.8 (0.031)
1.0 (0.039)
1.2 (0.047)
1.4 (0.055)
1.6 (0.063)
1.8 (0.071)
2.0 (0.079)
31435-41X01
31435-41X02
31435-41X03
31435-41X04
31435-41X05
31435-41X06
31435-41X07
REVERSE CLUTCH DRUM END PLAY
Reverse clutch drum
end play “T
2
”
0.55 - 0.90 mm
(0.0217 - 0.0354 in)
Thickness of oil pump
thrust washer
Thickness
mm (in)
Part number
0.9 (0.035)
1.1 (0.043)
1.3 (0.051)
1.5 (0.059)
1.7 (0.067)
1.9 (0.075)
31528-21X01
31528-21X02
31528-21X03
31528-21X04
31528-21X05
31528-21X06
REMOVAL AND INSTALLATION
Manual control linkage
Number of returning revolutions
for lock nut
2
Lock nut tightening torque
N
⋅
m (kg-m, in-lb)
4.4 - 5.9
(0.45 - 0.60, 39.1 - 52.1)
Distance between end of converter
housing and torque converter
mm (in)
26.0 (1.024) or more
