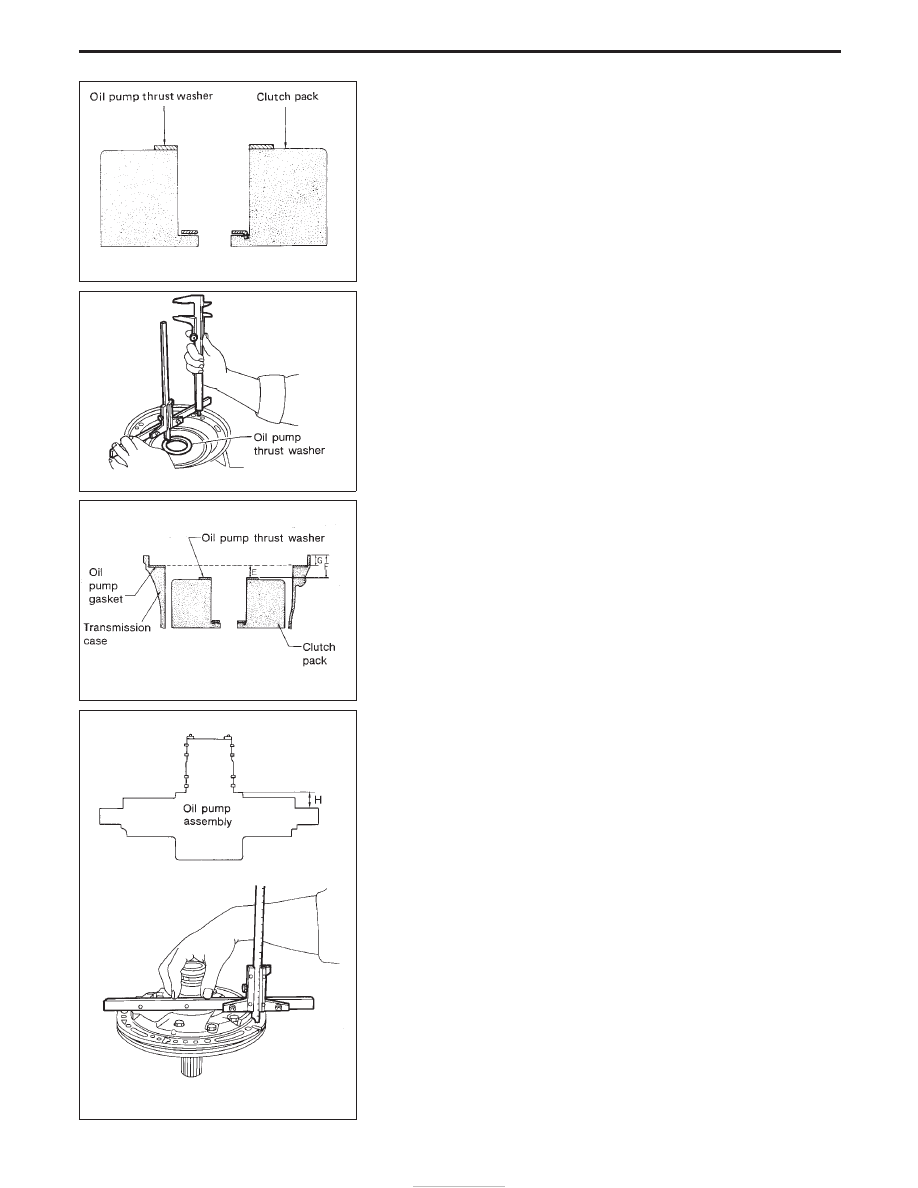

2. Adjust reverse clutch drum end play.
a. Install oil pump thrust washer on clutch pack.

b. Measure distance “F” between front end of transmission case

and oil pump thrust washer.

c. Measure distance “G” between front end of transmission case

and gasket.

d. Determine dimension “E” by using the following equation.

E = F − G

e. Measure distance “H”.

SAT212B

SAT213B

SAT214B

SAT215B

ASSEMBLY

Adjustment (Cont’d)

AT-192

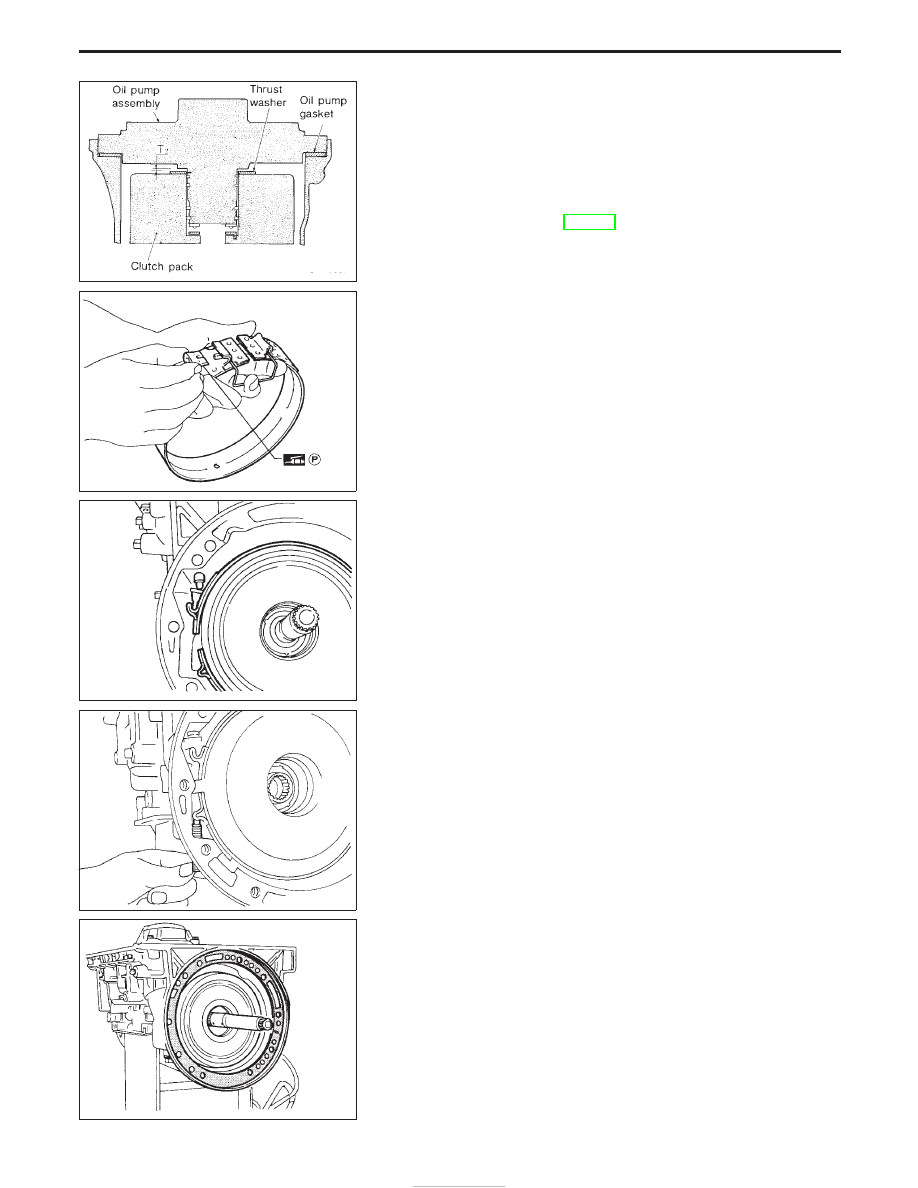

f.

Determine reverse clutch drum end play “T

2

” by using the fol-

lowing equation.

T

2

= E − H − 0.1

Reverse clutch drum end play “T

2

”:

0.55 - 0.90 mm (0.0217 - 0.0354 in)

I

If end play is out of specification, decrease or increase thick-
ness of oil pump thrust washer as necessary.

Available oil pump thrust washer:

Refer to SDS, AT-204.

Assembly (2)

1. Install brake band and band strut.
a. Install band strut on brake band.

I

Apply petroleum jelly to band strut.

b. Place brake band on periphery of reverse clutch drum, and

insert band strut into end of band servo piston stem.

c. Install anchor end bolt on transmission case. Then, tighten

anchor end bolt just enough so that reverse clutch drum (clutch
pack) will not tilt forward.

2. Install input shaft on transmission case.

I

Pay attention to its direction — O-ring groove side is front.

3. Install gasket on transmission case.

SAT980A

SAT985A

SAT986A

SAT987A

SAT988A

ASSEMBLY

Adjustment (Cont’d)

AT-193

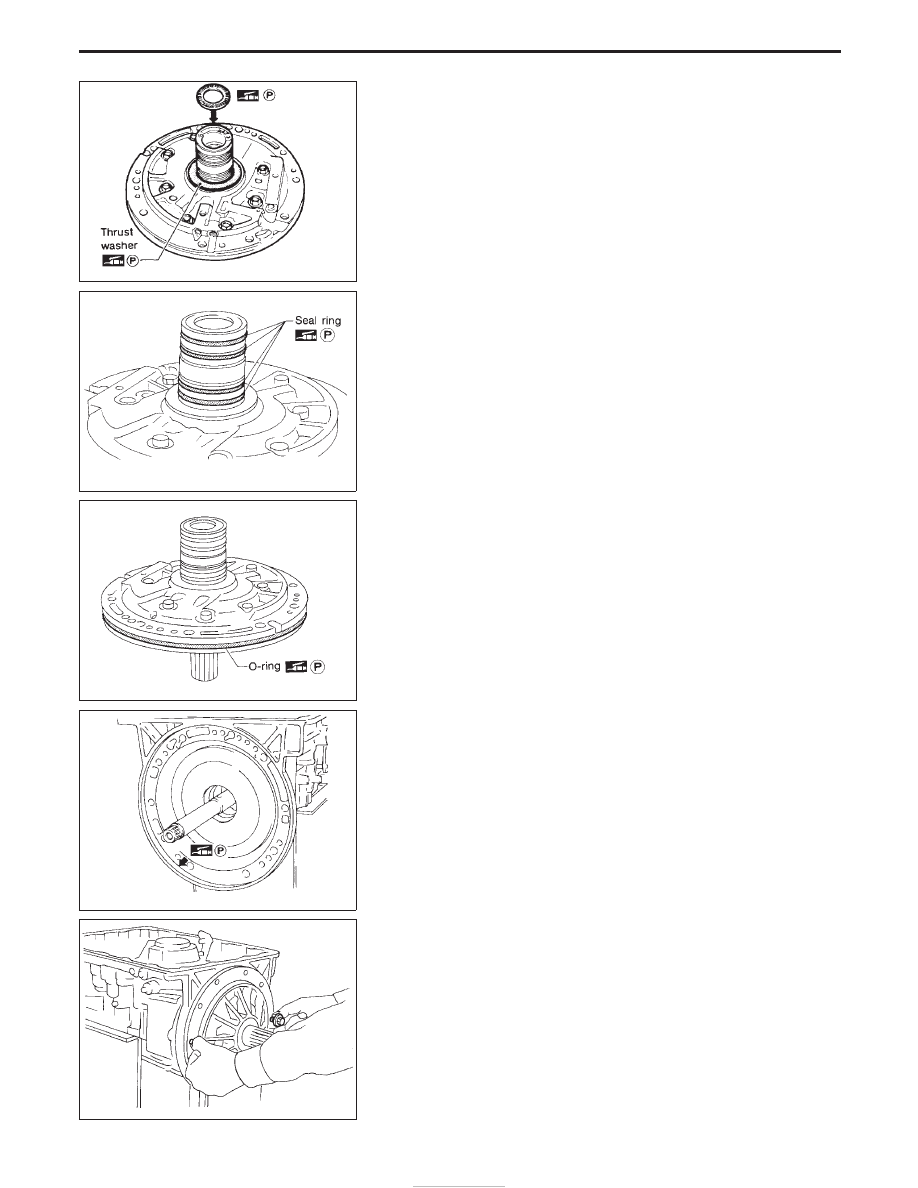

4. Install oil pump assembly.
a. Install needle bearing on oil pump assembly.

I

Apply petroleum jelly to the needle bearing.

b. Install selected thrust washer on oil pump assembly.

I

Apply petroleum jelly to thrust washer.

c. Carefully install seal rings into grooves and press them into the

petroleum jelly so that they are a tight fit.

d. Install O-ring on oil pump assembly.

I

Apply petroleum jelly to O-ring.

e. Apply petroleum jelly to mating surface of transmission case

and oil pump assembly.

f.

Install oil pump assembly.

I

Install two converter housing securing bolts in bolt holes
in oil pump assembly as guides.

SAT989A

SAT990A

SAT991A

SAT992A

SAT993A

ASSEMBLY

Assembly (2) (Cont’d)

AT-194

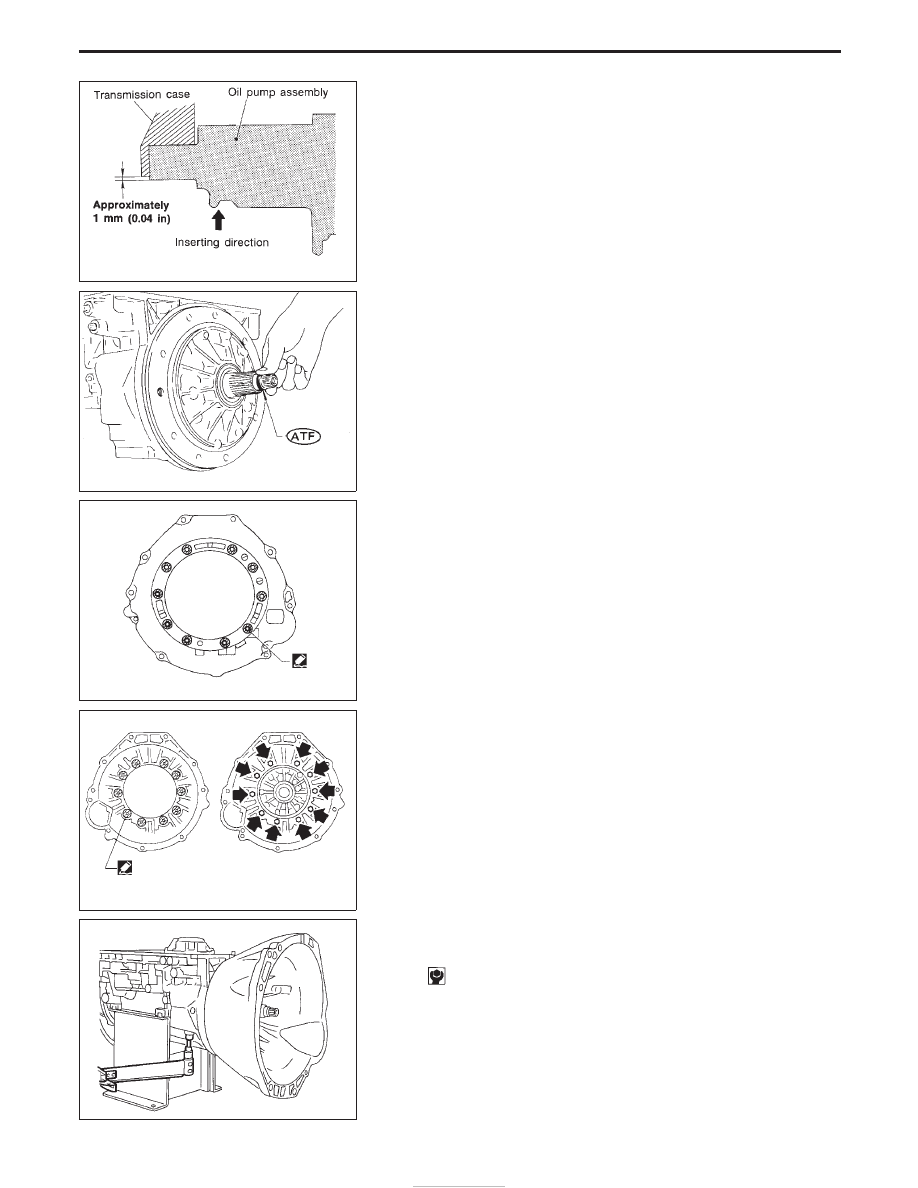

I

Insert oil pump assembly to the specified position in
transmission, as shown at left.

5. Install O-ring on input shaft.

I

Apply ATF to O-rings.

6. Install converter housing.
a. Apply recommended sealant (Nissan genuine part: KP610-

00250 or equivalent) to outer periphery of bolt holes in con-
verter housing.

I

Do not apply too much sealant.

b. Apply recommended sealant (Nissan genuine part: KP610-

00250 or equivalent) to seating surfaces of bolts that secure
front of converter housing.

c. Install converter housing on transmission case.

7. Adjust brake band.
a. Tighten anchor end bolt to specified torque.

Anchor end bolt:

: 4 - 6 N

m

(0.4 - 0.6 kg-m, 35 - 52 in-lb)

b. Back off anchor end bolt two and a half turns.

SAT994A

SAT114B

SAT397C

SAT158G

SAT001B

ASSEMBLY

Assembly (2) (Cont’d)

AT-195
