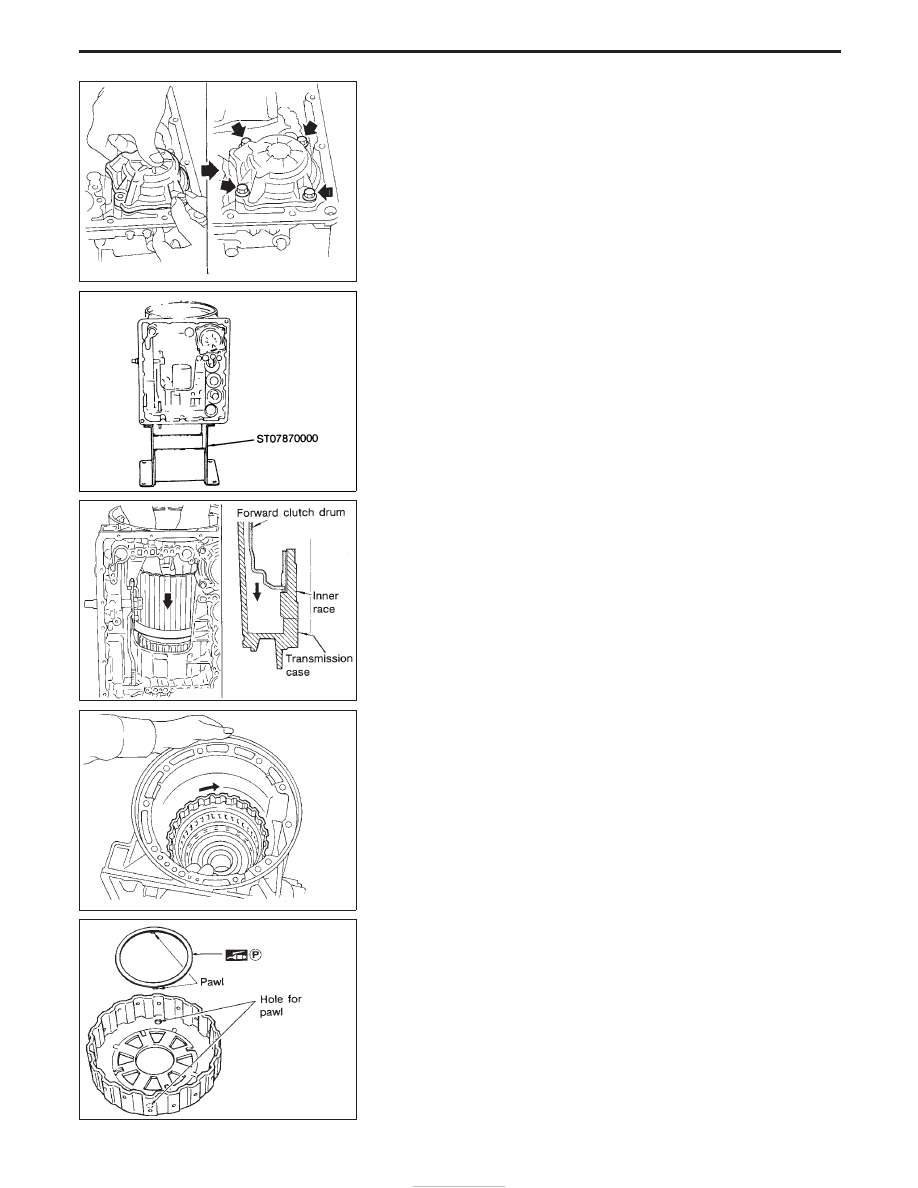

d. Install band servo retainer onto transmission case.

4. Install rear side clutch and gear components.
a. Place transmission case in vertical position.

b. Slightly lift forward clutch drum assembly. Then slowly rotate it

clockwise until its hub passes fully over clutch inner race inside
transmission case.

c. Check to be sure that rotation direction of forward clutch

assembly is correct.

d. Install thrust washer onto front of overrun clutch hub.

I

Apply petroleum jelly to the thrust washer.

I

Insert pawls of thrust washer securely into holes in over-
run clutch hub.

SAT940A

NAT303

SAT944A

SAT945A

SAT946A

ASSEMBLY

Assembly (1) (Cont’d)

AT-184

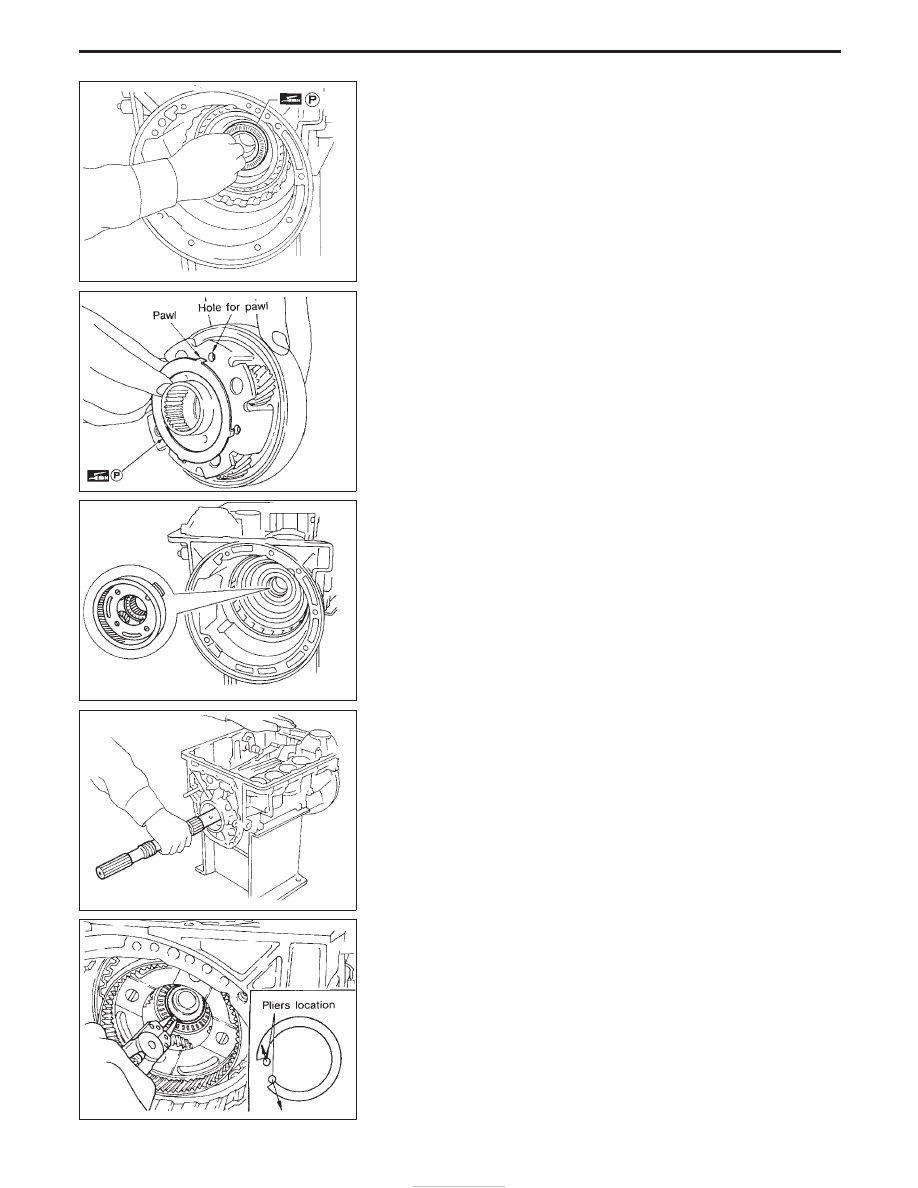

e. Install overrun clutch hub onto rear internal gear assembly.

f.

Install needle bearing onto rear of overrun clutch hub.

I

Apply petroleum jelly to needle bearing.

g. Check that overrun clutch hub rotates as shown while holding

forward clutch hub.

h. Place transmission case into horizontal position.

i.

Install rear internal gear, forward clutch hub and overrun clutch
hub as a unit onto transmission case.

SAT947A

SAT948A

SAT949A

NAT304

SAT951A

ASSEMBLY

Assembly (1) (Cont’d)

AT-185

j.

Install needle bearing onto rear internal gear.

I

Apply petroleum jelly to needle bearing.

k. Install bearing race onto rear of front internal gear.

I

Apply petroleum jelly to bearing race.

I

Securely engage pawls of bearing race with holes in front
internal gear.

l.

Install front internal gear on transmission case.

5. Install output shaft and parking gear.
a. Insert output shaft from rear of transmission case while slightly

lifting front internal gear.

I

Do not force output shaft against front of transmission
case.

b. Carefully push output shaft against front of transmission case.

Install snap ring on front of output shaft.

I

Check to be sure output shaft cannot be removed in rear
direction.

SAT952A

SAT953A

SAT954A

SAT216B

SAT957A

ASSEMBLY

Assembly (1) (Cont’d)

AT-186

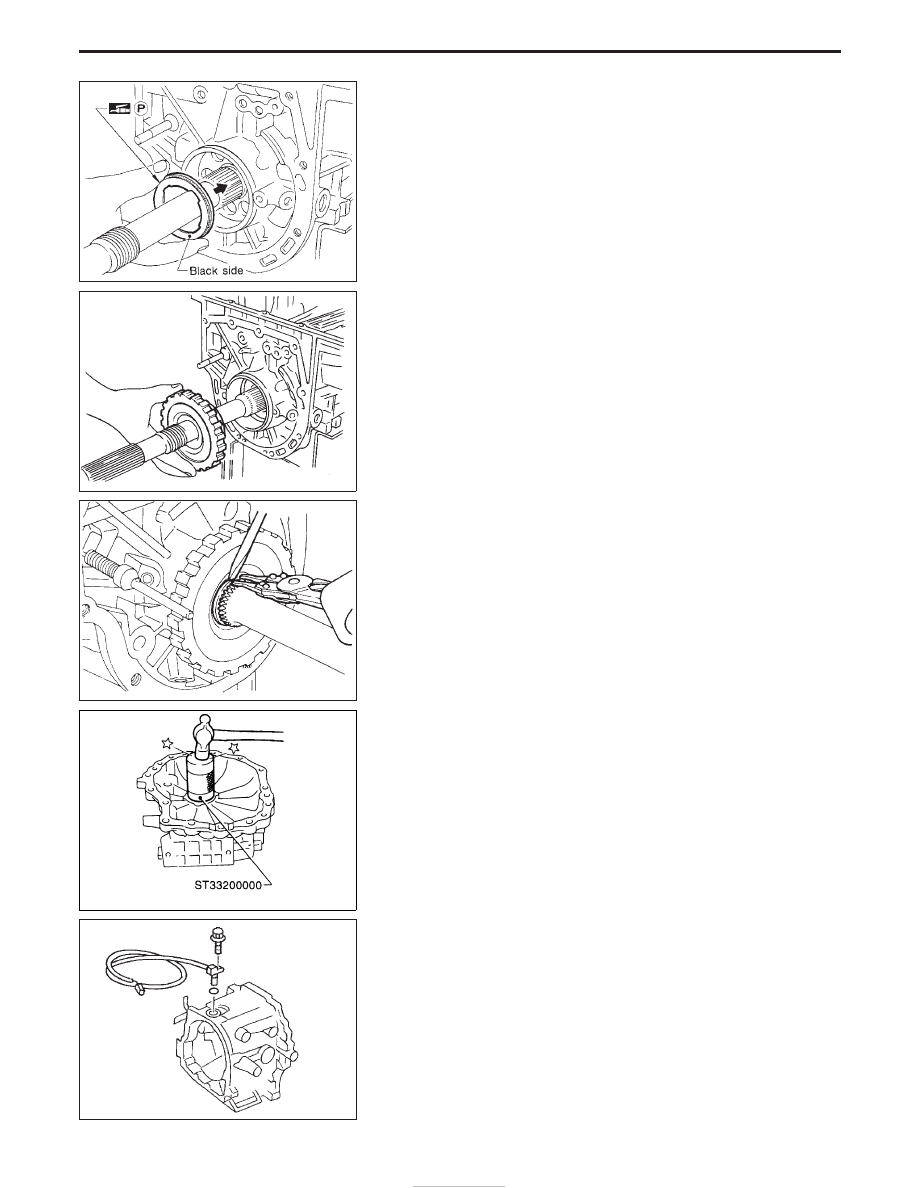

c. Install needle bearing on transmission case.

I

Pay attention to its direction — Black side goes to rear.

I

Apply petroleum jelly to needle bearing.

d. Install parking gear on transmission case.

e. Install snap ring on rear of output shaft.

I

Check to be sure output shaft cannot be removed in for-
ward direction.

6. Install adapter case.
a. Install oil seal on adapter case.

I

Apply ATF to oil seal.

b. Install O-ring on revolution sensor.

I

Apply ATF to O-ring.

c. Install revolution sensor on adapter case.

SAT217B

SAT218B

SAT960A

NAT305

SAT757I

ASSEMBLY

Assembly (1) (Cont’d)

AT-187
