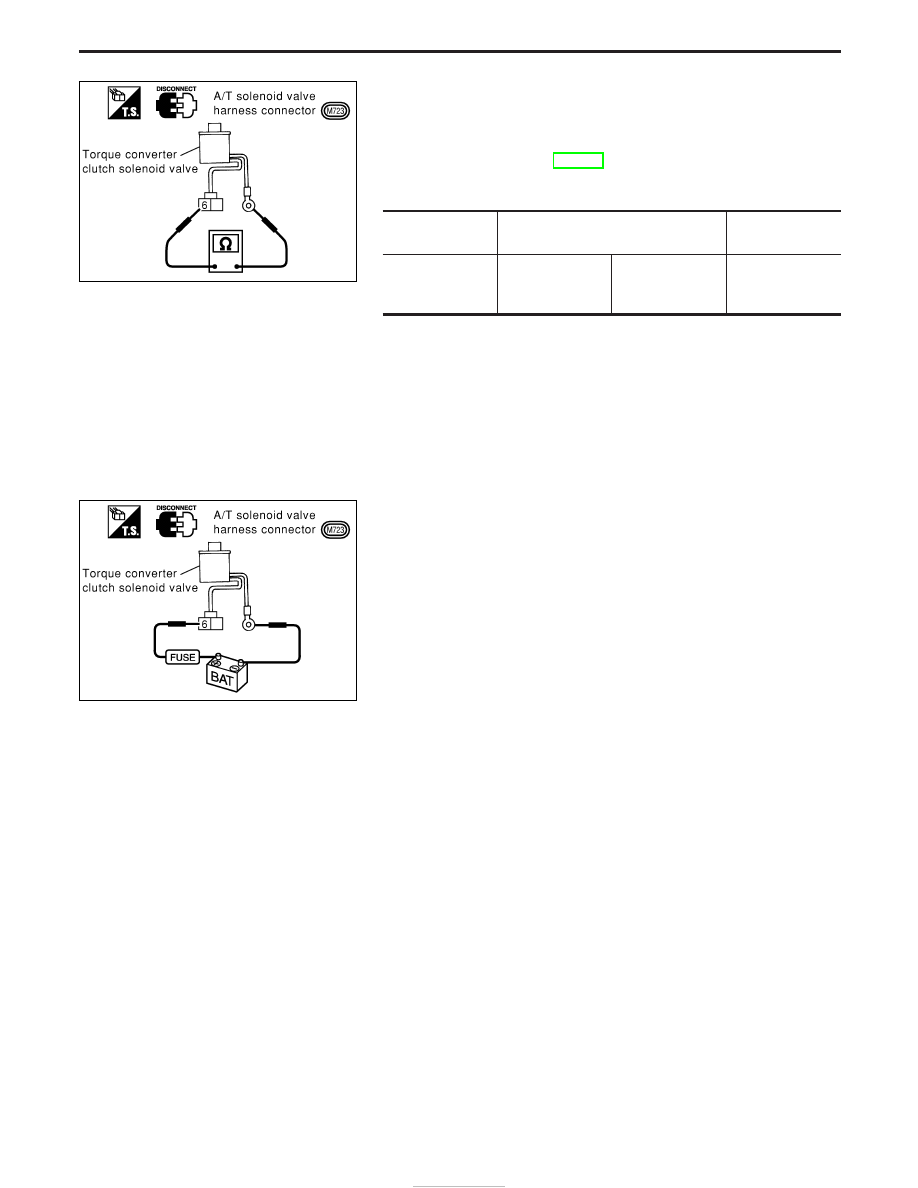

COMPONENT INSPECTION

Torque converter clutch solenoid valve

I

For removal, refer to AT-144.

Resistance check

I

Check resistance between terminal

q

6

and ground.

Solenoid valve

Terminal No.

Resistance

(Approx.)

Torque converter
clutch solenoid
valve

q

6

Ground

10 - 20

Ω

Operation check

I

Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal

q

6

and ground.

YAT314

YAT315

TROUBLE DIAGNOSIS FOR T/C CLUTCH SOL/V

Torque Converter Clutch Solenoid Valve
(Cont’d)

AT-76

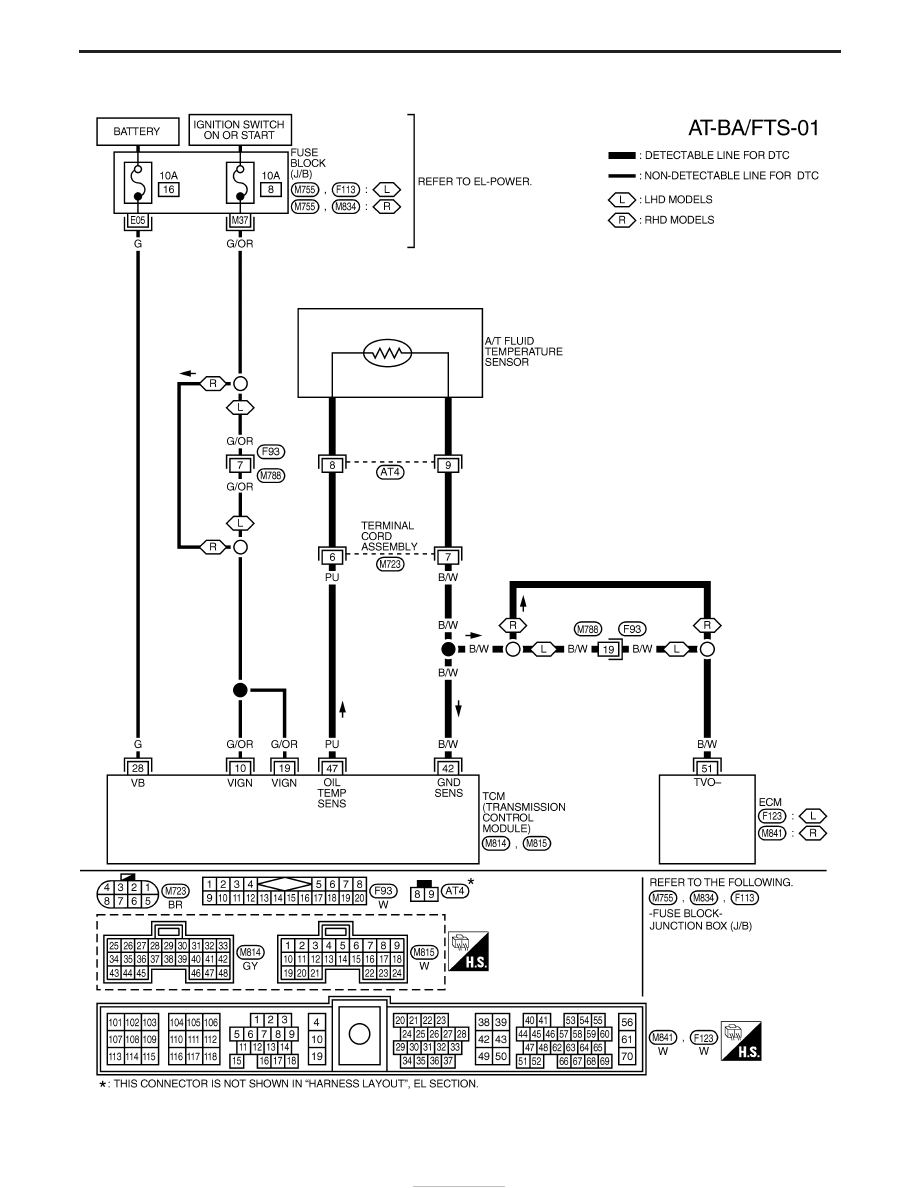

Wiring Diagram — AT — BA/FTS

YAT403

TROUBLE DIAGNOSIS FOR BATT/FLUID TEMP SEN

AT-77

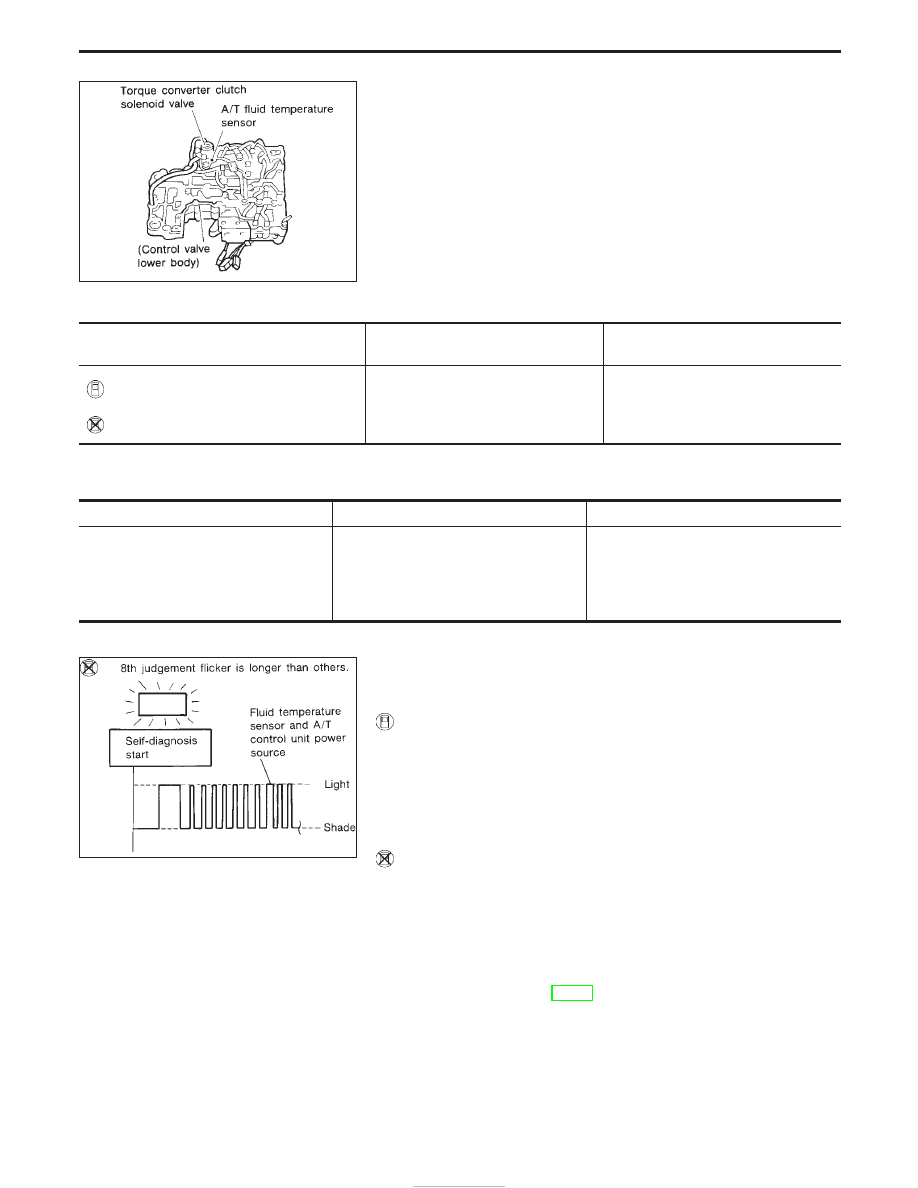

A/T Fluid Temperature Sensor and TCM Power
Source

DESCRIPTION

The A/T fluid temperature sensor detects the A/T fluid temperature
and sends a signal to the TCM.

ON BOARD DIAGNOSIS LOGIC

Diagnostic trouble code

Malfunction is detected when ...

Check items

(Possible cause)

:

BATT/FLUID TEMP SEN

TCM receives an excessively low or
high voltage from the sensor.

I

Harness or connectors
(The sensor circuit is open or
shorted.)

I

A/T fluid temperature sensor

:

8th judgement flicker

CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE

Remarks: Specification data are reference values.

Monitor item

Condition

Specification

A/T fluid temperature sensor

Cold [20°C (68°F)]

"

Hot [80°C (176°F)]

Approximately

1.5V

"

Approximately

0.5V

SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE

After the repair, perform the following procedure to confirm the
malfunction is eliminated.

1)

Start engine.

2)

Select “SELF-DIAG RESULTS” mode with CONSULT-II.

3)

Drive vehicle under the following conditions:
Selector lever in “D” position, vehicle speed higher than
10 km/h (6 MPH), throttle opening greater than 1/8 of the
full open position, engine speed higher than 450 rpm
and driving for more than 10 minutes.

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ OR ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

1)

Start engine.

2)

Drive vehicle under the following conditions:
Selector lever in “D” position, vehicle speed higher than
10 km/h (6 MPH), throttle opening greater than 1/8 of the
full open position, engine speed higher than 450 rpm
and driving for more than 10 minutes.

3)

Perform self-diagnosis.
Refer to SELF-DIAGNOSTIC PROCEDURE (Without
CONSULT-II), AT-15.

SAT342HA

SAT821H

TROUBLE DIAGNOSIS FOR BATT/FLUID TEMP SEN

AT-78

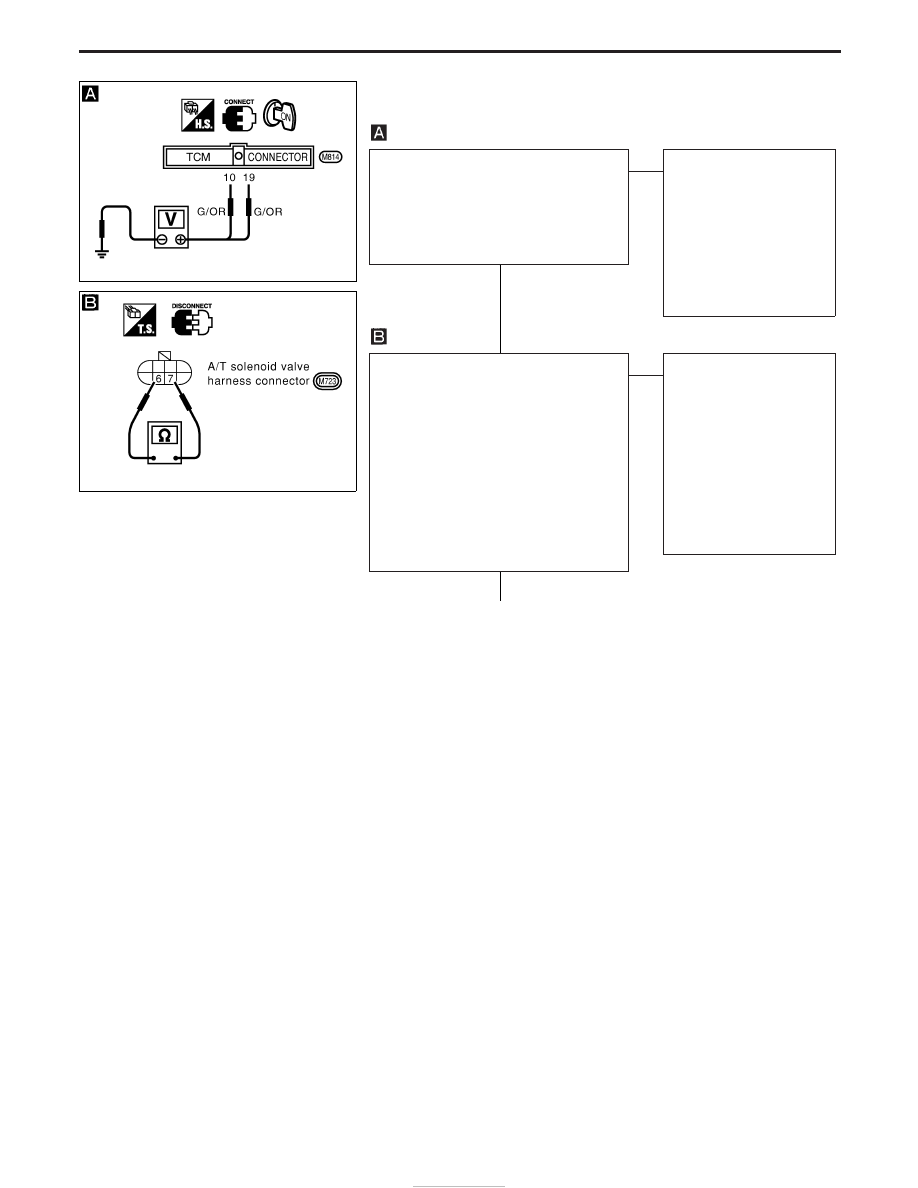

DIAGNOSTIC PROCEDURE

CHECK TCM POWER SOURCE.
1. Turn ignition switch to “ON” position.

(Do not start engine.)

2. Check voltage between TCM terminals

q

10

,

q

19

and ground.

Battery voltage should exist.

OK

E

NG

Check the following items:

I

Harness for short or
open between ignition
switch and TCM (Main
harness)

I

Ignition switch and fuse
Refer to EL section
(“POWER SUPPLY
ROUTING”).

CHECK A/T FLUID TEMPERATURE
SENSOR WITH TERMINAL CORD
ASSEMBLY.
1. Turn ignition switch to “OFF” position.
2. Disconnect terminal cord assembly

connector in engine compartment.

3. Check resistance between terminals

q

6

and

q

7

when A/T is cold.

Resistance:

Cold [20°C (68°F)]

Approximately 2.5 k

Ω

4. Reinstall any part removed.

OK

E

NG

1. Remove oil pan.
2. Check the following

items:

I

A/T fluid temperature
sensor
Refer to “COMPONENT
INSPECTION” on next
page.

I

Harness of terminal cord
assembly for short or
open

q

A

(Go to next page.)

YAT418

YAT317

H

H

TROUBLE DIAGNOSIS FOR BATT/FLUID TEMP SEN

A/T Fluid Temperature Sensor and TCM Power
Source (Cont’d)

AT-79
