Nissan Terrano model r20 series 2004. Manual - part 221





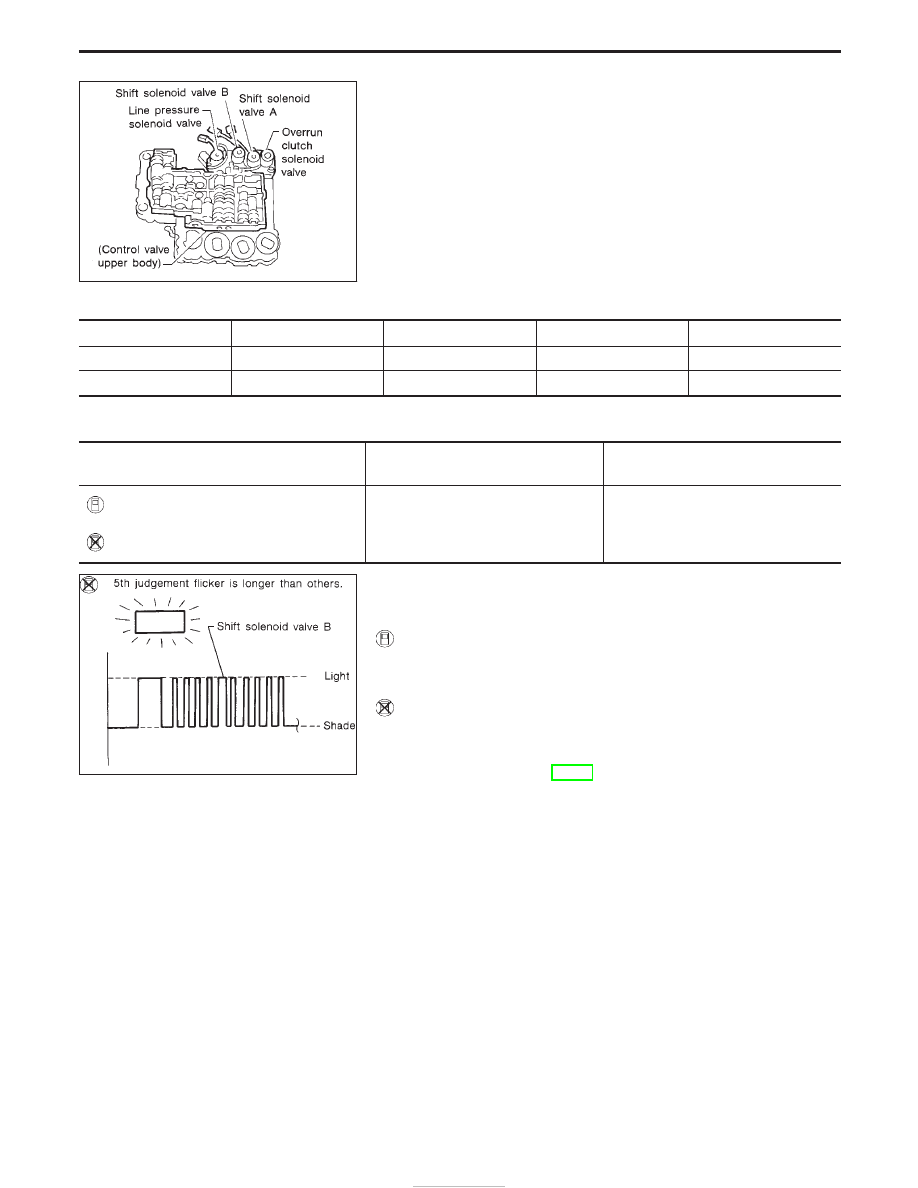

Shift Solenoid Valve B

DESCRIPTION

Shift solenoid valves A and B are turned “ON” or “OFF” by the TCM
in response to signals sent from the park/neutral position switch,
vehicle speed and throttle (accelerator) position sensors. Gears will
then be shifted to the optimum position.

Gear position

1

2

3

4

Shift solenoid valve A

ON

OFF

OFF

ON

Shift solenoid valve B

ON

ON

OFF

OFF

ON BOARD DIAGNOSIS LOGIC

Diagnostic trouble code

Malfunction is detected when ...

Check items

(Possible cause)

:

SHIFT SOLENOID/V B

TCM detects an improper voltage drop
when it tries to operate the solenoid
valve.

I

Harness or connectors
(The solenoid circuit is open or
shorted.)

I

Shift solenoid valve B

:

5th judgement flicker

SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE

After the repair, perform the following procedure to confirm the
malfunction is eliminated.

1)

Start engine.

2)

Select “SELF-DIAG RESULTS” mode with CONSULT-II.

3)

Drive vehicle in D

1

,

D

2

,

D

3

position.

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ OR ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

1)

Start engine.

2)

Drive vehicle in D

1

,

D

2

,

D

3

position.

3)

Perform self-diagnosis.
Refer to SELF-DIAGNOSTIC PROCEDURE (Without
CONSULT-II), AT-15.

SAT341H

SAT812H

TROUBLE DIAGNOSIS FOR SHIFT SOLENOID/V B

AT-68

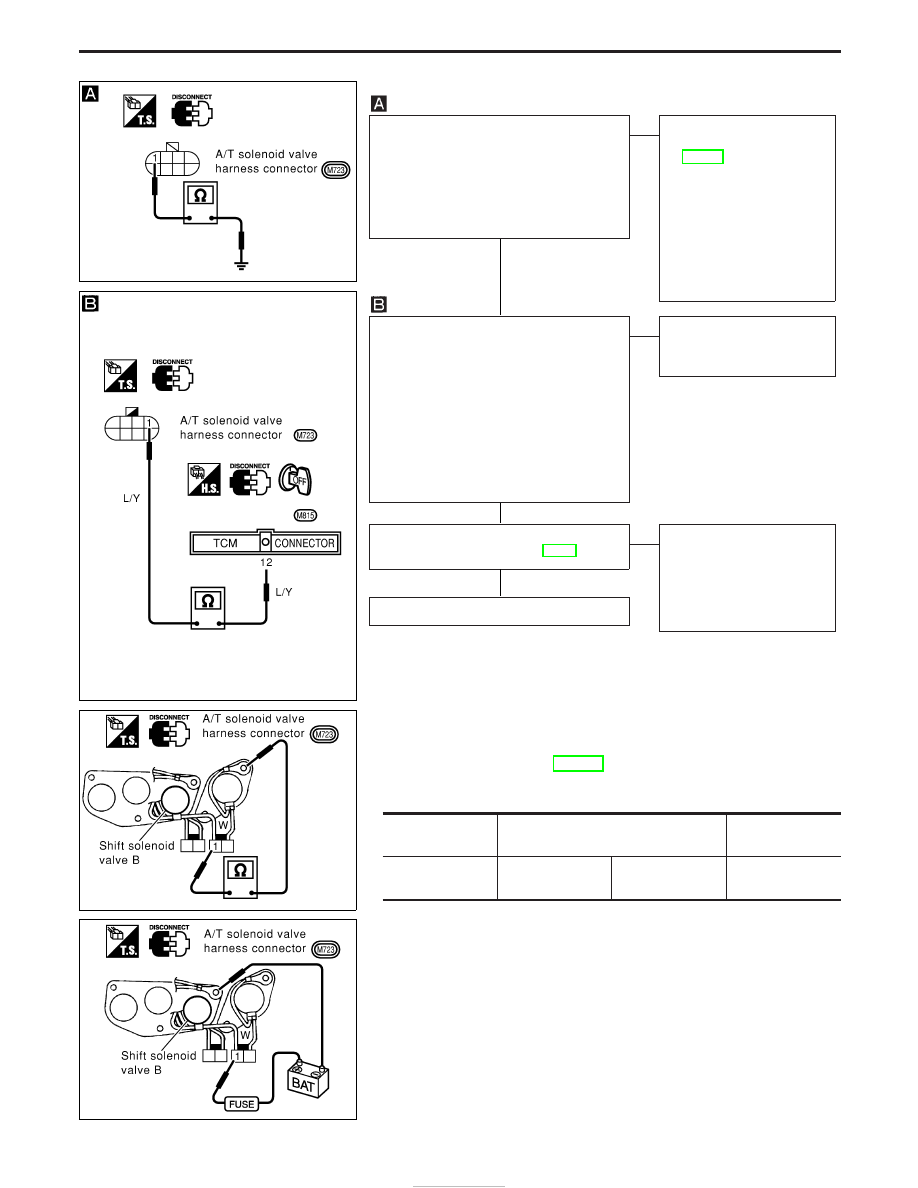

DIAGNOSTIC PROCEDURE

CHECK GROUND CIRCUIT.
1. Turn ignition switch to “OFF” position.
2. Disconnect terminal cord assembly con-

nector in engine compartment.

3. Check resistance between terminal

q

1

and ground.
Resistance: 20 - 40

OK

E

NG

1. Remove control valve

assembly. Refer to
AT-144.

2. Check the following

items:

I

Shift solenoid valve B
Refer to “COMPONENT
INSPECTION” below.

I

Harness of terminal cord
assembly for short or
open

CHECK POWER SOURCE CIRCUIT.
1. Turn ignition switch to “OFF” position.
2. Disconnect TCM harness connector.
3. Check resistance between terminal

q

1

and TCM harness connector terminal

q

12

.

Resistance:

Approximately 0

If OK, check harness for short to
ground and short to power.

4. Reinstall any part removed.

OK

E

NG

Repair open circuit or short
to ground or short to power
in harness or connector.

Perform “SELF-DIAGNOSIS CODE CON-
FIRMATION PROCEDURE”, AT-68.

OK

E

NG

1. Perform TCM input/

output signal inspection.

2. If NG, recheck TCM pin

terminals for damage or
loose connection with
harness connector.

INSPECTION END

COMPONENT INSPECTION

Shift solenoid valve B

I

For removal, refer to AT-144.

Resistance check

I

Check resistance between terminal

q

1

and ground.

Solenoid valve

Terminal No.

Resistance

(Approx.)

Shift solenoid
valve B

q

1

Ground

20 - 40

Operation check

I

Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal

q

1

and ground.

YAT304

YAT305

YAT306

YAT307

H

H

H

TROUBLE DIAGNOSIS FOR SHIFT SOLENOID/V B

Shift Solenoid Valve B (Cont’d)

AT-69

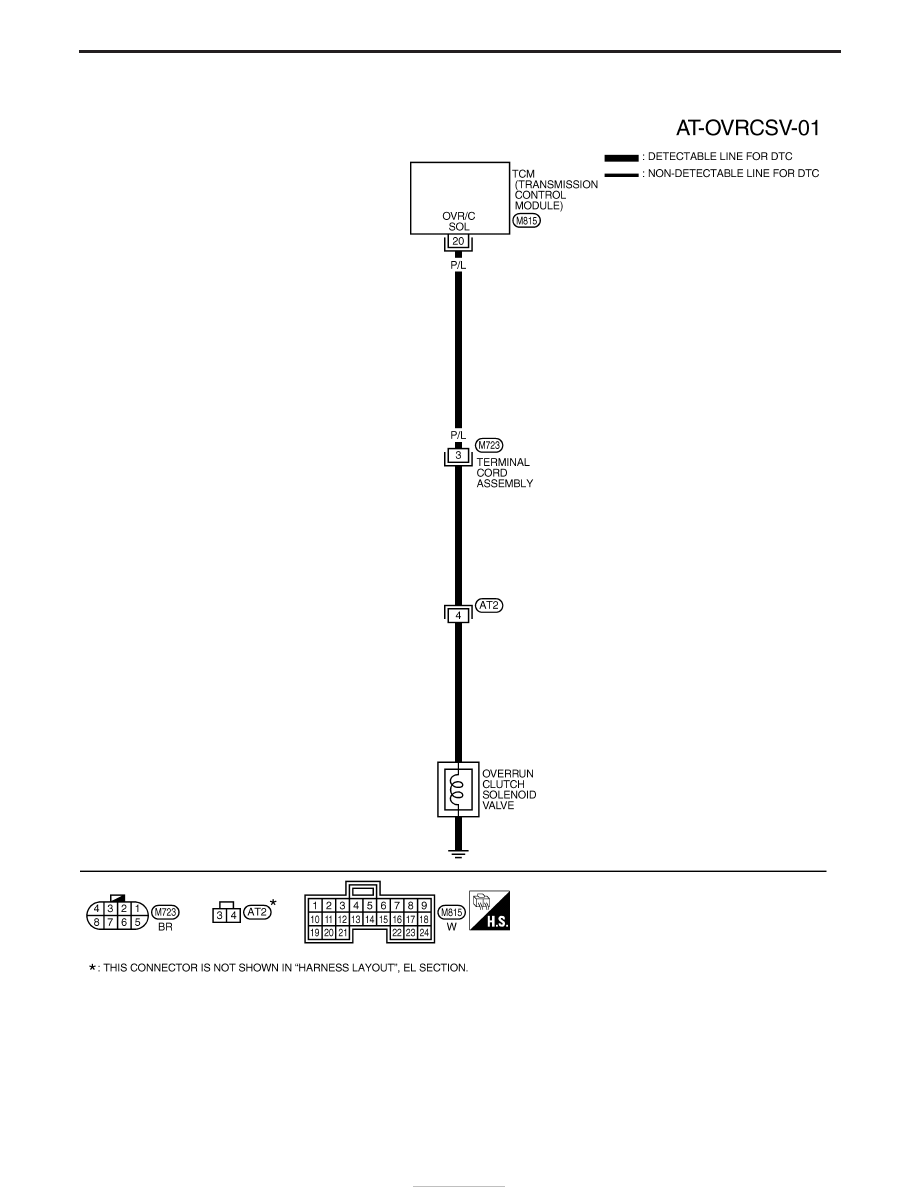

Wiring Diagram — AT — OVRCSV

YAT282

TROUBLE DIAGNOSIS FOR OVERRUN CLUTCH S/V

AT-70

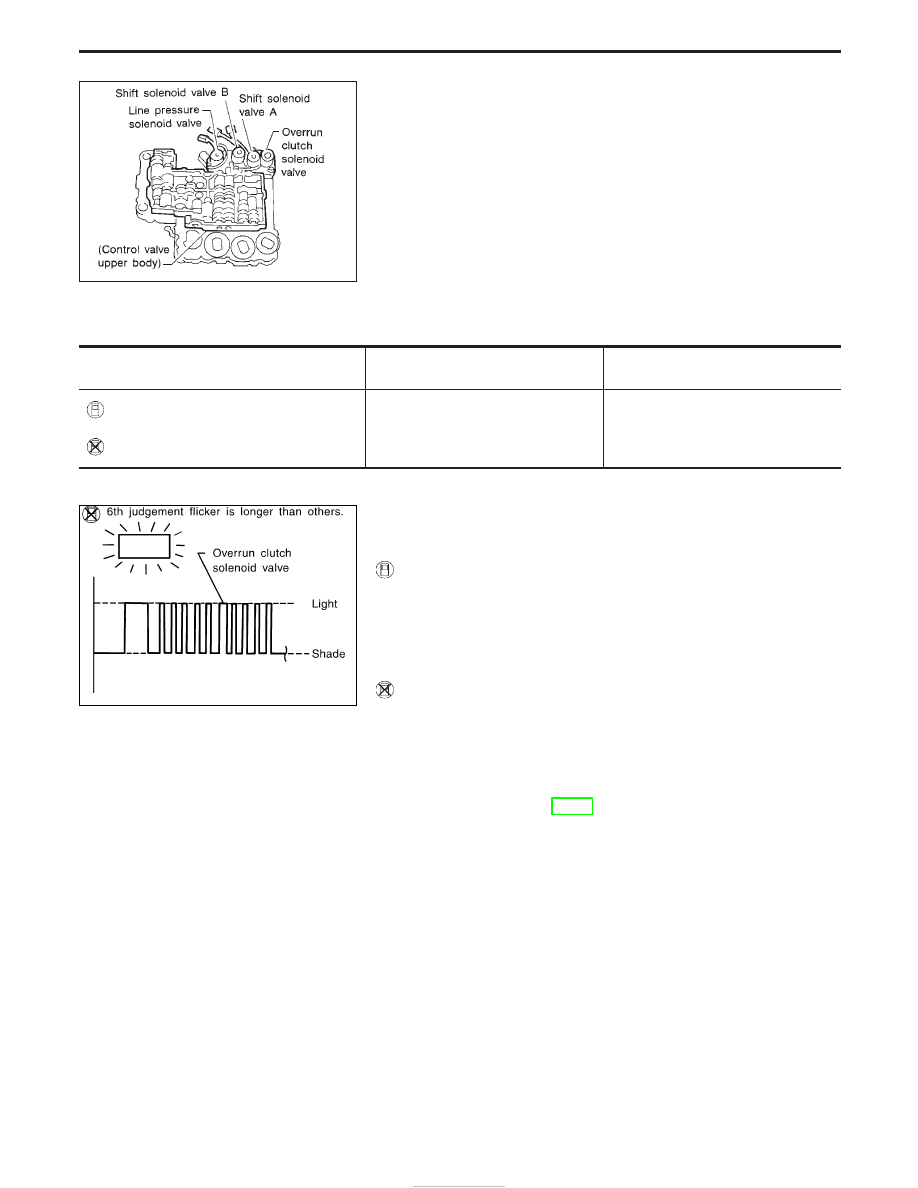

Overrun Clutch Solenoid Valve

DESCRIPTION

The overrun clutch solenoid valve is activated by the TCM in
response to signals sent from the park/neutral position switch, over-
drive control switch, vehicle speed and throttle (accelerator) posi-
tion sensors. The overrun clutch operation will then be controlled.

ON BOARD DIAGNOSIS LOGIC

Diagnostic trouble code

Malfunction is detected when ...

Check items

(Possible cause)

:

OVERRUN CLUTCH S/V

TCM detects an improper voltage drop
when it tries to operate the solenoid
valve.

I

Harness or connectors
(The solenoid circuit is open or
shorted.)

I

Overrun clutch solenoid valve

:

6th judgement flicker

SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE

After the repair, perform the following procedure to confirm the
malfunction is eliminated.

1)

Start engine.

2)

Select “SELF-DIAG RESULTS” mode with CONSULT-II.

3)

Drive vehicle under the following conditions:
Selector lever in “D” position, overdrive control switch in
“OFF” position and vehicle speed higher than 10 km/h (6
MPH).

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ OR ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

1)

Start engine.

2)

Drive vehicle under the following conditions:
Selector lever in “D” position, overdrive control switch in
“OFF” position and vehicle speed higher than 10 km/h (6
MPH).

3)

Perform self-diagnosis.
Refer to SELF-DIAGNOSTIC PROCEDURE (Without
CONSULT-II), AT-15.

SAT341H

YAT351

TROUBLE DIAGNOSIS FOR OVERRUN CLUTCH S/V

AT-71
