Nissan Terrano model r20 series 2004. Manual - part 198





NMT028

MAJOR OVERHAUL

FS5R30A

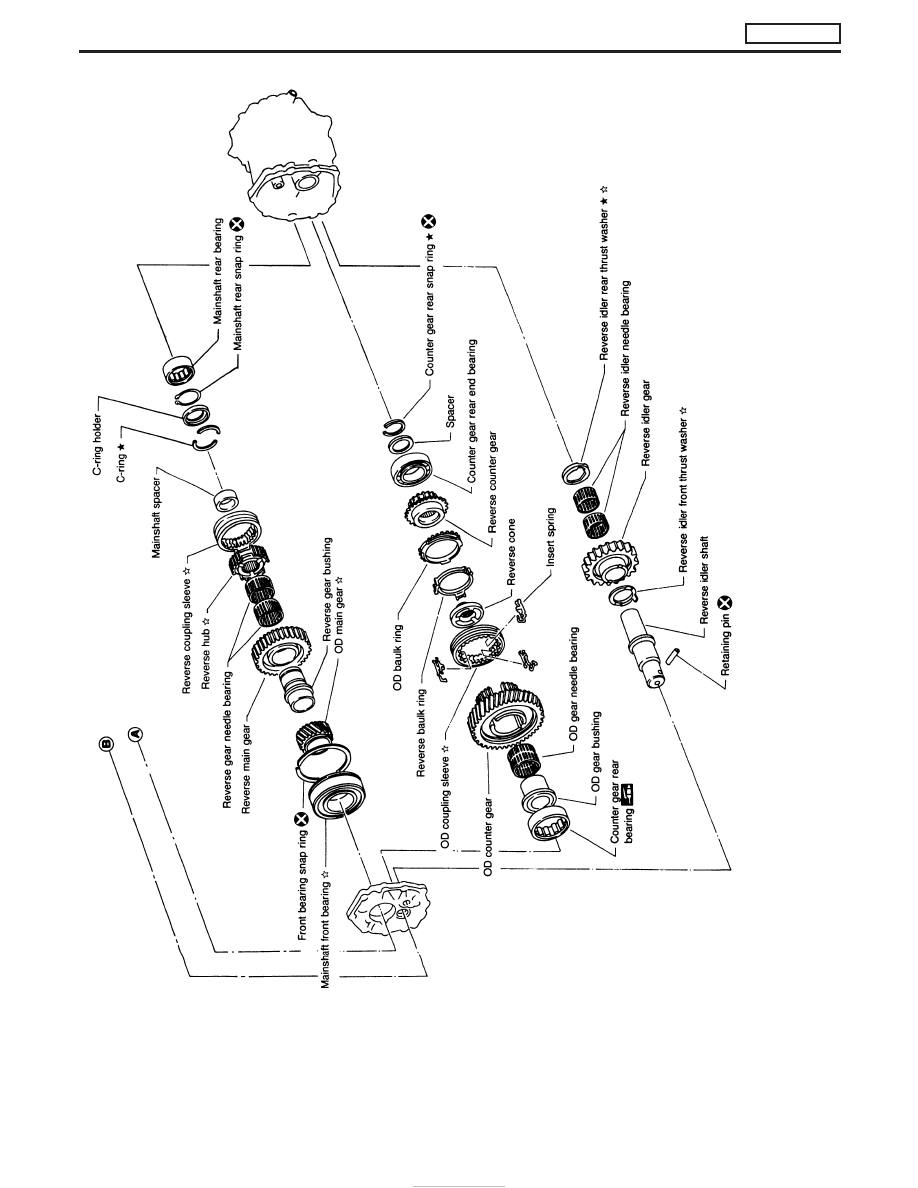

Gear Components (Cont’d)

MT-12

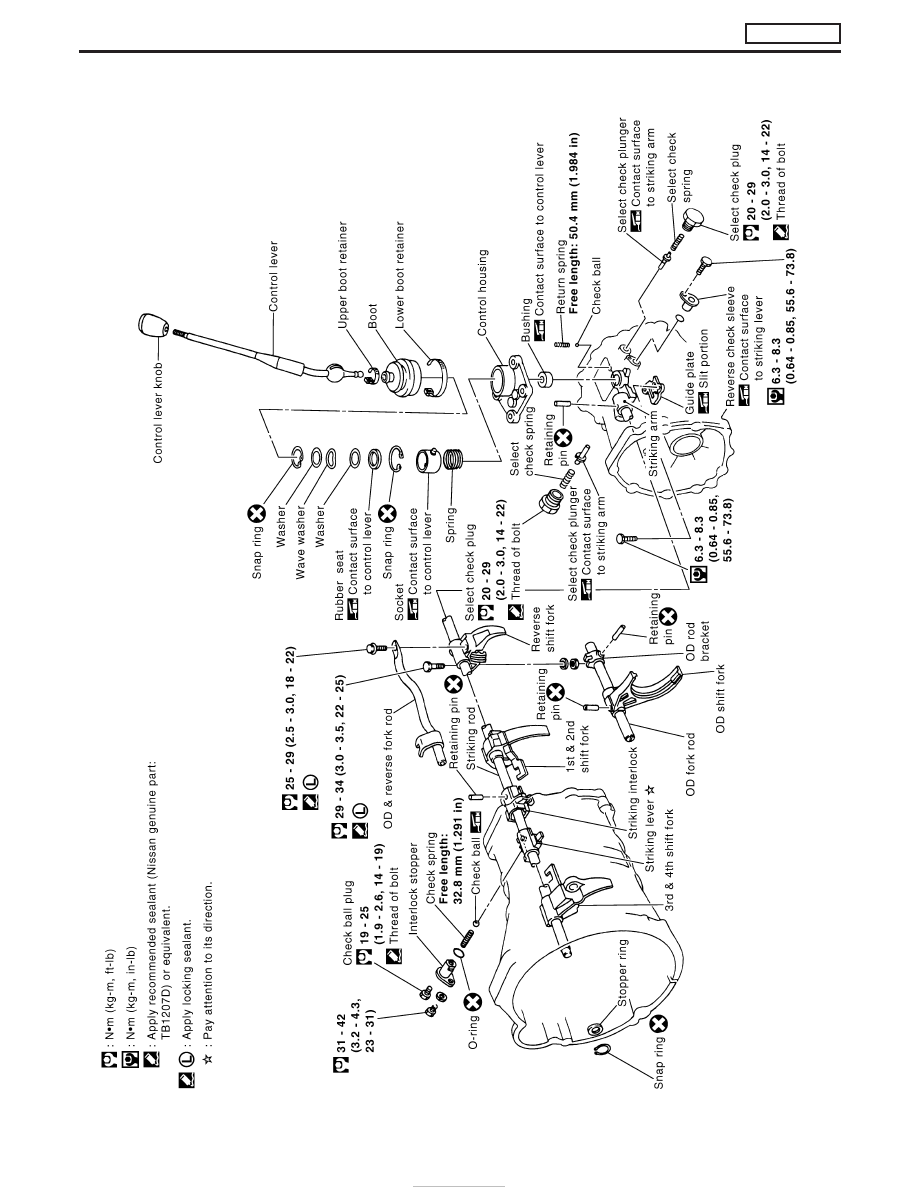

Shift Control Components

YMT153

MAJOR OVERHAUL

FS5R30A

MT-13

Case Components

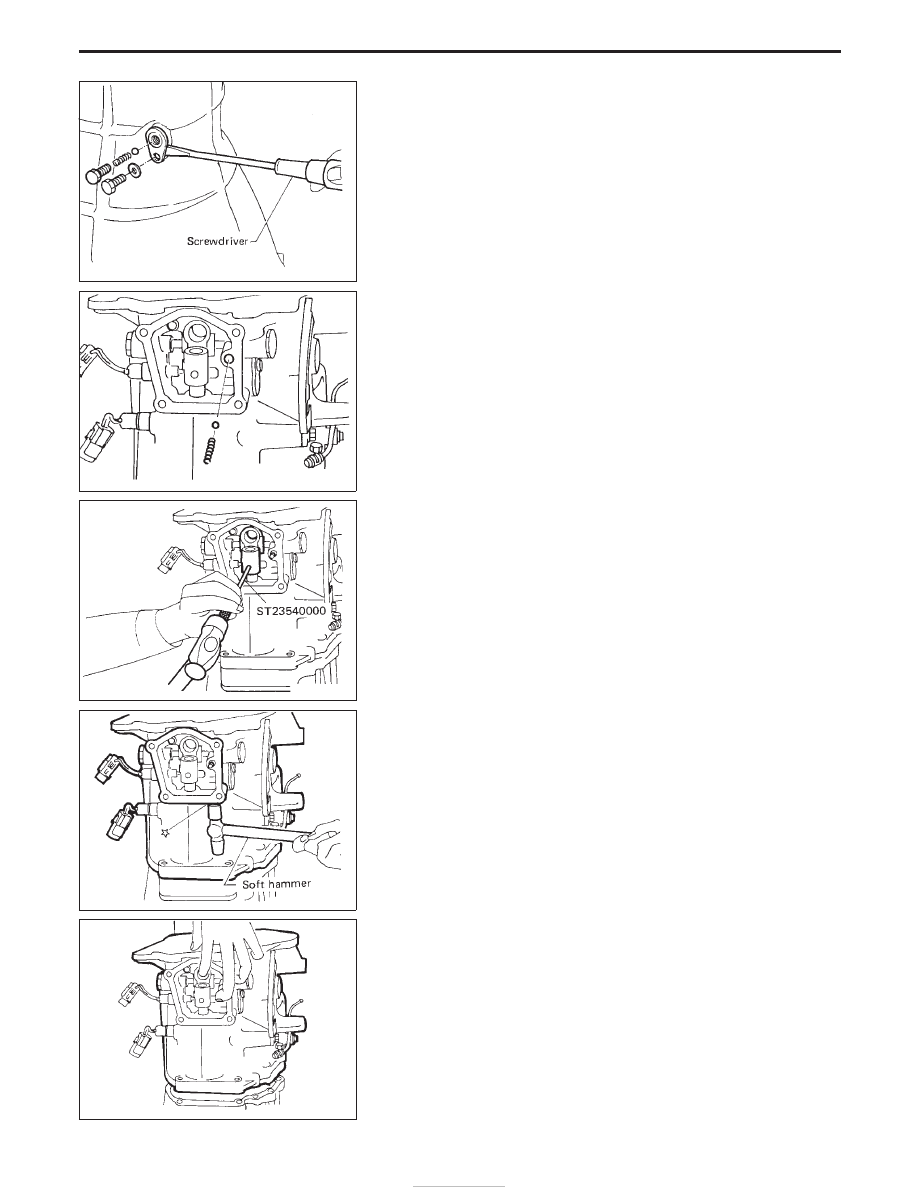

1. Remove check ball plug, check spring and check ball. Then

remove interlock stopper.

If interlock assembly is removed as a unit, the check ball can
fall into transmission case.

2. Remove control housing, return spring and check ball.

3. Drive out retaining pin from striking arm.

4. Remove OD gear case together with striking arm by tapping

lightly.

SMT366A

SMT438B

SMT439B

SMT440B

SMT444B

DISASSEMBLY

MT-14

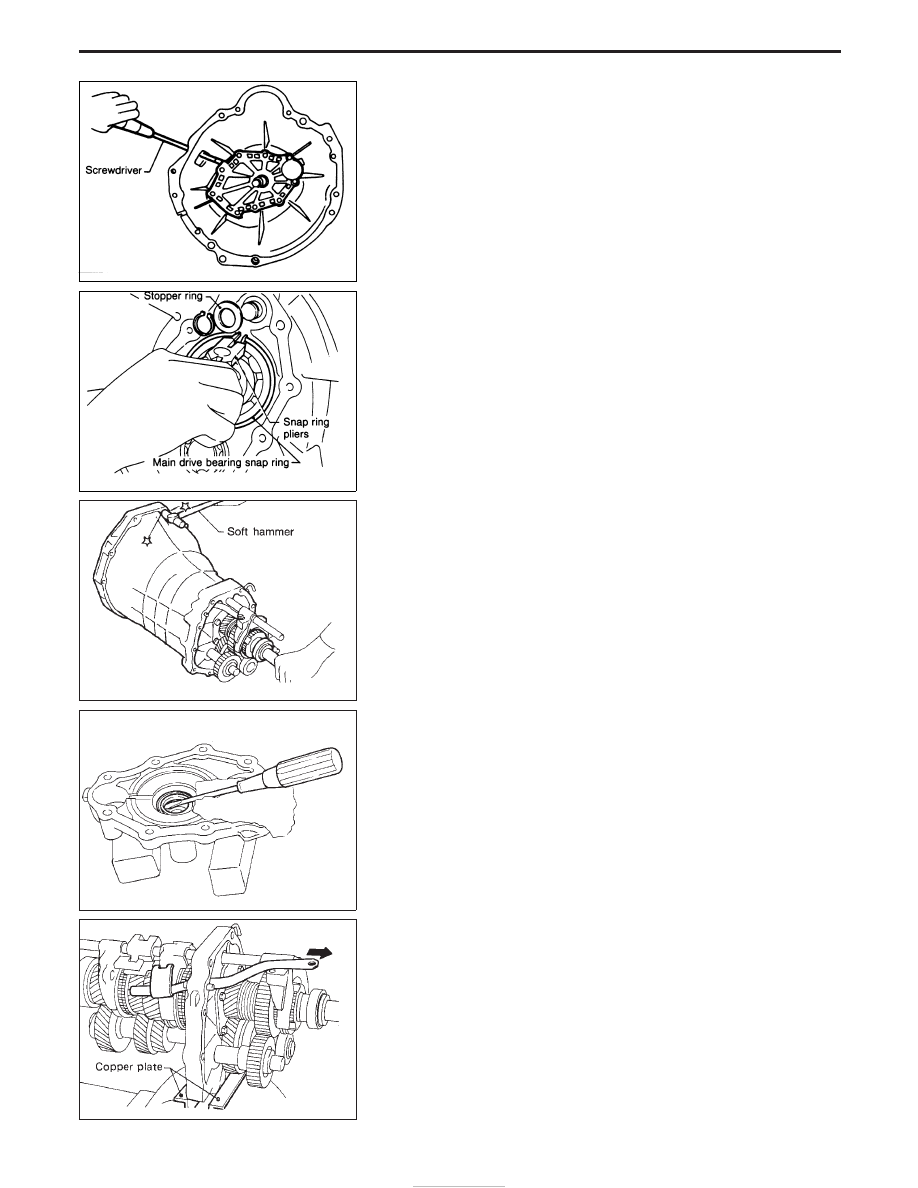

5. Remove front cover and gasket.

6. Remove stopper ring and main drive bearing snap ring.

7. Remove transmission case by tapping lightly.

8. Remove front cover oil seal.

Shift Control Components

1. Mount adapter plate on vise.
2. Remove OD & reverse fork rod.

SMT441B

SMT371A

SMT372A

SMT392A

SMT373A

DISASSEMBLY

Case Components (Cont’d)

MT-15
