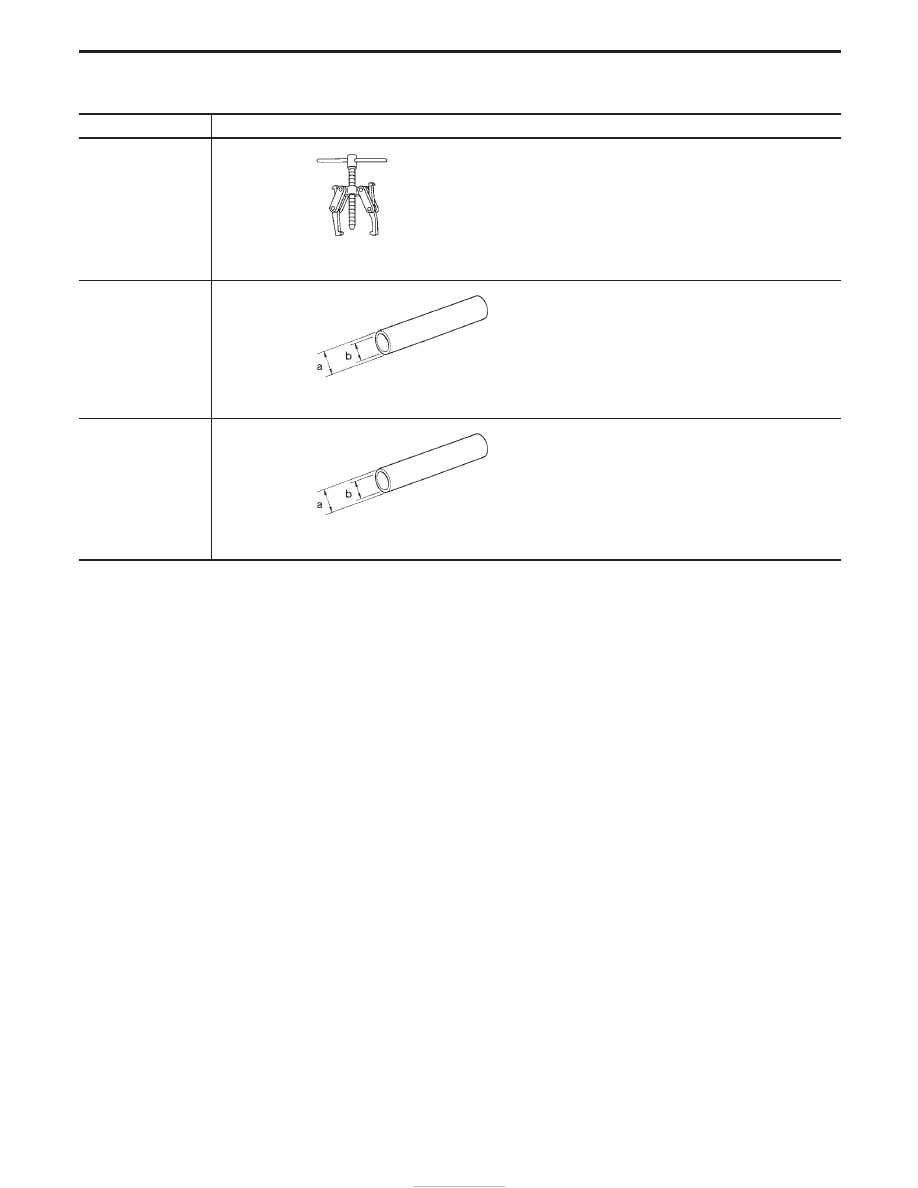

Commercial Service Tools

Tool name

Description

Puller

NT077

Removing counter gear rear end bearing
Removing mainshaft rear bearing
Removing reverse synchronizer hub
Removing reverse counter gear

Drift

ST22452000

a: 44.5 mm (1.752 in) dia.

b: 38.5 mm (1.516 in) dia.

Installing sub-gear snap ring

Drift

ST22452000

a: 44.5 mm (1.752 in) dia.

b: 40.5 mm (1.594 in) dia.

Installing OD main gear
Installing reverse gear bushing

PREPARATION

MT-4

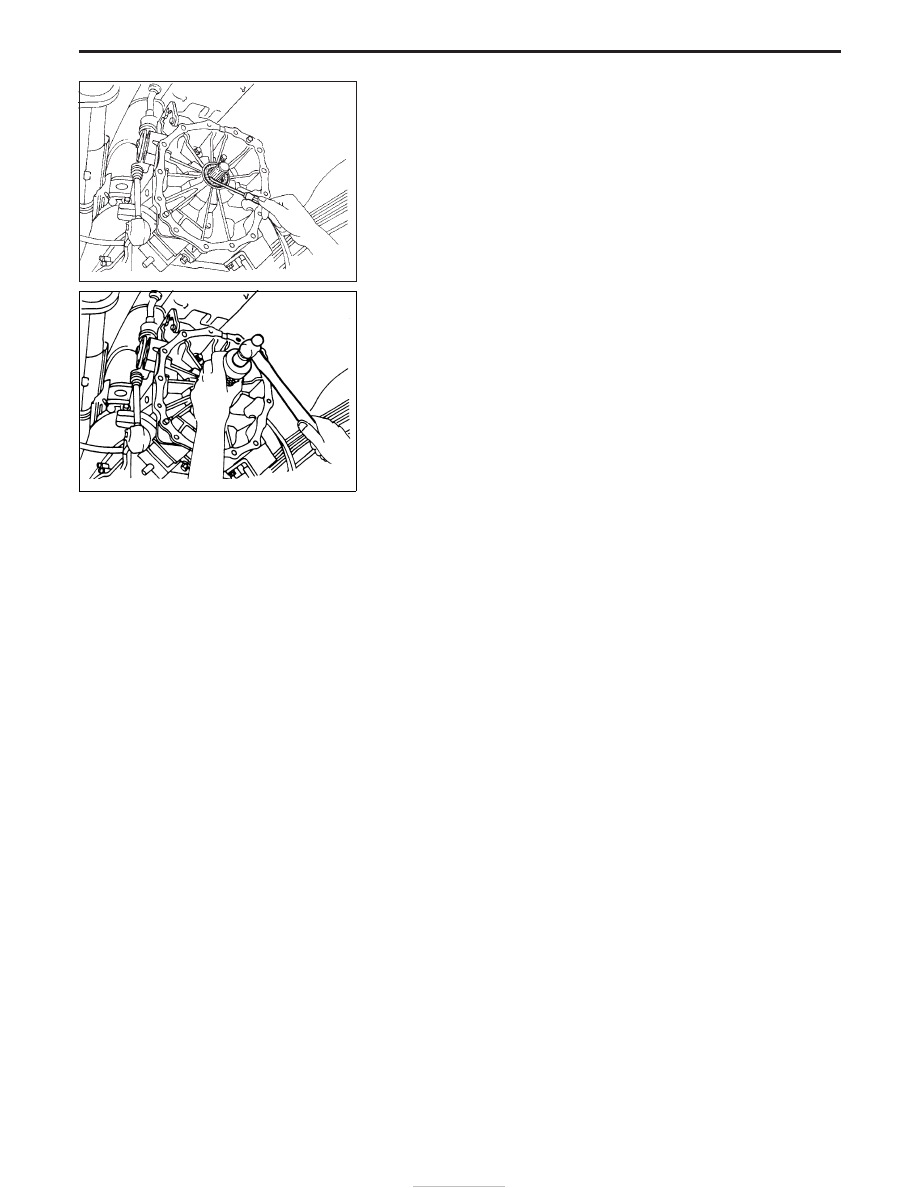

Replacing the Rear Oil Seal

REMOVAL

1. Remove transfer assembly. See Section TF.
2. Remove rear oil seal.

REPLACEMENT

1. Install rear oil seal.

Before installation, apply multi-purpose grease to oil seal lip.

2. Install transfer assembly. See Section TF.

SMT321B

SMT453B

TRANSMISSION FS5R30A

MT-5

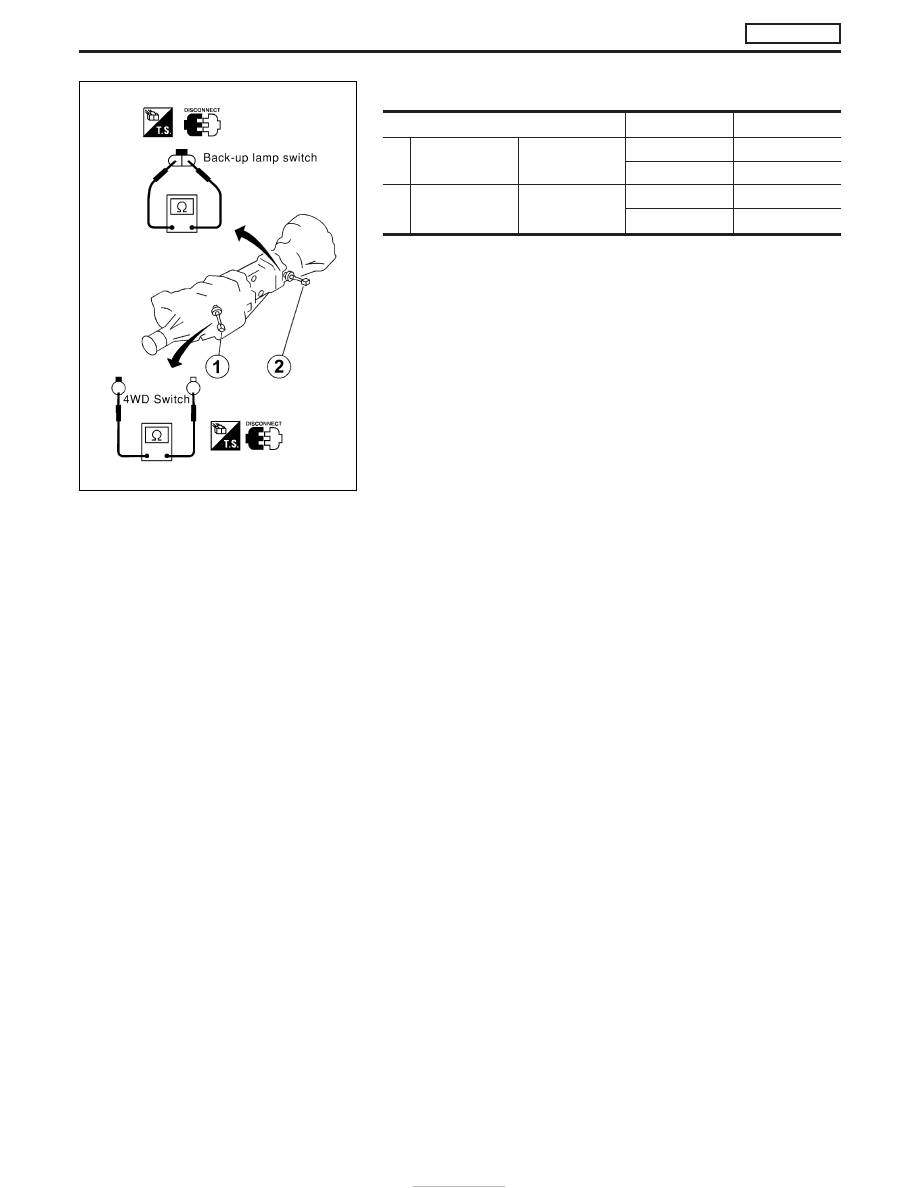

Check of Position Switches

Switch

Gear position

Continuity

q

1

4WD*

Transfer case

4WD

Yes

Except 4WD

No

q

2

Back-up lamp

Transmission

case

Reverse

Yes

Except reverse

No

*: Ensure both sides of 4WD 2-pole double-throw switch is operational, refer to

“Warning lamps” wiring diagram in EL-Section.

YMT009

ON-VEHICLE SERVICE

FS5R30A

MT-6

Removal

Transmission has to be removed as a unit together with transfer
box.
Remove transmission assembly as follows:

I

Disconnect negative battery terminal.

I

Remove shift levers of transmission and transfer.

I

Remove front and rear propeller shafts. — Refer to PD section.

I

Insert plug into rear oil seal after removing propeller shaft.

I

Remove RPM-sensor from transmission upper side.

CAUTION:

Be careful not to damage spline, sleeve yoke and rear oil seal,
when removing propeller shaft.

I

Remove torsion bar spring. — Refer to FA Section.

I

Remove third crossmember (the one supporting front differen-
tial).

I

Remove fifth crossmember (the one situated at the rear of
transfer).

I

Support transmission and transfer with a suitable transmission
jack.

WARNING:

Support transmission and transfer with suitable jacks, while
removing them.

I

Remove fourth crossmember (the one supporting transmis-
sion).

I

Remove clutch operating cylinder.

I

Remove starter motor.

I

Remove exhaust tube bracket from transmission.

I

Disconnect electrical connectors.

I

Remove transmission from engine.

REMOVAL AND INSTALLATION

FS5R30A

MT-7
