Removal and Installation

REMOVAL

1. Drain engine oil.
2. Remove the following parts.

I

Under guard

I

Crossmember, differential member, front final drive assembly

I

Engine gusset

3. Loosen and remove oil pan installation bolts in reverse order of

numbers in the figure.

4. Use a seal cutter (special service tool) to cut away liquid gas-

ket and remove oil pan.

5. Remove oil strainer.

YEM064

JEM773G

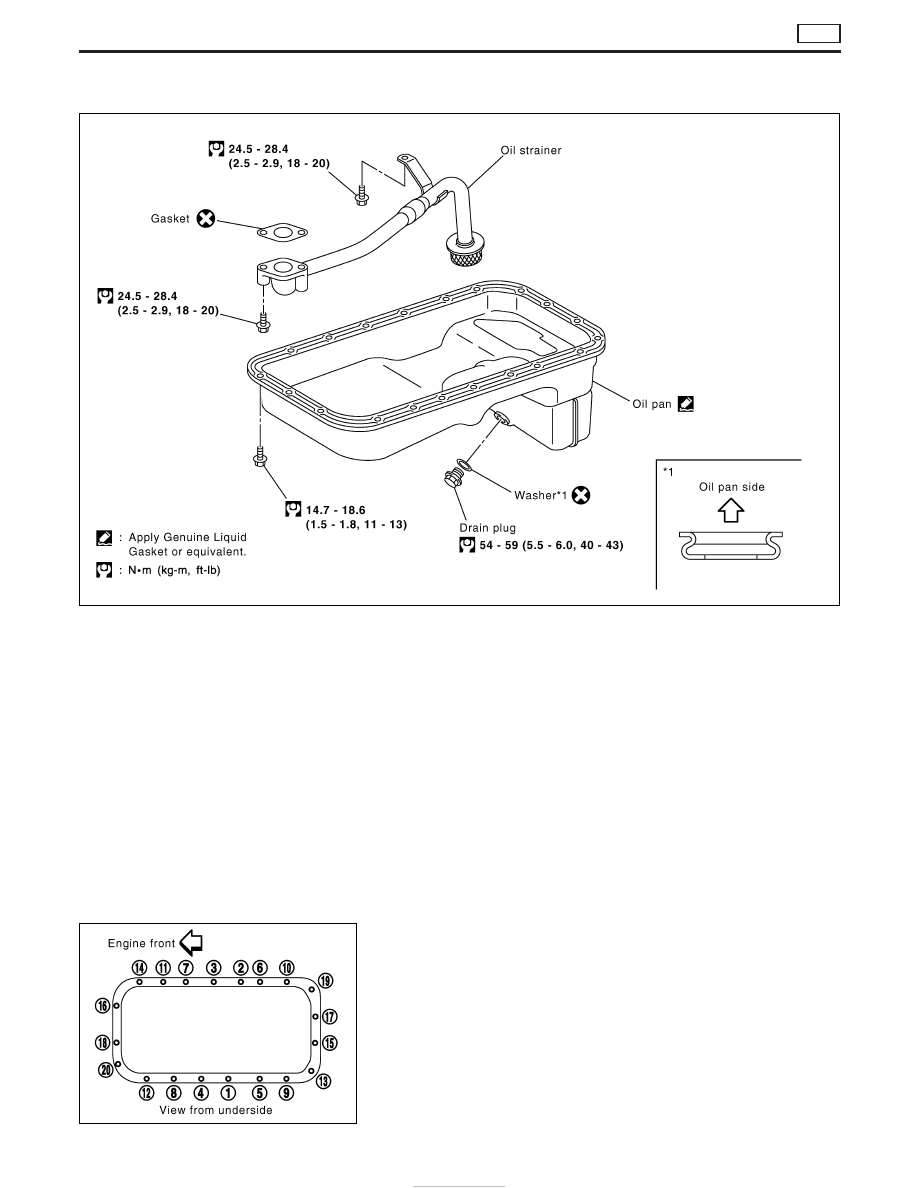

OIL PAN & OIL STRAINER

ZD

EM-22

INSTALLATION

1. Install oil strainer.
2. Install oil pan.
a. Use a scraper to remove all traces of liquid gasket from mating

surfaces.

I

Also remove traces of liquid gasket from mating surface of cyl-
inder block, front cover.

I

Remove old liquid gasket from the bolt hole and thread.

b. Apply a continuous bead of liquid gasket to mating surface of

oil pan.

I

Use Genuine Liquid Gasket or equivalent.

I

Apply liquid gasket to the groove on the mating surface.

I

Allow 8 mm (0.31 in) clearance around center of bolt holes.

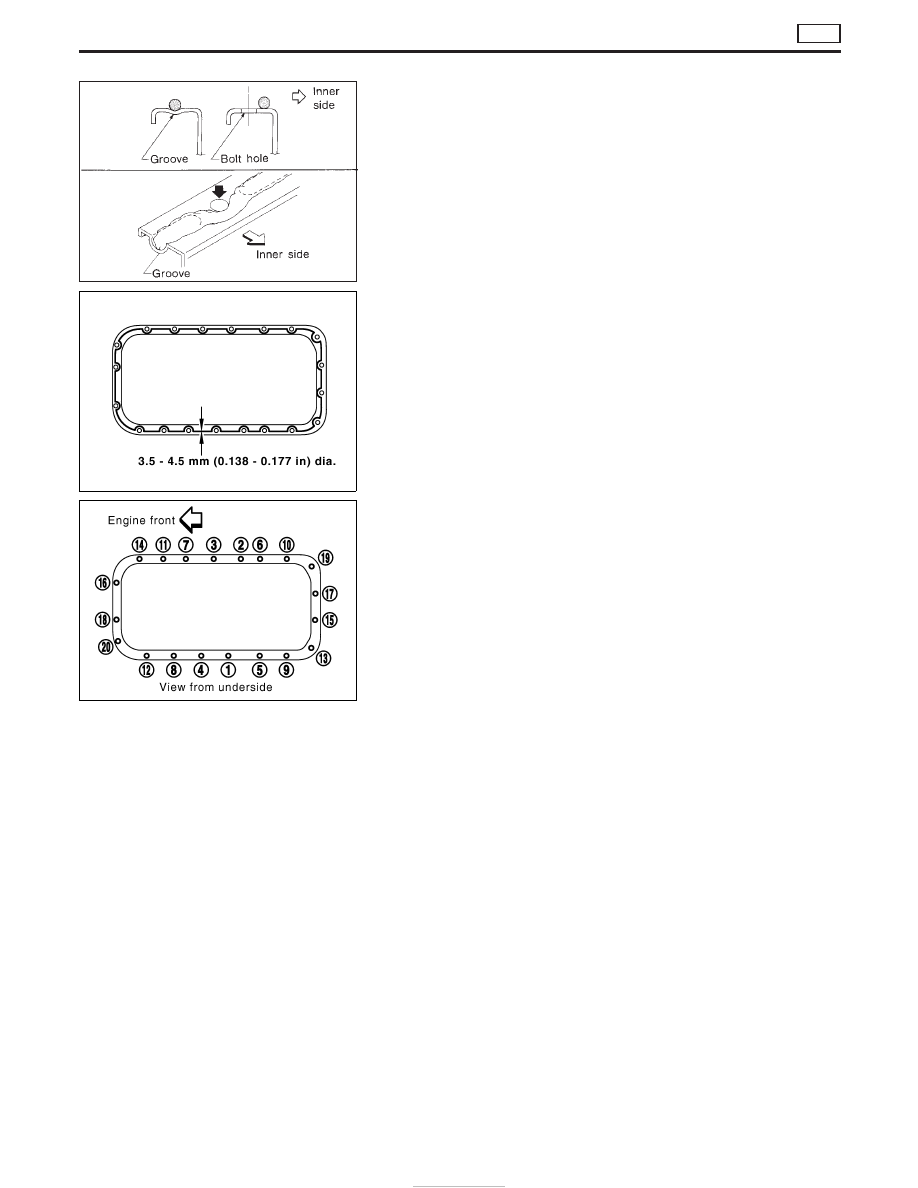

c. Apply liquid gasket to inner sealing surface as shown in figure.

I

Be sure liquid gasket is 3.5 to 4.5 mm (0.138 to 0.177 in).

I

Attaching should be done within 5 minutes after coating.

2. Tighten the mounting bolts in the order shown in the figure.

Then tighten in the same order to the torque stated.

3. The torque of the installation bolts will differ depending on posi-

tion.

4. Install in the reverse order of removal.

SEM159F

JEM774G

JEM773G

OIL PAN & OIL STRAINER

ZD

Removal and Installation (Cont’d)

EM-23

Removal and Installation

REMOVAL

1. Remove the following parts.

I

Radiator under side

I

Radiator shroud

I

Cooling fan

I

Chain cover front side

I

A/T cooler hose (Disconnect)

I

Vacuum hose

I

Intercooler cover (When removing vacuum tank)

2. Remove the installation bolts and pull the vacuum pump from

the engine front directly.

3. If it is difficult to remove from the spline shaft connection, tap

lightly with a plastic hammer.

SEM320G

SEM321G

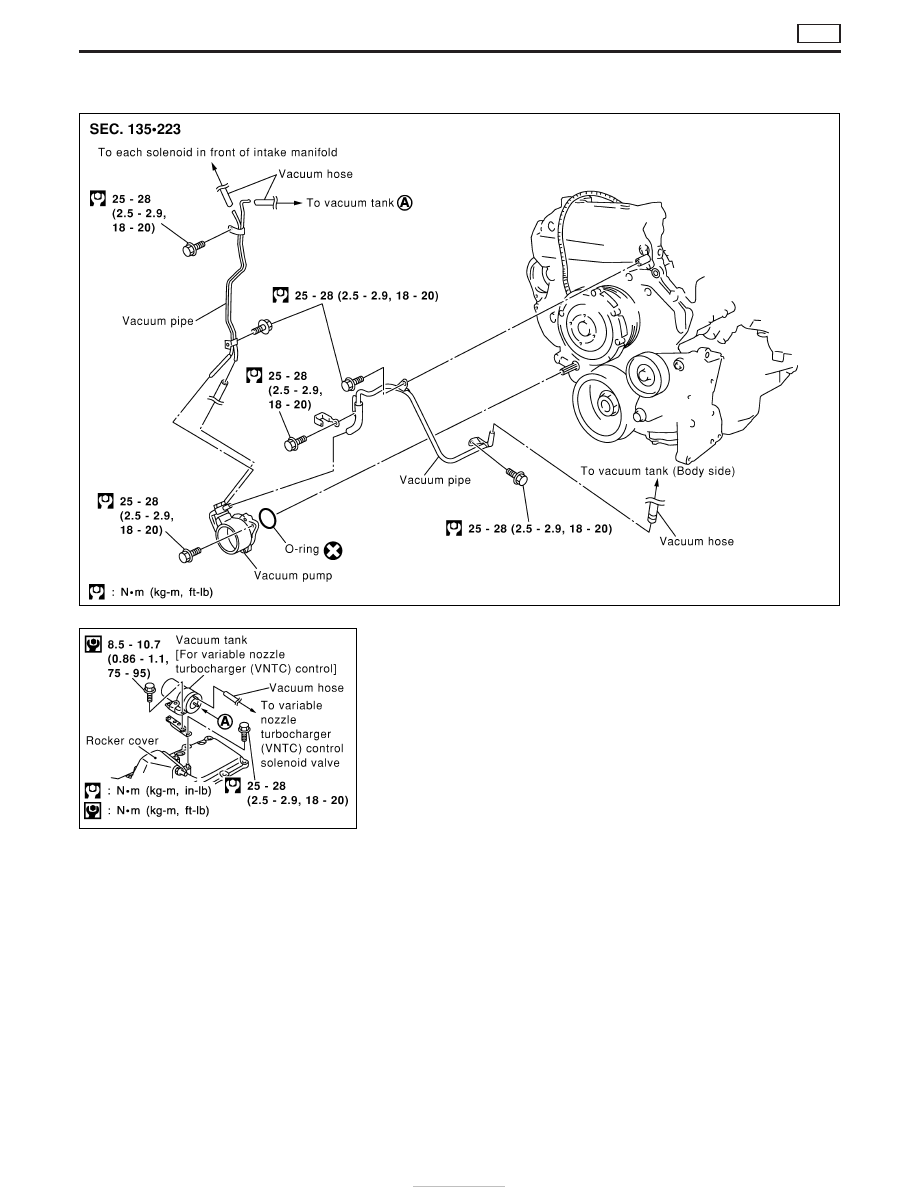

VACUUM PUMP

ZD

EM-24

INSPECTION

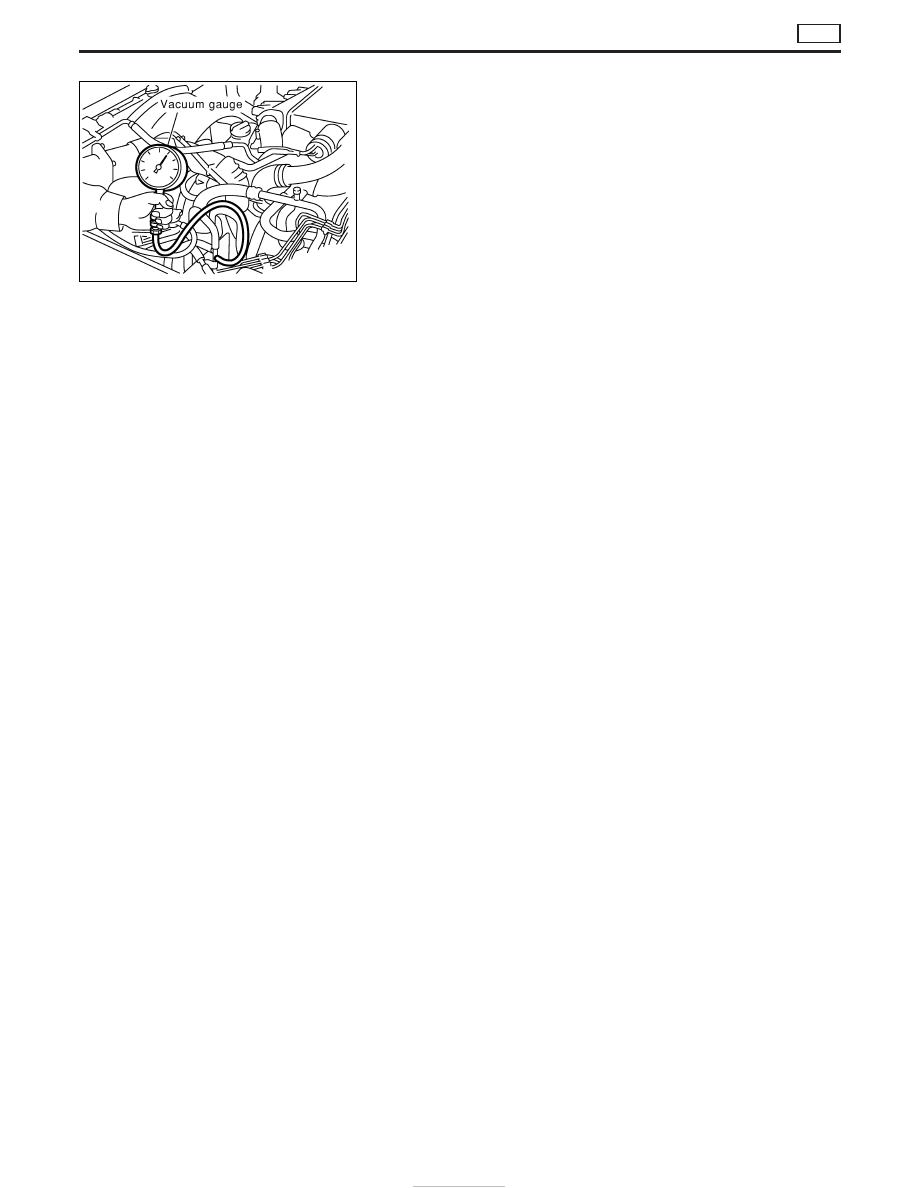

1. Remove the vacuum hose. Connect the vacuum gauge through

the 3-way connector. Otherwise, remove the welch valve of the
vacuum pipe and attach the vacuum gauge directly. (The illus-
tration shows the second method.)

I

Remove an appropriate part to measure the vacuum pump load
pressure directly and install the vacuum gauge. Refer to the
figure.

2. Start the engine, and measure the load pressure with the

engine idling.

Vacuum pressure:

Standard

−93.3 to −101.3 kPa (−933 to −1,013 mbar, −700
to −760 mmHg, −27.56 to −29.92 inHg)

3. If outside the standard value, make sure that there is no intake

of air within the circuit and measure again.

4. Replace the vacuum pump if still outside the standard value.

INSTALLATION

I

Install in the reverse order of removal.

SEM322G

VACUUM PUMP

ZD

Removal and Installation (Cont’d)

EM-25
