Nissan Terrano model r20 series 2004. Manual - part 24





Connecting Rod .........................................................91
Crankshaft..................................................................92
Available Main Bearing..............................................92
Available Connecting Rod Bearing............................93
Miscellaneous Components.......................................94

TD27Ti

PRECAUTIONS

.............................................................95

Parts Requiring Angular Tightening...........................95
Liquid Gasket Application Procedure ........................95

PREPARATION

..............................................................96

Special Service Tools ................................................96
Commercial Service Tools .........................................99

ENGINE COMPONENTS - Outer Parts

.....................100

ENGINE COMPONENTS - Internal Parts

..................102

COMPRESSION PRESSURE

......................................103

Measurement of Compression Pressure.................103

CYLINDER HEAD

........................................................104

Removal...................................................................105
Disassembly.............................................................106
Inspection.................................................................107
Assembly ................................................................. 113
Installation................................................................ 114

OIL SEAL REPLACEMENT

........................................ 117

TURBOCHARGER

....................................................... 119

Removal and Installation ......................................... 119
Inspection................................................................. 119

ENGINE REMOVAL

.....................................................123

ENGINE OVERHAUL

..................................................125

Disassembly.............................................................125
Inspection.................................................................127
Assembly .................................................................138

SERVICE DATA AND SPECIFICATIONS (SDS)

........143

General Specifications.............................................143
Inspection and Adjustment ......................................144

CONTENTS

(Cont’d)

EM-2

Parts Requiring Angular Tightening

I

Use an angle wrench for the final tightening of the cylinder head
bolts.

I

Do not use a torque value for final tightening.

I

The torque value for these parts are for a preliminary step.

I

Ensure thread and seat surfaces are clean and coated with
engine oil.

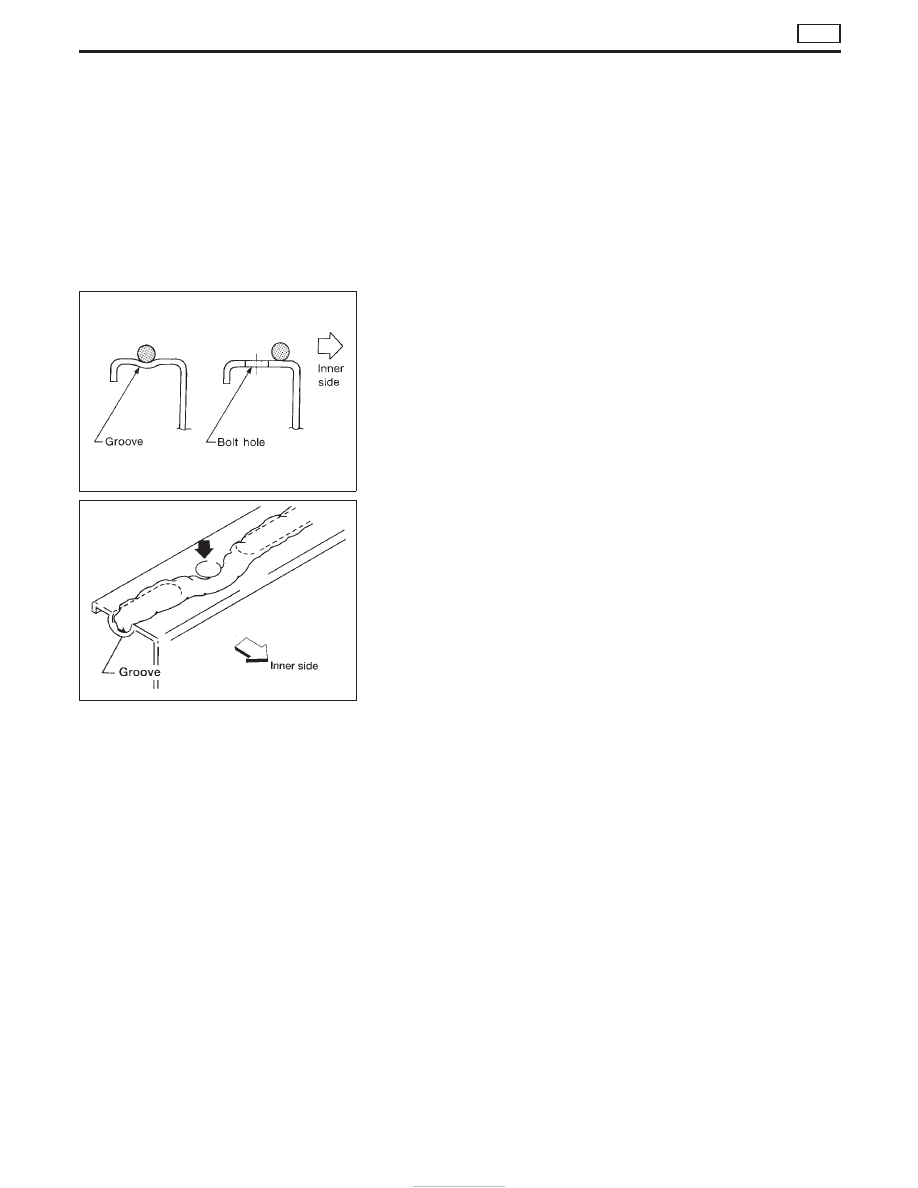

Liquid Gasket Application Procedure

1. Use a scraper to remove old liquid gasket from mating

surfaces and grooves. Also, completely clean any oil from
these areas.

2. Apply a continuous bead of liquid gasket to mating sur-

faces. (Use Genuine Liquid Gasket or equivalent.)

I

Be sure liquid gasket diameter is as specified.

3. Apply liquid gasket around the inner side of bolt holes

(unless otherwise specified).

4. Assembly should be done within 5 minutes after coating.
5. Wait at least 30 minutes before refilling engine oil and

engine coolant.

SEM164F

AEM080

PRECAUTIONS

ZD

EM-3

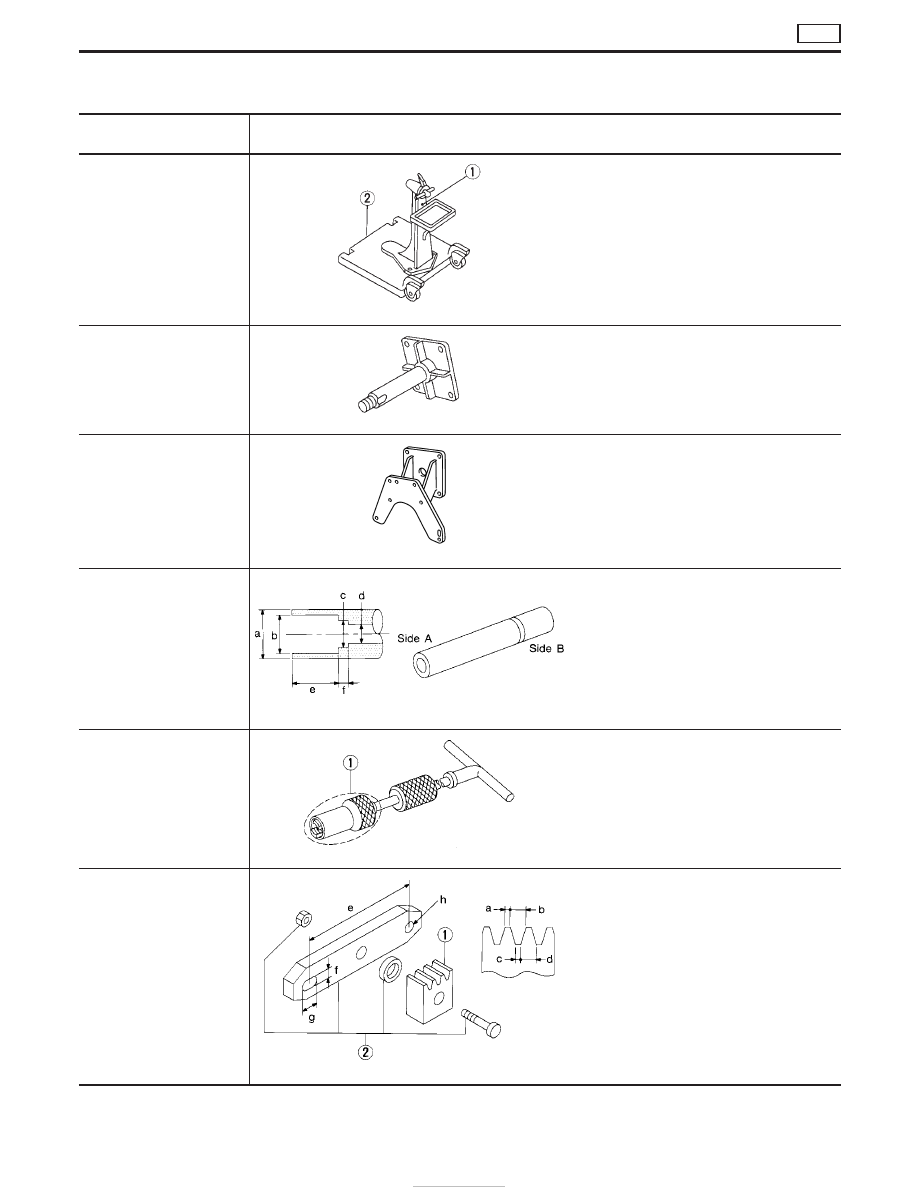

Special Service Tools

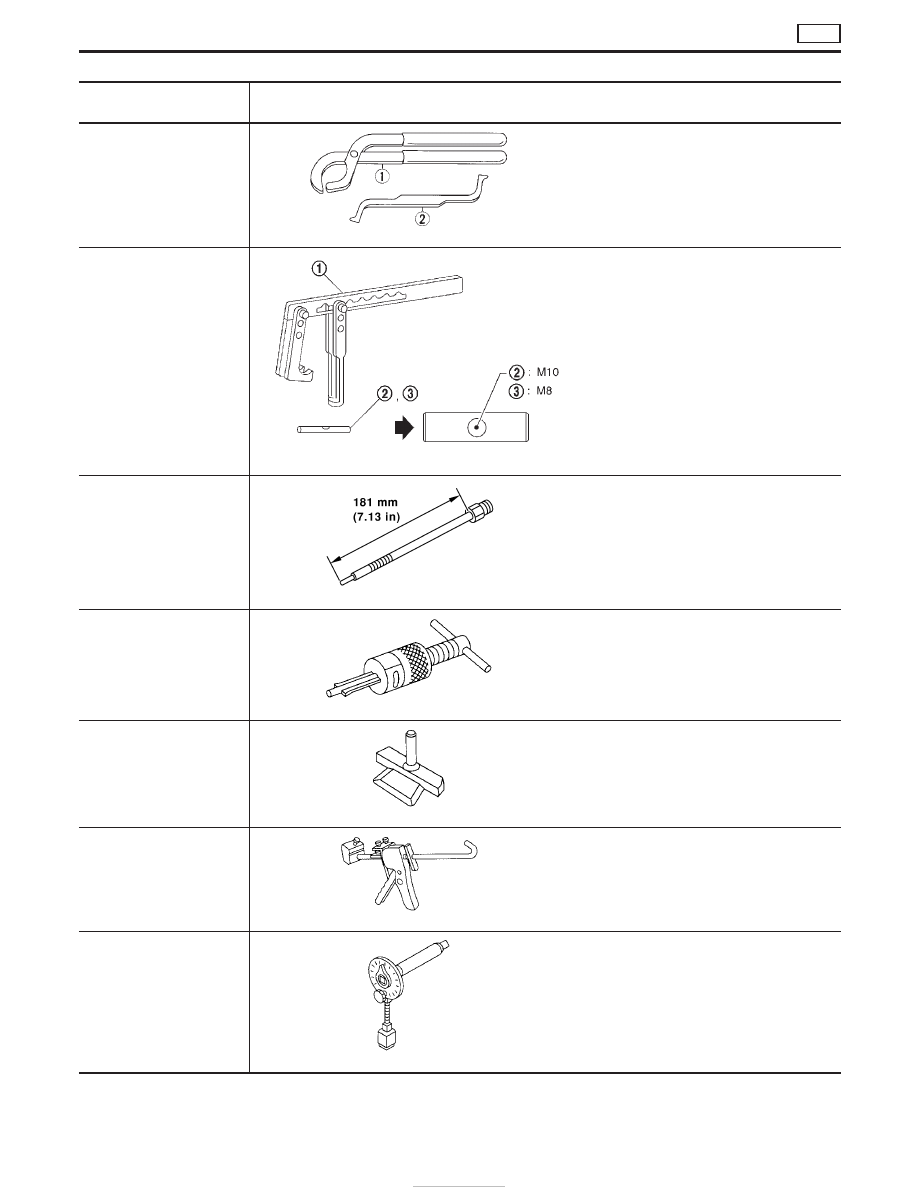

Tool number
Tool name

Description

ST0501S000
Engine stand assembly

q

1

ST05011000
Engine stand

q

2

ST05012000
Base

NT042

Disassembling and assembling

KV10106500
Engine stand shaft

NT028

KV11106101
Engine sub-attachment

NT819

KV10115600
Valve oil seal drift

NT603

Installing valve oil seal

Use side A.
Side A
a: 20 (0.79) dia.
b: 13 (0.51) dia.
c: 10.3 (0.406) dia.
d: 8 (0.31) dia.
e: 10.7 (0.421)
f: 5 (0.20)
Unit: mm (in)

KV10107902
Valve oil seal puller

q

1

KV10116100
Valve

oil

seal

puller

adapter

NT605

Removing valve oil seal

KV101056S0
Ring gear stopper

q

1

KV10105630
Adapter

q

2

KV10105610
Plate

NT617

Preventing crankshaft from rotating

a: 3 (0.12)
b: 6.4 (0.252)
c: 2.8 (0.110)
d: 6.6 (0.260)
e: 107 (4.21)
f: 14 (0.55)
g: 20 (0.79)
h: 14 (0.55) dia.
Unit: mm (in)

PREPARATION

ZD

EM-4

Tool number
Tool name

Description

KV101151S0
Lifter stopper set

q

1

KV10115110
Camshaft pliers

q

2

KV10115120
Lifter stopper

NT041

Changing shims

KV101092S0
Valve spring compressor

q

1

KV10109210
Compressor

q

2

KV10109220
Adapter

NT718

Disassembling and assembling valve compo-
nents

ED19600620
Compression gauge adapter

NT820

Checking compression pressure

ST16610000
Pilot bushing puller

NT045

Removing crankshaft pilot bushing

KV10111100
Seal cutter

NT046

Removing steel oil pan and rear timing chain
case

WS39930000
Tube presser

NT052

Pressing the tube of liquid gasket

KV10112100
Angle wrench

NT014

Tightening bolts for bearing cap, cylinder head,
etc.

PREPARATION

ZD

Special Service Tools (Cont’d)

EM-5
