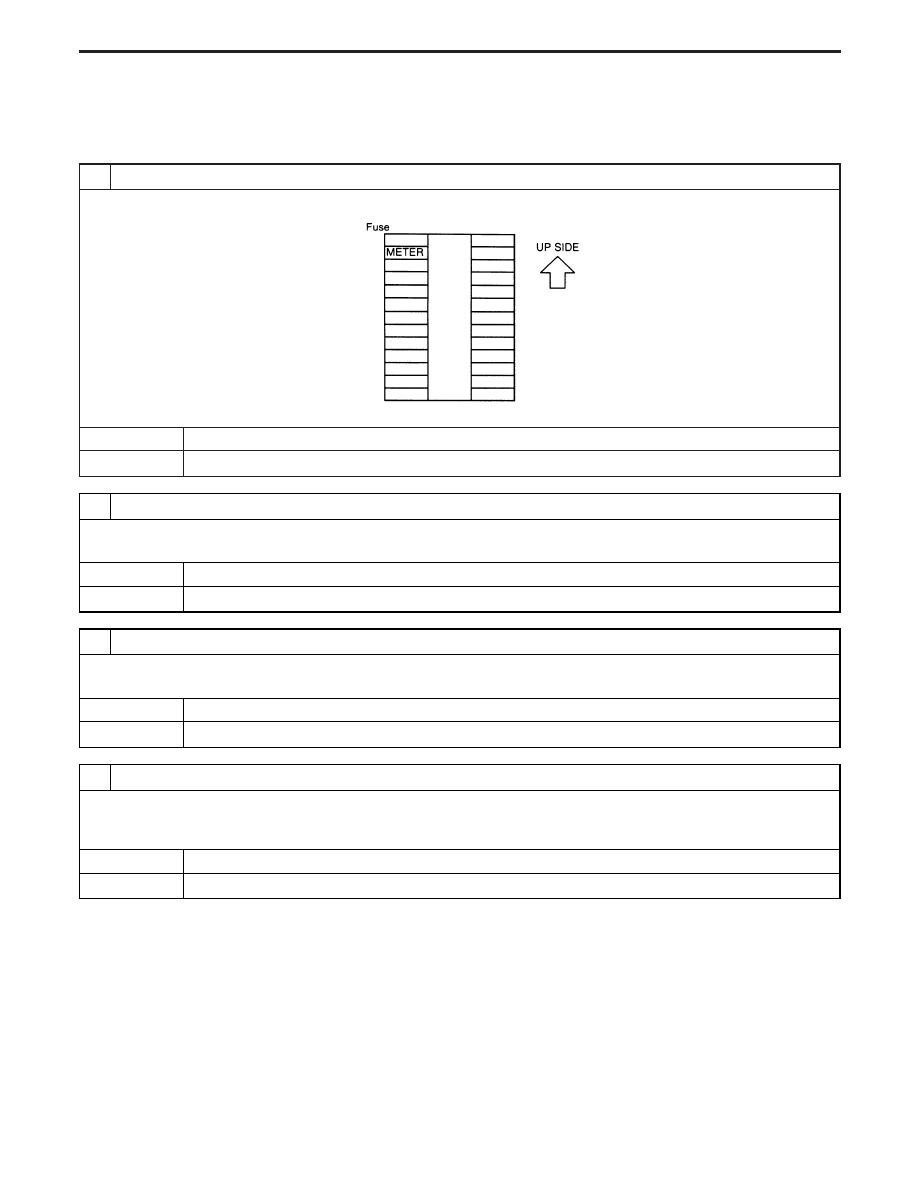

Trouble Diagnoses: “AIR BAG” Warning Lamp DIAGNOSTIC PROCEDURE 10 1 CHECK “METER” FUSE Is meter fuse OK? NRS092 OK or NG OK E GO TO 3. NG E GO TO 2. 2 CHECK “METER” FUSE AGAIN Replace meter fuse and turn ignition switch ON. Is meter fuse blown again? Yes E Repair main harness. No E INSPECTION END 3 CHECK “AIR BAG” WARNING LAMP LED Is “AIR BAG” warning lamp LED OK? OK or NG OK E GO TO 4. NG E Replace “AIR BAG” warning lamp LED. 4 CHECK HARNESS CONNECTION BETWEEN DIAGNOSIS SENSOR UNIT AND “AIR BAG” WARNING LAMP Disconnect diagnosis sensor unit connector and turn ignition switch “ON”. I Does “AIR BAG” warning lamp turn on? Yes or No Yes E Replace diagnosis sensor unit. No E Check the ground circuit of “AIR BAG” warning lamp. SUPPLEMENTAL RESTRAINT SYSTEM (SRS) RS-56 |
