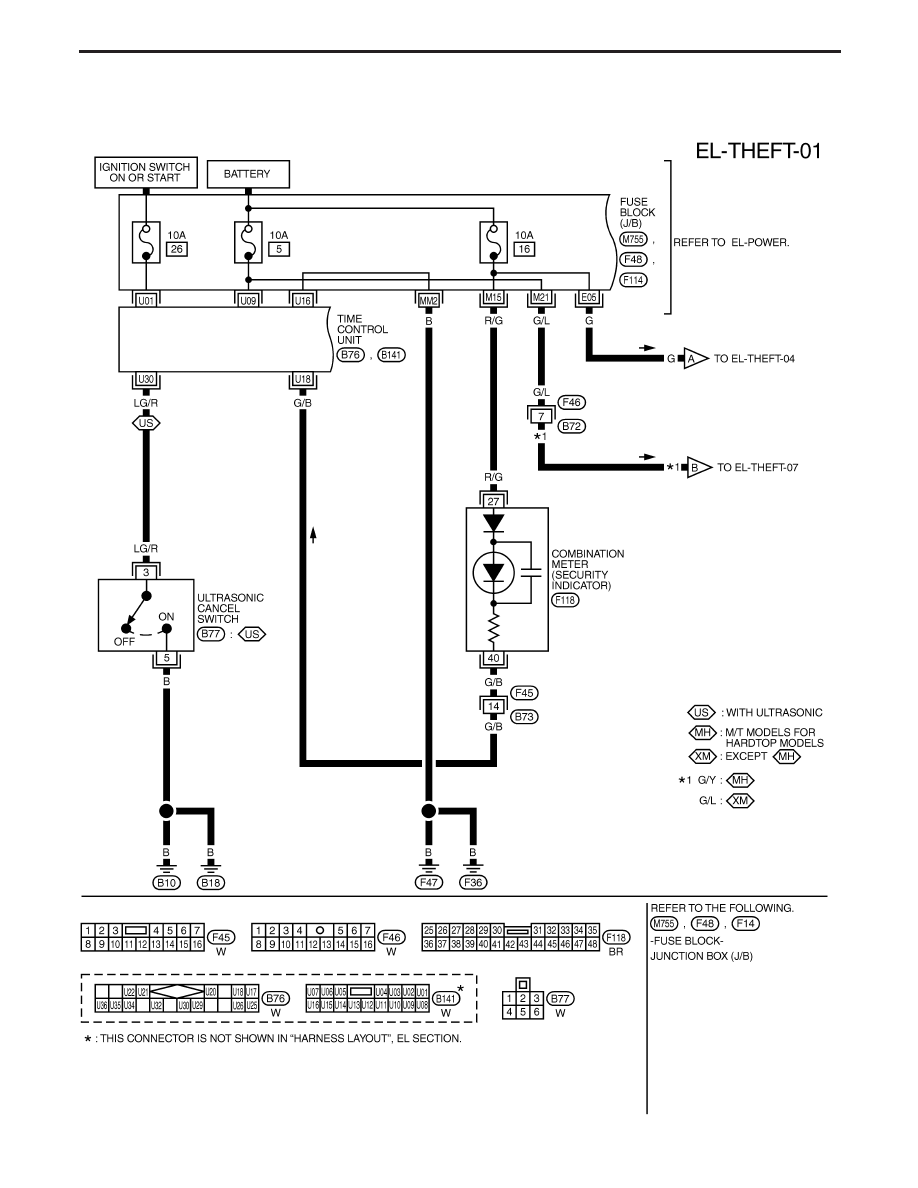

SETTING THE THEFT WARNING SYSTEM Initial condition (1) Close all doors. Pre-armed phase and armed phase The theft warning system turns into the “pre-armed” phase when hood and all doors are closed and locked by CANCELING THE SET THEFT WARNING SYSTEM When the following (a) or (b) operation is performed, the armed phase is canceled. control unit. ACTIVATING THE ALARM OPERATION OF THE THEFT WARNING SYSTEM Make sure the system is in the armed phase. When the following operation (a) (b) (c) or (d) is performed, the POWER SUPPLY AND GROUND CIRCUIT Power is supplied at all times. I Through 10A fuse [No. 16 , located in the fuse block (J/B)] I to combination meter (security indicator lamp) terminal q 27 . Power is supplied at all times I through 10A fuse [No. 5 , located in the fuse block (J/B)] I to time control unit terminal U09 . With the ignition switch in the ON or START position, power is supplied I through 10A fuse [No. 26 , located in the fuse block (J/B)] I to time control unit terminal U01 . Ground is supplied I to time control unit terminal U16 I through body grounds F36 and F47 (LHD models), or M33 and M754 (RHD models). INITIAL CONDITION TO ARM THE SYSTEM The operation of the theft warning system is controlled by all the doors and hood. U06 or U07 receives a ground signal from each door switch. When a door is unlocked, time control unit terminal U25 , U35 or U36 receives a ground signal from each door unlock sensor. U32 receives a ground signal I from the hood switch I through body grounds M33 and M754 . THEFT WARNING SYSTEM System Description (Cont’d) EL-211 |
