DIAGNOSTIC PROCEDURE 8
Perform initialization with CONSULT-II
Check the following harness connector
connection.
M720
Then initialize NATS. For the operation of
initialization, refer to “CONSULT-II opera-
tion manual NATS”.
Does the security indicator blink just
after the initialization?
No
E
Yes
System is OK.
(The malfunction is caused
by improper connector
connection.)
CHECK GROUND CIRCUIT FOR
DONGLE UNIT.
Check continuity between dongle control
unit terminal
q
3
and ground.
Continuity should exist.
Yes
E
No
Repair harness.

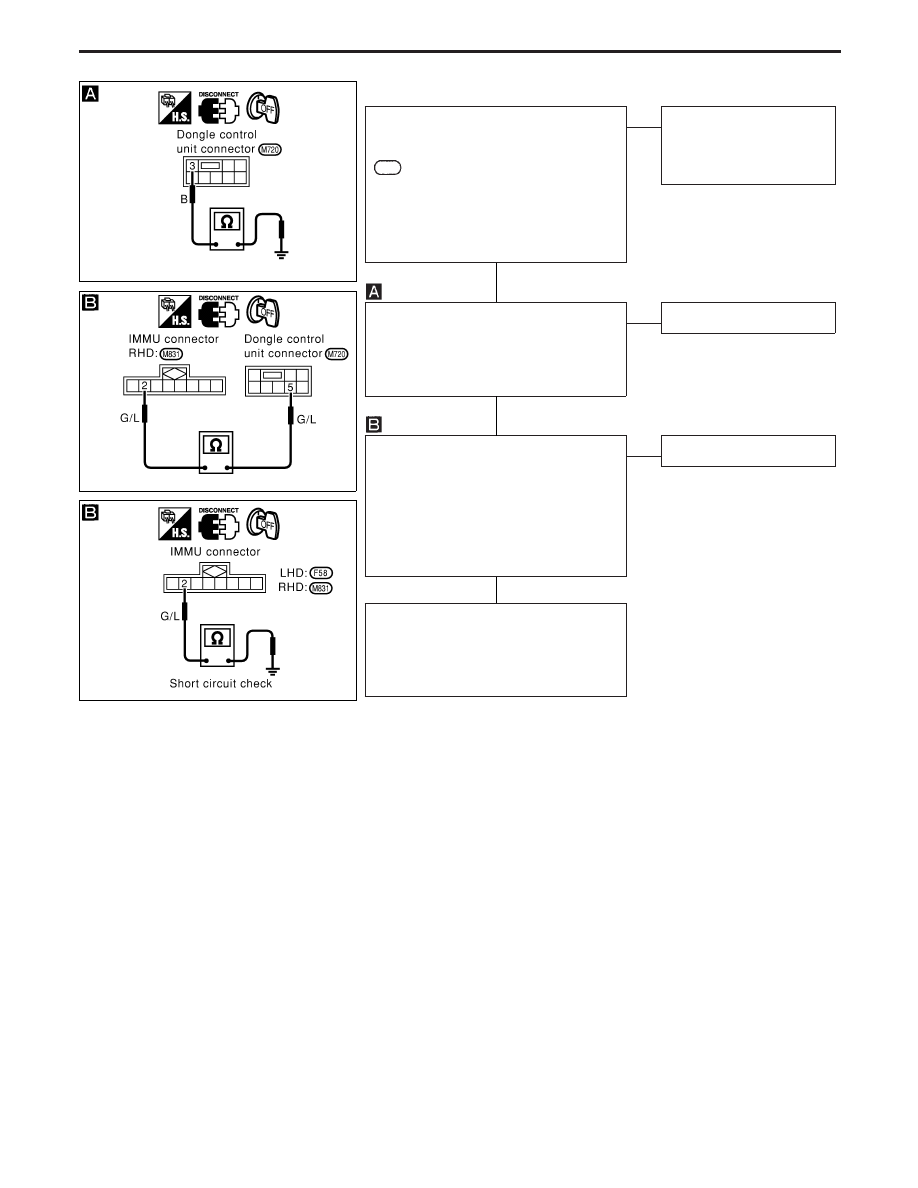

CHECK INTERFACE CIRCUIT.

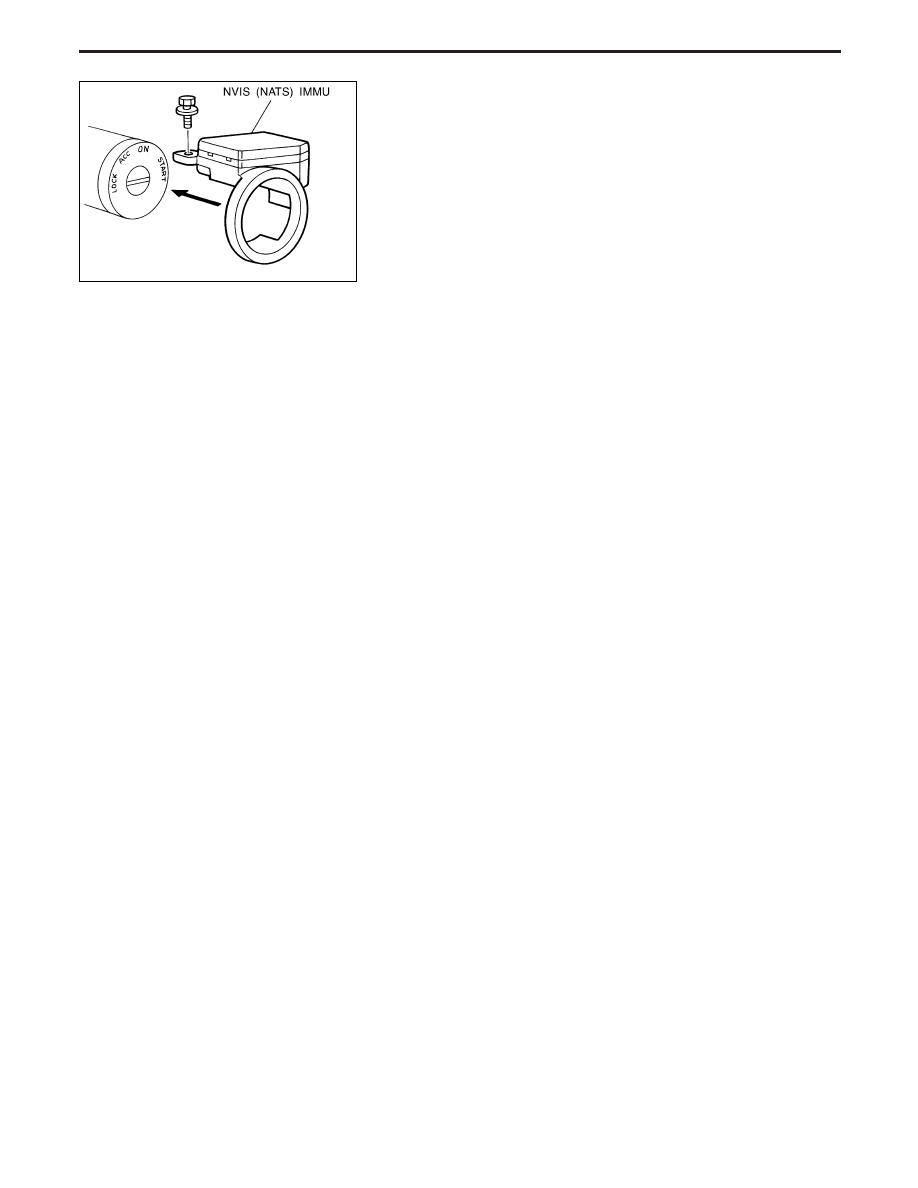

1. Check continuity between IMMU termi-
nal
q
2
and dongle control unit terminal
q
5
(Open circuit check)
Continuity should exist.
2. Check continuity between IMMU termi-
nal
q
2
and ground. (Short circuit check)
Continuity should not exist.
Yes
E
No
Repair harness.
Dongle unit is malfunctioning.
1. Replace dongle control unit.
2. Perform initialisation with CONSULT-II.
For the initialisation procedure, refer to
“CONSULT-II operation manual NATS”.
YEL332D
YEL333D
YEL334D
H
H
H
NATS (Nissan Anti-Theft System)
Trouble Diagnoses (Cont’d)
EL-207
