Wiring Diagram

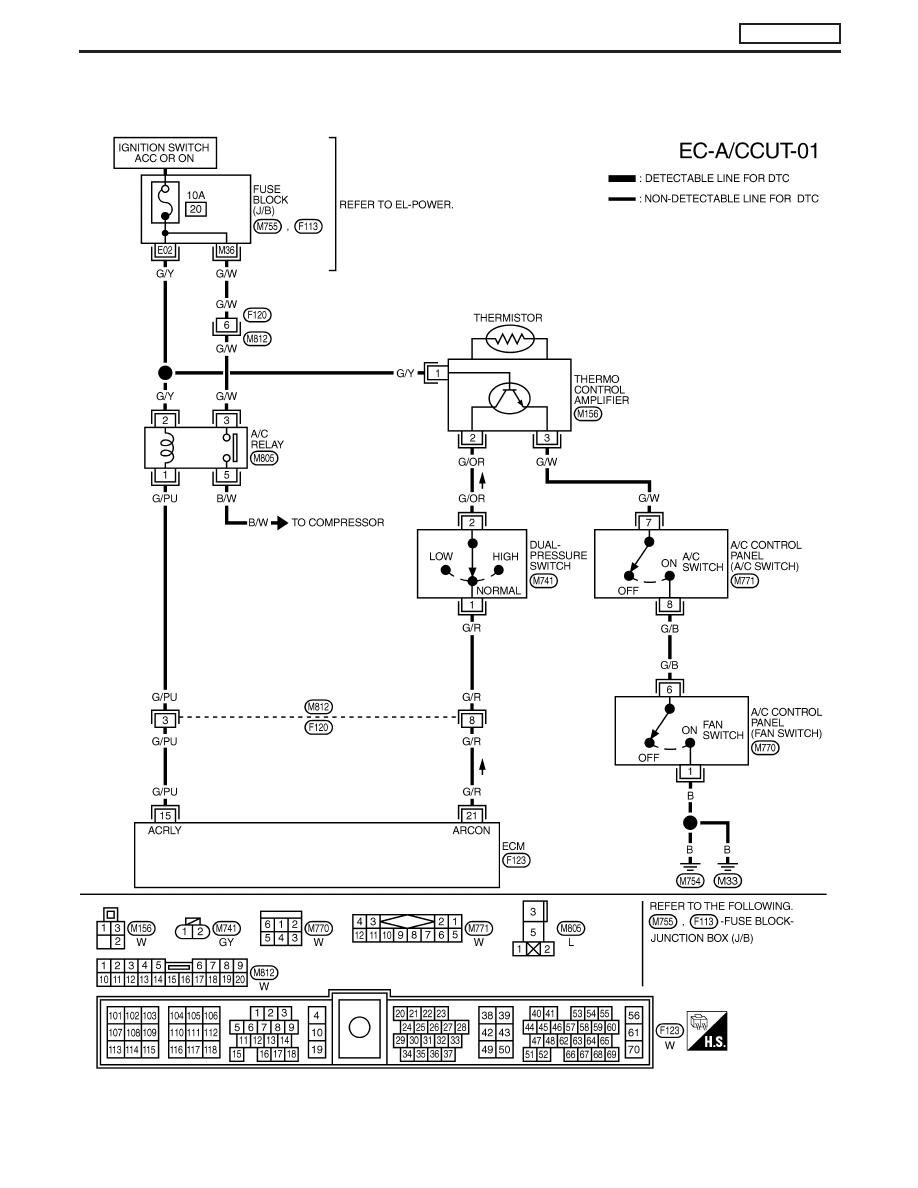

LHD MODELS

YEC202A

AIR CONDITIONER CONTROL

ZD30DDTi

EC-289

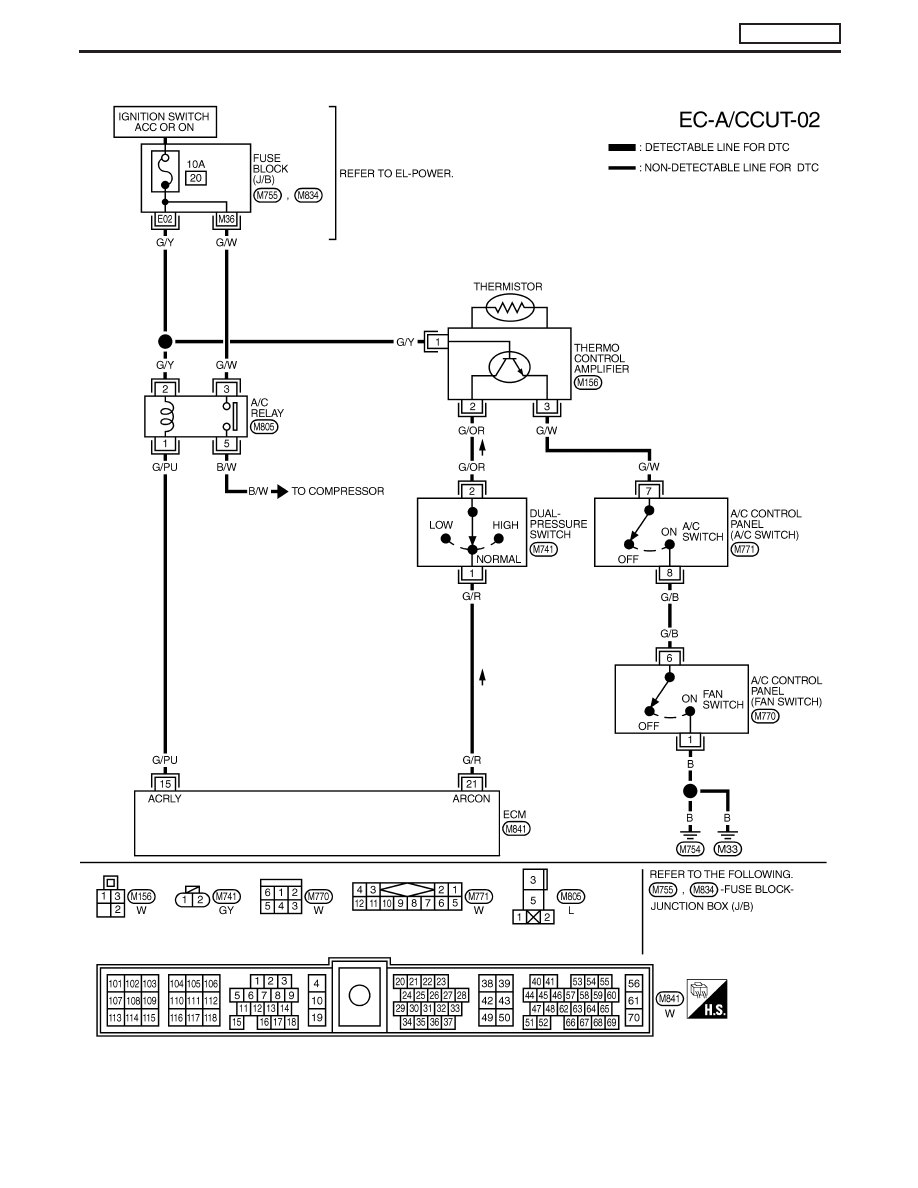

RHD MODELS

YEC203A

AIR CONDITIONER CONTROL

ZD30DDTi

Wiring Diagram (Cont’d)

EC-290

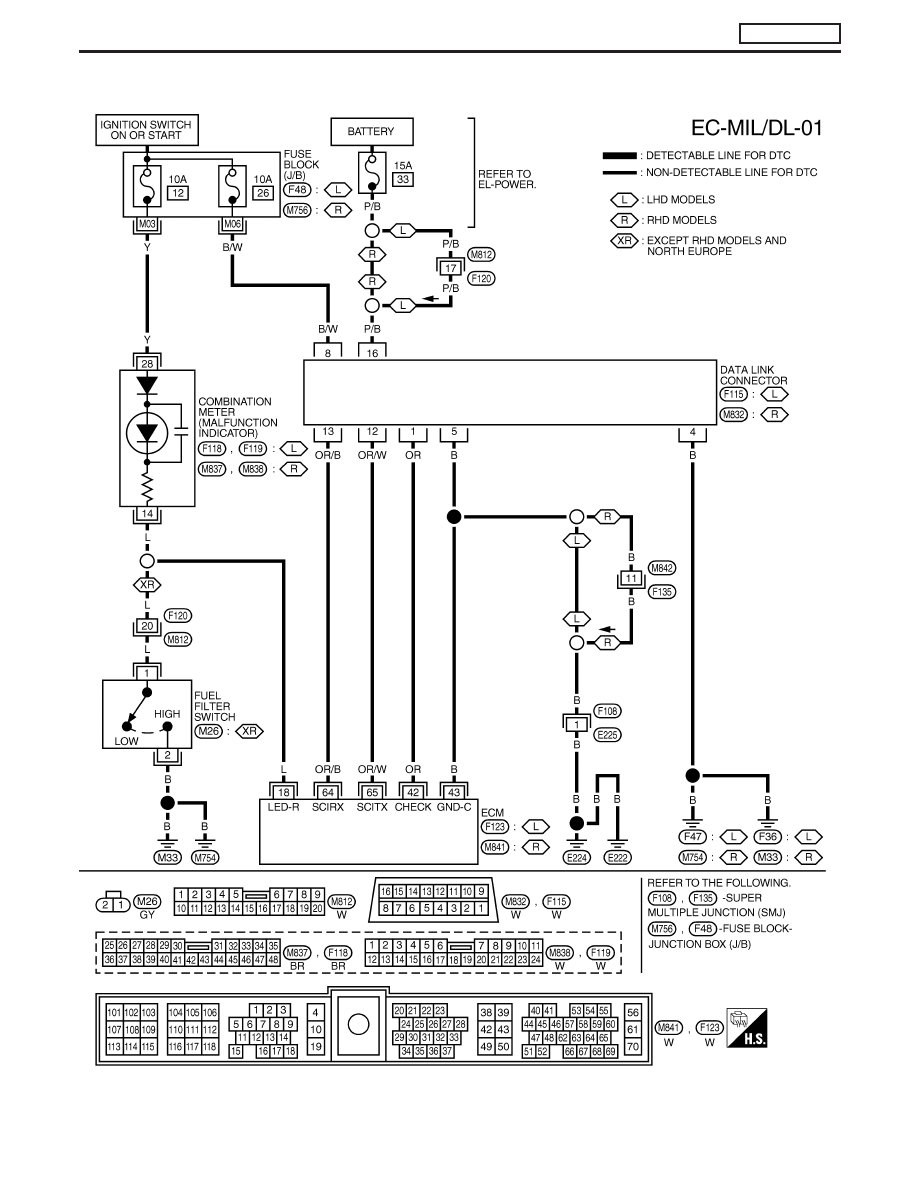

Wiring Diagram

YEC204A

MI (MIL) & DATA LINK CONNECTORS

ZD30DDTi

EC-291

General Specifications

Unit: rpm

Engine

ZD30DDTi

Idle speed

750±25

Maximum engine speed

4,300

Injection Pump Numbers

Engine

Part number

Pump assembly number

ZD30DDTi

16700 VG100

109342-4023

Injection Nozzle

Unit: kPa (bar, kg/cm

2

, psi)

Initial injection pressure

Used

19,026 (190.3, 194, 2,759)

New

19,516 - 20,497 (195.2 - 205.0, 199 - 209, 2,830 - 2,972)

Limit

16,182 (161.8, 165, 2,346)

Engine Coolant Temperature Sensor

Temperature °C (°F)

Resistance k

20 (68)

2.1 - 2.9

50 (122)

0.68 - 1.00

90 (194)

0.236 - 0.260

Crankshaft Position Sensor (TDC)

Resistance [at 20°C (68°F)]

1,287 - 1,573

Glow Plug

Resistance [at 20°C (68°F)]

Approximately 0.5

Accelerator Position Sensor

Throttle valve conditions

Resistance between terminals 2 and 3 k

[at 25°C (77°F)]

Completely closed

Approximately 0.5

Partially open

0.5 - 4

Completely open

Approximately 4

EGR Volume Control Valve

Resistance [at 25°C (77°F)]

13 - 17

SERVICE DATA AND SPECIFICATIONS (SDS)

ZD30DDTi

EC-292
