CHECK GLOW RELAY POWER SUPPLY CIRCUIT

1. Turn ignition switch “OFF”.
2. Disconnect glow relay.

MEC004E

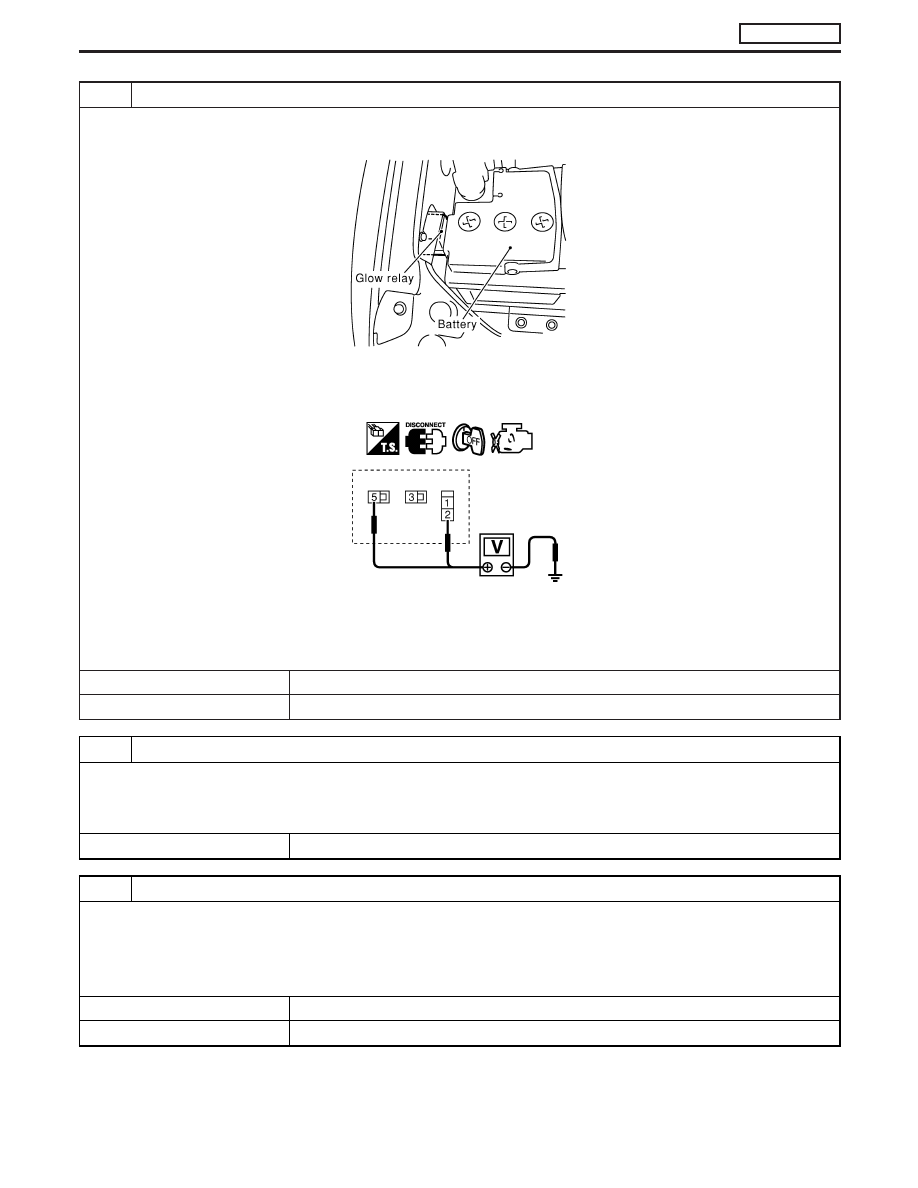

3. Check voltage between glow relay terminals 2, 5 and ground with CONSULT-II or tester.

MEC980D

Voltage: Battery voltage

OK or NG

OK

E

GO TO 12.

NG

E

GO TO 11.

11

DETECT MALFUNCTIONING PART

Check the following.

I

80A fusible link

I

10A fuse

I

Harness for open or short between glow relay and battery

E

Repair harness or connectors.

12

CHECK GLOW RELAY OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 111 and glow relay terminal 1. Refer to Wiring Diagram.

Continuity should exist.

3. Also check harness for short to ground and short to power.

OK or NG

OK

E

GO TO 14.

NG

E

GO TO 13.

GLOW CONTROL SYSTEM

ZD30DDTi

Diagnostic Procedure (Cont’d)

EC-245

13

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connectors M787, F66 (LHD models)

I

Harness for open or short between glow relay and ECM

E

Repair open circuit or short to ground or short to power in harness or connectors.

14

CHECK HARNESS CONTINUITY BETWEEN GLOW RELAY AND GLOW PLUG FOR OPEN AND SHORT

1. Disconnect glow plug harness connector.
2. Check harness continuity between glow relay terminal 3 and glow plug harness connector. Refer to Wiring Diagram.

Continuity should exist.

3. Also check harness for short to ground and short to power.

OK or NG

OK

E

GO TO 16.

NG

E

GO TO 15.

15

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connectors M45, E202

I

Harness connectors E230, E241

I

Harness for open or short between glow relay and glow plug

E

Repair open circuit or short to ground or short to power in harness or connectors.

16

CHECK GLOW RELAY

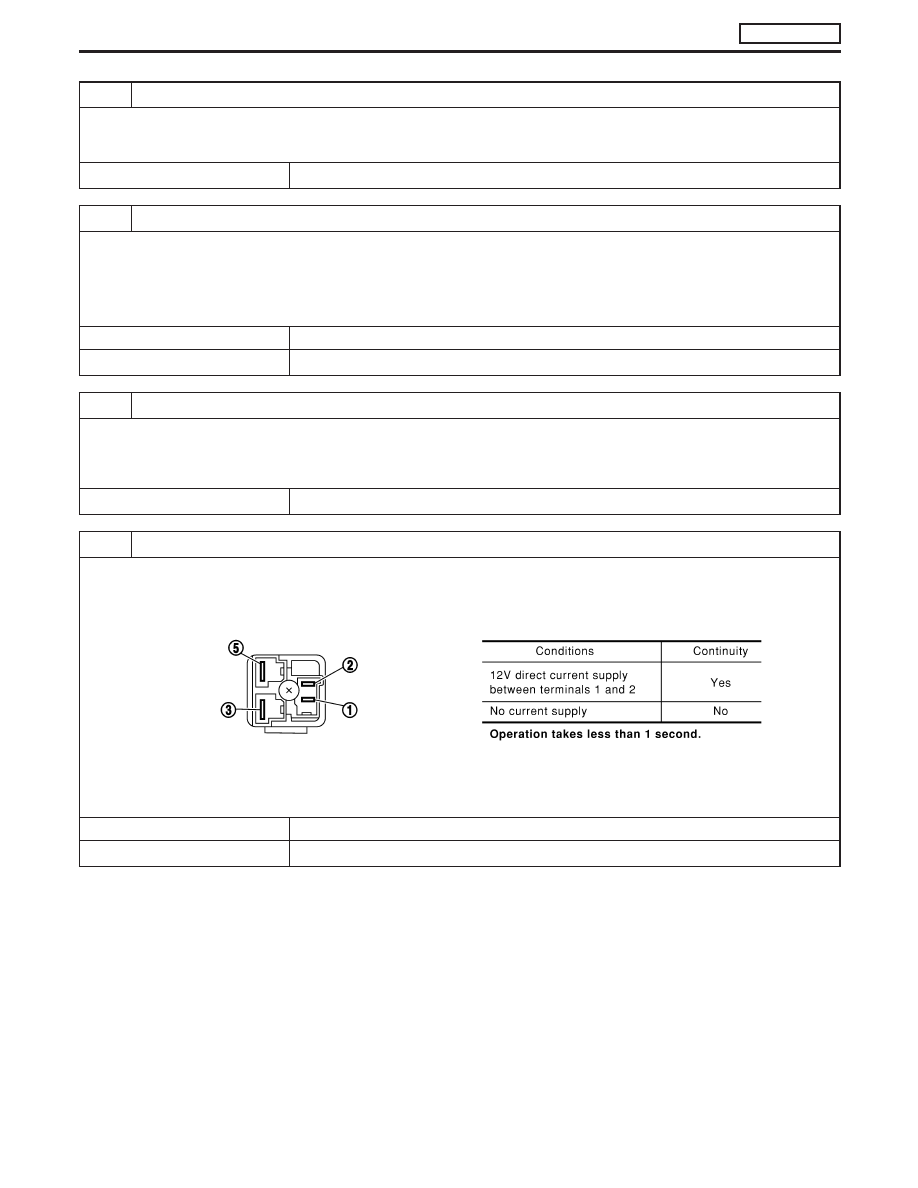

Check continuity between glow relay terminals 3 and 5 under the following conditions.

SEF433Y

OK or NG

OK

E

GO TO 17.

NG

E

Replace glow relay.

GLOW CONTROL SYSTEM

ZD30DDTi

Diagnostic Procedure (Cont’d)

EC-246

17

CHECK GLOW PLUG

1. Remove glow plug connecting plate.

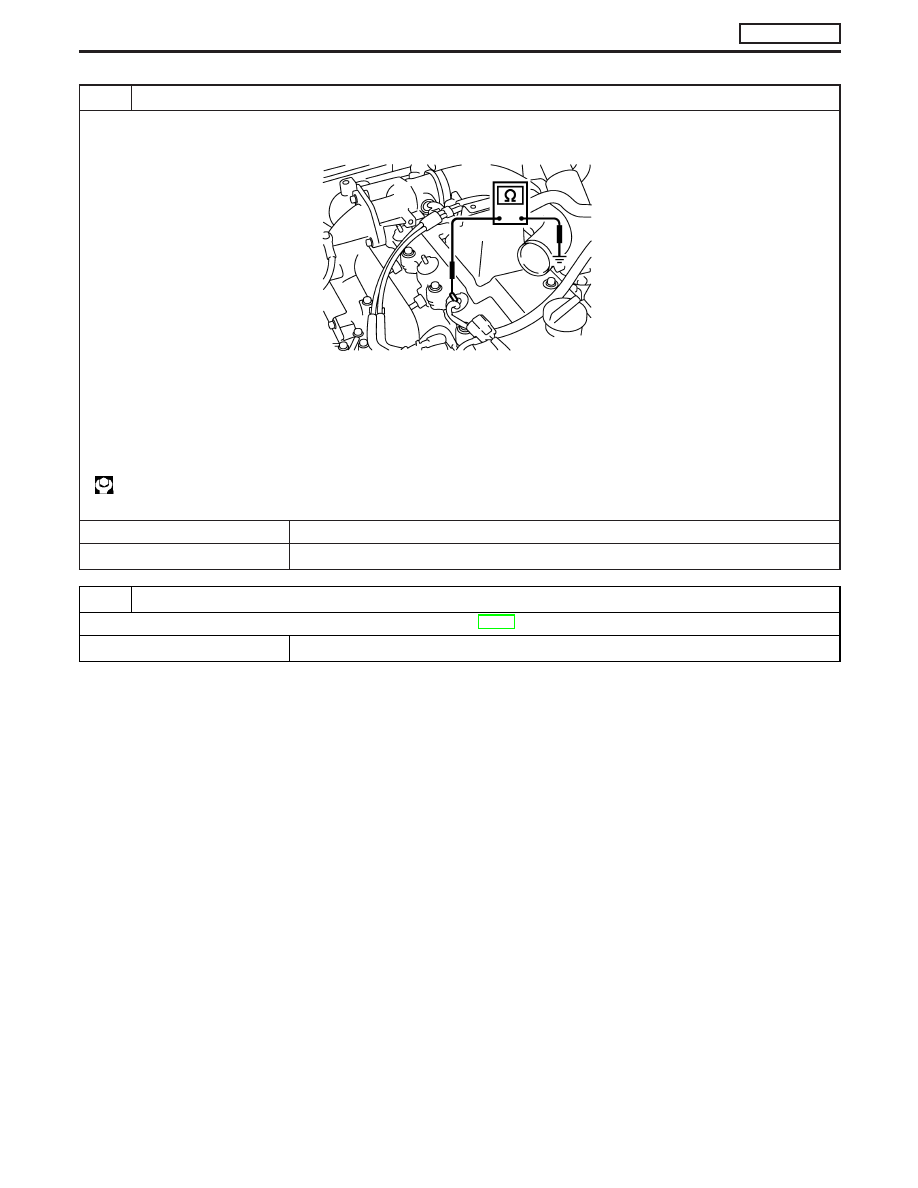

2. Check glow plug resistance.

MEC005E

Resistance: Approx. 0.5

[at 20°C (68°F)]

NOTE:

I

Do not bump glow plug heating element. If it is bumped, replace glow plug with a new one.

I

If glow plug is dropped from a height of 10 cm (3.94 in) or higher, replace with a new one.

I

If glow plug installation hole is contaminated with carbon, remove it with a reamer or suitable tool.

I

Hand-tighten glow plug by turning it two or three times, then tighten using a tool to specified torque.

: 15 - 20 N

m (1.5 - 2.1 kg-m, 11 - 15 ft-lb)

OK or NG

OK

E

GO TO 18.

NG

E

Replace glow plug.

18

CHECK INTERMITTENT INCIDENT

Refer to “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-78.

E

INSPECTION END

GLOW CONTROL SYSTEM

ZD30DDTi

Diagnostic Procedure (Cont’d)

EC-247

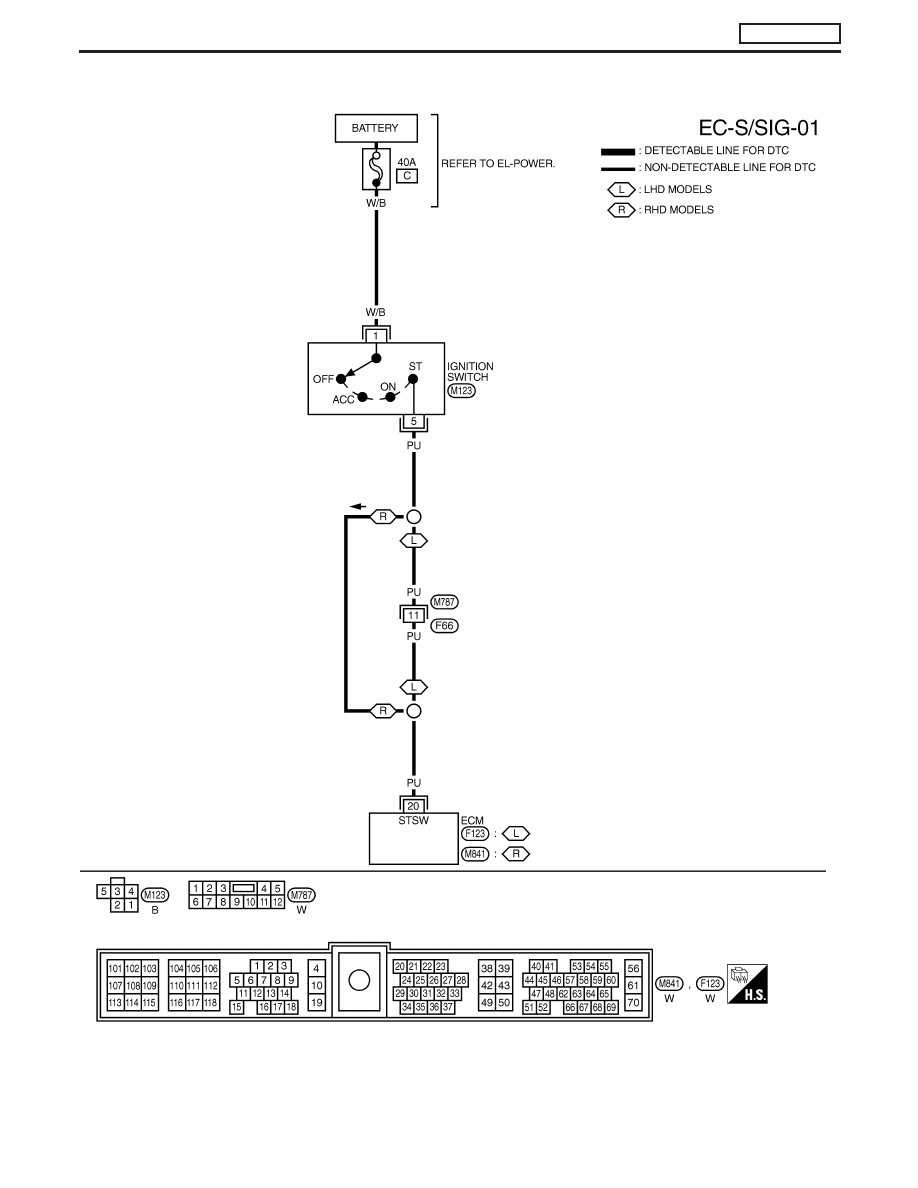

Wiring Diagram

YEC196A
