Nissan Terrano r20e. Manual - part 130

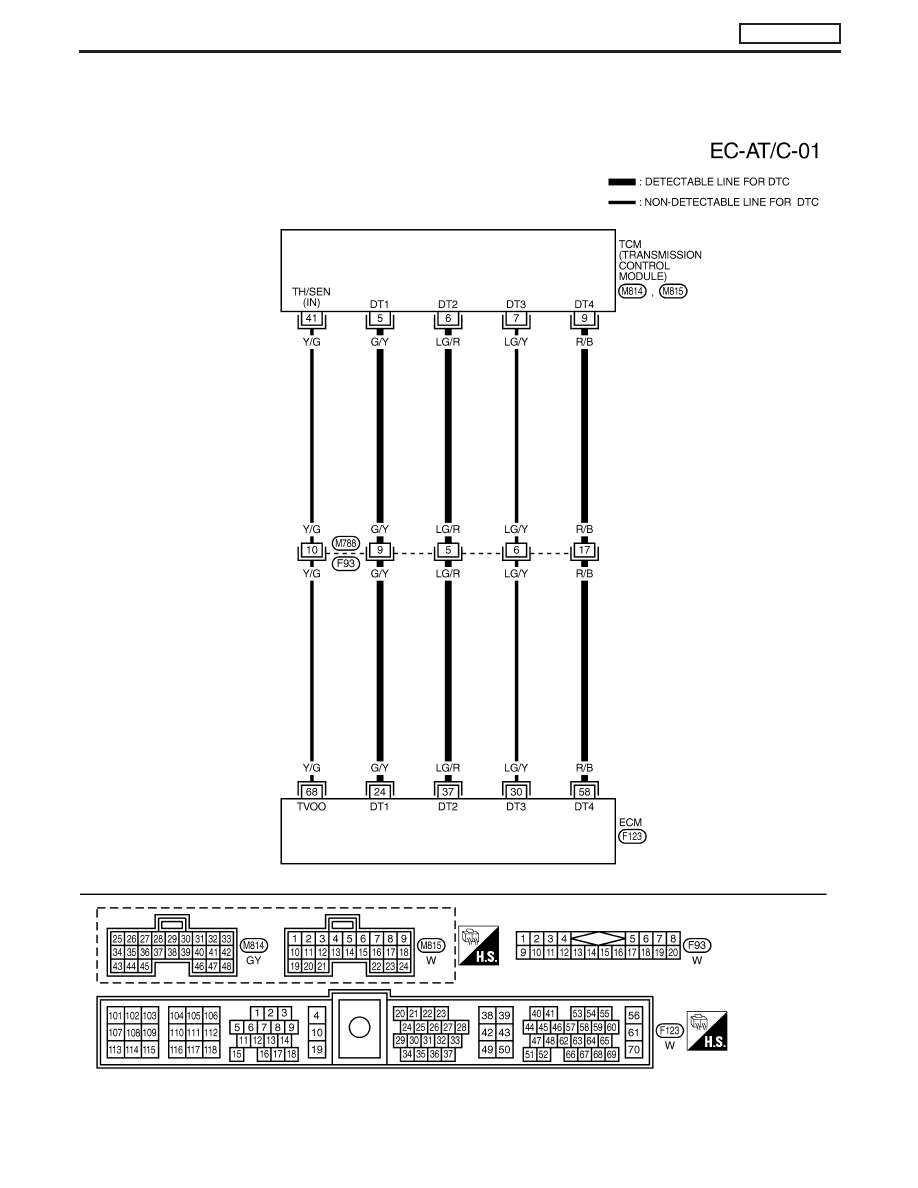

Wiring Diagram

LHD MODELS

YEC187A

DTC 0504 A/T COMM LINE

ZD30DDTi

EC-157

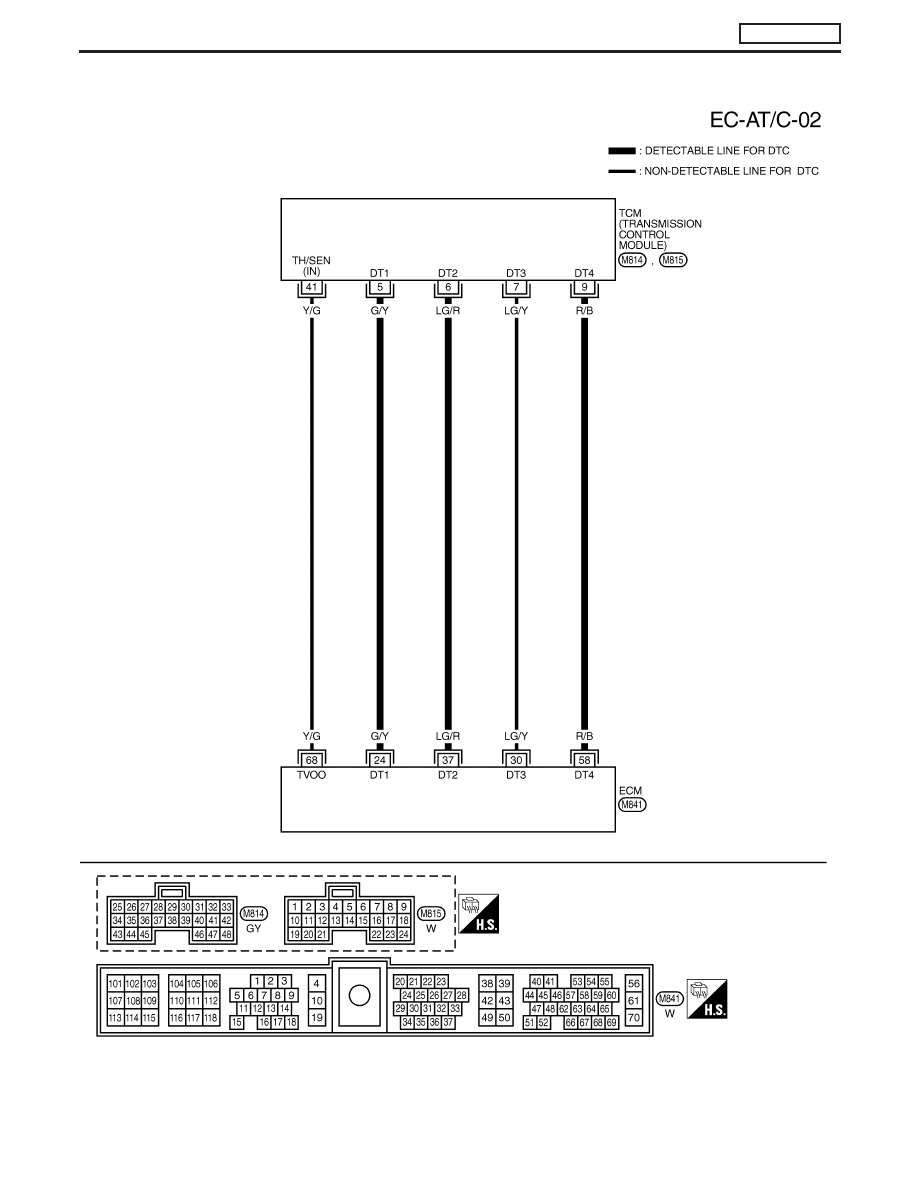

RHD MODELS

YEC188A

DTC 0504 A/T COMM LINE

ZD30DDTi

Wiring Diagram (Cont’d)

EC-158

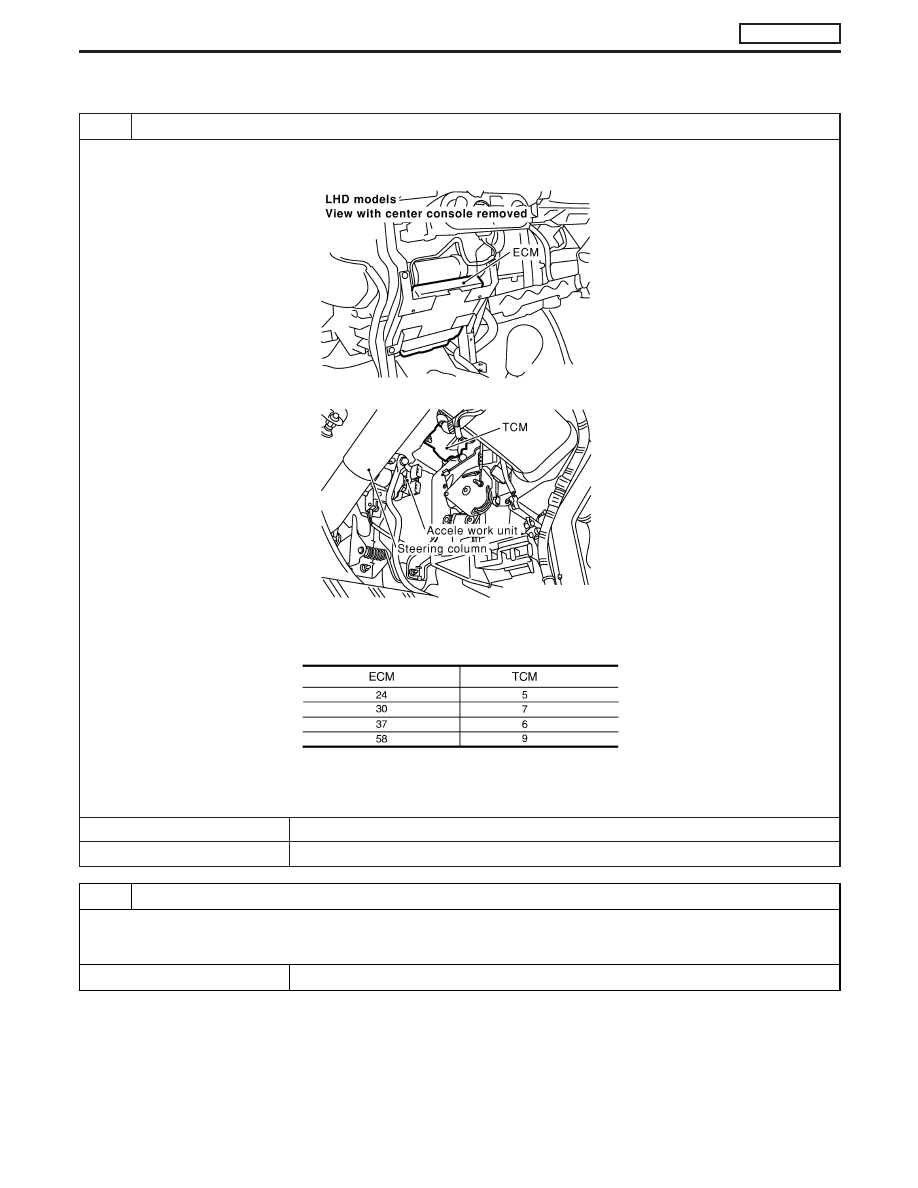

Diagnostic Procedure

1

CHECK INPUT SIGNAL CIRCUIT

1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector and TCM (Transmission control module) harness connector.

MEC020E

MEC026E

3. Check harness continuity between the following terminals. Refer to Wiring Diagram.

MTBL0532

Continuity should exist.

OK or NG

OK

E

GO TO 3.

NG

E

GO TO 2.

2

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connectors M788, F93 (LHD models)

I

Harness for open or short between ECM and TCM (Transmission control module)

E

Repair harness or connectors.

DTC 0504 A/T COMM LINE

ZD30DDTi

EC-159

3

CHECK INPUT SIGNAL CIRCUIT

1. Check harness continuity between ECM terminal 24 and ground, ECM terminal 30 and ground, ECM terminal 37 and ground,

ECM terminal 58 and ground. Refer to Wiring Diagram.

Continuity should not exist.

2. Also check harness for short to ground and short to power.

OK or NG

OK

E

GO TO 5.

NG

E

GO TO 4.

4

DETECT MALFUNCTIONING PART

Check the harness for open or short between ECM and TCM (Transmission control module).

E

Repair open circuit short to ground or short to power in harness.

5

CHECK INTERMITTENT INCIDENT

Refer to “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-78.

E

INSPECTION END

DTC 0504 A/T COMM LINE

ZD30DDTi

Diagnostic Procedure (Cont’d)

EC-160
