Wiring Diagram

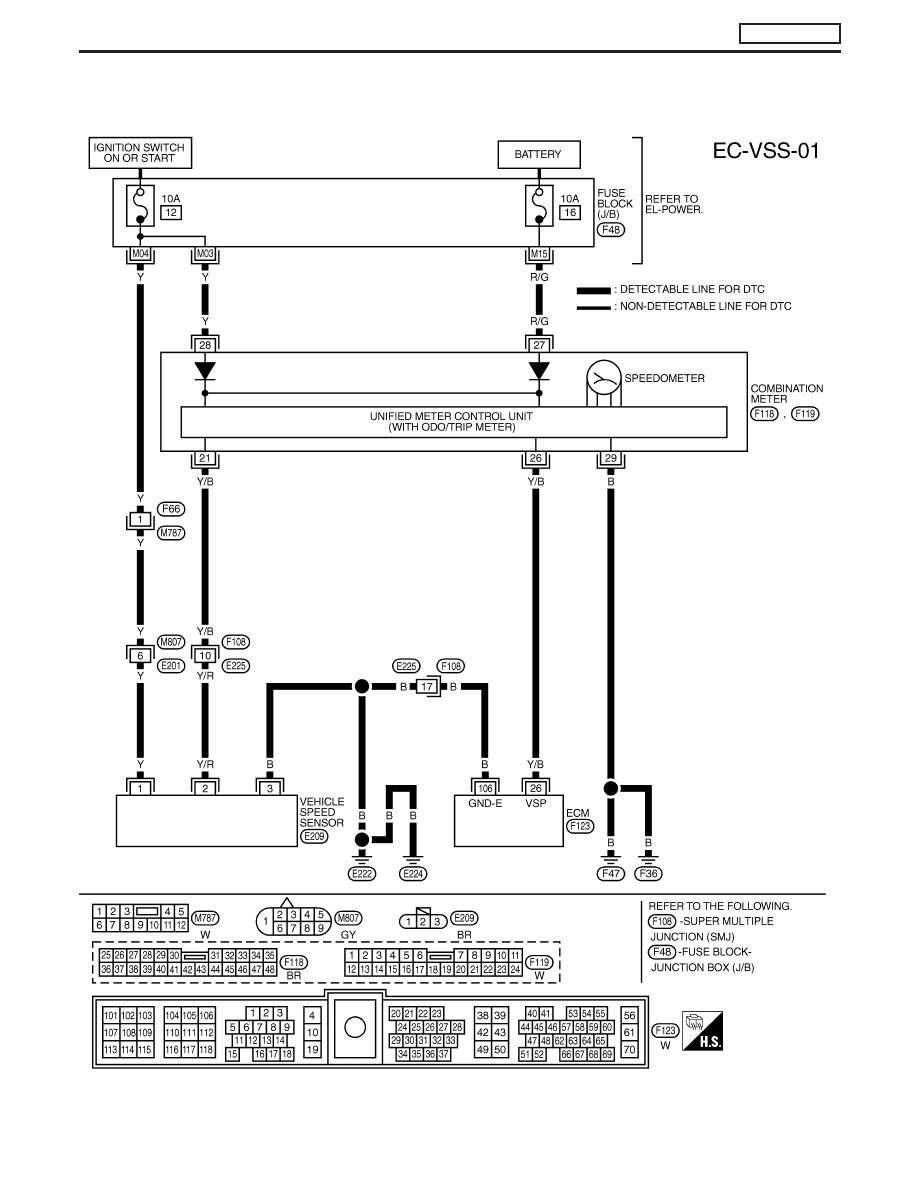

LHD MODELS

YEC176A

DTC 0104 VEHICLE SPEED SEN

ZD30DDTi

EC-101

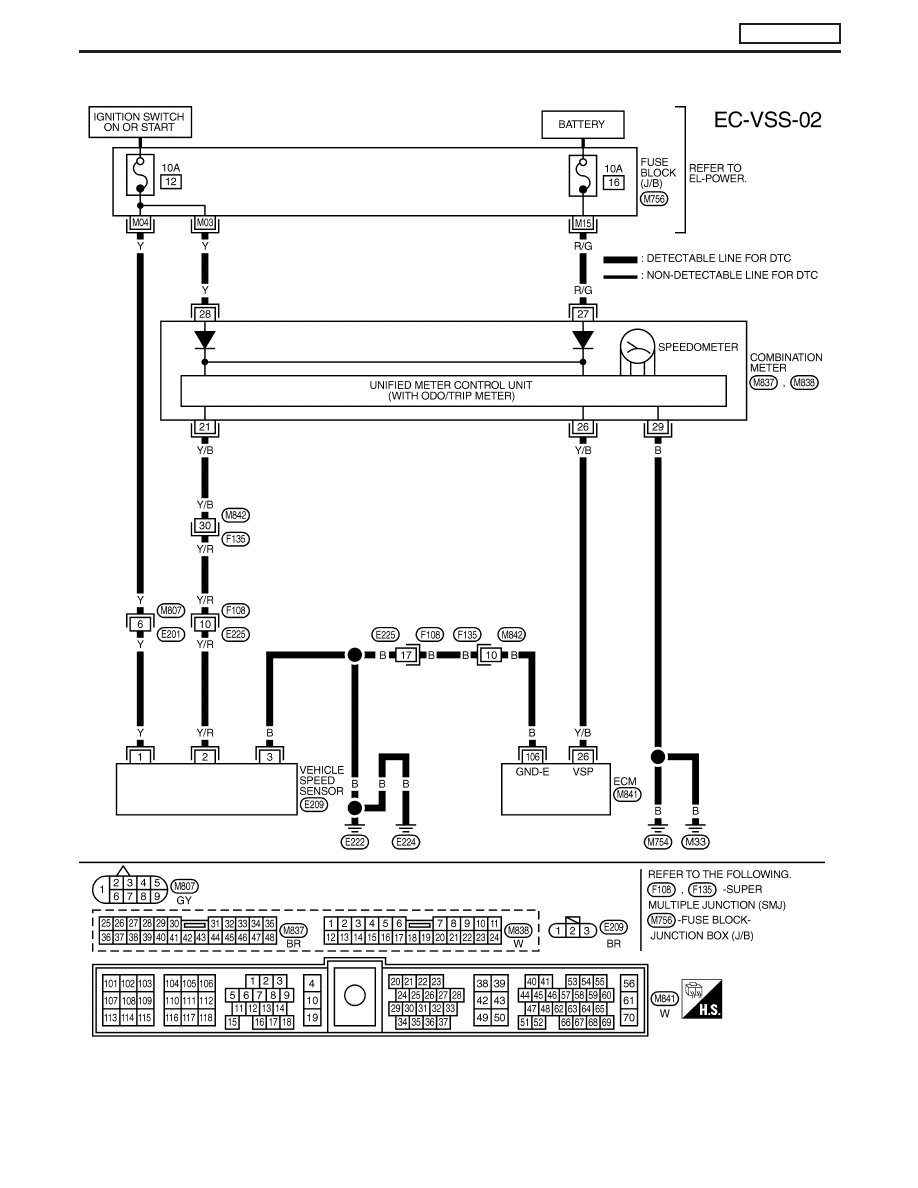

RHD MODELS

YEC177A

DTC 0104 VEHICLE SPEED SEN

ZD30DDTi

Wiring Diagram (Cont’d)

EC-102

Diagnostic Procedure

1

CHECK VEHICLE SPEED SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector and combination meter harness connector.
3. Check harness continuity between ECM terminal 26 and combination meter terminal 26. Refer to Wiring Diagram.

Continuity should exist.

4. Also check harness for short to ground and short to power.

OK or NG

OK

E

GO TO 2.

NG

E

Repair open circuit or short to ground or short to power in harness or connectors.

2

CHECK SPEEDOMETER FUNCTION

Make sure that speedometer functions properly.

OK or NG

OK

E

GO TO 4.

NG

E

GO TO 3.

3

CHECK SPEEDOMETER CIRCUIT FOR OPEN AND SHORT

Check the following.

I

Harness connectors F108, E225

I

Harness connectors M842, F135 (RHD models)

I

Harness for open or short between combination meter and vehicle speed sensor

OK or NG

OK

E

Check vehicle speed sensor and combination meter. Refer to EL section.

NG

E

Repair open circuit or short to ground or short to power in harness or connectors.

4

CHECK INTERMITTENT INCIDENT

Refer to “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-78.

E

INSPECTION END

DTC 0104 VEHICLE SPEED SEN

ZD30DDTi

EC-103

Description

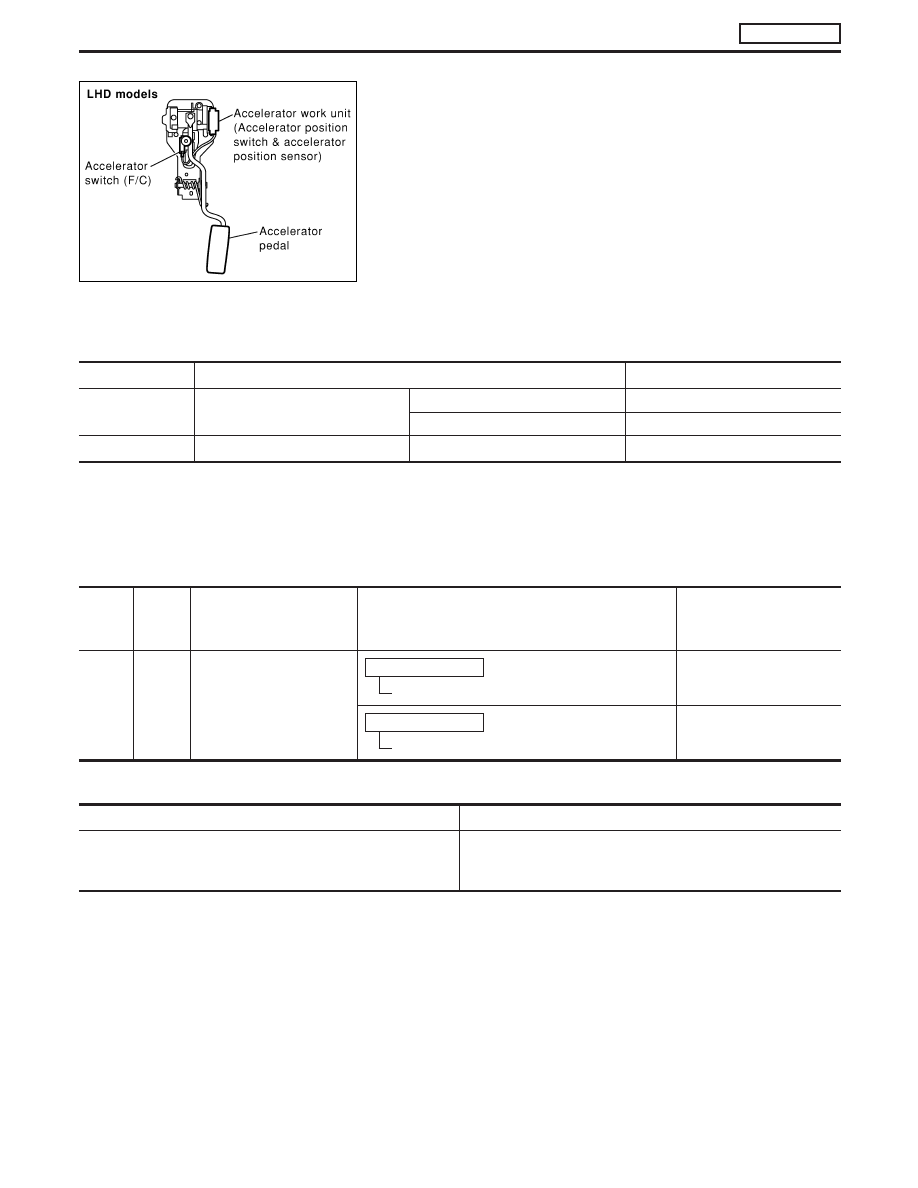

The accelerator switch is installed to the accelerator pedal assem-
bly. The switch senses accelerator position and sends an ON-OFF
signal to the ECM. The ECM uses the signal to control the fuel cut
operation at deceleration for better fuel efficiency.

CONSULT-II Reference Value in Data Monitor
Mode

Specification data are reference values.

MONITOR ITEM

CONDITION

SPECIFICATION

ACCEL SW (FC)

I

Ignition switch: ON
(Engine stopped)

Accelerator pedal: fully released

CLOSE

Accelerator pedal: slightly open

OPEN

DECELER F/CUT

I

Engine: After warming up

Idle

OFF

ECM Terminals and Reference Value

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may damage the
ECM’s transistor. Use a ground other than ECM terminals, such as the ground.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

29

LG/R

Accelerator switch (F/C)

Ignition switch “ON”

Accelerator pedal fully released

BATTERY VOLTAGE
(11 - 14V)

Ignition switch “ON”

Accelerator pedal depressed

Approximately 0V

On Board Diagnosis Logic

Malfunction is detected when ....

Check Items (Possible Cause)

I

The OFF signal (short) is sent to the ECM for a certain period
of time even when the accelerator pedal is not being
depressed.

I

Harness or connectors
(The switch circuit is shorted.)

I

Accelerator switch (F/C)

MEC986D

DTC 0203 ACCEL POS SW (F/C)

ZD30DDTi

EC-104
