Nissan Terrano r20e. Manual - part 85

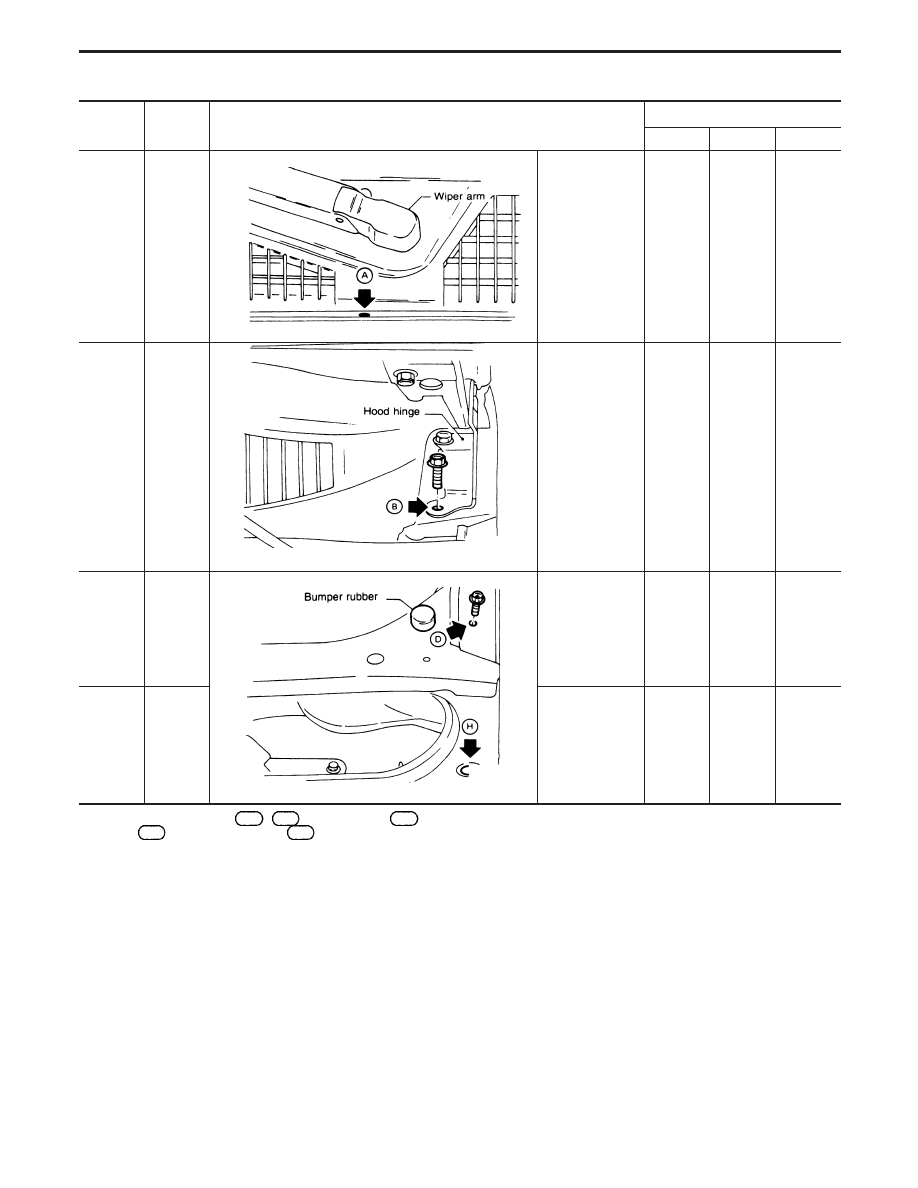

Detailed Measurement Points

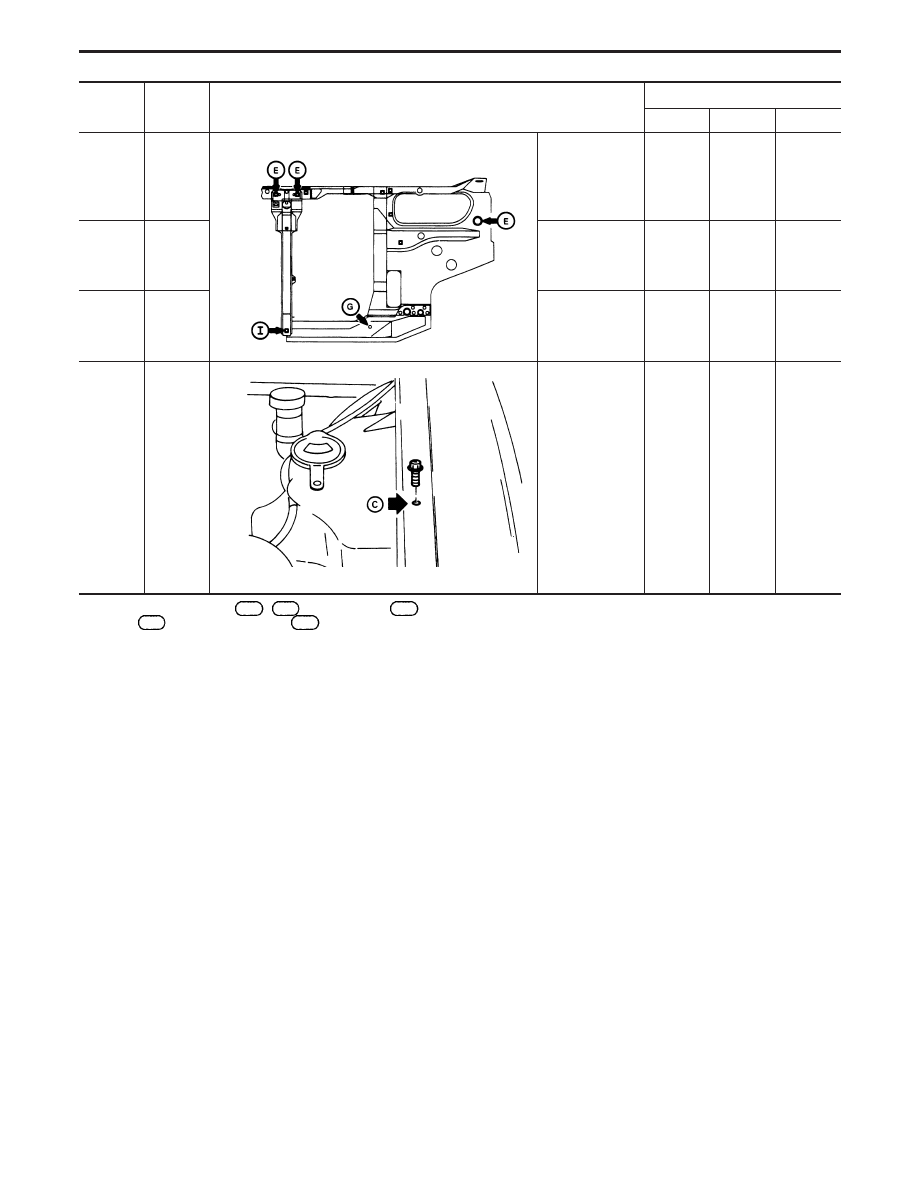

Points

Hole dia.

mm (in)

Detailed points

Coordinates mm (in)

“X”

“Y”

“Z”

q

A

8 (0.32)

NBF022

Cowl top hole at
vehicle center

0.0

(0.00)

250.0

(9.84)

760.9

(29.96)

q

B

q

b

11 (0.43)

NBF023

Cowl top side
hole

698.5

(27.50)

−110.1

(−4.34)

624.7

(24.59)

q

D

q

d

8 (0.32)

NBF024

Upper radiator
core support
location hole

691.0

(27.20)

−459.5

(−18.09)

548.0

(21.58)

q

H

q

h

16 (0.63)

Side radiator
core support
location hole

680.0

(26.77)

−551.7

(−21.72)

400.0

(15.75)

q

1

: Coordinate indicated is

LH

,

RH

coordinate is -

LH

coordinate.

E.g. if

LH

coordinate is: 698.5,

RH

coordinate is: −698.5.

BODY (ALIGNMENT)

Alignment (Cont’d)

BT-51

Points

Hole dia.

mm (in)

Detailed points

Coordinates mm (in)

“X”

“Y”

“Z”

q

E

9 (0.35)

NBF025

Hood lock stay
mounting hole
on upper radia-
tor core support

37.0

(1.46)

−589.0

(−23.19)

494.0

(19.45)

q

I

Lower radiator
core support
mounting hole

0.0

(0.00)

−581.1

(−22.88)

−54.1

(−2.13)

q

G

q

g

12 (0.47)

Lower radiator
core support
location hole

280.0

(11.02)

−608.9

(−23.97)

−23.0

(−0.91)

q

C

q

c

7.2 (0.28)

NBF027

Front fender
mounting hole
on hoodledge

698.5

(27.50)

−110.1

(−4.34)

624.7

(24.59)

q

1

: Coordinate indicated is

LH

,

RH

coordinate is -

LH

coordinate.

E.g. if

LH

coordinate is: 698.5,

RH

coordinate is: −698.5.

BODY (ALIGNMENT)

Alignment (Cont’d)

BT-52

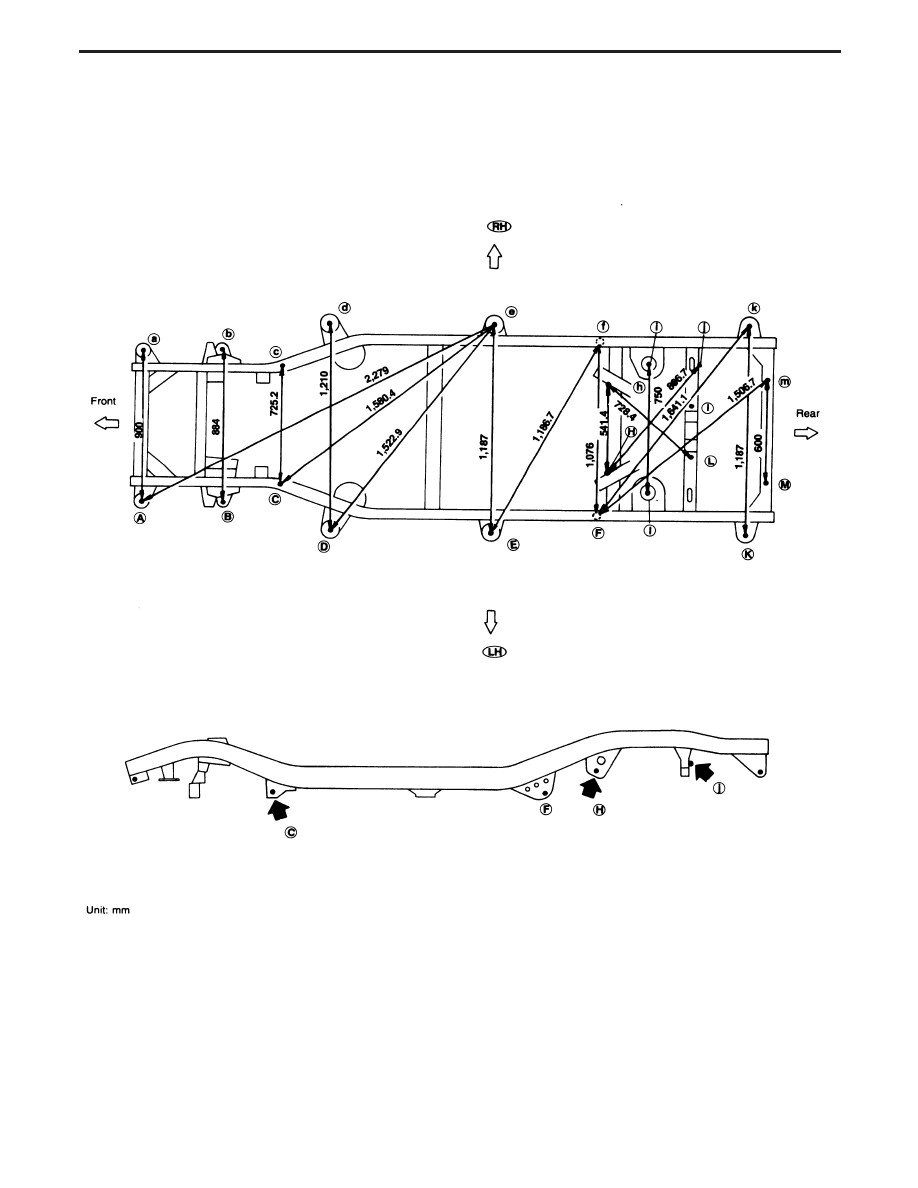

UNDERBODY

Measurement (Hardtop model)

NBF028

BODY (ALIGNMENT)

Alignment (Cont’d)

BT-53

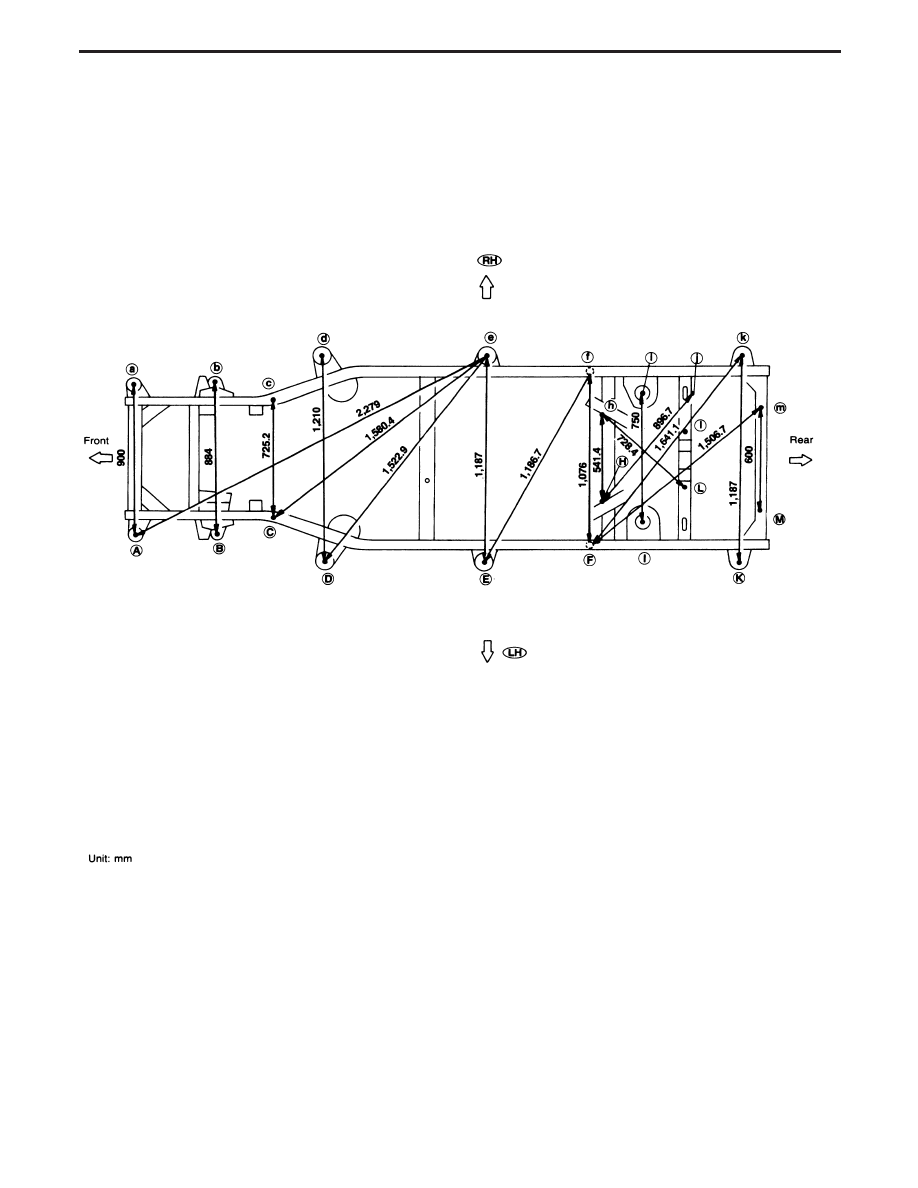

NBF029

BODY (ALIGNMENT)

Alignment (Cont’d)

BT-54
