Nissan Terrano r20e. Manual - part 2





Service Notice or Precautions

FAIL-SAFE

The TCM has an electronic Fail-Safe (limp home mode). This allows the vehicle to be driven even if a major
electrical input/output device circuit is damaged.
Under Fail-Safe, the vehicle always runs in third gear even with a shift lever position of “1”, “2” or “D”. Cus-
tomer may complain of “sluggish or poor acceleration”.
When the Fail-Safe operation occurs the next time the key is turned to the “ON” position, the SPORT indica-
tor lamp will blink for about 8 seconds. (For diagnosis, refer to AT-33.)
Fail-Safe may activate without electrical circuit damages if the vehicle is driven under extreme conditions (such
as excessive wheel spins and emergency braking immediately afterwards). In this case, turn the ignition key
“OFF” for 5 seconds and then “ON” to recover normal shift pattern.
The blinking of the SPORT indicator lamp for about 8 seconds will appear only once and be cleared. The cus-
tomer may resume normal driving conditions by chance.
Always follow the “WORK FLOW” (Refer to AT-26).
The SELF-DIAGNOSIS results will be as follows:

The first SELF-DIAGNOSIS will indicate the damage of the vehicle speed sensor or the revolution sensor.
During the next SELF-DIAGNOSIS performed after checking the sensor, no damages will be indicated.

PREPARATION AND PRECAUTIONS

AT-5

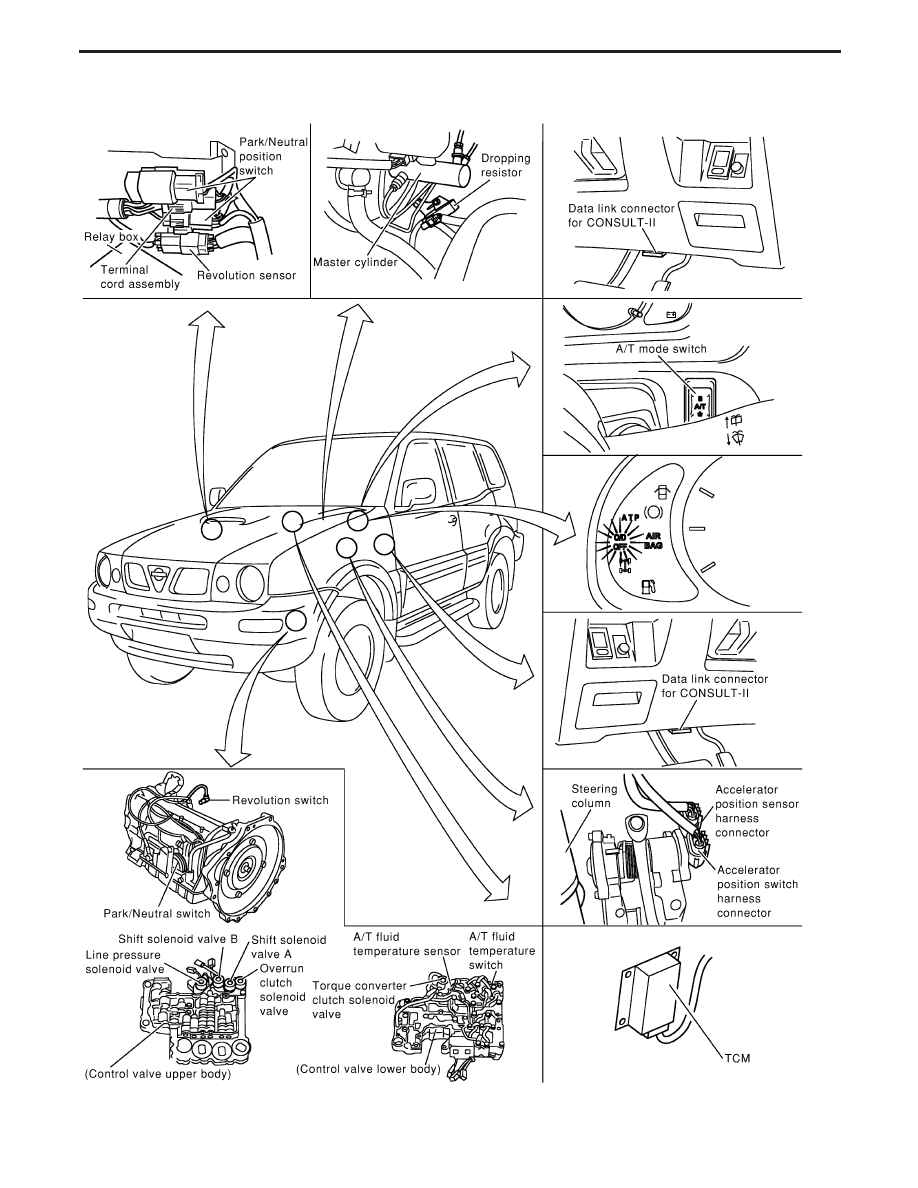

A/T Electrical Parts Location

YAT352

OVERALL SYSTEM

AT-6

Wiring Diagram — A/T —

YAT260

OVERALL SYSTEM

AT-7

Cross-sectional View

SAT125BA

OVERALL SYSTEM

AT-8
