DIAGNOSIS SYSTEM (BCM)

WT-13

< SYSTEM DESCRIPTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

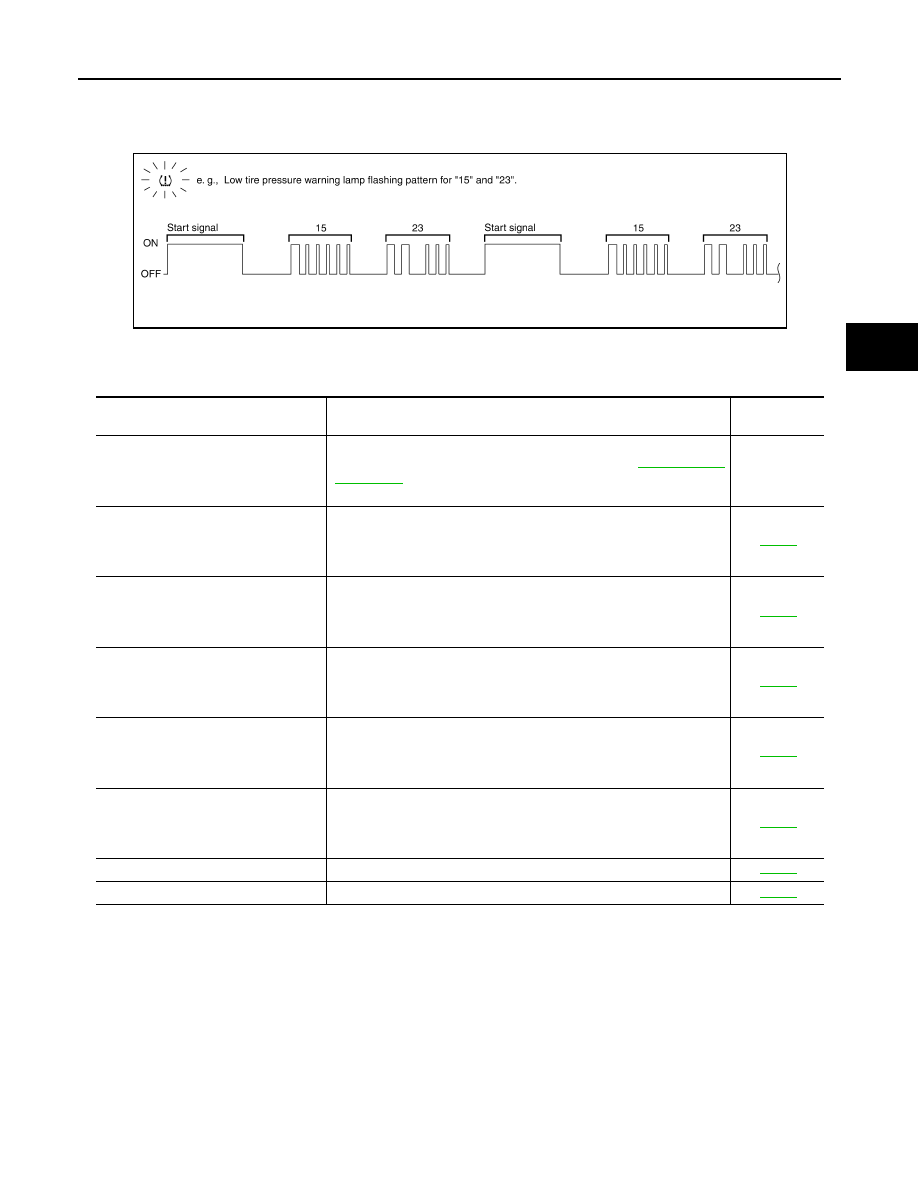

1. Turn ignition switch ON.

2. Ground the tire pressure warning check connector to initiate self diagnosis.

3. Compare the flashing pattern with the flash code chart below.

NOTE:

The system is normal when the low tire pressure warning lamp flashes 5 times and continues repeating. Self-

diagnosis results are erased automatically by turning the ignition switch “OFF”.

Flash Code

Malfunction part

Reference

page

15
16
17
18

Tire pressure dropped below specified value. Refer to

WT-8, "System

Description"

.

—

21
22
23
24

Transmitter no data (FL)
Transmitter no data (FR)
Transmitter no data (RR)
Transmitter no data (RL)

WT-14

31
32
33
34

Transmitter checksum error (FL)
Transmitter checksum error (FR)
Transmitter checksum error (RR)
Transmitter checksum error (RL)

WT-16

35
36
37
38

Transmitter pressure data error (FL)
Transmitter pressure data error (FR)
Transmitter pressure data error (RR)
Transmitter pressure data error (RL)

WT-18

41
42
43
44

Transmitter function code error (FL)
Transmitter function code error (FR)
Transmitter function code error (RR)
Transmitter function code error (RL)

WT-16

45
46
47
48

Transmitter battery voltage low (FL)
Transmitter battery voltage low (FR)
Transmitter battery voltage low (RR)
Transmitter battery voltage low (RL)

WT-16

52

Vehicle speed signal

WT-20

54

Vehicle ignition signal

WT-21

ALEIA0050GB

WT-14

< DTC/CIRCUIT DIAGNOSIS >

C1708 - C1711 DATA FROM TRANSMITTER NOT BEING RECEIVED

DTC/CIRCUIT DIAGNOSIS

C1708 - C1711 DATA FROM TRANSMITTER NOT BEING RECEIVED

Description

INFOID:0000000009885635

Tire pressure data for one or more transmitters is not being received by the BCM.

DTC Logic

INFOID:0000000009885636

NOTE:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II

User Guide for additional information.

• Activate and display TPMS transmitter IDs

• Display tire pressure reported by the TPMS transmitter

• Read TPMS DTCs

• Register TPMS transmitter IDs

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

ID REGISTRATION AND VEHICLE DRIVING

1. Carry out ID registration of all transmitters.

2. Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for

10 minutes.

3. Check all tire pressures with CONSULT within 5 minutes.
Does “DATA MONITOR ITEM” display tire pressure as normal without any warning lamp?

YES

>> Inspection End.

NO

>> Refer to

WT-14, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009885637

NOTE:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II

User Guide for additional information.

• Activate and display TPMS transmitter IDs

• Display tire pressure reported by the TPMS transmitter

• Read TPMS DTCs

• Register TPMS transmitter IDs

MALFUNCTION CODE NO. 21, 22, 23 OR 24 (DTC C1708, C1709, C1710 OR C1711)

1.

CHECK BCM

Drive for several minutes. Check all tire pressures with CONSULT.
Are all tire pressures displayed as 0 kPa?

YES

>> GO TO 2

NO

>> GO TO 3

2.

CHECK TIRE PRESSURE RECEIVER CONNECTOR

Check tire pressure receiver connector for damage or loose connection.
Is tire pressure receiver connector damaged or loose?

YES

>> Repair or replace tire pressure receiver connector.

DTC

CONSULT

DTC detecting condition

C1708

[NO - DATA] - FL

Data from FL transmitter cannot be received.

C1709

[NO - DATA] - FR

Data from FR transmitter cannot be received.

C1710

[NO - DATA] - RR

Data from RR transmitter cannot be received.

C1711

[NO - DATA] - RL

Data from RL transmitter cannot be received.

C1708 - C1711 DATA FROM TRANSMITTER NOT BEING RECEIVED

WT-15

< DTC/CIRCUIT DIAGNOSIS >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

NO

>> Replace BCM, then GO TO 3. Refer to

BCS-52, "Removal and Installation"

.

3.

PERFORM ID REGISTRATION

Carry out ID registration of all transmitters. Refer to

WT-6, "ID Registration Procedure"

.

Is there a tire that cannot register ID?

YES

>> Replace malfunctioning transmitter, then GO TO 5. Refer to

WT-51, "Transmitter (Pressure Sen-

sor)"

.

NO

>> GO TO 4

4.

DRIVE VEHICLE

1. Drive at a speed of 40 km/h (25 MPH) or more for several minutes without stopping.

2. Check all tire pressures with CONSULT within 15 minutes after vehicle speed becomes 17 km/h (11

MPH).

Does “DATA MONITOR ITEM” display tire pressure as normal without any warning lamp?

YES

>> Inspection End.

NO

>> GO TO 5

5.

ID REGISTRATION AND VEHICLE DRIVING

1. Carry out ID registration of all transmitters.

2. Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for

10 minutes.

3. Check all tire pressures with CONSULT within 5 minutes.
Does “DATA MONITOR ITEM” display tire pressure as normal without any warning lamp?

YES

>> Inspection End.

NO

>> Proceed to the inspection applicable to DTC.

Special Repair Requirement

INFOID:0000000009885638

Perform preliminary check. Refer to

WT-5, "Preliminary Check"

.

WT-16

< DTC/CIRCUIT DIAGNOSIS >

C1712 - C1715, C1720 - C1723, C1724 - C1727 TRANSMITTER MALFUNCTION

C1712 - C1715, C1720 - C1723, C1724 - C1727 TRANSMITTER MALFUNC-
TION

Description

INFOID:0000000009885639

One or more transmitters are malfunctioning internally.

DTC Logic

INFOID:0000000009885640

NOTE:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II

User Guide for additional information.

• Activate and display TPMS transmitter IDs

• Display tire pressure reported by the TPMS transmitter

• Read TPMS DTCs

• Register TPMS transmitter IDs

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

DRIVE VEHICLE

1. Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for

10 minutes.

2. Check all tire pressures with CONSULT within 5 minutes.
Does “DATA MONITOR ITEM” display tire pressure as normal without any warning lamp?

YES

>> Inspection End.

NO

>> Refer to

WT-16, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009885641

NOTE:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II

User Guide for additional information.

• Activate and display TPMS transmitter IDs

• Display tire pressure reported by the TPMS transmitter

• Read TPMS DTCs

• Register TPMS transmitter IDs

MALFUNCTION CODE NO. 31, 32, 33, 34, 41, 42, 43, 44, 45, 46, 47 OR 48 (DTC C1712, C1713,
C1714, C1715, C1720, C1721, C1722, C1723, C1724, C1725, C1726 OR C1727)

1.

PERFORM ID REGISTRATION

DTC

CONSULT

DTC detecting condition

C1712

[CHECKSUM - ERR] - FL

Checksum data from FL transmitter is malfunctioning.

C1713

[CHECKSUM - ERR] - FR

Checksum data from FR transmitter is malfunctioning.

C1714

[CHECKSUM - ERR] - RR

Checksum data from RR transmitter is malfunctioning.

C1715

[CHECKSUM - ERR] - RL

Checksum data from RL transmitter is malfunctioning.

C1720

[CODE - ERR] - FL

Function code data from FL transmitter is malfunctioning.

C1721

[CODE - ERR] - FR

Function code data from FR transmitter is malfunctioning.

C1722

[CODE - ERR] - RR

Function code data from RR transmitter is malfunctioning.

C1723

[CODE - ERR] - RL

Function code data from RL transmitter is malfunctioning.

C1724

[BATT - VOLT - LOW] - FL

Battery voltage of FL transmitter drops.

C1725

[BATT - VOLT - LOW] - FR

Battery voltage of FR transmitter drops.

C1726

[BATT - VOLT - LOW] - RR

Battery voltage of RR transmitter drops.

C1727

[BATT - VOLT - LOW] - RL

Battery voltage of RL transmitter drops.
