REPAIR FOR COMPONENT PARTS

TM-247

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

REPAIR FOR COMPONENT PARTS

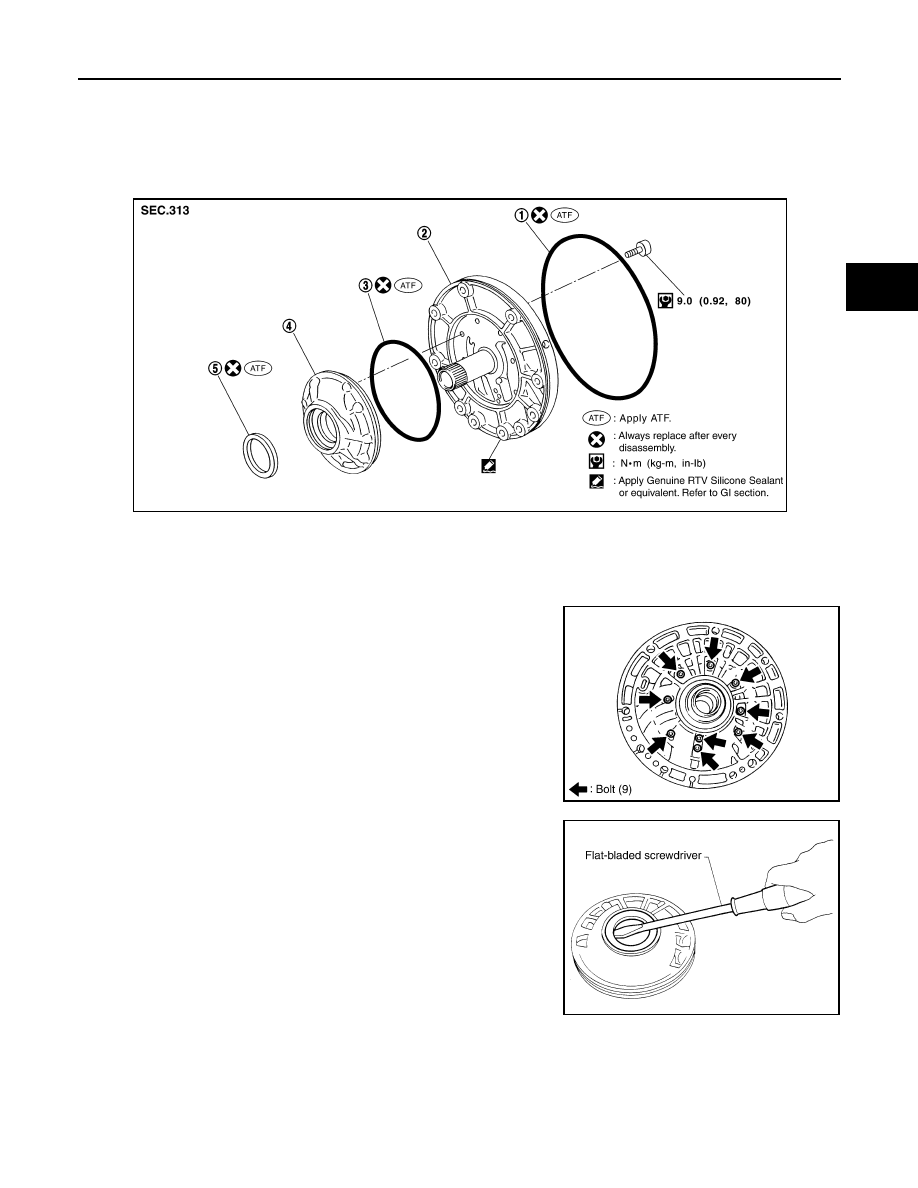

Oil Pump

INFOID:0000000009885929

COMPONENTS

DISASSEMBLY

1. Remove oil pump housing from oil pump cover.

2. Remove oil pump housing oil seal using suitable tool.

CAUTION:

Be careful not to scratch oil pump housing.

1.

O-ring

2.

Oil pump cover

3.

O-ring

4.

Oil pump housing

5.

Oil pump housing oil seal

SCIA5227E

SCIA5228E

SCIA2840E

TM-248

< UNIT DISASSEMBLY AND ASSEMBLY >

REPAIR FOR COMPONENT PARTS

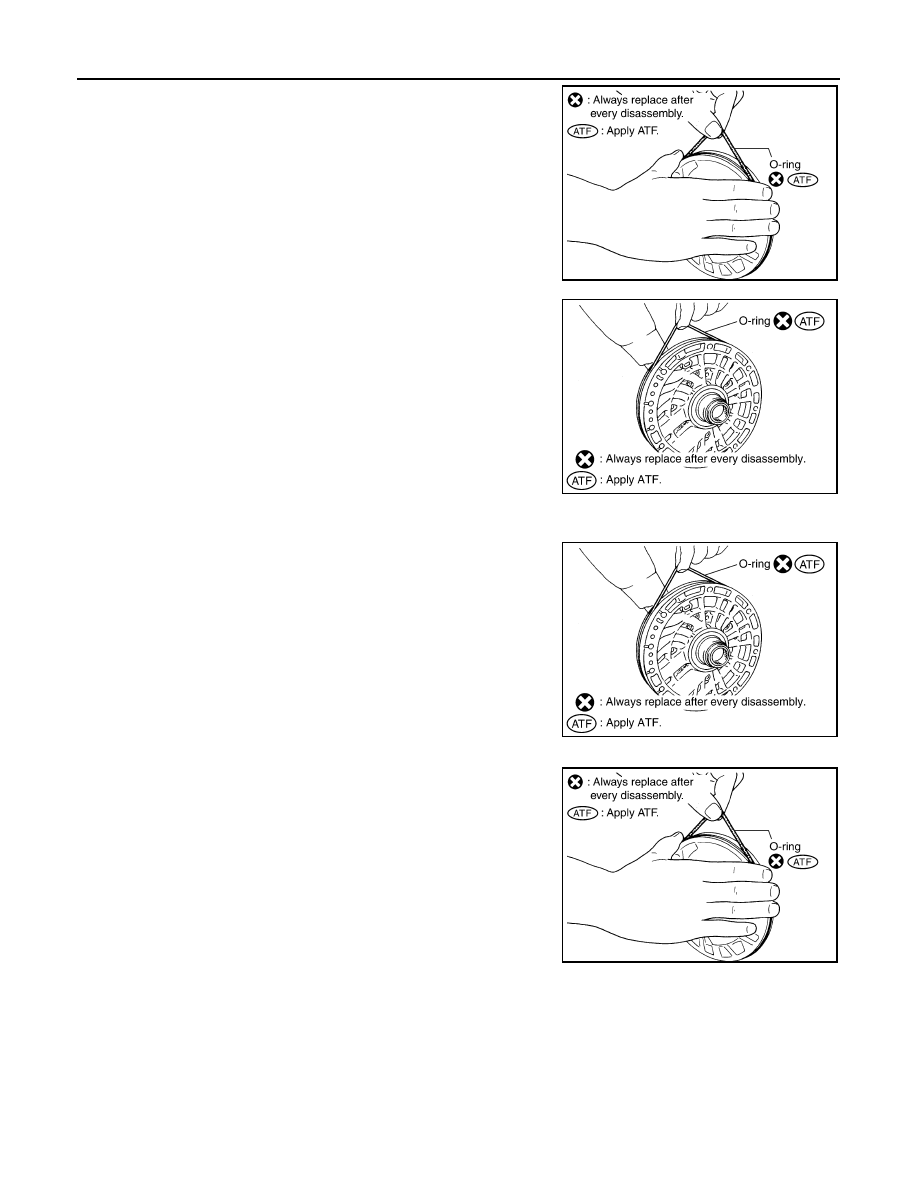

3. Remove O-ring from oil pump housing.

4. Remove O-ring from oil pump cover.

ASSEMBLY

1. Install new O-ring to oil pump cover.

CAUTION:

• Do not reuse O-ring.

• Apply ATF to O-ring.

2. Install new O-ring to oil pump housing.

CAUTION:

• Do not reuse O-ring.

• Apply ATF to O-ring.

SCIA2841E

SCIA5230E

SCIA5230E

SCIA2841E

REPAIR FOR COMPONENT PARTS

TM-249

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

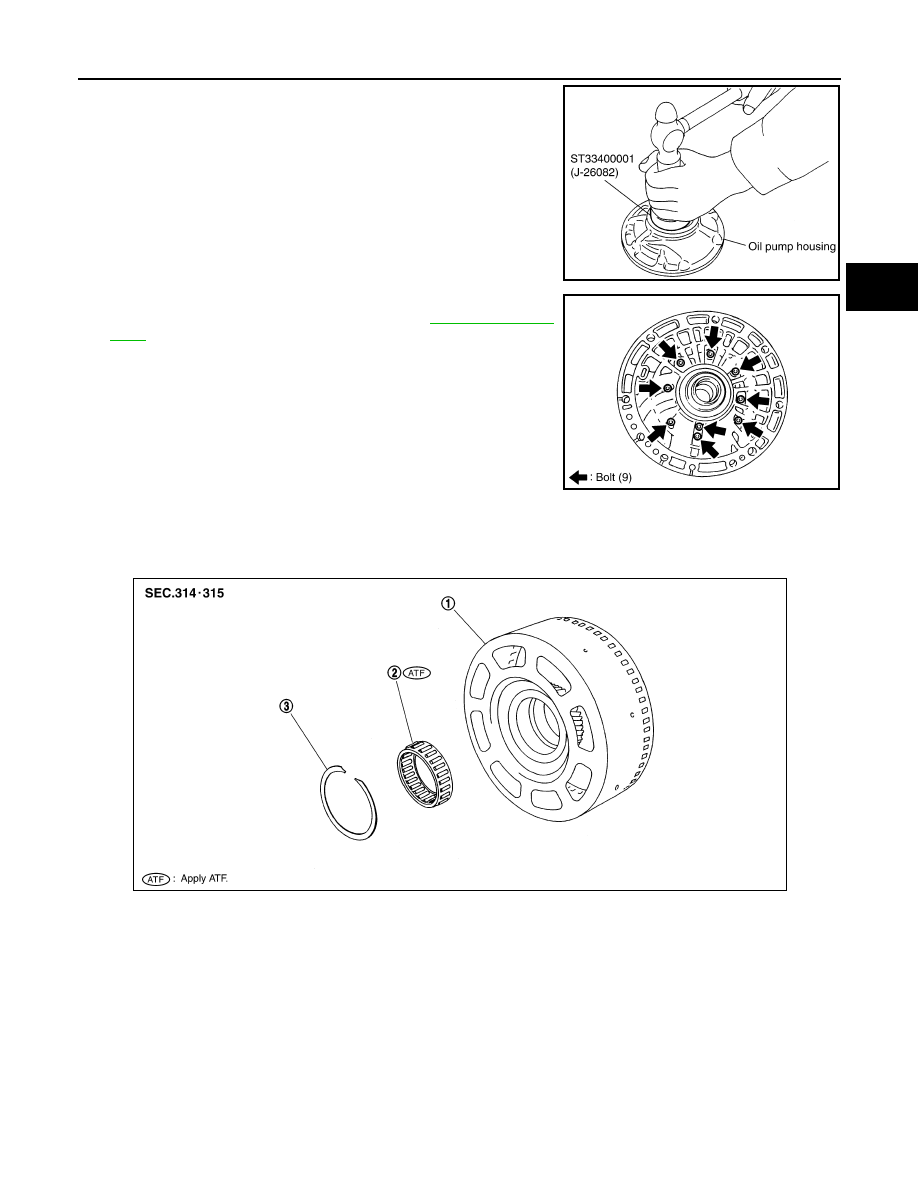

3. Install new oil pump housing oil seal to the oil pump housing

until it is flush with the face of oil pump housing using Tool.

CAUTION:

• Do not reuse oil seal.

• Apply ATF to oil seal.

4. Install oil pump housing in oil pump cover. Tighten oil pump

housing bolts to the specified torque. Refer to

TM-217, "Compo-

nent"

.

Front Sun Gear, 3rd One-Way Clutch

INFOID:0000000009885930

COMPONENTS

DISASSEMBLY

Tool number

: ST33400001 (J-26082)

SCIA5313E

SCIA5228E

1.

Front sun gear

2.

3rd one-way clutch

3.

Snap ring

SCIA3114E

TM-250

< UNIT DISASSEMBLY AND ASSEMBLY >

REPAIR FOR COMPONENT PARTS

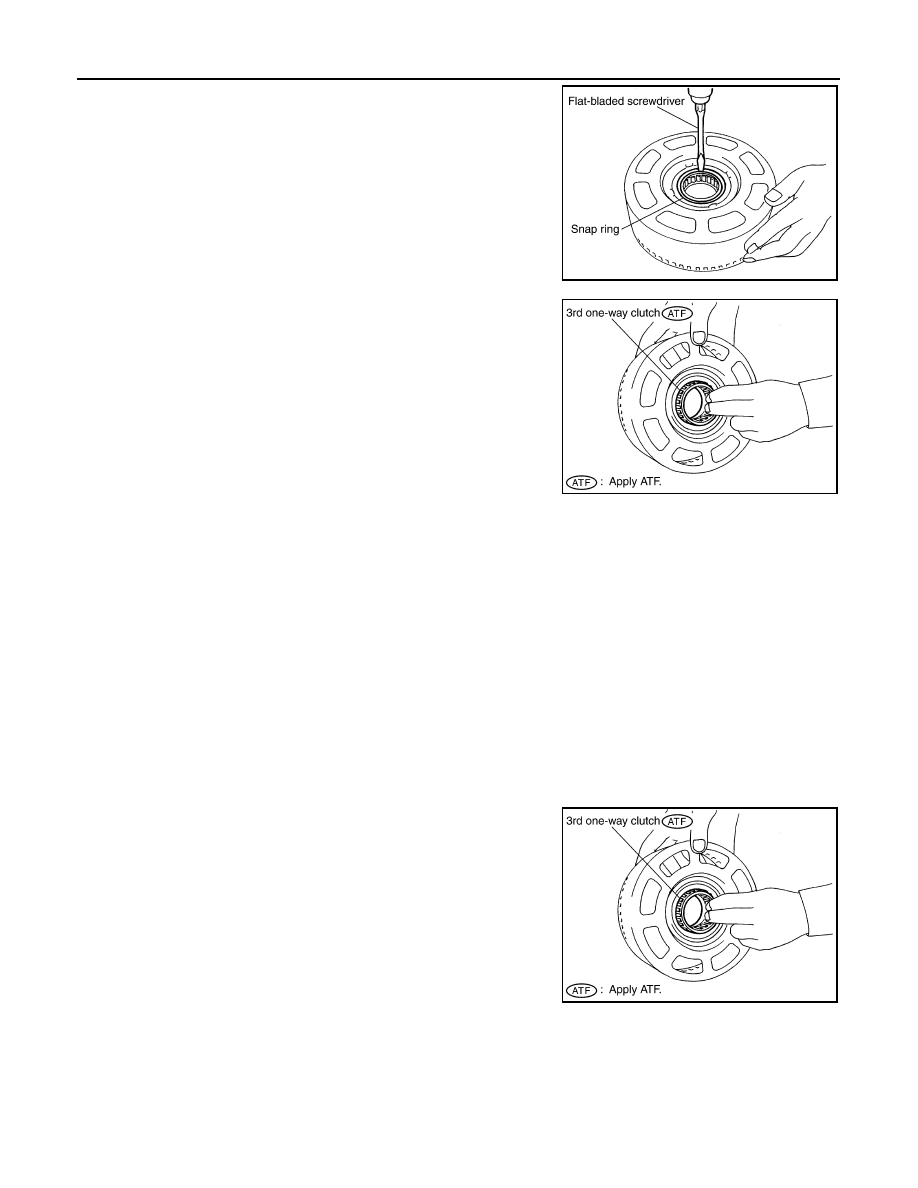

1. Remove snap ring from front sun gear using suitable tool.

2. Remove 3rd one-way clutch from front sun gear.

INSPECTION

3rd One-way Clutch

• Check frictional surface for wear or damage.

CAUTION:

If necessary, replace the 3rd one-way clutch.

Front Sun Gear Snap Ring

• Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the snap ring.

Front Sun Gear

• Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the front sun gear.

ASSEMBLY

1. Install 3rd one-way clutch in front sun gear.

CAUTION:

Apply ATF to 3rd one-way clutch.

SCIA3110E

SCIA3111E

SCIA3111E
