Nissan Titan. Manual - part 639





DISASSEMBLY

TM-239

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

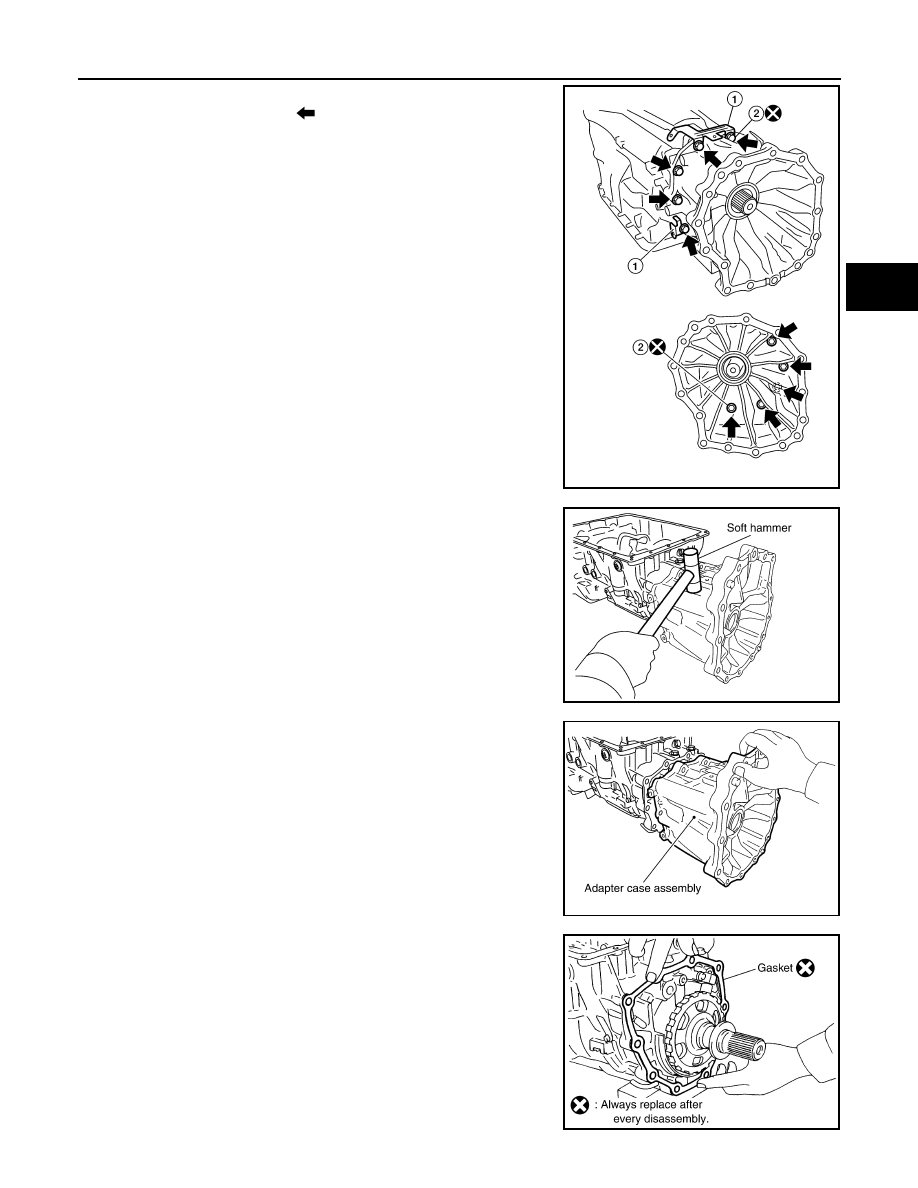

b. 4WD models
i.

Remove tightening bolts (

) for adapter case assembly and

transmission case.

• Brackets (1)

• Self-sealing bolt (2)

ii.

Tap adapter case assembly using suitable tool.

iii. Remove adapter case assembly (with needle bearing) from

transmission case.

iv. Remove gasket from transmission case.

WCIA0563E

SCIA5201E

SCIA5186E

SCIA5231E

TM-240

< UNIT DISASSEMBLY AND ASSEMBLY >

DISASSEMBLY

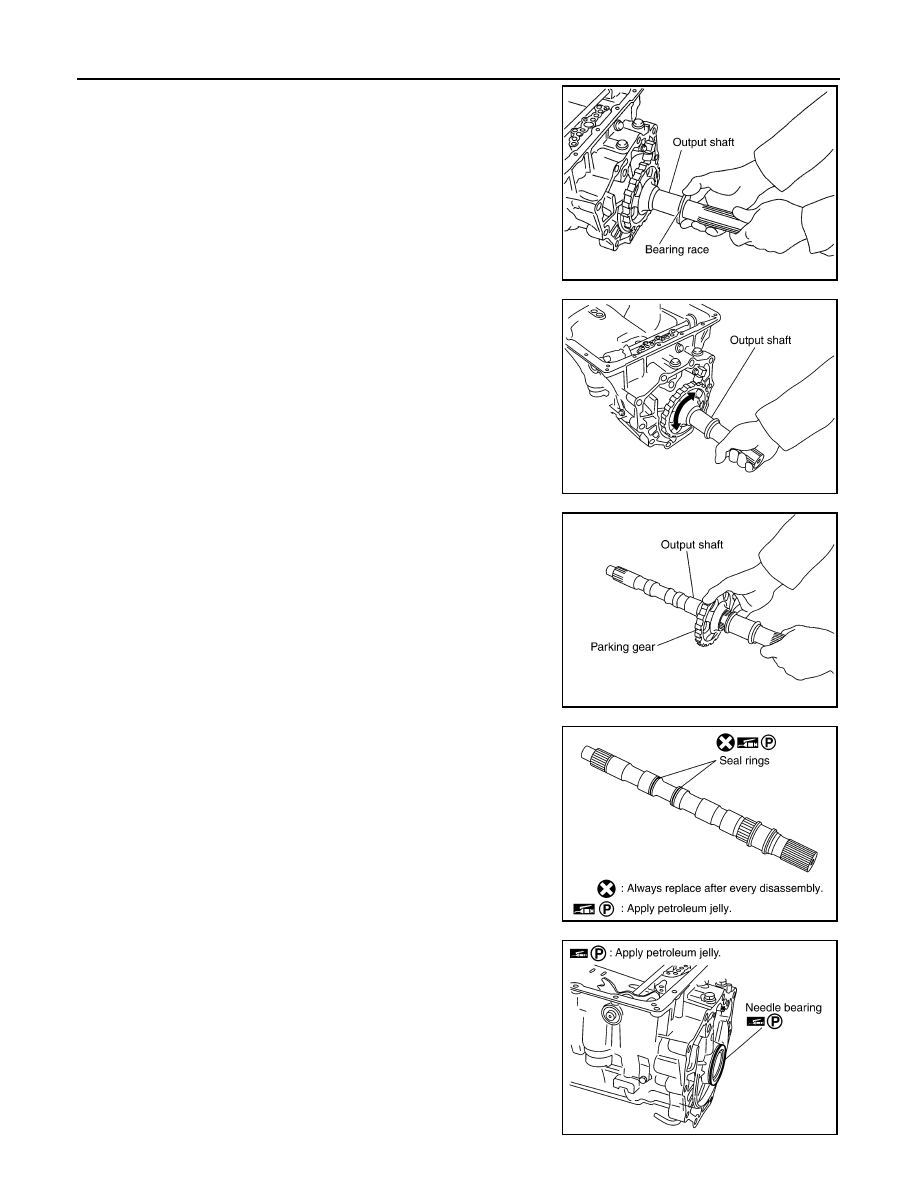

43. Remove bearing race from output shaft.

44. Remove output shaft from transmission case by rotating left and

right.

45. Remove parking gear from output shaft.

46. Remove seal rings from output shaft.

CAUTION:

Do not reuse seal rings.

47. Remove needle bearing from transmission case.

SCIA5245E

SCIA5030E

SCIA5247E

SCIA5209E

SCIA5031E

DISASSEMBLY

TM-241

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

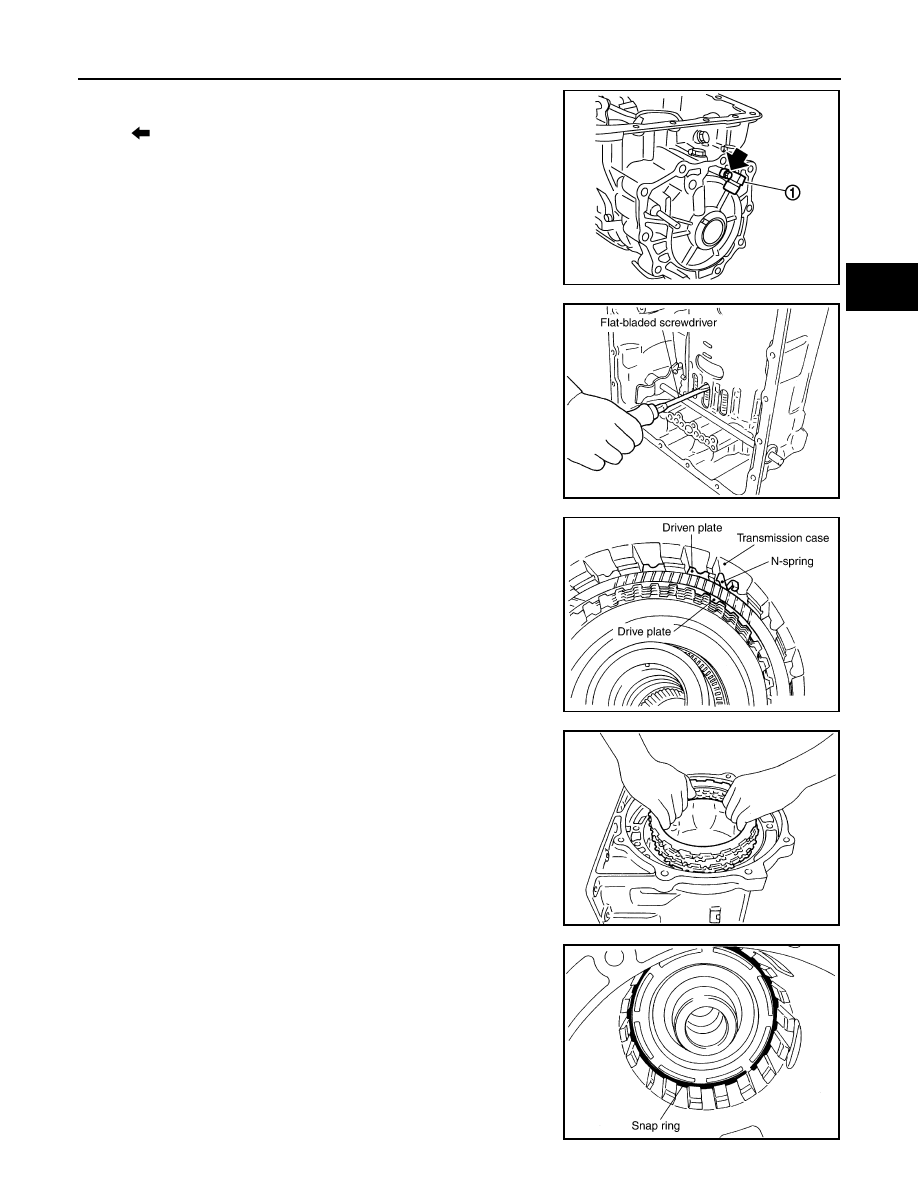

48. Remove output speed sensor (1) from transmission case.

CAUTION:

• Do not subject it to impact by dropping or hitting it.

• Do not disassemble.

• Do not allow metal filings or any foreign material to get on

the sensor's front edge magnetic area.

• Do not place in an area affected by magnetism.

49. Remove reverse brake snap ring using two flat-bladed screw-

drivers.

NOTE:

Press out snap ring from the transmission case oil pan side gap

using a flat-bladed screwdriver, and remove it using a another

screwdriver.

50. Remove reverse brake retaining plate from transmission case.

• Check facing for burns, cracks or damage. If necessary,

replace the plate.

51. Remove N-spring from transmission case.

52. Remove reverse brake drive plates, driven plates and dish plate

from transmission case.

• Check facing for burns, cracks or damage. If necessary,

replace the plate.

53. Remove snap ring using suitable tool.

: Bolt

JSDIA1321ZZ

SCIA5032E

SCIA5214E

SCIA2322E

SCIA2323E

TM-242

< UNIT DISASSEMBLY AND ASSEMBLY >

DISASSEMBLY

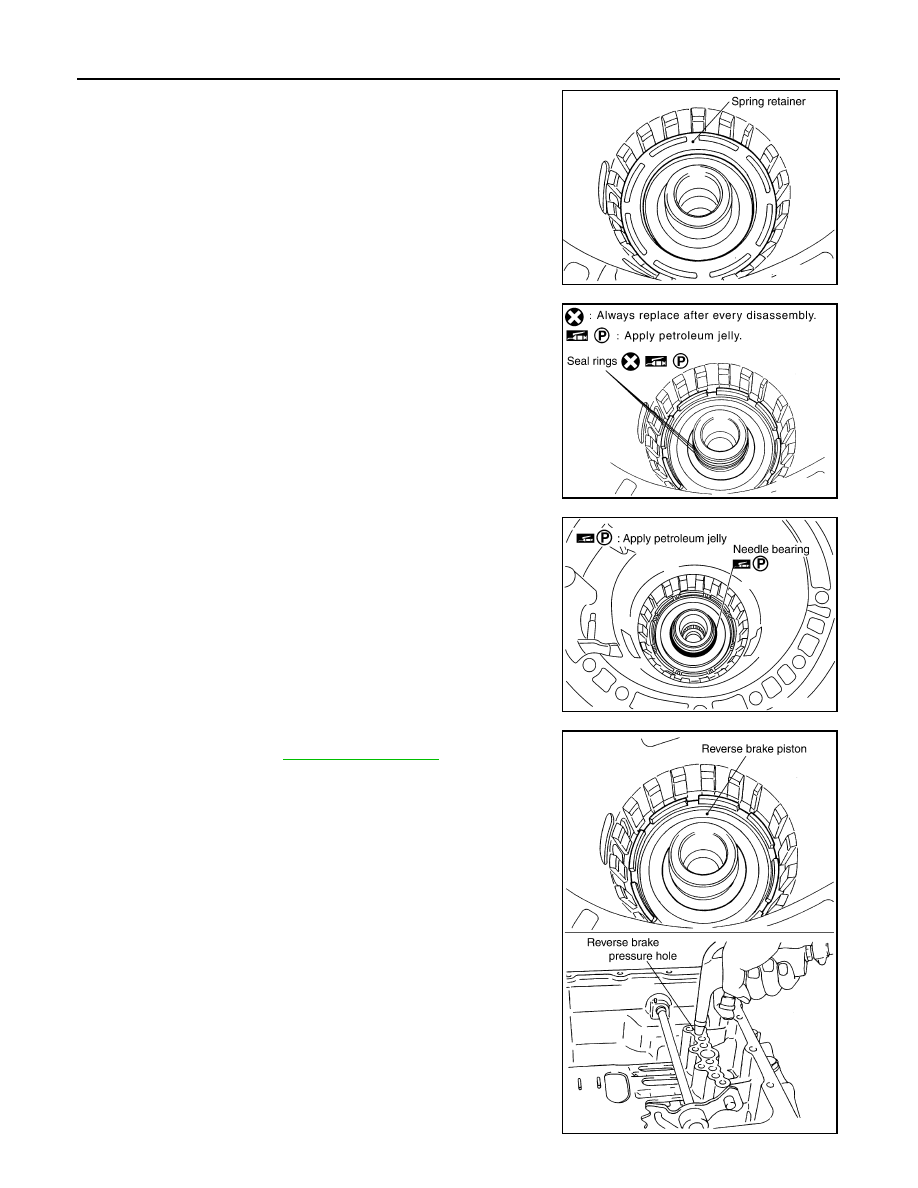

54. Remove spring retainer and return spring from transmission

case.

55. Remove seal rings from drum support.

CAUTION:

Do not reuse seal rings.

56. Remove needle bearing from drum support edge surface.

57. Remove reverse brake piston from transmission case using

compressed air. Refer to

TM-224, "Oil Channel"

.

CAUTION:

Care should be taken not to abruptly blow air. It makes the

piston incline, and as a result, it becomes hard to disas-

semble the pistons.

SCIA2324E

SCIA3333E

SCIA2796E

SCIA5047E
