DISASSEMBLY

TM-231

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

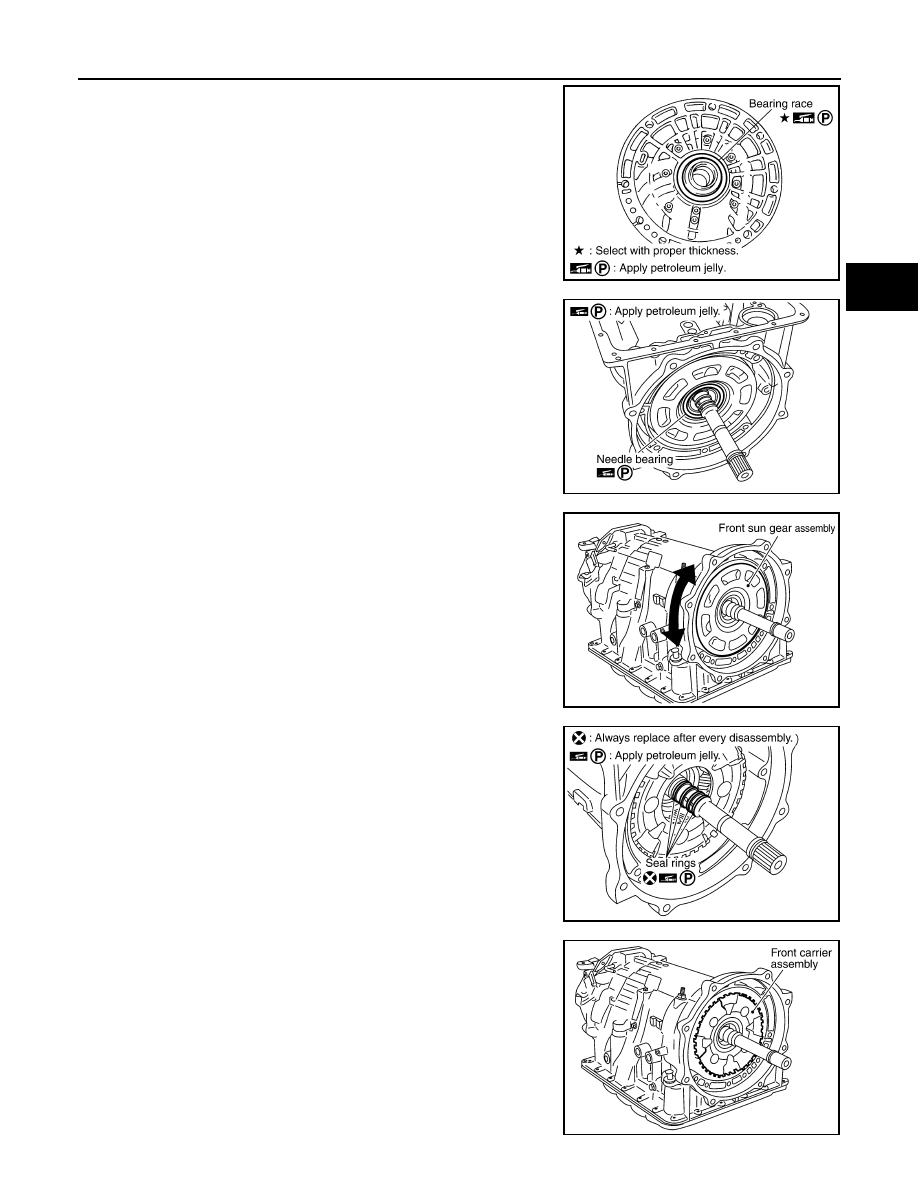

9. Remove bearing race from oil pump assembly.

10. Remove needle bearing from front sun gear.

11. Remove front sun gear assembly from front carrier assembly.

NOTE:

Remove front sun gear by rotating it left and right.

12. Remove seal rings from input clutch assembly.

13. Remove front carrier assembly (with input clutch assembly and

rear internal gear) from rear carrier assembly.

CAUTION:

Do not remove it with needle bearing.

SCIA6529E

SCIA2808E

SCIA5014E

SCIA2470E

SCIA5015E

TM-232

< UNIT DISASSEMBLY AND ASSEMBLY >

DISASSEMBLY

14. Loosen lock nut and remove band servo anchor end pin from

transmission case.

15. Remove brake band from transmission case.

CAUTION:

• To prevent brake linings from cracking or peeling, do not

stretch the flexible band unnecessarily. When removing

the brake band, always secure it with a clip as shown.

• Check brake band facing for damage, cracks, wear or

burns.

16. Remove mid carrier assembly and rear carrier assembly as a

unit.

SCIA6512E

SCIA2580E

SAT655

SCIA5017E

DISASSEMBLY

TM-233

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

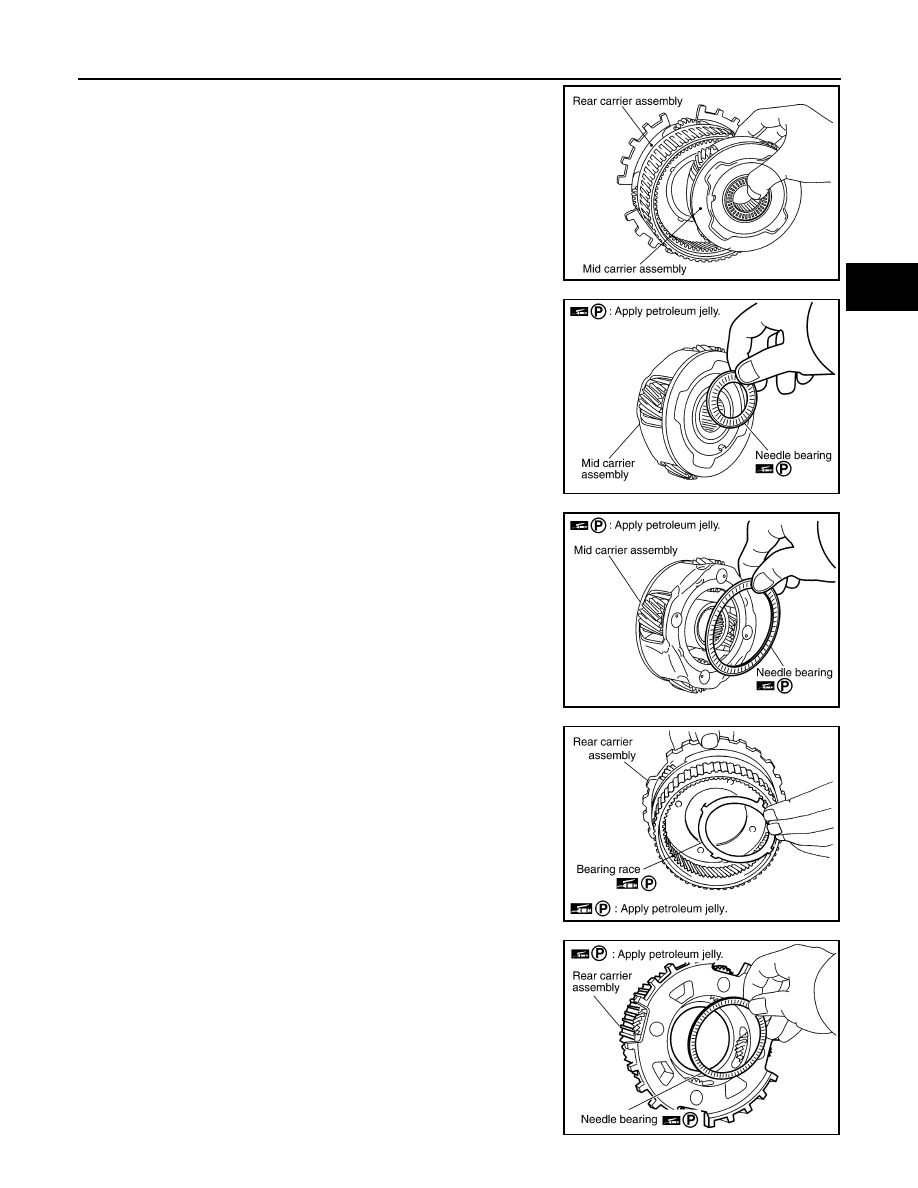

17. Remove mid carrier assembly from rear carrier assembly.

18. Remove needle bearing (front side) from mid carrier assembly.

19. Remove needle bearing (rear side) from mid carrier assembly.

20. Remove bearing race from rear carrier assembly.

21. Remove needle bearing from rear carrier assembly.

SCIA5697E

SCIA2805E

SCIA2804E

SCIA5175E

SCIA2803E

TM-234

< UNIT DISASSEMBLY AND ASSEMBLY >

DISASSEMBLY

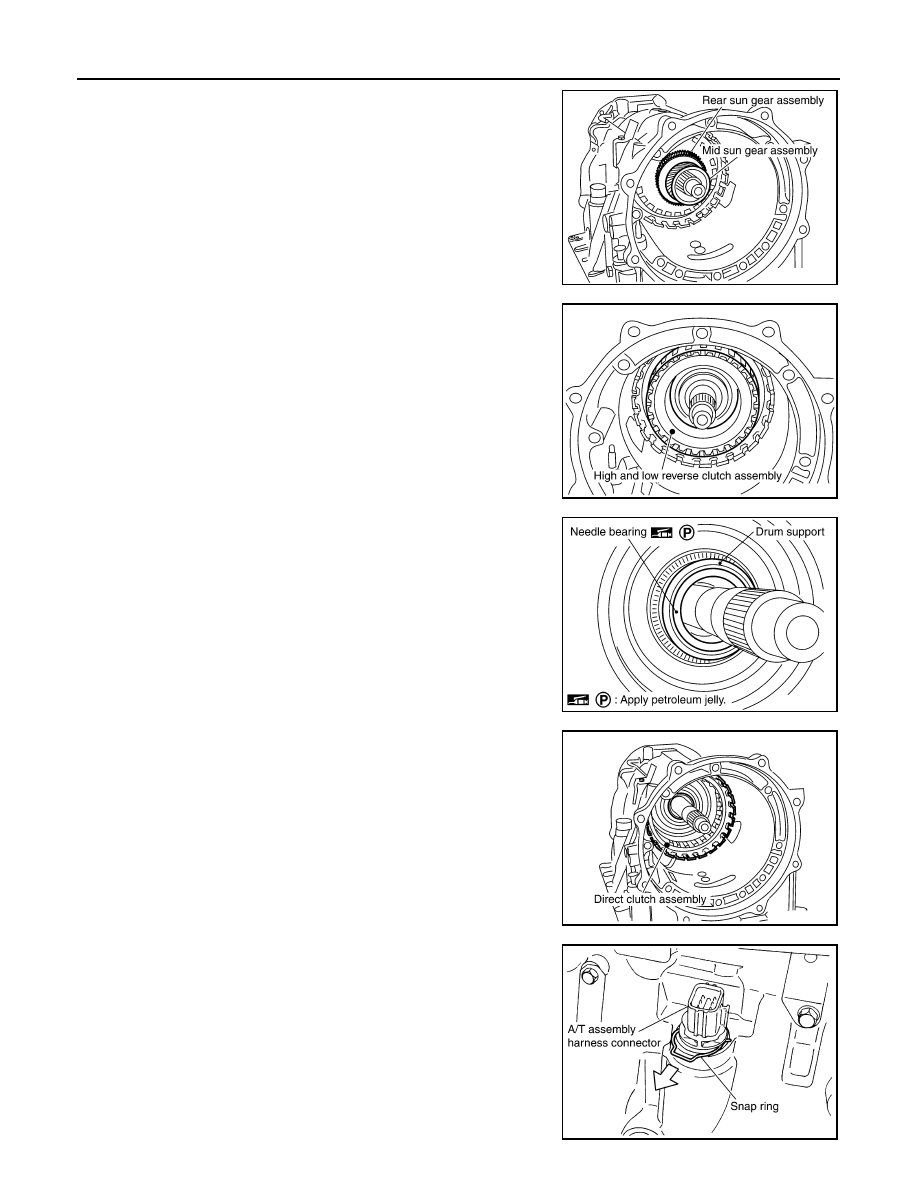

22. Remove mid sun gear assembly, rear sun gear assembly and

high and low reverse clutch hub as a unit.

CAUTION:

Remove them with bearing race and needle bearing.

23. Remove high and low reverse clutch assembly from direct clutch

assembly.

CAUTION:

Make sure that needle bearing is installed to the high and

low reverse clutch assembly edge surface.

24. Remove needle bearing from drum support.

25. Remove direct clutch assembly from reverse brake.

26. Remove snap ring from A/T assembly harness connector.

SCIA5018E

SCIA2306E

SCIA5198E

SCIA5019E

SCIA5021E
