Nissan Titan. Manual - part 634

OVERHAUL

TM-219

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

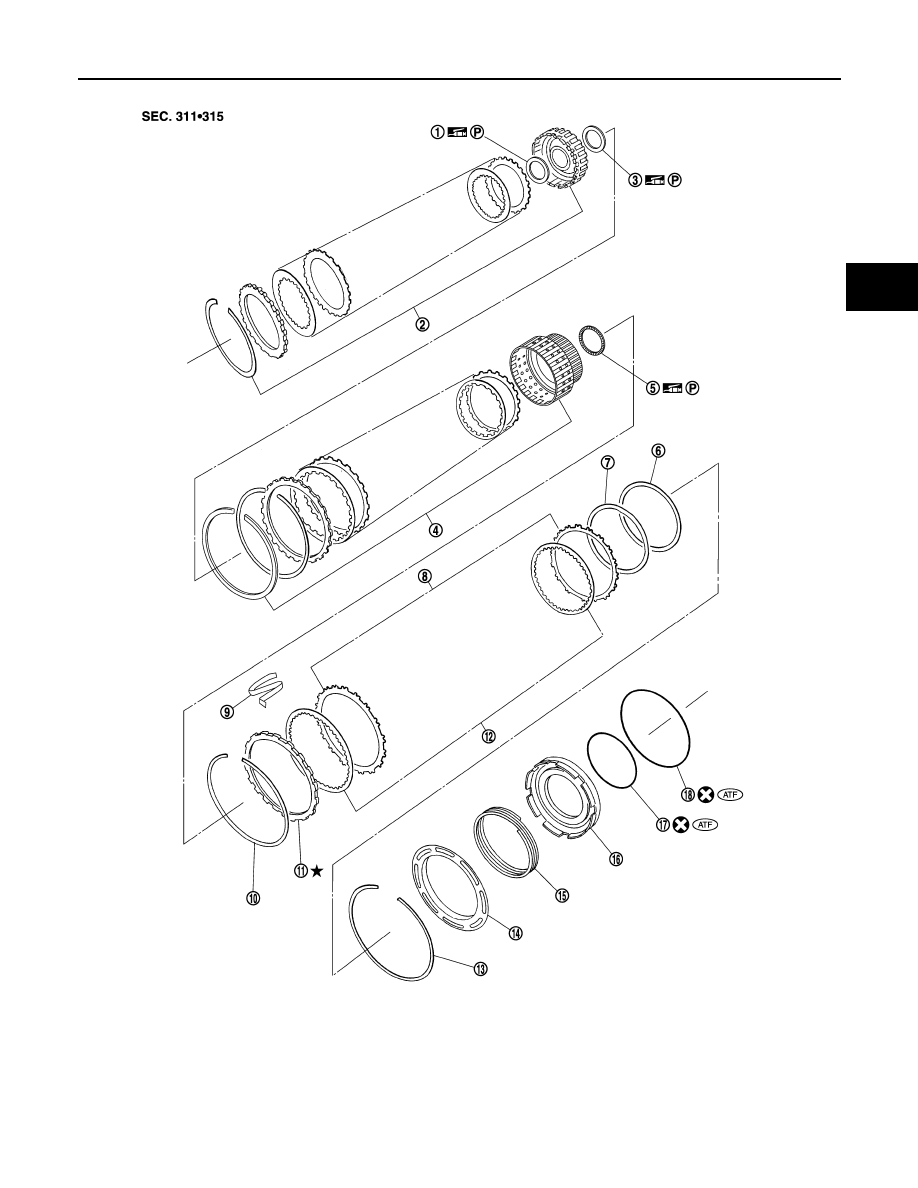

1.

Bearing race

2.

High and low reverse clutch
assembly

3.

Needle bearing

4.

Direct clutch assembly

5.

Needle bearing

6.

Reverse brake dish plate

7.

Reverse brake dish plate

8.

Reverse brake driven plate

9.

N-spring

10. Snap ring

11. Reverse brake retaining plate 12. Reverse brake drive plate

JSDIA1835ZZ

TM-220

< UNIT DISASSEMBLY AND ASSEMBLY >

OVERHAUL

2WD

13. Snap ring

14. Spring retainer

15. Return spring

16. Reverse brake piston

17. D-ring

18. D-ring

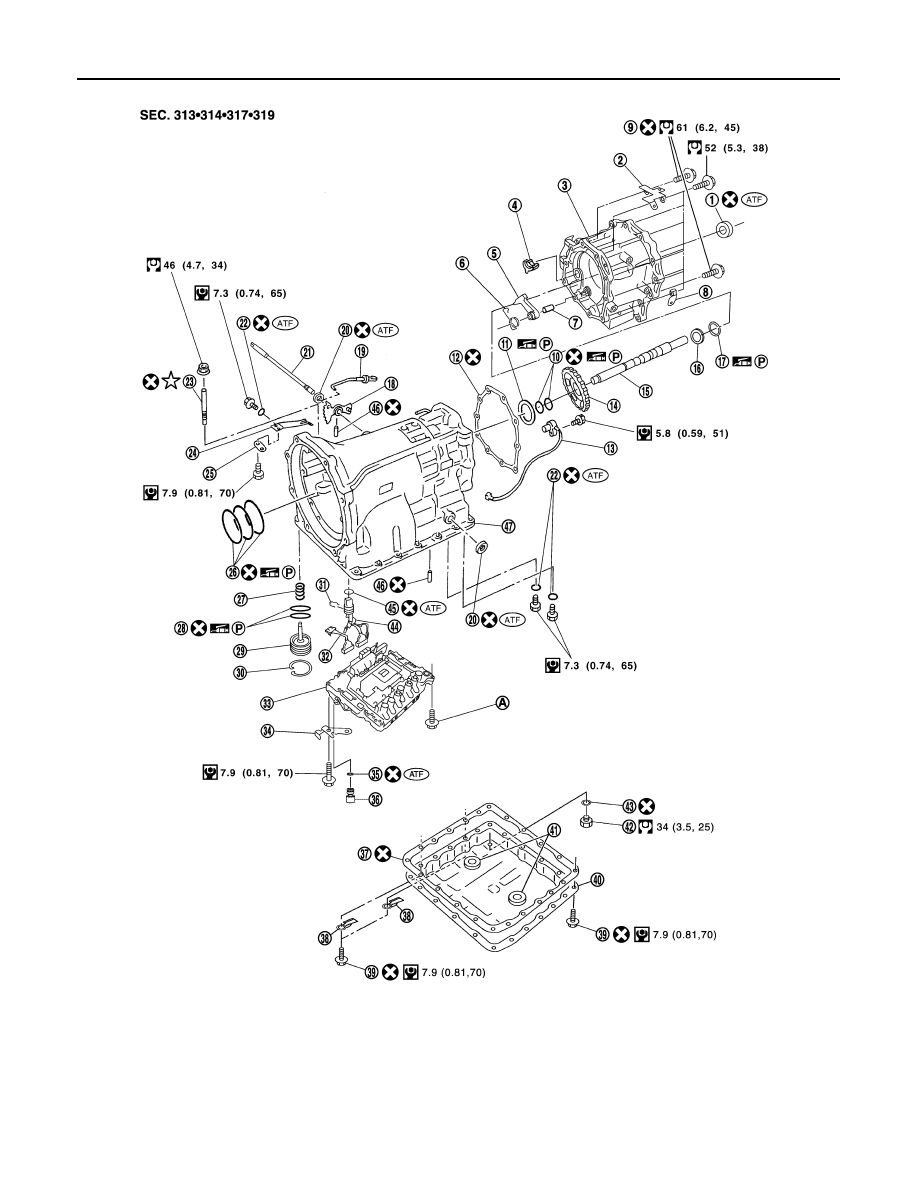

1.

Rear oil seal

2.

Bracket

3.

Bracket

4.

Adapter case

5.

Parking actuator support

6.

Parking pawl

7.

Return spring

8.

Pawl shaft

9.

Self-sealing bolt

JSDIA1972GB

OVERHAUL

TM-221

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

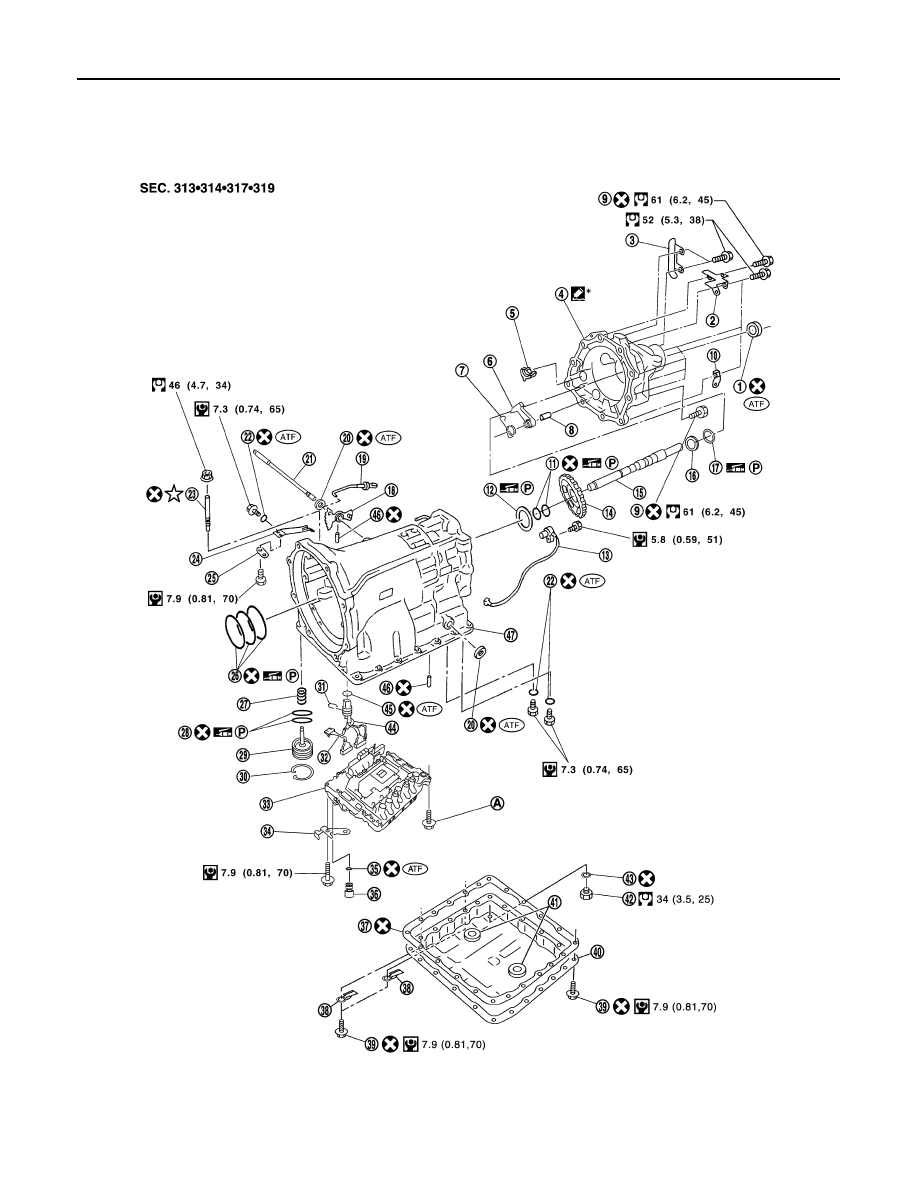

4WD

10.

Seal ring

11. Needle bearing

12. Gasket

13.

Output speed sensor

14. Parking gear

15. Output shaft

16.

Bearing race

17. Needle bearing

18. Manual plate

19.

Parking rod

20. Manual shaft oil seal

21. Manual shaft

22.

O-ring

23. Band servo anchor end pin

24. Detent spring

25.

Spacer

26. Seal ring

27. Snap ring

28.

Return spring

29. O-ring

30. Servo assembly

31.

Snap ring

32. Sub-harness

33. Control valve with TCM

34.

Bracket

35. O-ring

36. Plug

37.

Oil pan gasket

38. Brackets

39. Oil pan bolt

40.

Oil pan

41. Magnets

42. Drain plug

43.

Drain plug gasket

44. A/T assemblt harness con-

nector

45. O-ring

46.

Retaining pin

47. Transmission case

A.

Tightening must be done following the assembly procedure. Refer to

TM-281, "Assembly (2)"

.

* : Apply Genuine Anaerobic Liquid Gasket or equivalent.

TM-222

< UNIT DISASSEMBLY AND ASSEMBLY >

OVERHAUL

1.

Rear oil seal

2.

Bracket

3.

Adapter case

4.

Parking actuator support

5.

Parking pawl

6.

Return spring

7.

Pawl shaft

8.

Bracket

9.

Self-sealing bolt

10. Seal ring

11. Needle bearing

12. Gasket

13. Output speed sensor

14. Parking gear

15. Output shaft

16. Bearing race

17. Needle bearing

18. Manual plate

JSDIA1973GB
