TOW MODE SWITCH

TM-111

< DTC/CIRCUIT DIAGNOSIS >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

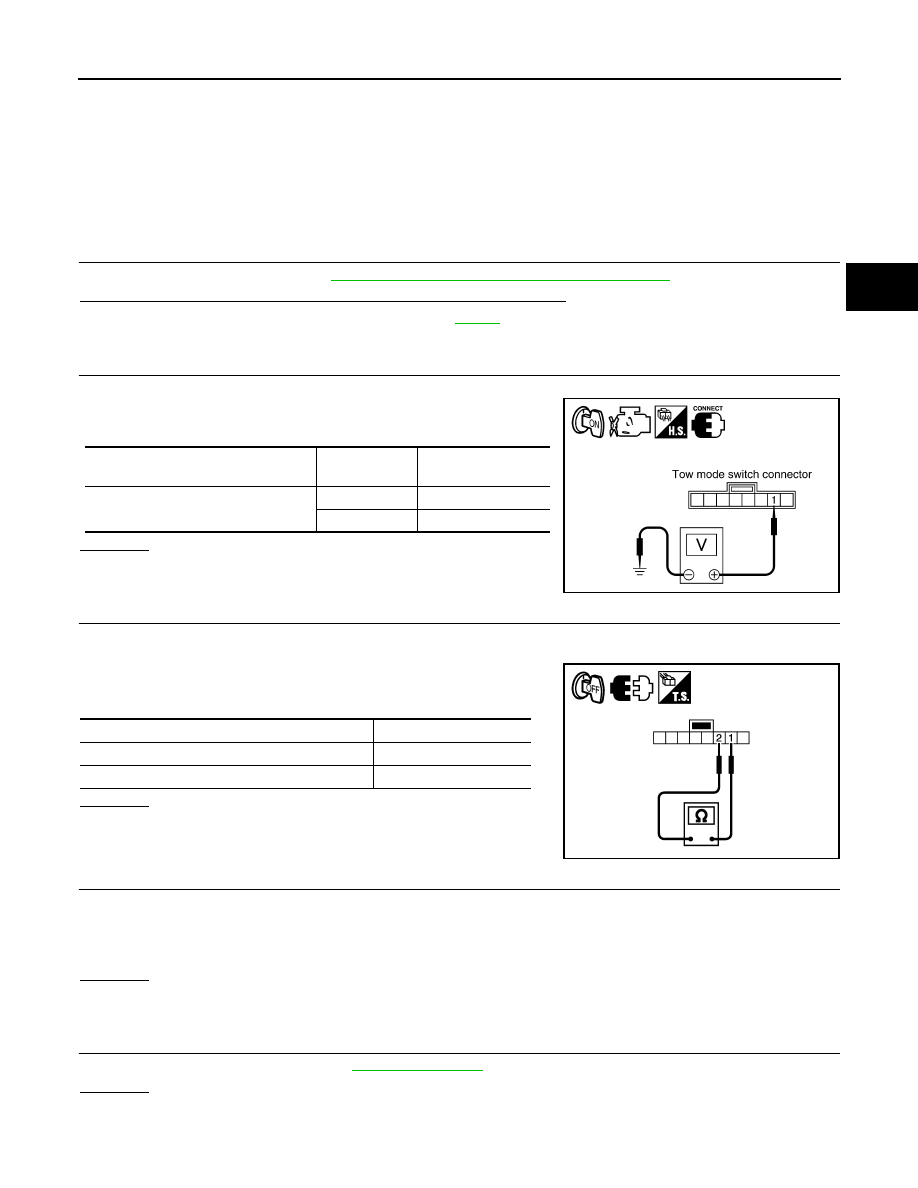

TOW MODE SWITCH

Description

INFOID:0000000009885872

When tow mode switch is “ON”, tow mode switch signals are sent to TCM from combination meter by CAN

communication line.Then it`s a tow mode condition.

Diagnosis Procedure

INFOID:0000000009885873

1.

CHECK CAN COMMUNICATION LINE

Perform the self-diagnosis. Refer to

TM-38, "CONSULT Function (TRANSMISSION)"

.

Is any malfunction in the CAN communication indicated in the results?

YES

>> Check CAN communication line. Refer to

TM-48

.

NO

>> GO TO 2.

2.

CHECK POWER SOURCE

1. Turn ignition switch “ON”. (Do not start engine.)

2. Check the voltage between tow mode switch connector M67 ter-

minal 1 and ground.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 3.

3.

CHECK TOW MODE SWITCH

1. Turn ignition switch “OFF”.

2. Disconnect tow mode switch connector.

3. Check continuity between tow mode switch connector M67 ter-

minals 1 and 2.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace tow mode switch.

4.

DETECT MALFUNCTIONING ITEM

Check the following items. If any items are damaged, repair or replace damaged parts.

• Harness for short or open between combination meter connector terminal 35 and tow mode switch connec-

tor terminal 1.

• Harness for short or open between tow mode switch connector terminal 2 and ground.
OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace damaged parts.

5.

CHECK COMBINATION METER

Check the combination meter. Refer to

TM-6, "Work Flow"

.

OK or NG

OK

>> INSPECTION END

NO

>> Repair or replace damaged parts.

Condition

Tow mode

switch

Data (Approx.)

When ignition switch is turned to “ON”

ON

0V

OFF

Battery voltage

SCIA5156E

Condition

Continuity

Tow mode switch “ON”

Yes

Tow mode switch “OFF”

No

JSDIA1502ZZ

TM-112

< DTC/CIRCUIT DIAGNOSIS >

A/T SHIFT LOCK SYSTEM

A/T SHIFT LOCK SYSTEM

Description

INFOID:0000000009885874

Refer to

TM-34, "System Description"

.

Terminals And Reference Values

INFOID:0000000009885875

SHIFT LOCK HARNESS CONNECTOR TERMINALS LAYOUT (FLOOR SHIFT MODELS)

SHIFT LOCK CONTROL UNIT INSPECTION TABLE (FLOOR SHIFT MODELS)

Data are reference values.

NOTE:
Confirm that the pointer swings only momentarily because the output time is so short. If the inspection is done with an oscilloscope, it
should be observed that the power source voltage lasts for 3.5 to 10 ms.

Component Inspections (Floor Shift Models)

INFOID:0000000009885876

SHIFT LOCK SOLENOID

AWDIA0043ZZ

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

VOLTAGE

(Approx.)

1

P

Power  source

Ignition switch: “ON”

Battery voltage

Ignition switch: “OFF”

Battery voltage

2

L/R

 Park position switch
(key lock)

Selector lever in “P” position

0V

Except above with key inserted in key switch

Battery voltage

3

GR

 Park position switch
(shift selector)

Selector lever in “P” position

0V

Except above

Battery voltage

4

R/G

Stop lamp switch

Brake pedal applied

Battery voltage

Brake pedal released

0V

5

W/R

Vehicle speed signal

—

—

6

G/R

Ignition signal

Ignition switch: “ON”

Battery voltage

Ignition switch: “OFF”

0V

7

R/W

Shift lock solenoid

Brake pedal applied with ignition switch in “ON” position

0V

Except above

Battery voltage

8

B

Ground

—

—

9

G/W

Key lock solenoid

Selector lever in any position except “P”, and ignition switch
turned from “ON” to “OFF”

Battery voltage for ap-
prox. 0.1 sec. (Note)

Except above

0V

10

W/G

Key unlock solenoid

Key inserted in ignition switch

Battery voltage for ap-
prox. 0.1 sec. (Note)

Except the above

0V

A/T SHIFT LOCK SYSTEM

TM-113

< DTC/CIRCUIT DIAGNOSIS >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

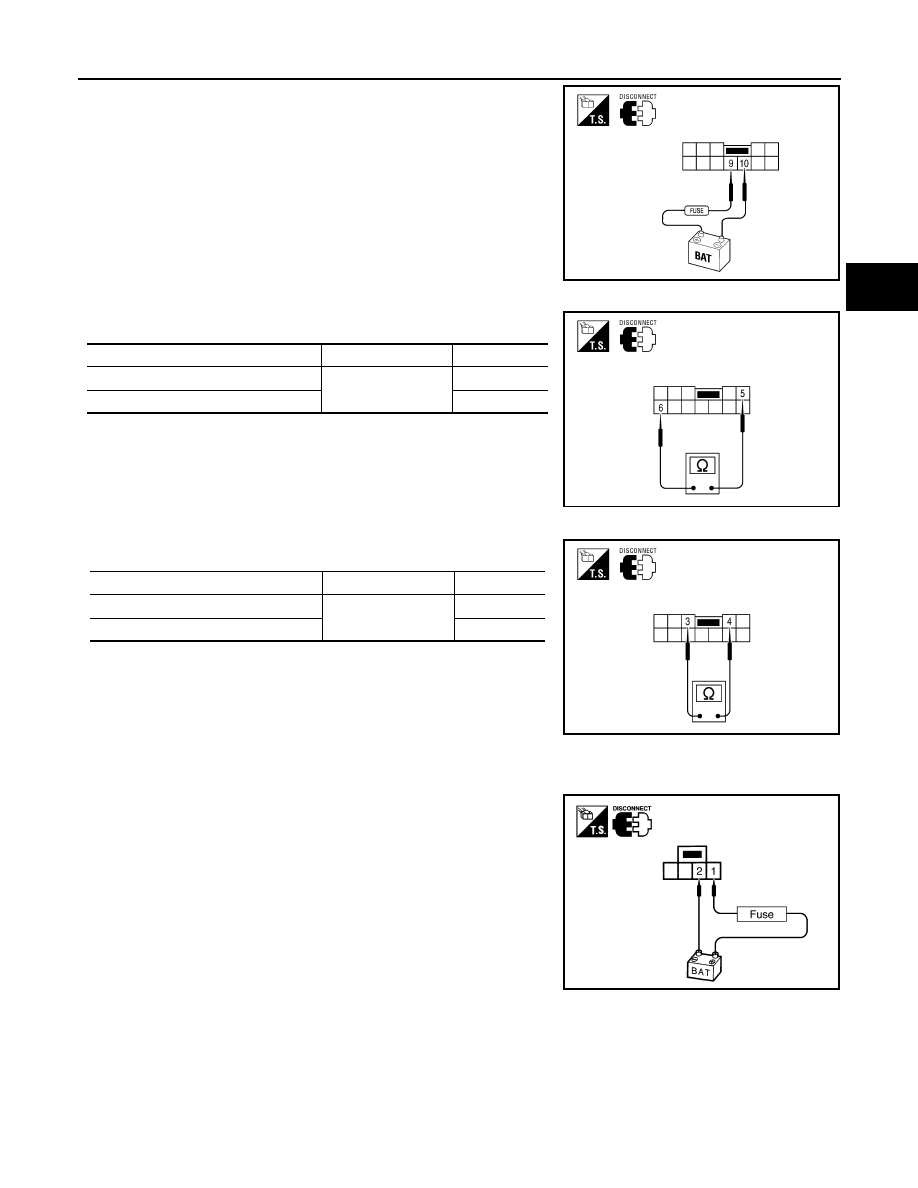

• Check operation by applying battery voltage to A/T shift selector

terminal 9 and ground to terminal 10.

CAUTION:

Be sure to apply the voltage of the correct polarity to the

respective terminals. Otherwise, the part may be damaged.

PARK POSITION SWITCH (KEY LOCK)

• Check continuity between terminals of the A/T shift selector.

PARK POSITION SWITCH (SHIFT SELECTOR)

• Check continuity between terminals of the A/T shift selector.

KEY LOCK SOLENOID

Key lock

• Check operation by applying battery voltage to key switch and key

lock solenoid terminal 1 and ground to terminal 2.

CAUTION:

Be careful not to cause burnout of the component.

Key unlock

AWDIA0700ZZ

Condition

Terminal No.

Continuity

When selector lever is “P” position.

5 - 6

No

When selector lever is not “P” position.

Yes

AWDIA0567ZZ

Condition

Terminal No.

Continuity

When selector lever is “P” position.

3 - 4

No

When selector lever is not “P” position.

Yes

AWDIA0568ZZ

AWDIA0701ZZ

TM-114

< DTC/CIRCUIT DIAGNOSIS >

A/T SHIFT LOCK SYSTEM

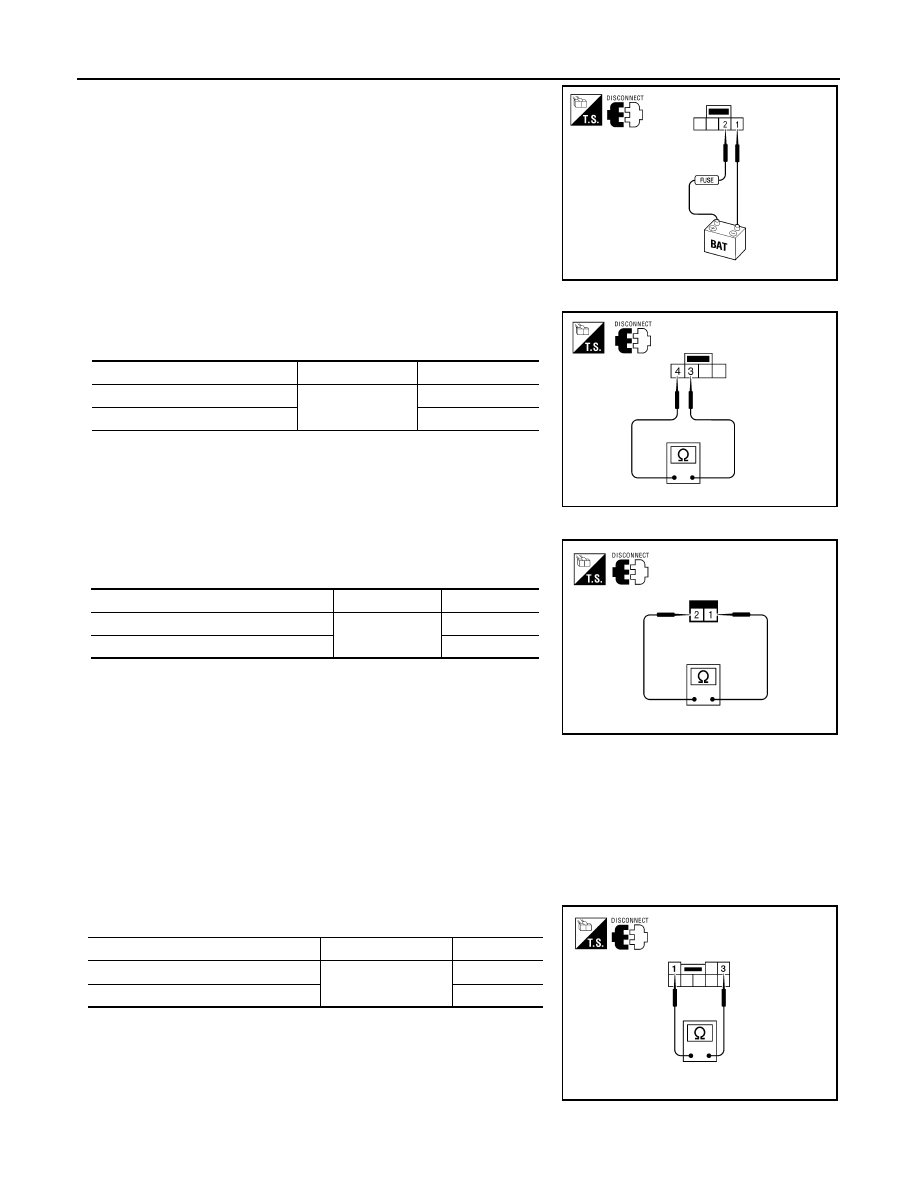

• Check operation by applying battery voltage to key switch and key

lock solenoid terminal 2 and ground to terminal 1.

CAUTION:

Be careful not to cause burnout of the component.

KEY SWITCH

• Check continuity between terminals of the key switch and key lock

solenoid.

STOP LAMP SWITCH

• Check continuity between terminals of the stop lamp switch har-

ness connector.

Check stop lamp switch after adjusting brake pedal.

Component Inspections (Column Shift Models)

INFOID:0000000009885877

SHIFT LOCK SOLENOID

Check operation by applying battery voltage to A/T shift selector terminal 3 and ground to terminal 1.

CAUTION:

Be sure to apply the voltage of the correct polarity to the respective terminals. Otherwise, the part may

be damaged.

PARK POSITION SWITCH (KEY LOCK)

Check continuity between terminals of the A/T shift selector.

STOP LAMP SWITCH

AWDIA0702ZZ

Condition

Terminal No.

Continuity

Key inserted

3 - 4

Yes

Key removed

No

AWDIA0703ZZ

Condition

Terminal No.

Continuity

When brake pedal is applied

1 -2

Yes

When brake pedal is released

No

BCIA0055E

Condition

Terminal No.

Continuity

When selector lever is “P” position.

3 - 1

No

When selector lever is not “P” position.

Yes

AWDIA0542ZZ
