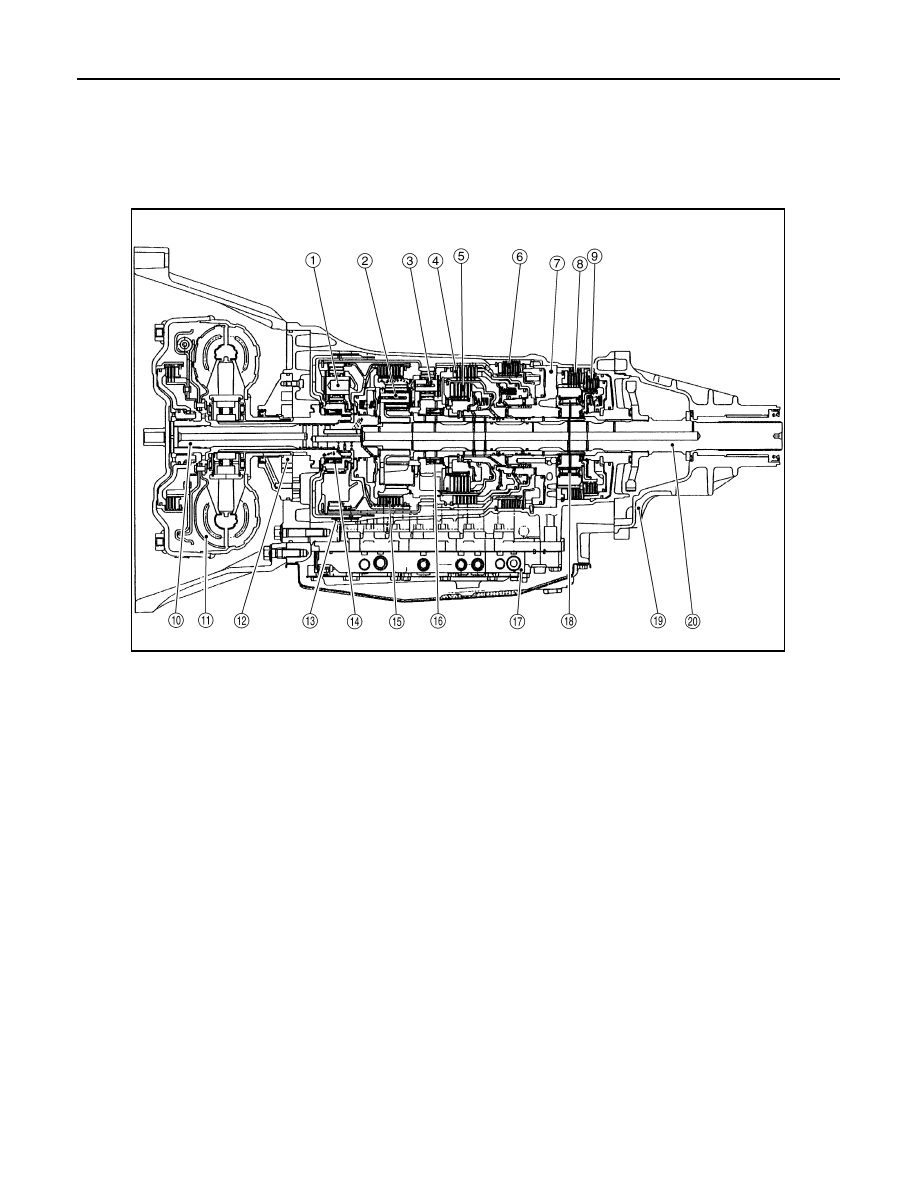

DIAGNOSIS AND REPAIR WORKFLOW TM-7 < BASIC INSPECTION > C E F G H I J K L M A B TM N O P >> GO TO 3. 3. CHECK DTC 1. Check DTC. 2. Perform the following procedure if DTC is detected. • Record DTC. • Erase DTC. Refer to TM-36, "OBD-II Diagnostic Trouble Code (DTC)" . Is any DTC detected? YES >> GO TO 4. NO >> GO TO 6. 4. PERFORM DIAGNOSTIC PROCEDURE Perform “Diagnosis Procedure” for the displayed DTC. >> GO TO 5. 5. PERFORM DTC CONFIRMATION PROCEDURE Perform “DTC CONFIRMATION PROCEDURE”. YES >> GO TO 4. NO >> GO TO 6. 6. CHECK SYMPTOM 2 Try to confirm the symptom described by the customer. YES >> GO TO 7. NO >> INSPECTION END 7. ROAD TEST Perform “ROAD TEST”. Refer to . >> GO TO 8. 8. CHECK SYMPTOM 3 Try to confirm the symptom described by the customer. YES >> GO TO 2. NO >> INSPECTION END Diagnostic Work Sheet INFOID:0000000009885680 INFORMATION FROM CUSTOMER KEY POINTS • WHAT..... Vehicle and A/T model • WHEN..... Date, Frequencies • WHERE..... Road conditions • HOW..... Operating conditions, Symptoms Customer name MR/MS Model and Year VIN Trans. Model Engine Mileage Malfunction Date Manuf. Date In Service Date Frequency Continuous Intermittent ( times a day) |
