STR-16

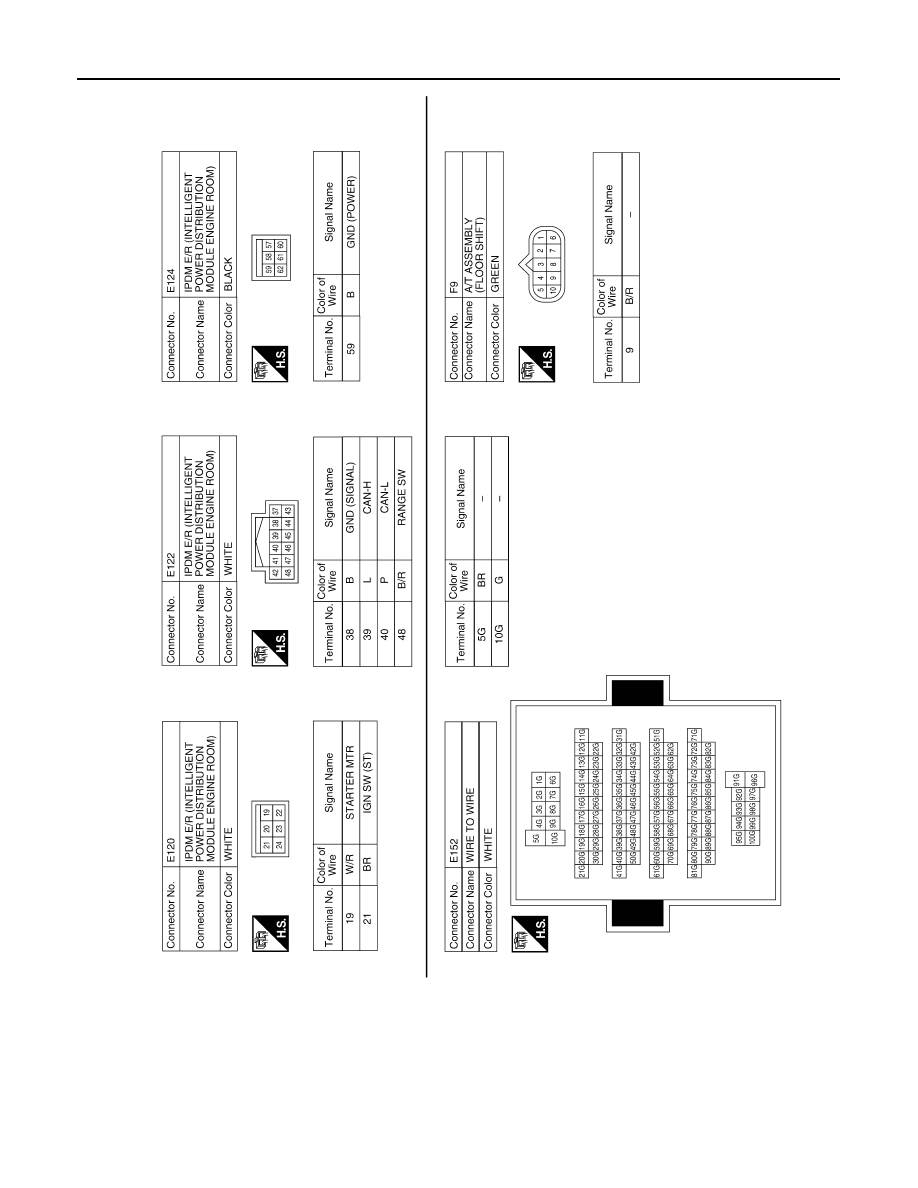

< WIRING DIAGRAM >

STARTING SYSTEM

ABBIA1435GB

STARTING SYSTEM

STR-17

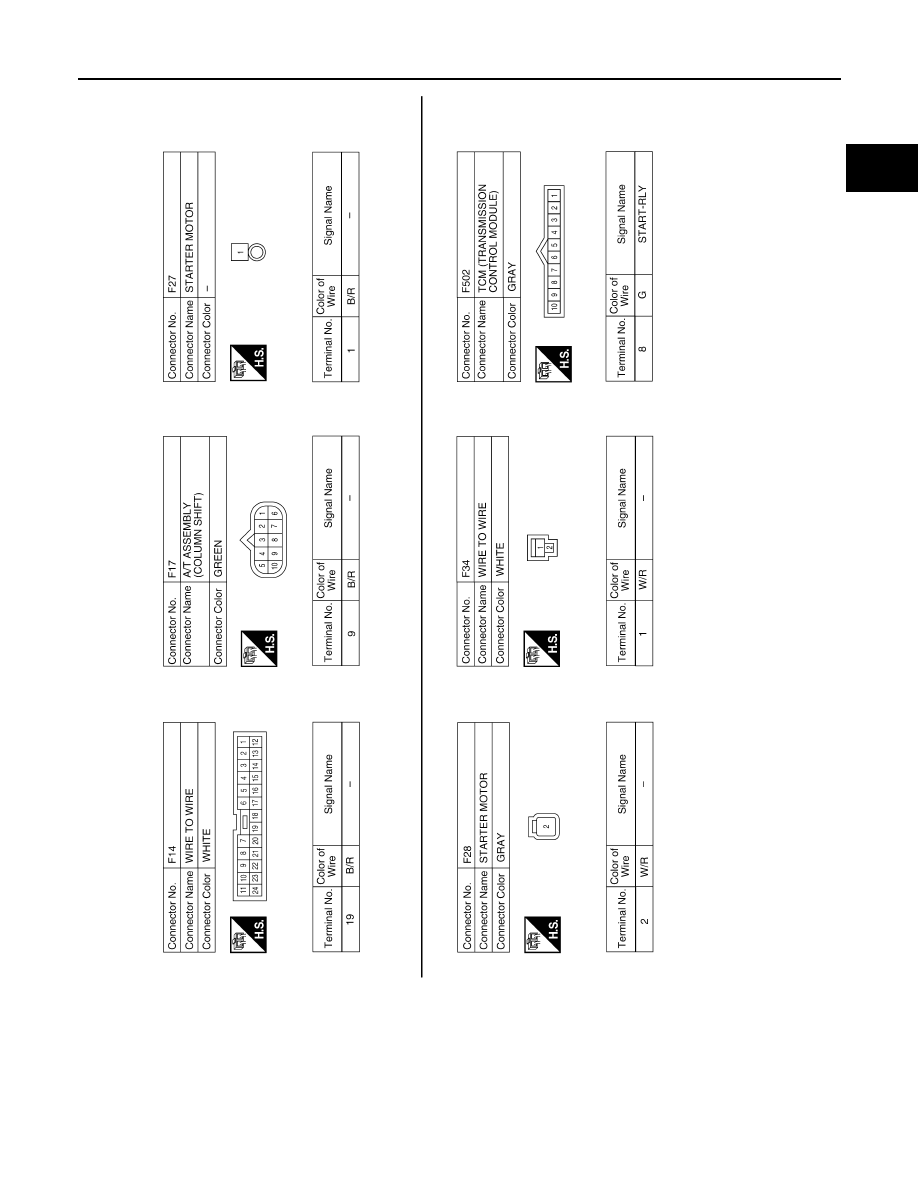

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

ABBIA1436GB

STR-18

< SYMPTOM DIAGNOSIS >

STARTING SYSTEM

SYMPTOM DIAGNOSIS

STARTING SYSTEM

Symptom Table

INFOID:0000000009886988

Symptom

Reference

No normal cranking

Refer to

STR-4, "Work Flow (With GR8-1200 NI)"

 or

STR-8, "Work

Flow (Without GR8-1200 NI)"

.

Starter motor does not rotate

STARTER MOTOR

STR-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

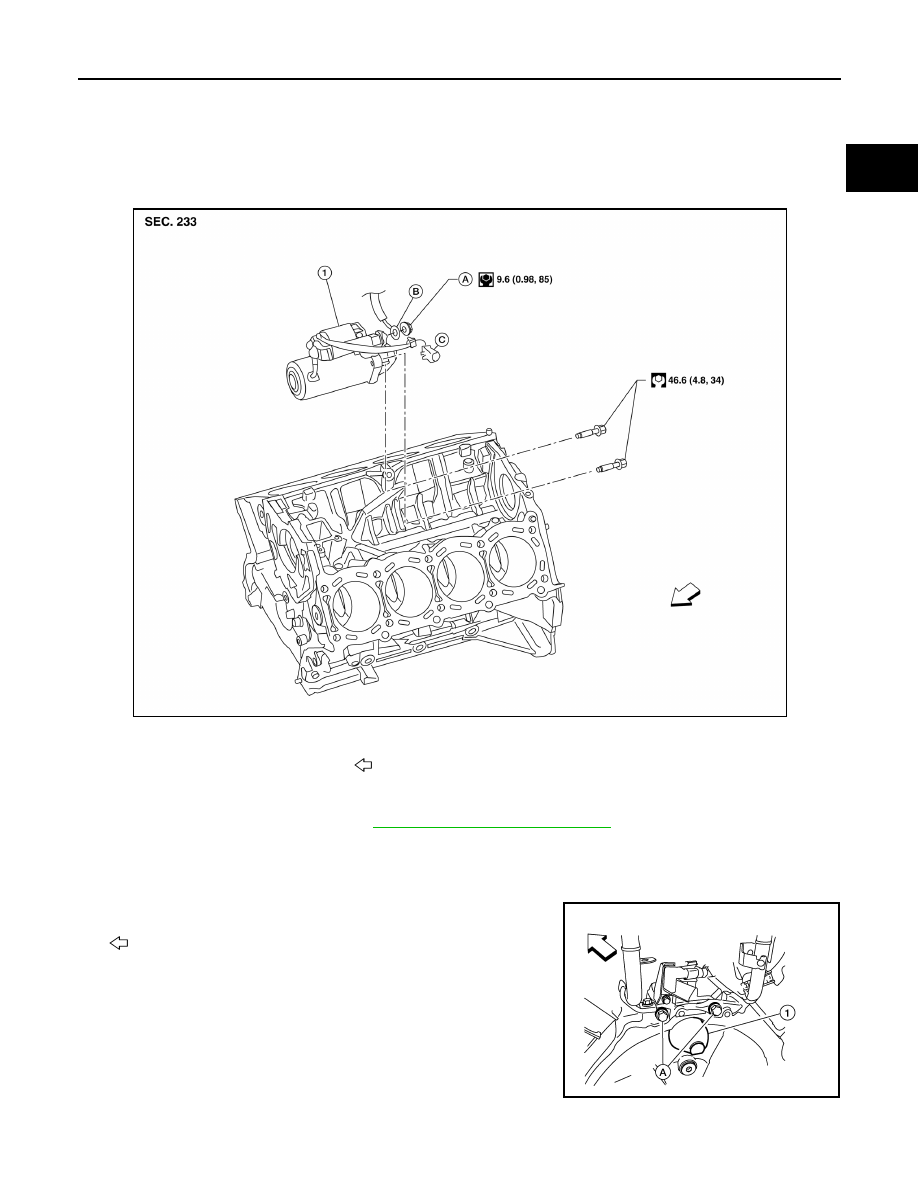

REMOVAL AND INSTALLATION

STARTER MOTOR

Removal and Installation

INFOID:0000000009886989

REMOVAL

1. Remove the intake manifold. Refer to

EM-27, "Removal and Installation"

.

2. Remove the starter motor assembly harness terminal "1" (B) nut and terminal "1" (B) cable.
3. Disconnect terminal "2" (S) connector.
4. Remove terminal "2" (S) harness clips from brackets.
5. Remove the two starter motor assembly bolts (A), using power

tools.

: Front

6. Remove the starter motor assembly (1).

INSTALLATION

Installation is in the reverse order of removal.

1.

Starter motor assembly

A. Terminal "1" (B) nut

B. Terminal "1" (B) cable

C. Terminal "2" (S) connector

Front

AWBIA1149GB

AWBIA0878GB
