STEERING WHEEL

REMOVAL AND INSTALLATION

STEERING WHEEL

On-Vehicle Inspection and Service

INFOID:0000000009883505

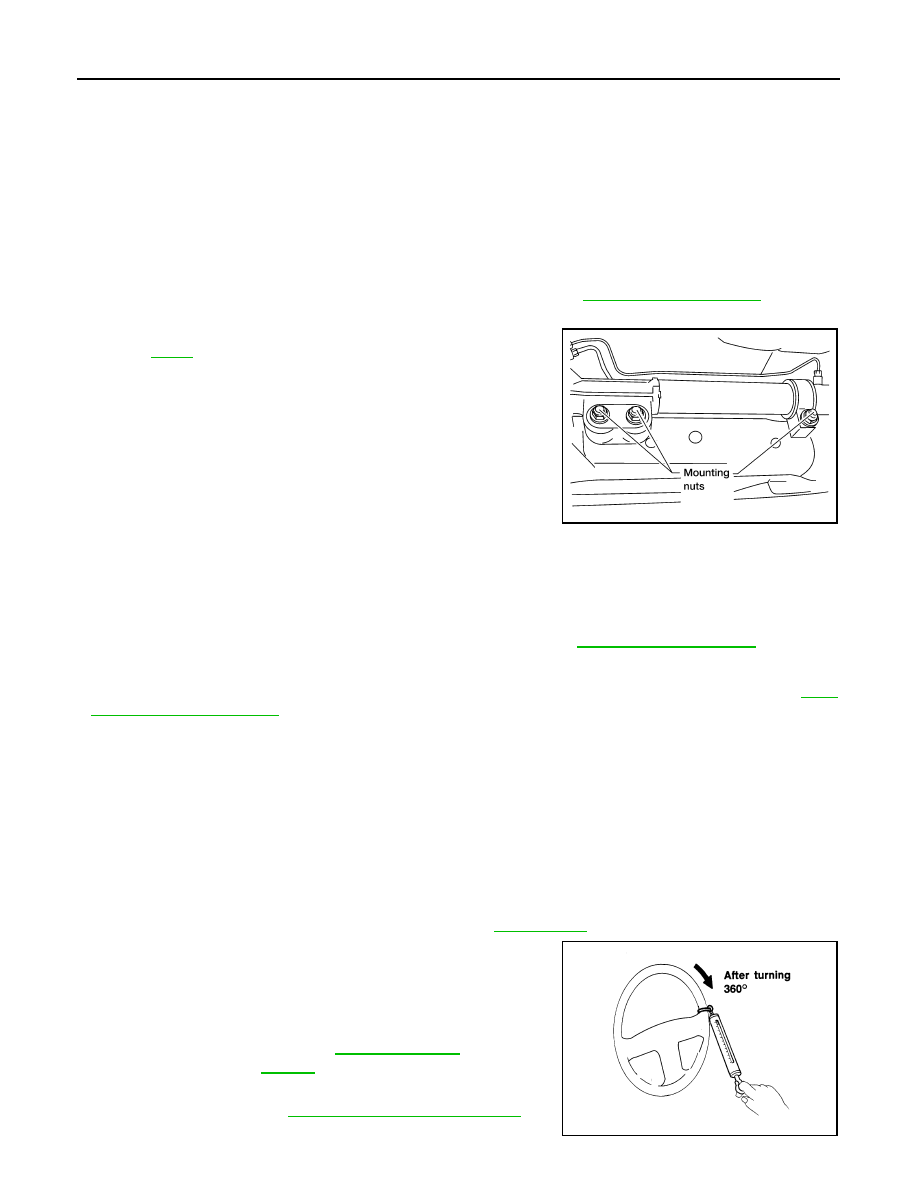

CHECKING CONDITION OF INSTALLATION

• Check installation condition of power steering gear assembly, front suspension, axle and steering column.

• Check if movement exists when steering wheel is moved up and down, to the left and right and to the axial

direction.

• Check if the nuts for power steering gear assembly are loose.

Refer to

ST-15

.

CHECKING STEERING WHEEL PLAY

1. Turn tires straight ahead, start engine, then turn steering wheel to the left and right lightly, and measure

steering wheel movement on the outer circumference when steering wheel is turned up to the point where

tires start moving.

CHECKING NEUTRAL POSITION ON STEERING WHEEL

• Check neutral position on steering wheel after confirming that front wheel alignment is correct. Refer to

FSU-

5, "Front Wheel Alignment"

.

1. Turn tires straight ahead, check if steering wheel is in the neutral position.
2. If it is not in the neutral position, remove steering wheel and reinstall it correctly.
3. If the neutral position cannot be attained by repositioning the steering wheel two teeth or less on steering

stem, loosen tie-rod lock nuts of steering outer sockets, then adjust tie-rods by the same amount in the

opposite direction.

CHECKING STEERING WHEEL TURNING FORCE

1. Park vehicle on a level, dry surface and set parking brake.
2. Start engine.
3. Bring power steering fluid up to operating temperature of 60

°– 80°C (140°– 176°F).

4. Tires need to be inflated to specified pressure. Refer to

WT-53, "Tire"

.

5. Check steering wheel turning force using Tool when steering

wheel has been turned 360

° from the neutral position.

6. If steering wheel turning force is out of specification, inspect

steering column. Refer to

ST-17, "Removal and Installation"

.

End play of the axial direction for steering wheel

: Refer to

ST-30, "Steering Wheel"

LGIA0024E

Steering wheel play on the outer circumference  : Refer to

ST-30, "Steering Wheel"

Tool number

: (—) (J-44372)

Steering wheel
turning force

: Refer to

ST-30, "Steering

Wheel"

WGIA0035E

STEERING WHEEL

ST-9

< REMOVAL AND INSTALLATION >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

7. If steering column meets specification, repair steering gear. Refer to

ST-27, "Disassembly and Assembly"

.

CHECKING FRONT WHEEL TURNING ANGLE

When checking front wheel turning angle, refer to

FSU-5, "Front Wheel Alignment"

.

ST-10

< REMOVAL AND INSTALLATION >

POWER STEERING OIL PUMP

POWER STEERING OIL PUMP

On-Vehicle Inspection and Service

INFOID:0000000009883506

CHECKING RELIEF OIL PRESSURE

CAUTION:

Before starting work, confirm belt tension is proper.

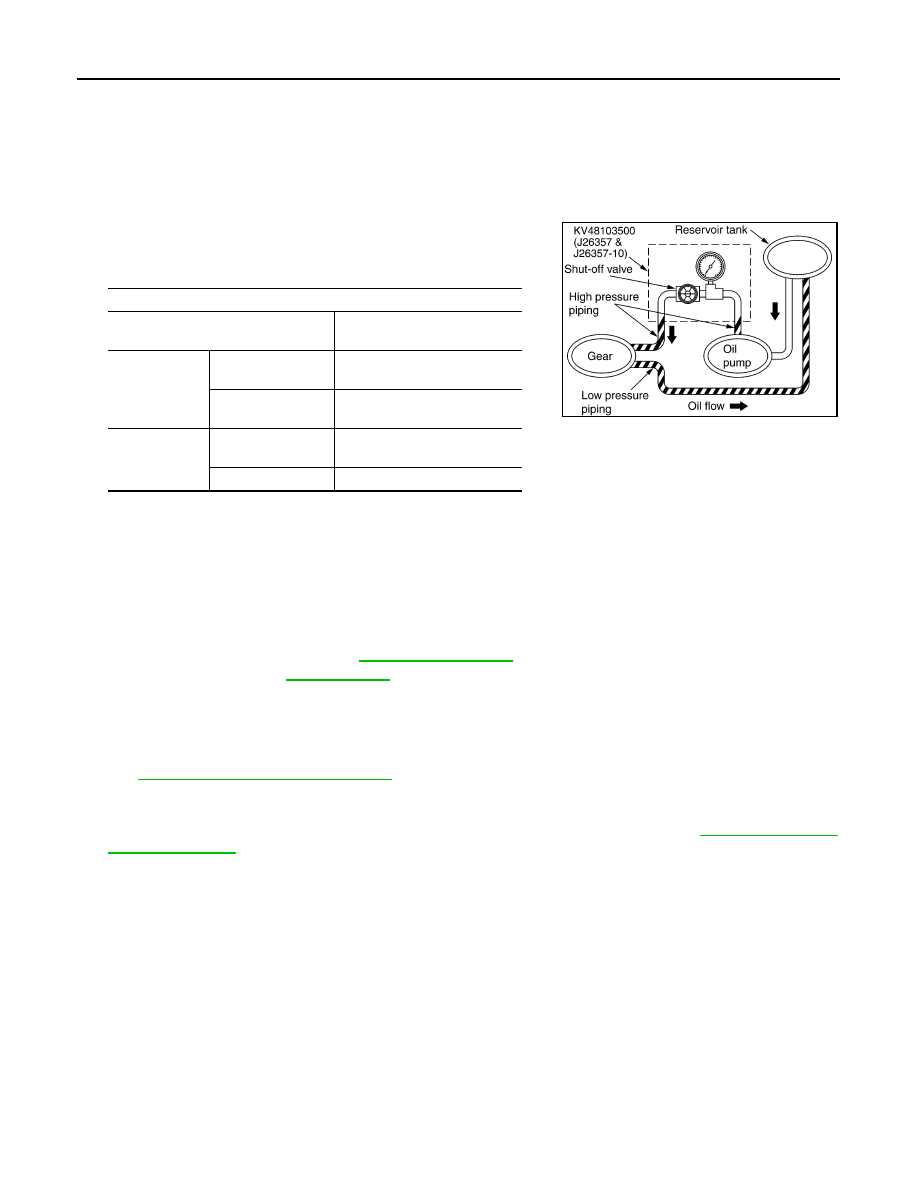

1. Connect Tool between power steering oil pump discharge con-

nector and high pressure hose and then bleed air from the

hydraulic circuit.

2. Start engine. Allow engine to run until tank temperature reaches 50

°– 80°C (122°– 176°F).

CAUTION:

• Warm up engine with shut-off valve fully opened. If engine is started with shut-off valve closed,

fluid pressure in power steering oil pump increases to maximum. This will raise power steering

fluid temperature excessively.

• Be careful not to contact hose with belt when engine is started.

3. With engine at idle, close shut-off valve and read the relief oil pressure.

CAUTION:

Do not close shut-off valve of pressure gauge for more than 10 seconds.

4. After measurement, open shut-off valve slowly.

• If relief oil pressure is outside the specification, disassemble and repair power steering oil pump. Refer

to

ST-24, "Disassembly and Assembly"

.

5. After inspection, disconnect oil pressure gauge and oil pressure gauge adapter from hydraulic circuit, con-

nect power steering oil pump discharge connector and high pressure hose and copper sealing washers.

Add power steering fluid and bleed air from hydraulic circuit thoroughly. Refer to

ST-6, "Air Bleeding

Hydraulic System"

.

CAUTION:

DO not reuse copper sealing washers.

Tool number:

Pressure gauge and shut-off valve

KV48103500
(J-26357 and J-26357-10)

Power steering
oil pump side

Connector A and O-
ring

KV48105300-4 and
5295262U10 (

—

)

Eye-bolt and O-ring

KV48105300-3 and
5295262U00 (

—

)

High pressure
piping side

Connector B and O-
ring

KV48105300-1 and
5295262U00 (

—

)

Nut

KV48105300-2 (

—

)

SGIA0570E

Relief oil pressure

: Refer to

ST-32, "Power Steer-

ing Oil Pump"

HYDRAULIC LINE

ST-11

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

UNIT REMOVAL AND INSTALLATION

HYDRAULIC LINE

Removal and Installation

INFOID:0000000009883507

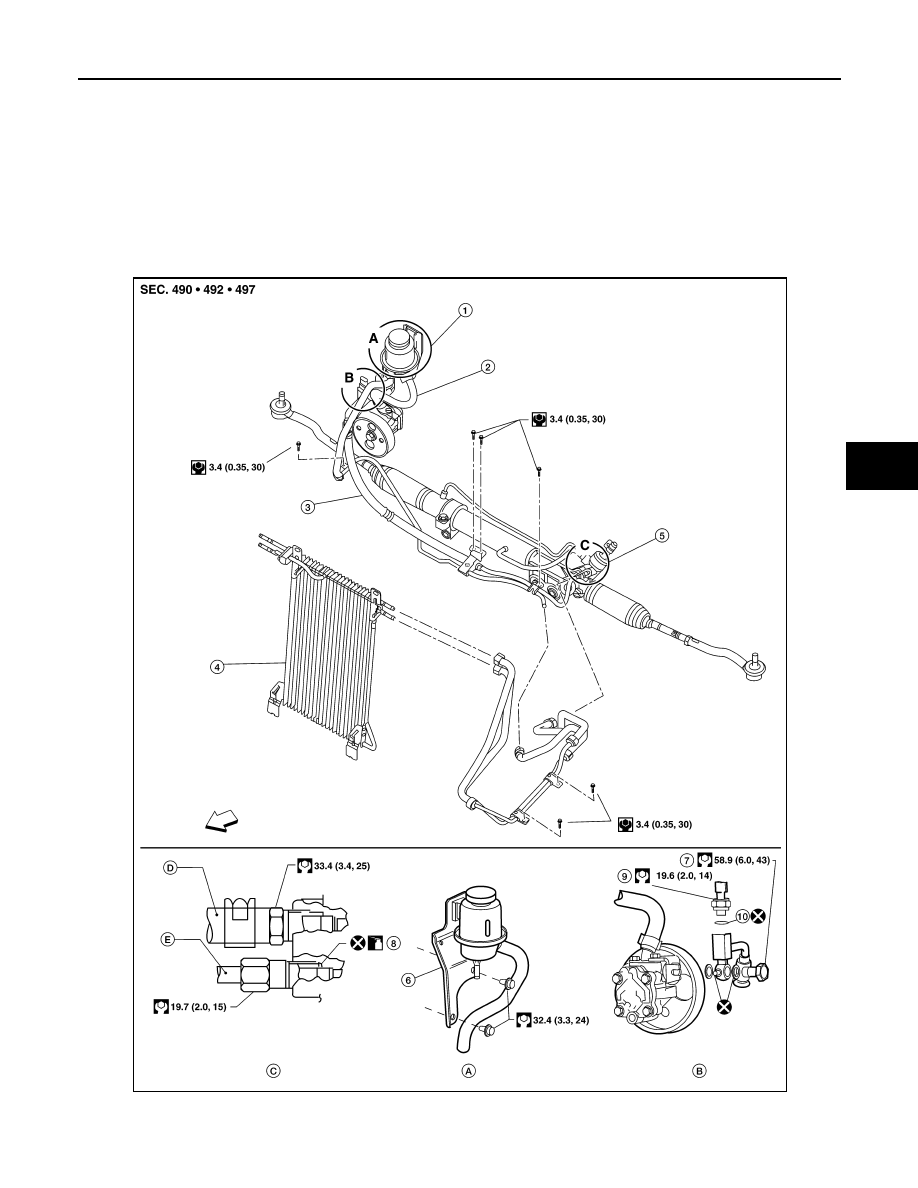

Refer to the following illustration for hydraulic line removal.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing

AWGIA0233ZZ

1.

Power steering reservoir tank

2.

Suction hose

3.

High pressure hose

4.

Fluid cooler

5.

Steering gear assembly

6.

Power steering reservoir tank bracket
