Nissan Titan. Manual - part 520

SE-46

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

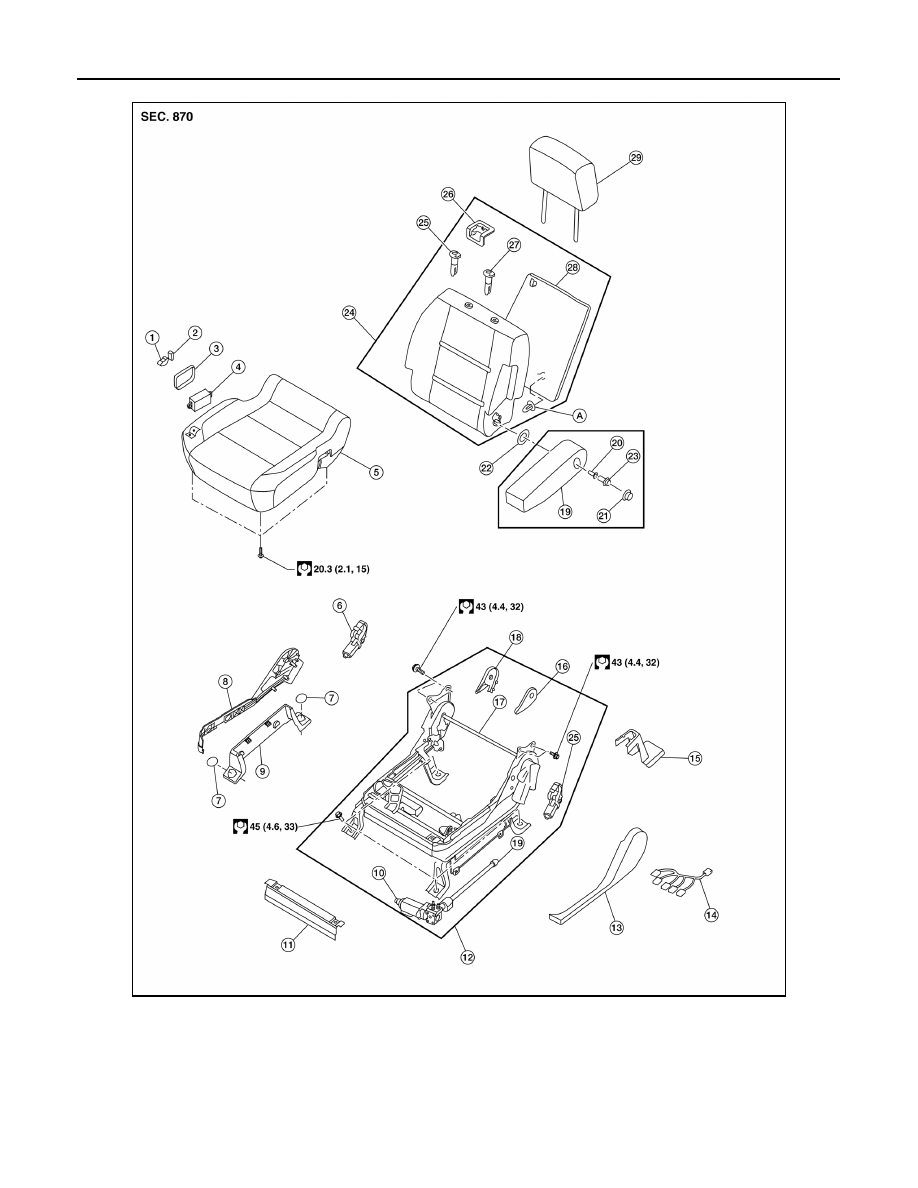

Power Passenger Seat

ALJIA1068ZZ

1.

Seat slide knob

2.

Seat recline knob

3.

Power seat switch finisher

4.

Power seat switch

5.

Seat cushion assembly

6.

Recline motor

7.

Bolt cover

8.

Seat cushion outer finisher (RH)

9.

Slide finisher (RH)

10. Seat slide motor

11. Seat cushion front finisher

12. Seat frame assembly

13. Seat cushion outer finisher (LH)

14. Seat harness

15. Rear slide finisher (LH)

16. Recline mechanism cover (LH)

17. Recline rod

18. Recline mechanism cover (RH)

FRONT SEAT

SE-47

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

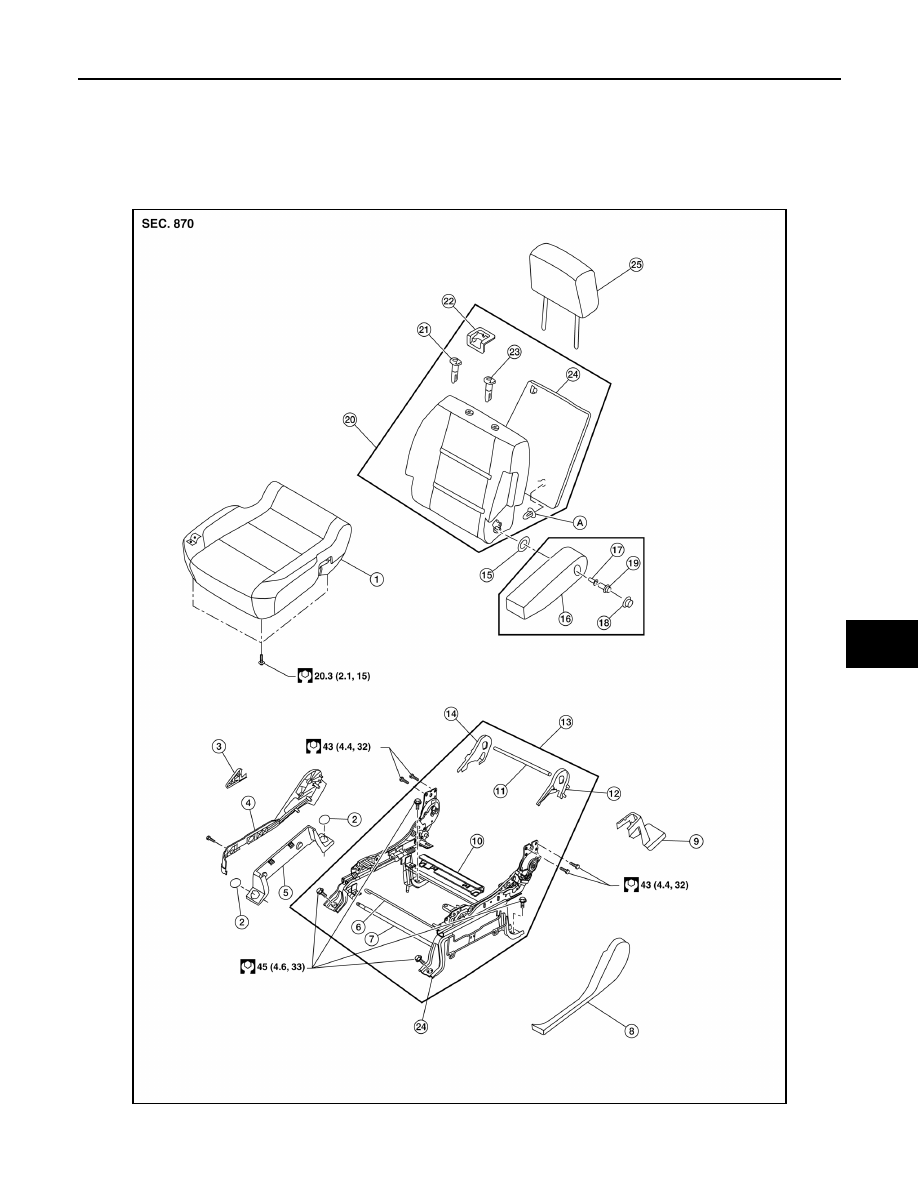

Manual Passenger Seat

19. Armrest assembly (if equipped)

20. Armrest insert (if equipped)

21. Armrest pivot bolt finisher (if

equipped)

22. Armrest washer (if equipped)

23. Armrest pivot bolt (if equipped)

24. Seatback assembly

25. Headrest holder (free)

26. Seat fold lever

27. Headrest holder (locked)

28. Seatback board

29. Headrest

A.

Seatback board clip

ALJIA1069ZZ

SE-48

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

Disassembly and Assembly

INFOID:0000000009882019

SEATBACK TRIM AND PAD

NOTE:

Only complete outboard seatback assemblies can be replaced on vehicles equipped with side air bags.

Be sure to set the front/rear cushion lifter to the top position.

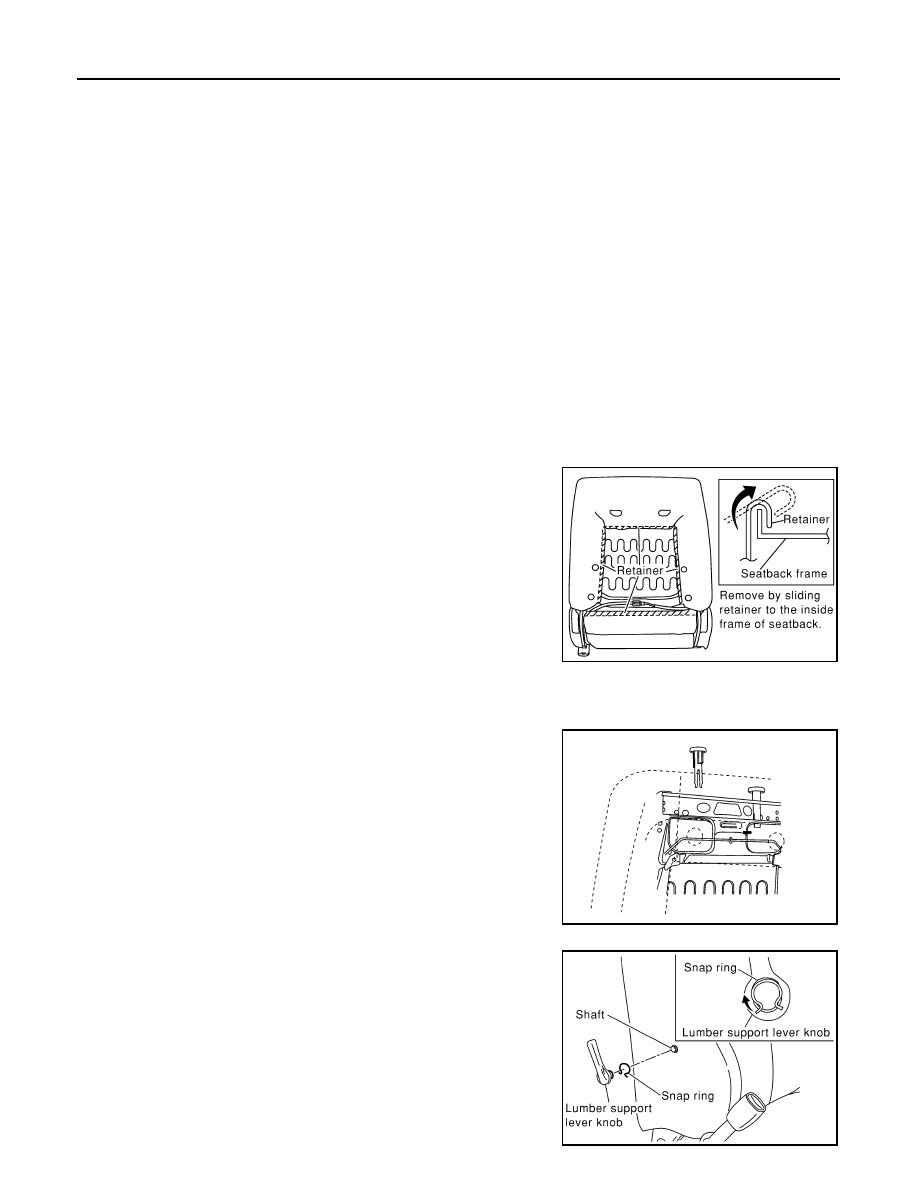

1. Remove the seatback board.

2. Remove the retainer.

3. Remove the headrest.

4. From inside of the seatback, squeeze the headrest holder tabs

at the base of the stay pipe and pull the up to remove.

NOTE:

Before installing the headrest holder, check its orientation (front/

rear and right/left).

5. Remove the snap ring and the lumbar support lever knob.

1.

Seat cushion assembly

2.

Bolt cover

3.

Recline lever

4.

Seat cushion outer finisher (RH)

5.

Slide finisher (RH)

6.

Slide release wire

7.

Front seat frame support

8.

Seat cushion outer finisher (LH)

9.

Rear slide finisher (LH)

10. Seat frame cover

11. Recline rod

12. Recline mechanism cover (LH)

13. Seat cushion assembly

14. Recline mechanism cover (RH)

15. Armrest washer (if equipped)

16. Armrest assembly (if equipped)

17. Armrest insert (if equipped)

18. Armrest pivot bolt finisher (if

equipped)

19. Armrest pivot bolt (if equipped)

20. Seatback assembly

21. Headrest holder (free)

22. Seat fold lever

23. Headrest holder (locked)

24. Seatback board

25. Headrest

A.

Seatback board clip

SIIA0113E

LRS023

PIIA1156E

FRONT SEAT

SE-49

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

6.

CAUTION:

On the passenger seat during installation, the wire harness clips must be installed in the holes

they were originally in.

Do not add additional clips.

Disconnect the seatback heater harness. Remove the seatback trim and pad assembly. Remove the hog

ring to separate the seatback trim from the pad and the heater unit.

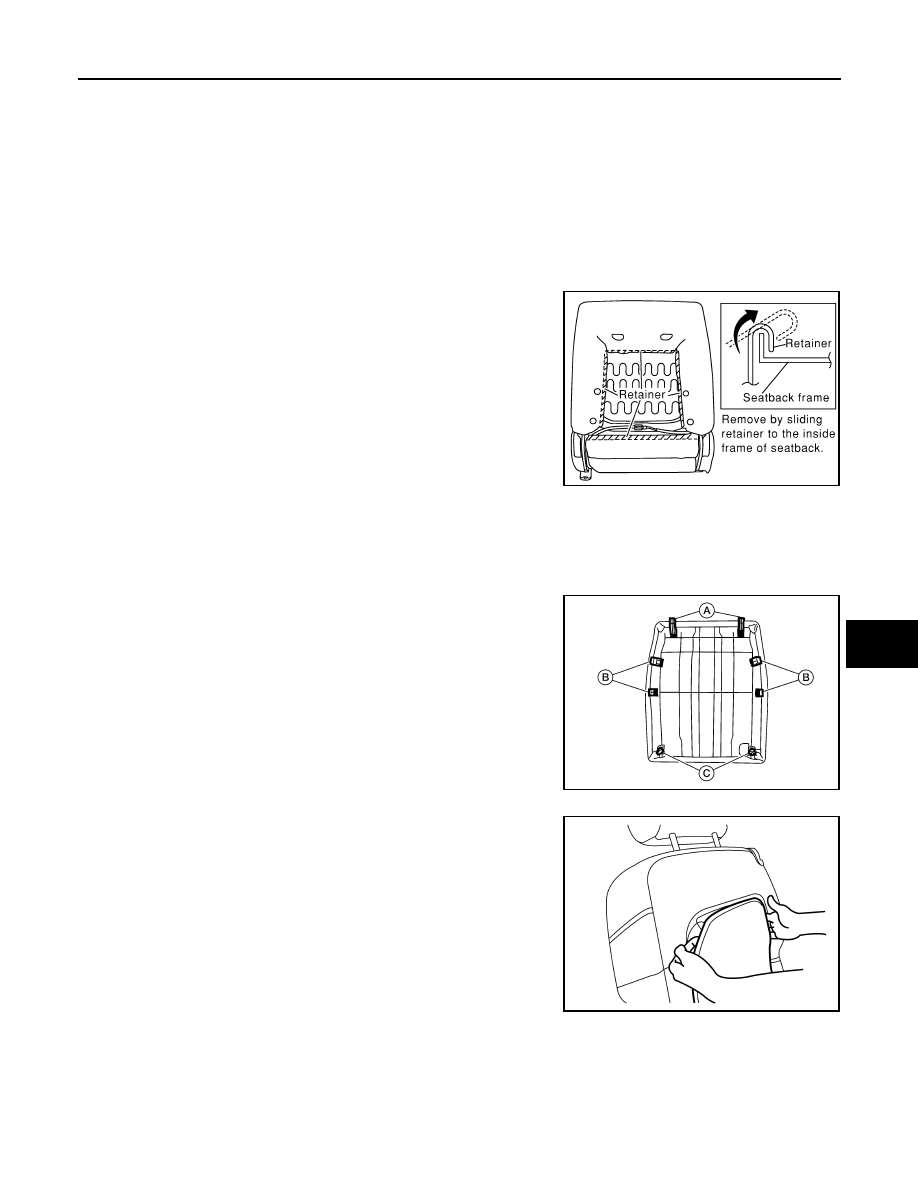

Removal of seatback assembly

1. Remove the seatback board.

2. Remove the retainer.
3. Remove the side air bag harness connector from the seat cush-

ion.

4. Remove the seatback bolts (two for each side) and seatback

assembly.

Installation of seatback assembly

• Installation is in the reverse order of removal.

SEATBACK BOARD - SOFT SEATBACK

Removal

1. The seatback board is attached to the seat frame with the follow-

ing:

• 2 top tabs (A)

• 4 side tabs (B)

• 2 bottom clips (C) (must be replaced)

2. Move seat to forward position.

3. Hold the seatback board as shown and pull the top of the seat-

back board away from the seat back frame.

SIIA0113E

ALIIA0394ZZ

ALIIA0368ZZ
