SE-10

< WIRING DIAGRAM >

POWER SEAT FOR PASSENGER SIDE

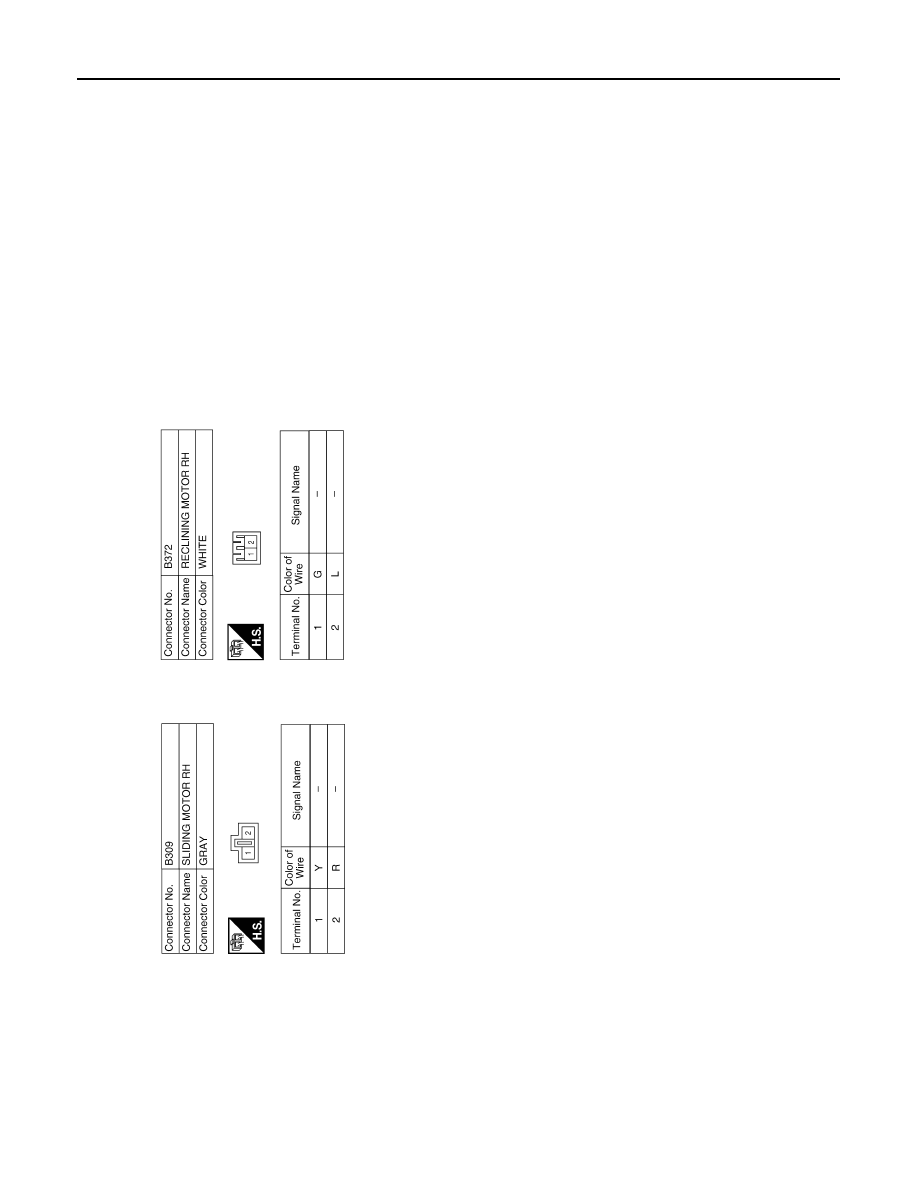

ABJIA0687GB

HEATED SEAT

SE-11

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

HEATED SEAT

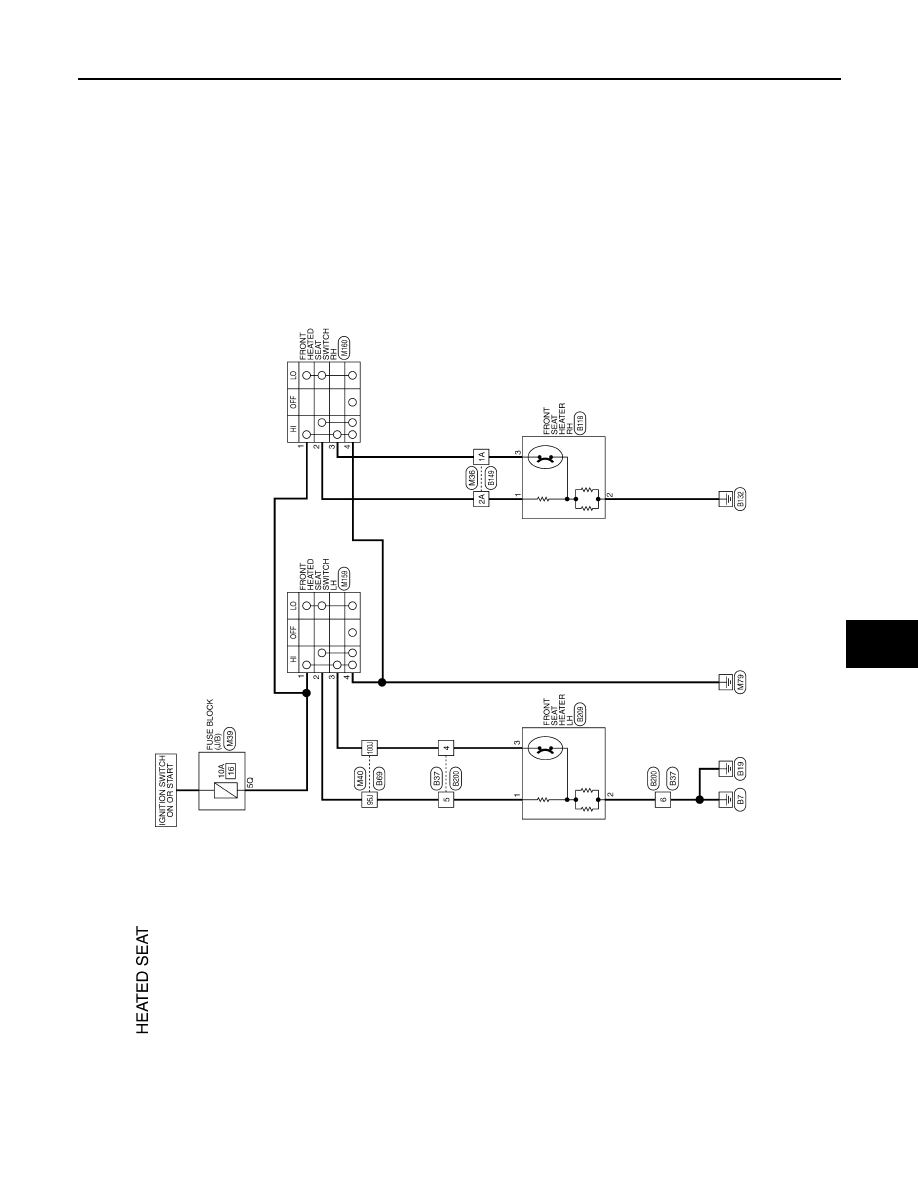

Wiring Diagram

INFOID:0000000009882004

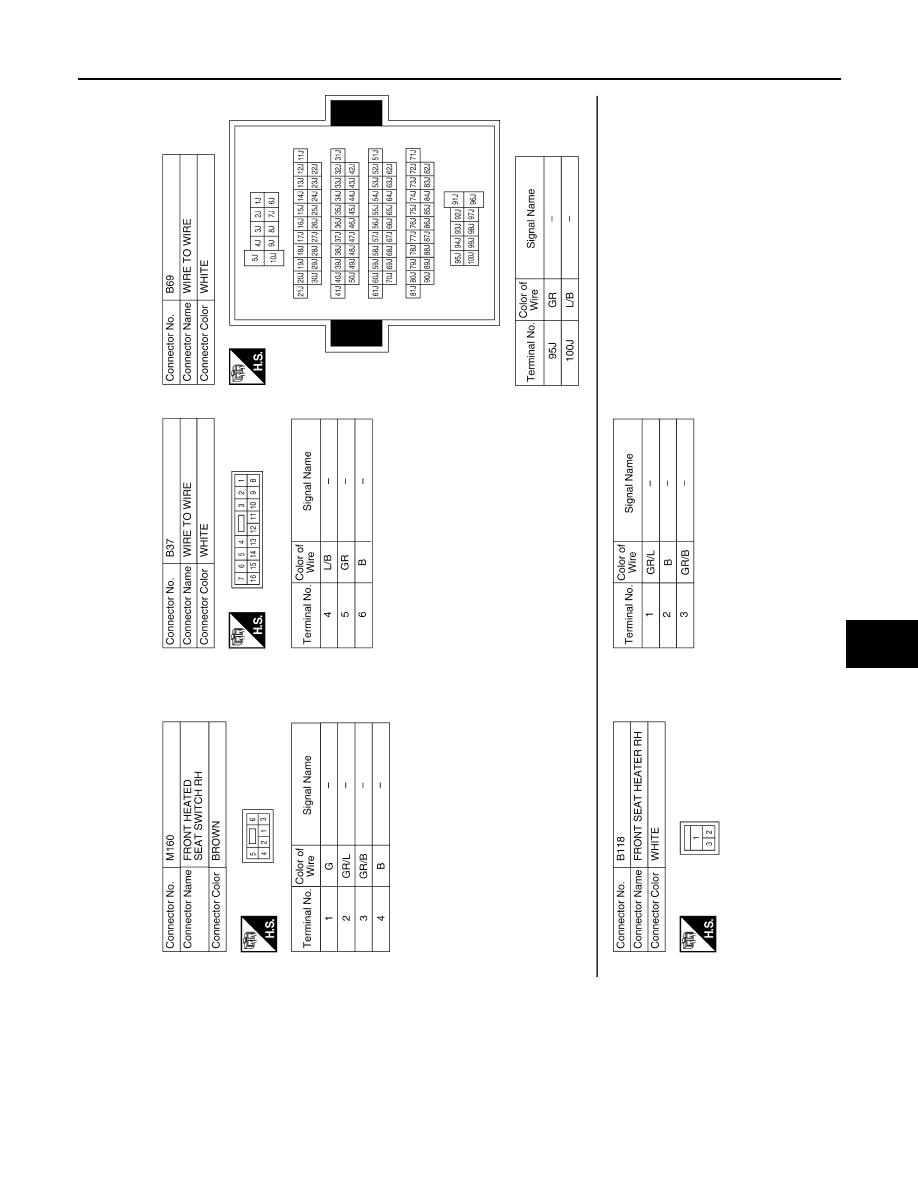

ABJWA0299GB

SE-12

< WIRING DIAGRAM >

HEATED SEAT

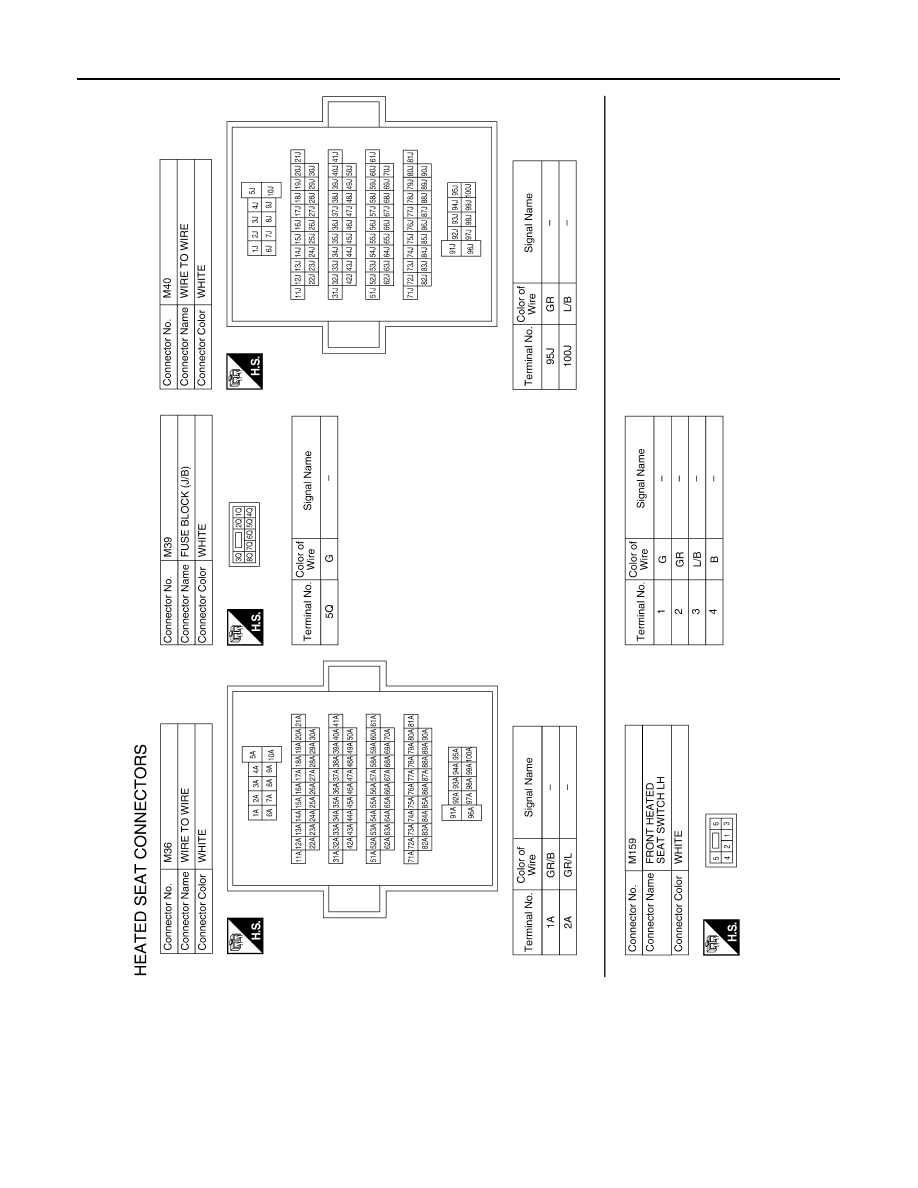

ABJIA0688GB

HEATED SEAT

SE-13

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

ABJIA0689GB
