Nissan Titan. Manual - part 502





RF-52

< REMOVAL AND INSTALLATION >

SUNROOF SYSTEM

3. Adjust the glass lid. Refer to

RF-46, "Inspection"

.

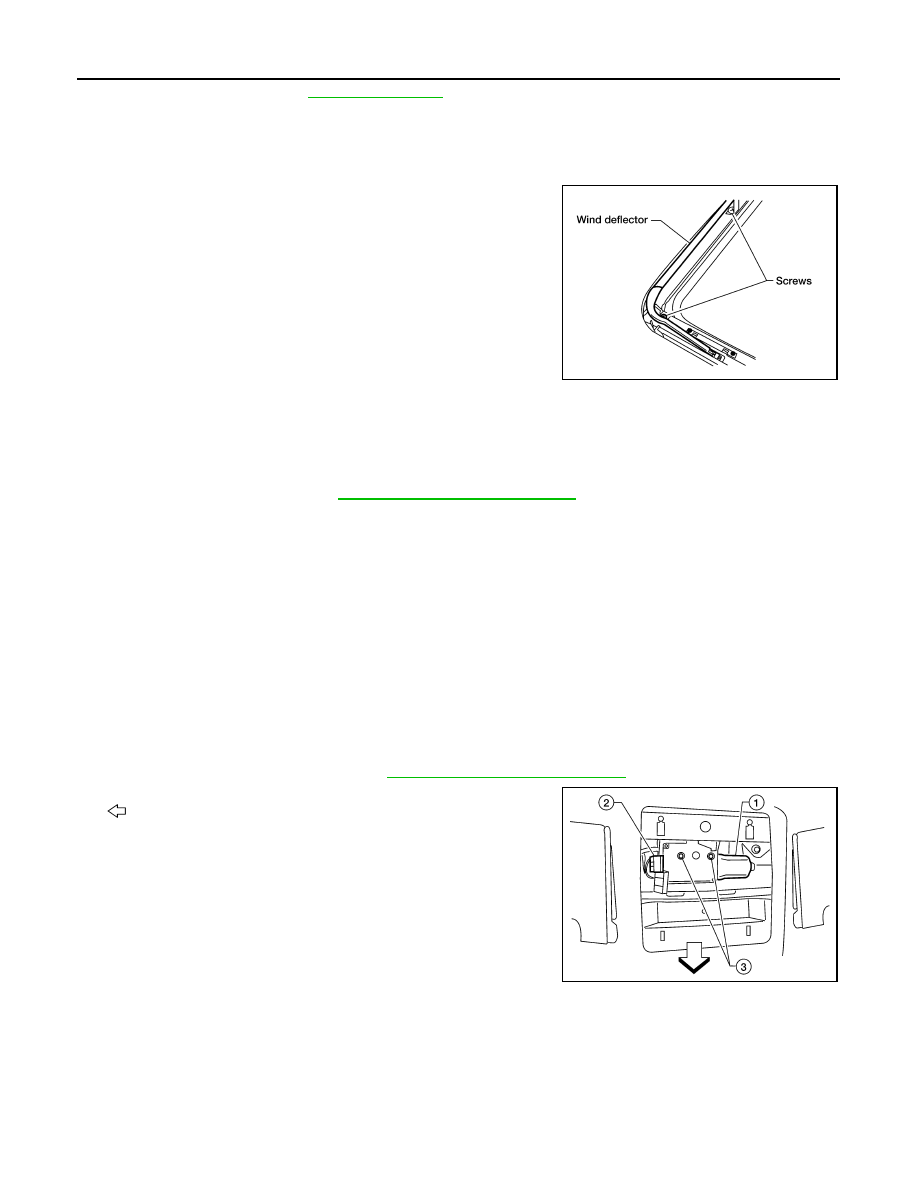

WIND DEFLECTOR

Removal

1. Open the sunroof.
2. Remove screws from the left, center, and right side wind deflec-

tor holders.

3. Remove the wind deflector from the sunroof unit.

Installation

Installation is in the reverse order of removal.

SUNSHADE

Removal

1. Remove the headlining. Refer to

INT-21, "Removal and Installation"

.

2. Loosen sunroof unit bolts and remove rear sunroof unit brackets.
3. Lower rear edge of sunroof unit enough for clearance from roof panel.
4. Remove the sunshade from the rear end of the sunroof unit.

Installation

Installation is in the reverse order of removal.

SUNROOF MOTOR ASSEMBLY

Removal

CAUTION:

• When removing the sunroof motor, be sure to place the link and wire assembly in the symmetrical

and fully closed position.

• Never run the removed motor as a single unit.
1. Position the sunroof unit in the fully closed position.
2. Remove the front roof console. Refer to

INT-21, "Removal and Installation"

.

3. Disconnect the sunroof motor assembly harness connector (2).

: Vehicle front

4. Remove the sunroof motor assembly screws (3), then remove

the sunroof motor assembly (1).

Installation

CAUTION:

Before installing the sunroof motor assembly, be sure to place the link and wire assembly in the sym-

metrical and fully closed position.

LIIA1099E

WIIA0772E

SUNROOF SYSTEM

RF-53

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

1. Move the sunroof motor assembly (1) laterally little by little so

that the gear is completely engaged into the wire on the sunroof

unit and the installation surface becomes parallel. Then, secure

the motor with the screws (3).

: Vehicle front

2. Connect the wire harness connector (2) to the sunroof motor

assembly (1).

3. Install the front roof console. Refer to

RF-51, "Removal and

Installation"

.

4. Reset the sunroof motor assembly memory. Refer to

RF-5,

"ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

: Special Repair Requirement"

.

WIIA0772E

RSU-1

SUSPENSION

C

D

F

G

H

I

J

K

L

M

SECTION

RSU

A

B

RSU

N

O

P

CONTENTS

REAR SUSPENSION

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

2

General Precautions  .................................................

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Commercial Service Tool  ..........................................

3

SYMPTOM DIAGNOSIS  ...............................

4

NOISE VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

4

NVH Troubleshooting Chart  ......................................

4

PERIODIC MAINTENANCE ..........................

5

REAR SUSPENSION ASSEMBLY  .....................

5

On-Vehicle Inspection and Service  ..........................

5

REMOVAL AND INSTALLATION ................

6

REAR SUSPENSION ASSEMBLY ....................

6

Exploded View ..........................................................

6

LEAF SPRING ....................................................

7

Removal and Installation  ..........................................

7

SHOCK ABSORBER  ........................................

10

Removal and Installation  .........................................

10

Disposal ...................................................................

10

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

11

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

11

General Specification (Rear)  ...................................

11

Wheelarch Height (Unladen*1) ................................

11

RSU-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009885614

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

General Precautions

INFOID:0000000009885615

• When installing rubber parts, final tightening must be carried out under unladen condition* with tires

on ground.

* Fuel, radiator coolant, and engine oil are full. Spare tire, jack, hand tools, and mats are in their des-

ignated positions.
