Nissan Titan. Manual - part 501





RF-48

< REMOVAL AND INSTALLATION >

SUNROOF SYSTEM

ADJUSTMENT

Units: mm (in)

NOTE:

If any gap or height difference between glass lid and roof panel is found, check glass lid fit and adjust as fol-

lows:

CLEARANCE ADJUSTMENT

1. Open sunshade.
2. Loosen glass lid securing screws (two each on left and right sides), then tilt glass lid down.
3. Manually adjust glass lid from outside of vehicle to achieve clearance specifications.
4. After adjusting glass lid, tilt glass lid up and tighten screws.

NOTE:

First tighten left front then right rear glass lid screws to prevent uneven torque while tightening remaining

screws.

5. Tilt glass lid up and down several times to check that it moves smoothly.

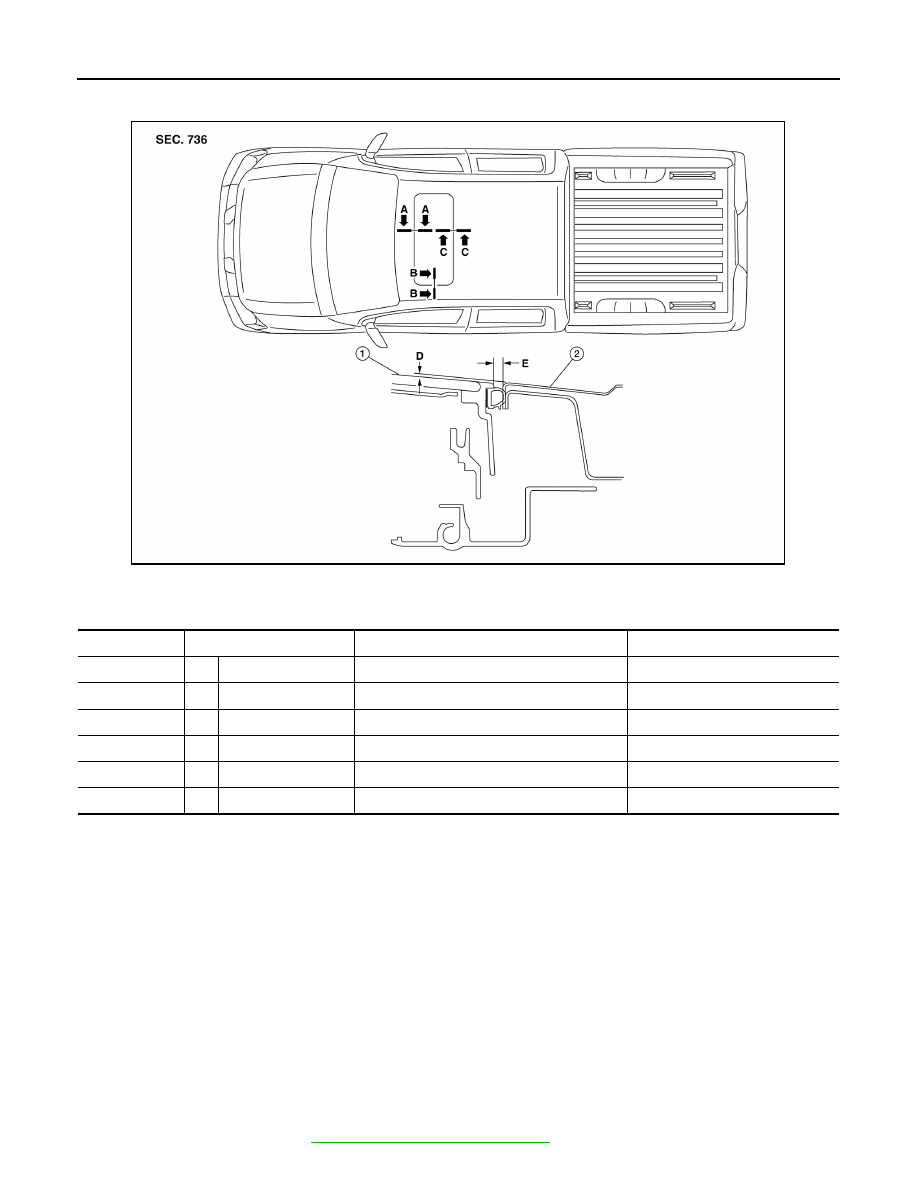

HEIGHT DIFFERENCE ADJUSTMENT

If an excessive height difference between glass lid and roof panel is found, adjust in the following manner:
1. Remove headlining. Refer to

INT-21, "Removal and Installation"

.

1.

Glass lid

2.

Roof panel

AWKIA1791ZZ

Portion

Measurement

Standard

Difference (MAX)

A-A

D

Surface height

0 (0.000)

±1.5 (0.059)

A-A

E

Clearance

16.2 (0.638)

±0.7 (0.028)

B-B

D

Surface height

0 (0.000)

±1.5 (0.059)

B-B

E

Clearance

16.7 (0.657)

±0.7 (0.028)

C-C

D

Surface height

0 (0.000)

±1.5 (0.059)

C-C

E

Clearance

17.3 (0.681)

±0.7 (0.028)

SUNROOF SYSTEM

RF-49

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

2. Loosen sunroof unit nuts and sunroof bracket bolts.
3. Add shims until surface height is within specification.

NOTE:

Temporarily snug nuts and bolts to prevent movement between each adjustment.

4. Tilt glass lid up and down several times to check that it moves and seals properly.
5. Tighten sunroof unit nuts and sunroof bracket bolts.

NOTE:

First tighten left front then right rear sunroof unit to prevent uneven torque while tightening remaining sun-

roof bracket bolts.

6. Install headlining. Refer to

INT-21, "Removal and Installation"

.

RF-50

< REMOVAL AND INSTALLATION >

SUNROOF SYSTEM

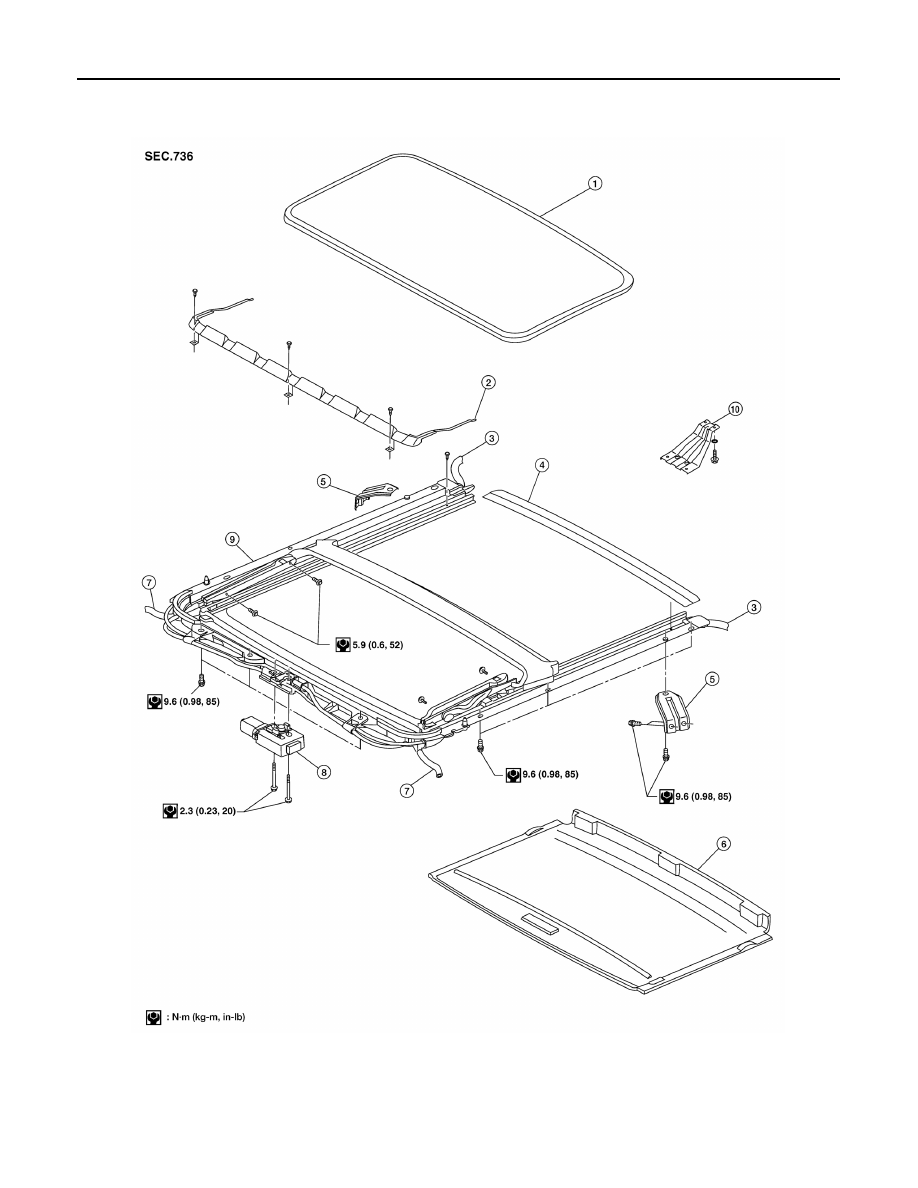

Exploded View

INFOID:0000000009879083

1. Glass lid

2.

Wind deflector

3. Rear drain hoses

4. Rear drain frame assembly

5.

Sunroof bracket

6. Sunshade

7. Front drain hoses

8.

Sunroof motor assembly

9. Sunroof unit

10. Overhead console bracket

AWKIA1712GB

SUNROOF SYSTEM

RF-51

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

CAUTION:

• Always work with a helper.

• Before removal, fully close the glass lid. Then, after removal, do not move the sunroof motor assem-

bly.

• After installing the sunroof and glass lid, check gap adjustment to ensure there is no malfunction.

NOTE:

• After any adjustment, check sunroof operation and glass lid alignment.

• Handle glass lid with care so not to cause damage.

• For easier installation, mark each point before removal.

Removal and Installation

INFOID:0000000009879084

SUNROOF UNIT

CAUTION:

• Always work with a helper.

• When taking sunroof unit out, use shop cloths to protect the seats and trim from damage.

• After installing the sunroof unit and glass lid, be sure to check gap adjustment to ensure there is no

malfunction.

Removal

1. Remove headlining. Refer to

INT-21, "Removal and Installation"

2. Remove the glass lid. Refer to GLASS LID REMOVAL & INSTALLATION procedure in this section.
3. Remove overhead console bracket.
4. Disconnect the drain hoses.
5. Remove front sunroof bolts.
6. Remove rear sunroof bracket bolts.
7. Remove the side bolts and the sunroof unit.

Installation

1. Position the sunroof unit and install the side bolts.
2. Install rear sunroof bracket bolts.
3. Install the front sunroof bolts.
4. Connect drain hoses.
5. Install the overhead console bracket.
6. Install the glass lid. Refer to GLASS LID REMOVAL & INSTALLATION procedure in this section.
7. Install headlining. Refer to

INT-21, "Removal and Installation"

.

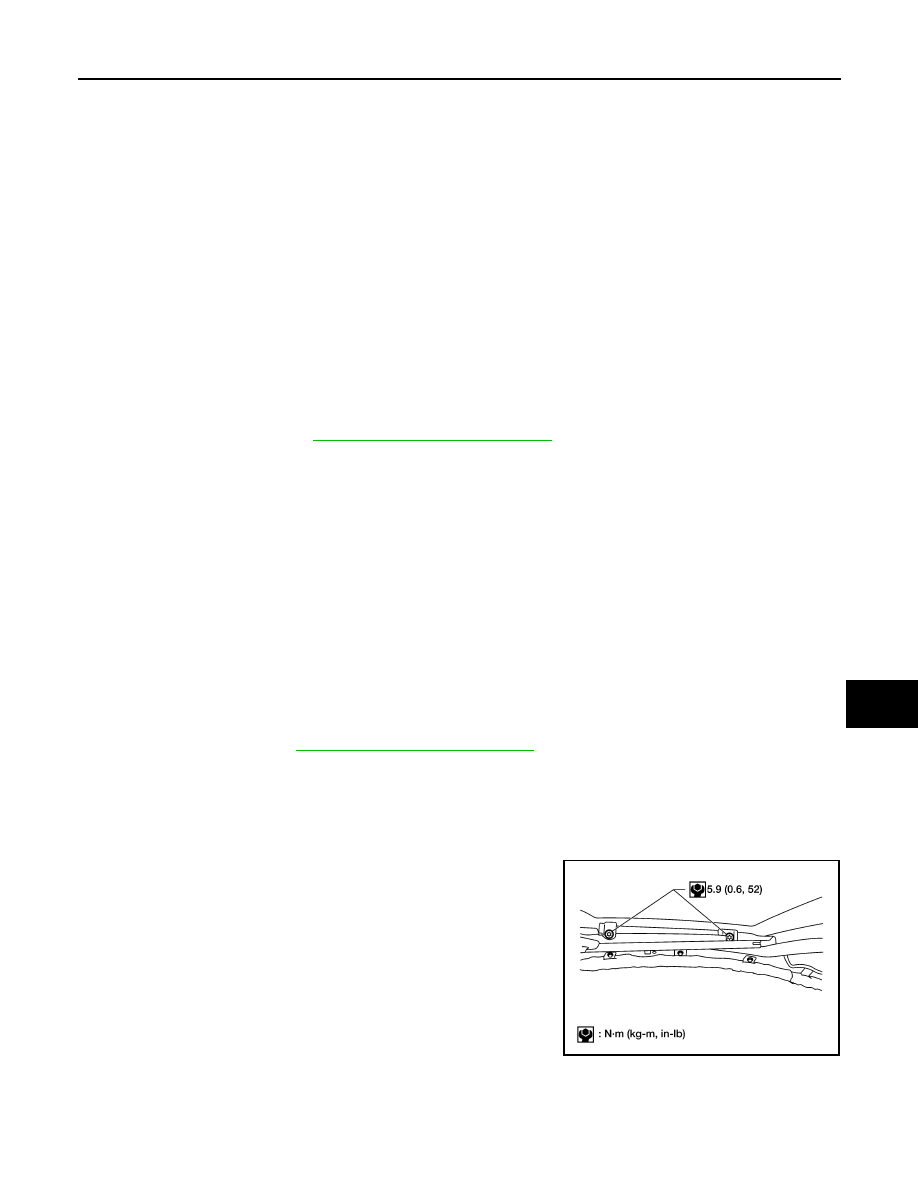

GLASS LID

Removal

1. Open sunshade.
2. Ensure glass lid is closed.
3. Remove the screws securing glass lid to the sunroof unit.
4. Remove the glass lid.
NOTE:

• After any adjustment, check sunroof operation and glass lid align-

ment.

• Handle glass lid with care so not to cause damage.

• For easier installation, mark each point before removal.

Installation

1. Position glass lid to sunroof unit.
2. Install the glass lid screws. (First tighten left front bolt, then tighten right rear bolt on glass lid to prevent lid

from moving while tightening other bolts.)

WIIA0252E
