BCM (BODY CONTROL MODULE)

PWC-69

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

19

V/W

Remote keyless entry
receiver (power sup-
ply)

Output

OFF

Ignition switch OFF

20

G/W

Remote keyless entry
receiver (signal)

Input

OFF

Stand-by (keyfob buttons re-
leased)

When remote keyless entry re-
ceiver receives signal from
keyfob (keyfob buttons
pressed)

21

G

NATS antenna amp.

Input

OFF

→

ON

Ignition switch (OFF

→ ON)

Just after turning ignition switch

ON: Pointer of tester should

move for approx. 1 second, then

return to battery voltage.

22

G

BUS

—

—

Ignition switch ON or power
window timer operates

23

G/O

Security indicator lamp

Output

OFF

Goes OFF

→ illuminates (Ev-

ery 2.4 seconds)

Battery voltage

→ 0V

25

BR

NATS antenna amp.

Input

OFF

→

ON

Ignition switch (OFF

→ ON)

Just after turning ignition switch

ON: Pointer of tester should

move for approx. 1 second, then

return to battery voltage.

27

W/R

Compressor ON signal

Input

ON

A/C switch OFF

5V

A/C switch ON

0V

28

L/R

Front blower monitor

Input

ON

Front blower motor OFF

Battery voltage

Front blower motor ON

0V

29

W/B

Hazard switch

Input

OFF

ON

0V

OFF

5V

31

P/L

Cargo lamp switch

Input

OFF

Cargo lamp switch ON

0

Cargo lamp switch OFF

Battery voltage

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value or waveform

(Approx.)

Ignition

switch

Operation or condition

LIIA1893E

LIIA1894E

LIIA1895E

PIIA2344E

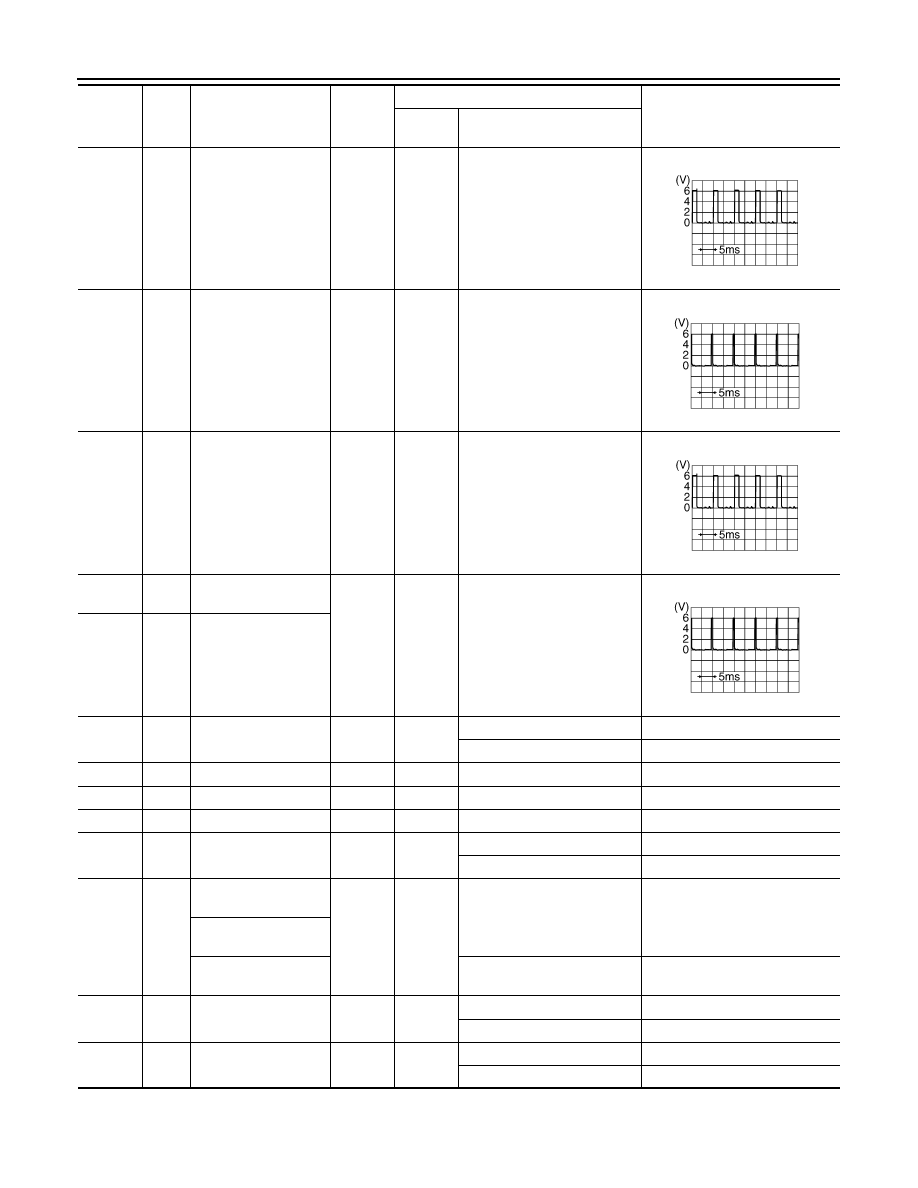

PWC-70

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

32

R/G

Combination switch
output 5

Output

ON

Lighting, turn, wiper OFF
Wiper dial position 4

33

R/Y

Combination switch
output 4

Output

ON

Lighting, turn, wiper OFF
Wiper dial position 4

34

L

Combination switch
output 3

Output

ON

Lighting, turn, wiper OFF
Wiper dial position 4

35

O/B

Combination switch
output 2

Output

ON

Lighting, turn, wiper OFF
Wiper dial position 4

36

R/W

Combination switch
output 1

37

B/R

Key switch and key
lock solenoid

Input

OFF

Key inserted

Battery voltage

Key removed

0V

38

W/L

Ignition switch (ON)

Input

ON

—

Battery voltage

39

L

CAN-H

—

—

—

—

40

P

CAN-L

—

—

—

—

41

Y/B

Rear defogger switch

Input

ON

Rear defogger switch ON

0V

Rear defogger switch OFF

5V

47

SB

Front door switch LH
(All)

Input

OFF

ON (open)

0V

Rear door switch lower
LH (King Cab)

Rear door switch up-
per LH (King Cab)

OFF (closed)

Battery voltage

48

R/Y

Rear door switch LH
(Crew Cab)

Input

OFF

ON (open)

0V

OFF (closed)

Battery voltage

50

R/Y

Cargo bed lamp con-
trol

Output

OFF

Cargo lamp switch (ON)

0V

Cargo lamp switch (OFF)

Battery voltage

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value or waveform

(Approx.)

Ignition

switch

Operation or condition

SKIA5291E

SKIA5292E

SKIA5291E

SKIA5292E

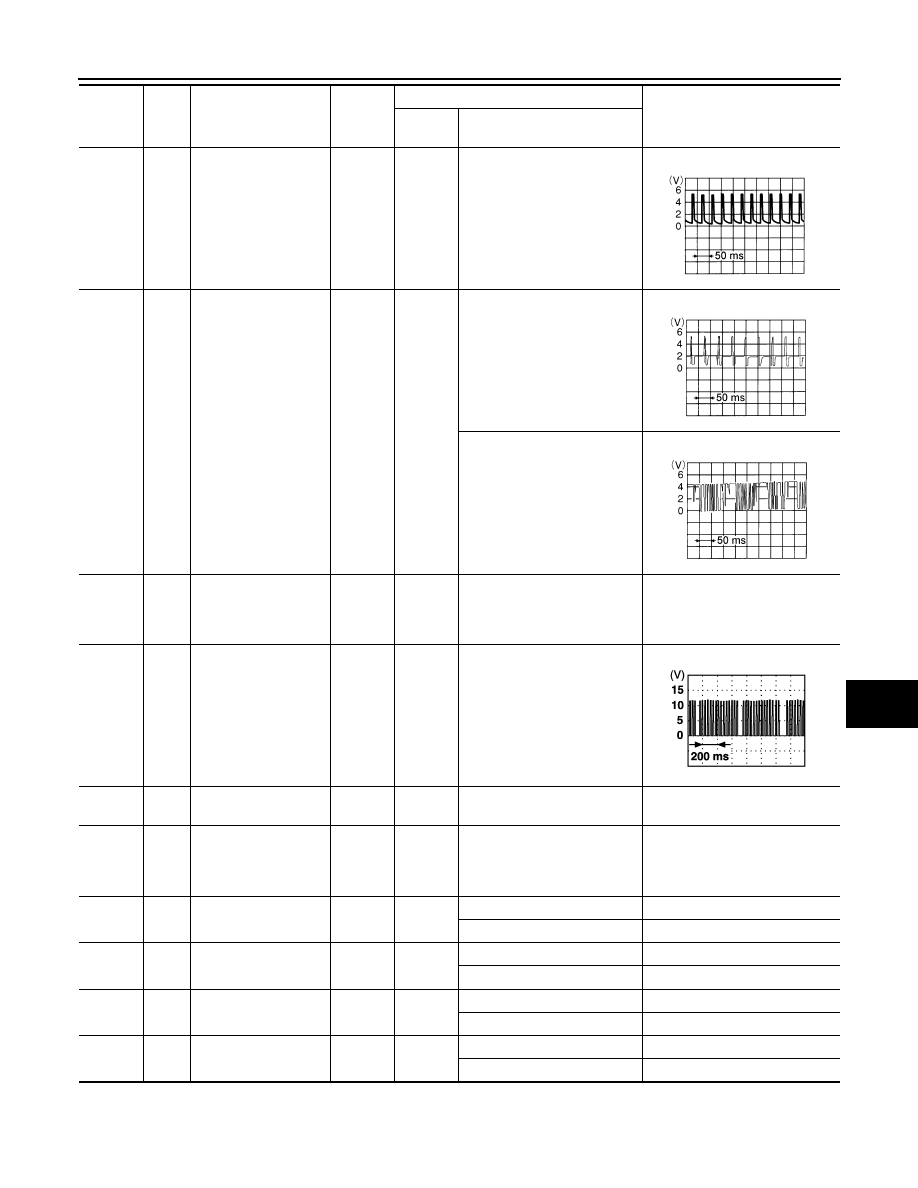

BCM (BODY CONTROL MODULE)

PWC-71

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

51

Y/B

Trailer turn signal
(right)

Output

ON

Turn right ON

52

G/B

Trailer turn signal (left)

Output

ON

Turn left ON

56

R/G

Battery saver output

Output

OFF

15 minutes after ignition switch
is turned OFF

0V

ON

—

Battery voltage

57

Y/R

Battery power supply

Input

OFF

—

Battery voltage

58

W/R

Optical sensor

Input

ON

When optical sensor is illumi-
nated

3.1V or more

When optical sensor is not illu-
minated

0.6V or less

59

G

Front door lock as-
sembly LH actuator
(unlock)

Output

OFF

OFF (neutral)

0V

ON (unlock)

Battery voltage

60

G/B

Turn signal (left)

Output

ON

Turn left ON

61

G/Y

Turn signal (right)

Output

ON

Turn right ON

62

R/W

Step lamp LH and RH

Output

OFF

ON (any door open)

0V

OFF (all doors closed)

Battery voltage

63

L

Interior room/map
lamp

Output

OFF

Any door
switch

ON (open)

0V

OFF (closed)

Battery voltage

65

V

All door lock actuators
(lock)

Output

OFF

OFF (neutral)

0V

ON (lock)

Battery voltage

66

G/Y

Front door lock actua-
tor RH and rear door
lock actuators LH/RH
(unlock)

Output

OFF

OFF (neutral)

0V

ON (unlock)

Battery voltage

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value or waveform

(Approx.)

Ignition

switch

Operation or condition

SKIA3009J

SKIA3009J

SKIA3009J

SKIA3009J

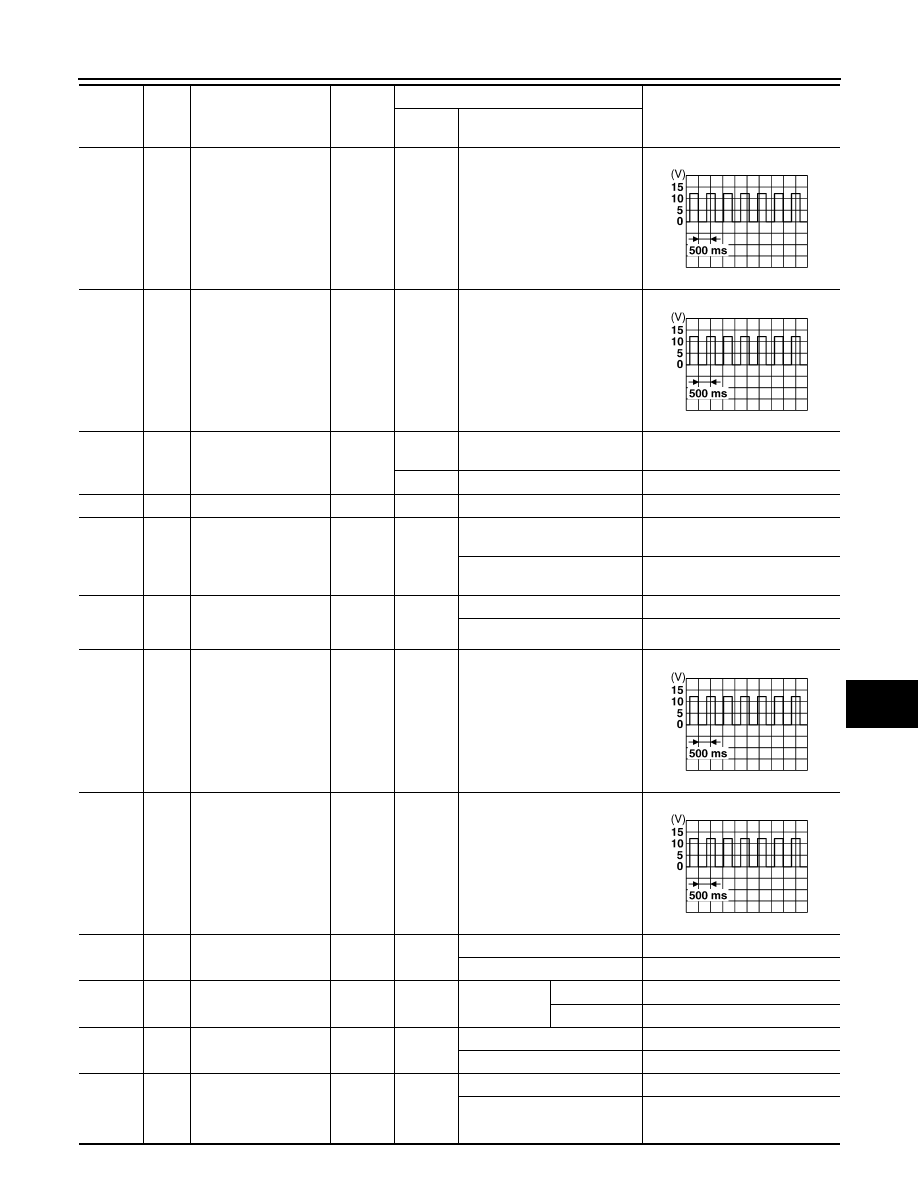

PWC-72

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

Fail Safe

INFOID:0000000009879013

Fail-safe index

BCM performs fail-safe control when any DTC listed below is detected.

DTC Inspection Priority Chart

INFOID:0000000009879014

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority

chart.

67

B

Ground

Input

ON

—

0V

68

W/L

Power window power
supply (RAP)

Output

—

Ignition switch ON

Battery voltage

Within 45 seconds after igni-
tion switch OFF

Battery voltage

More than 45 seconds after ig-
nition switch OFF

0V

When front door LH or RH is
open or power window timer
operates

0V

69

W/R

Power window power
supply

Output

—

—

Battery voltage

70

W/B

Battery power supply

Input

OFF

—

Battery voltage

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value or waveform

(Approx.)

Ignition

switch

Operation or condition

Display contents of CONSULT

Fail-safe

Cancellation

U1000: CAN COMM CIRCUIT

Inhibit engine cranking

When the BCM re-establishes communication with the other mod-
ules.

Priority

DTC

1

• U1000: CAN COMM CIRCUIT

2

• B2190: NATS ANTENNA AMP
• B2191: DIFFERENCE OF KEY
• B2192: ID DISCORD BCM-ECM
• B2193: CHAIN OF BCM-ECM
