Nissan Titan. Manual - part 472





REAR POWER DROP GLASS DOWN RELAY CHECK

PWC-61

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

1. Disconnect rear power drop glass switch.

2. Check continuity between rear power drop glass down relay

connector M155 terminal 2 and rear power drop glass switch

connector R103 terminal 5.

Is the inspection result normal?

YES

>> Replace rear power drop glass switch. Refer to

PWC-

117, "Removal and Installation - Power Drop Glass

Switch"

.

NO

>> Repair or replace harness.

2 - 5

: Continuity should exist.

WIIA0522E

PWC-62

< DTC/CIRCUIT DIAGNOSIS >

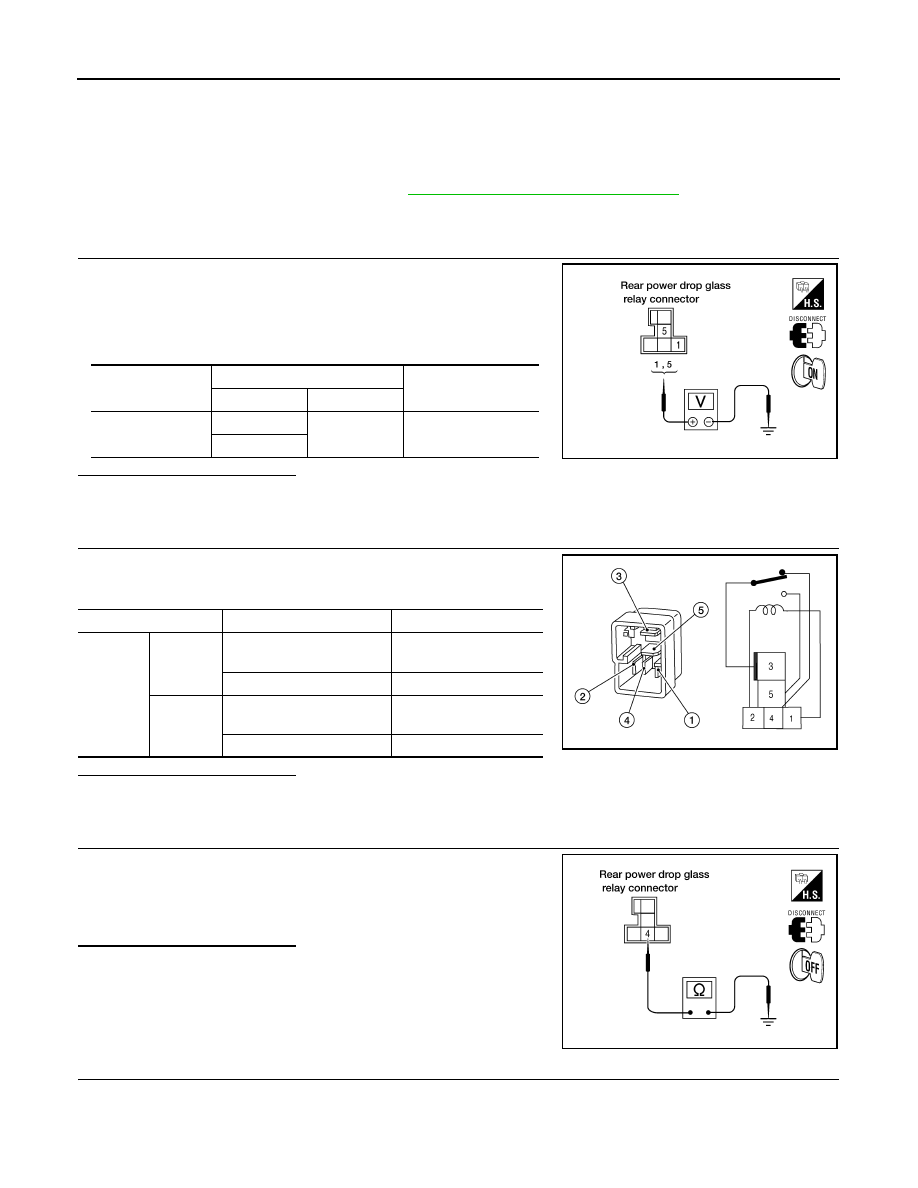

REAR POWER DROP GLASS UP RELAY CHECK

REAR POWER DROP GLASS UP RELAY CHECK

Rear Power Drop Glass Up Relay Check

INFOID:0000000009879009

Regarding Wiring Diagram information, refer to

PWC-88, "Wiring Diagram - Crew Cab"

.

1.

 CHECK REAR POWER DROP GLASS UP RELAY POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect rear power drop glass up relay.

3. Turn ignition switch ON.

4. Check voltage between rear power drop glass up relay connec-

tor and ground.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace harness.

2.

 CHECK REAR POWER DROP GLASS UP RELAY

Check continuity between rear power drop glass down relay termi-

nals 3 and 4, 3 and 5.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Replace rear power drop glass up relay.

3.

 CHECK REAR POWER DROP GLASS UP RELAY GROUND CIRCUIT

Check continuity between rear power drop glass up relay connector

M154 terminal 4 and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

 CHECK REAR POWER DROP GLASS UP RELAY CIRCUIT

Connector

Terminals

Voltage (V)

(Approx.)

(+)

(-)

M154

1

Ground

Battery voltage

5

LIIA1843E

Terminal

Condition

Continuity

3

4

12V direct current supply
between terminals 1 and 2

No

No current supply

Yes

5

12V direct current supply
between terminals 1 and 2

Yes

No current supply

No

WIIA0291E

4 - Ground

: Continuity should exist.

LIIA1844E

REAR POWER DROP GLASS UP RELAY CHECK

PWC-63

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

1. Disconnect rear power drop glass switch.

2. Check continuity between rear power drop glass up relay con-

nector M154 terminal 2 and rear power drop glass switch con-

nector R103 terminal 1.

Is the inspection result normal?

YES

>> Replace rear power drop glass switch. Refer to

PWC-

117, "Removal and Installation - Power Drop Glass

Switch"

.

NO

>> Repair or replace harness.

2 - 1

: Continuity should exist.

LIIA1845E

PWC-64

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

ECU DIAGNOSIS INFORMATION

BCM (BODY CONTROL MODULE)

Reference Value

INFOID:0000000009879010

NOTE:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II

User Guide for additional information.

• Activate and display TPMS transmitter IDs

• Display tire pressure reported by the TPMS transmitter

• Read TPMS DTCs

• Register TPMS transmitter IDs

• Test remote keyless entry keyfob relative signal strength

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

ACC ON SW

Ignition switch OFF or ON

Off

Ignition switch ACC

On

AIR COND SW

A/C switch OFF

Off

A/C switch ON

On

AIR PRESS FL

Front left tire air pressure value

kPa, kg/cm

2

, psi

AIR PRESS FR

Front right tire air pressure value

kPa, kg/cm

2

, psi

AIR PRESS RL

Rear left tire air pressure value

kPa, kg/cm

2

, psi

AIR PRESS RR

Rear right tire air pressure value

kPa, kg/cm

2

, psi

AUTO LIGHT SW

Lighting switch OFF

Off

Lighting switch AUTO

On

BRAKE SW

Brake pedal released

Off

Brake pedal applied

On

BUCKLE SW

Seat belt buckle unfastened

Off

Seat belt buckle fastened

On

BUZZER

Buzzer in combination meter OFF

Off

Buzzer in combination meter ON

On

CARGO LAMP SW

Cargo lamp switch OFF

Off

Cargo lamp switch ON

On

CDL LOCK SW

Door lock/unlock switch does not operate

Off

Press door lock/unlock switch to the LOCK side

On

CDL UNLOCK SW

Door lock/unlock switch does not operate

Off

Press door lock/unlock switch to the UNLOCK side

On

DOOR SW-AS

Front door RH closed

Off

Front door RH opened

On

DOOR SW-DR

Front door LH closed

Off

Front door LH opened

On

DOOR SW-RL

Rear door LH closed

Off

Rear door LH opened

On

DOOR SW-RR

Rear door RH closed

Off

Rear door RH opened

On
