POWER SUPPLY AND GROUND CIRCUIT CHECK (KING CAB)

PWC-21

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

POWER SUPPLY AND GROUND CIRCUIT CHECK (KING CAB)

POWER WINDOW MAIN SWITCH
POWER WINDOW MAIN SWITCH : Description

INFOID:0000000009878951

• BCM supplies power.

• It operates each power window motor via corresponding power window switch and makes window move up/

down when main power window and door lock/unlock switch is operated.

POWER WINDOW MAIN SWITCH : Component Function Check

INFOID:0000000009878952

Main Power Window And Door Lock/Unlock Switch

1.

 CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH FUNCTION

Does power window motor operate with main power window and door lock/unlock switch operation?
Is the inspection result normal?

YES

>> Main power window and door lock/unlock switch power supply and ground circuit are OK.

NO

>> Refer to

PWC-21, "POWER WINDOW MAIN SWITCH : Diagnosis Procedure"

.

POWER WINDOW MAIN SWITCH : Diagnosis Procedure

INFOID:0000000009878953

Regarding Wiring Diagram information, refer to

PWC-81, "Wiring Diagram - King Cab"

.

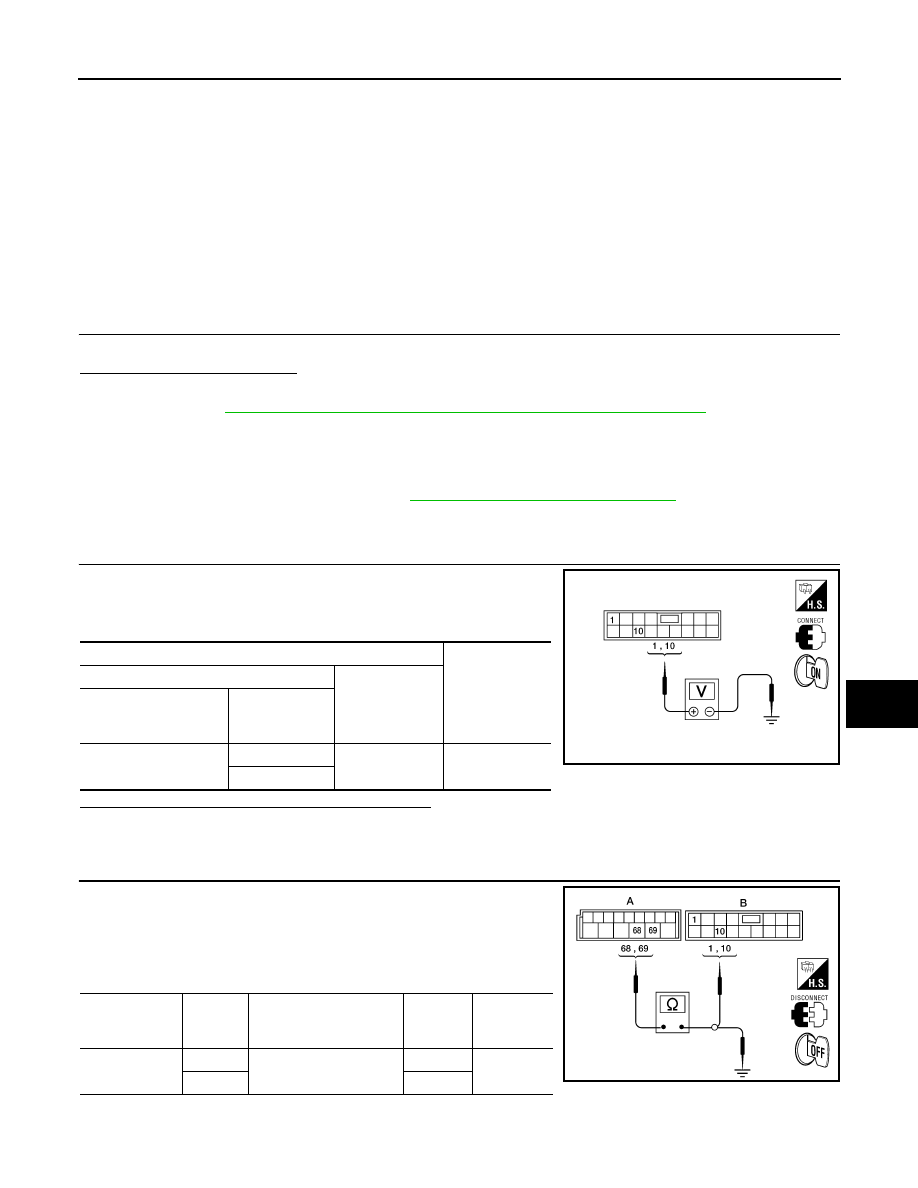

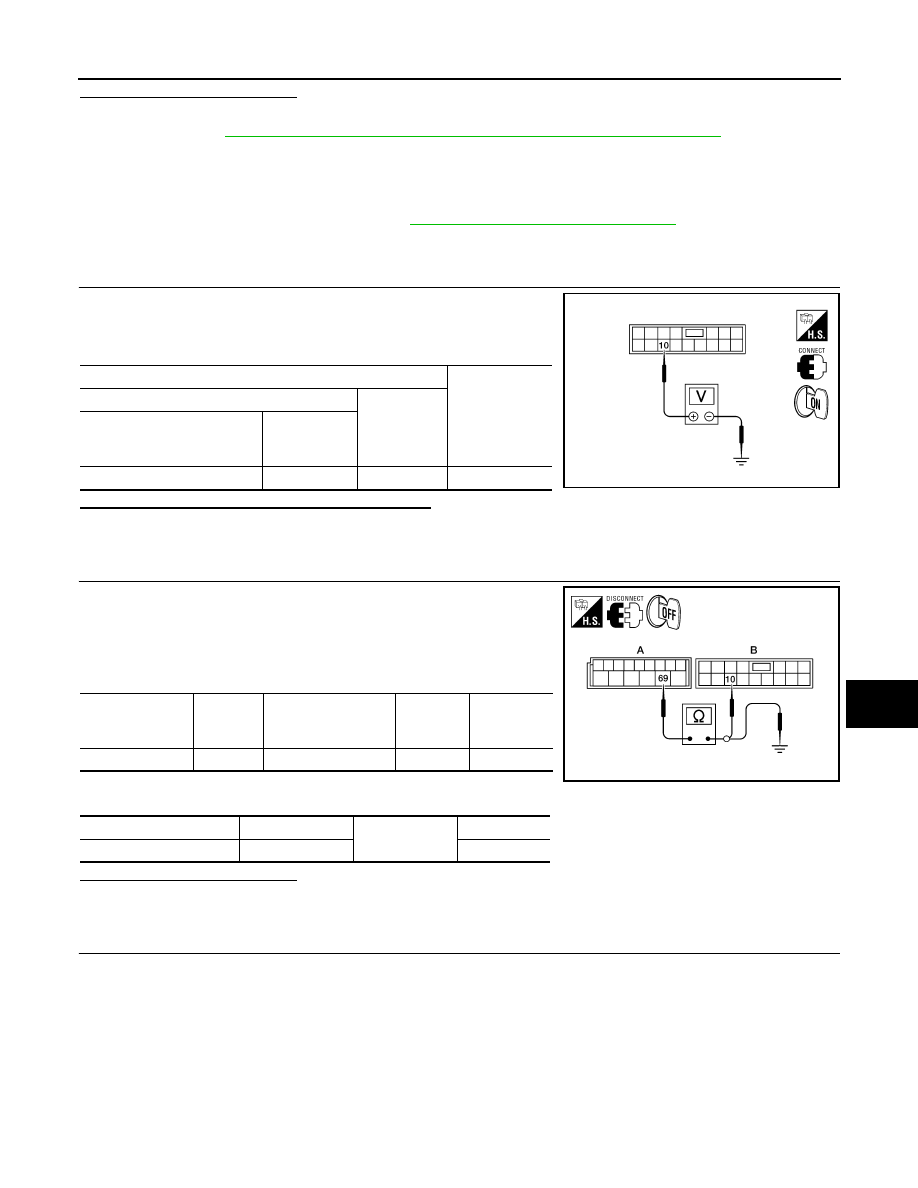

1.

 CHECK POWER SUPPLY CIRCUIT

1. Turn ignition switch ON.

2. Check voltage between main power window and door lock/

unlock switch connector and ground.

Is the measurement value within the specification?

YES

>> GO TO 3

NO

>> GO TO 2

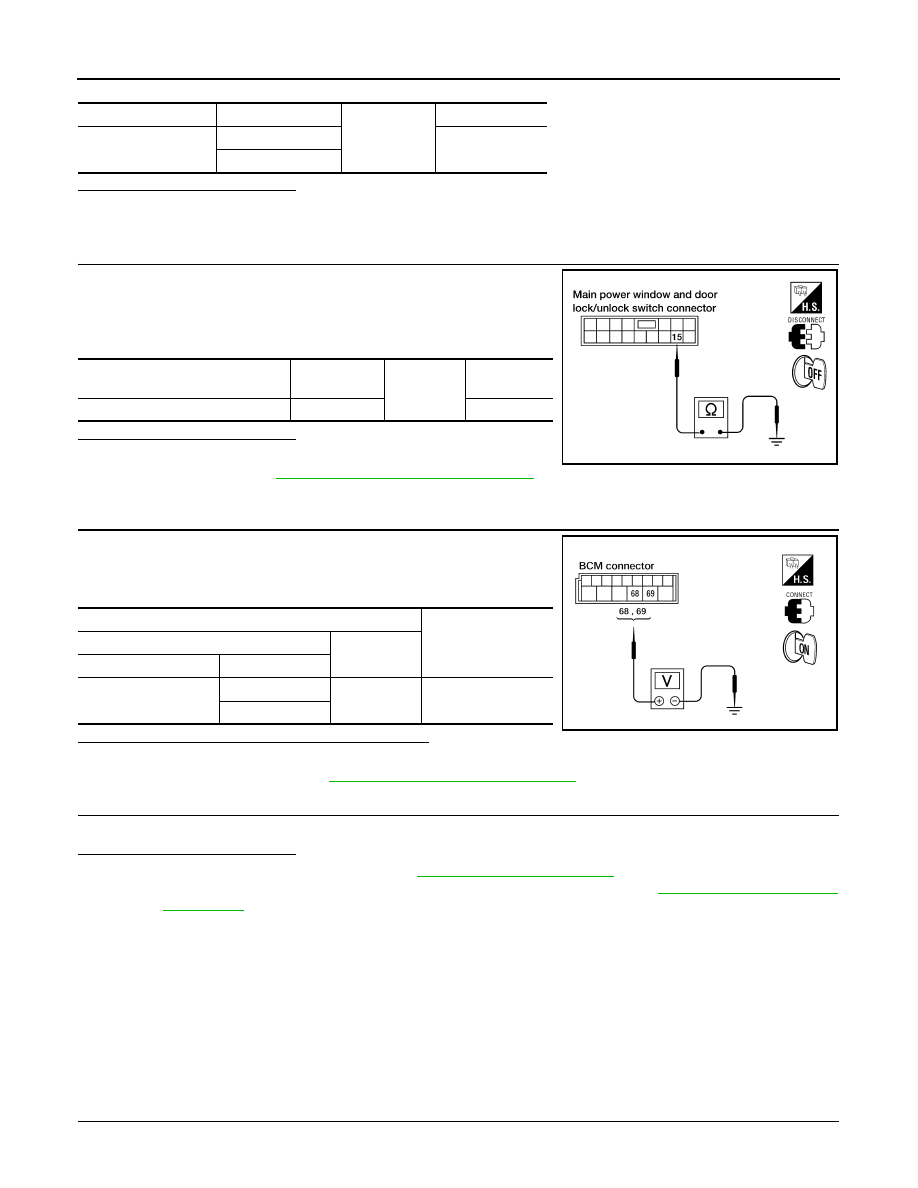

2.

 CHECK HARNESS CONTINUITY

1. Turn ignition switch OFF.

2. Disconnect BCM and main power window and door lock/unlock

switch.

3. Check continuity between BCM connector (A) and main power

window and door lock/unlock switch connector (B).

4. Check continuity between BCM connector (A) and ground.

Terminal

Voltage (V)

(Approx.)

(+)

(–)

Main power window and

door lock/unlock switch

connector

Terminal

D15

1

Ground

Battery voltage

10

LIIA2312E

BCM connector

Terminal

Main power window and

door lock/unlock switch

connector

Terminal

Continuity

M20 (A)

68

D15 (B)

10

Yes

69

1

LIIA2363E

PWC-22

< DTC/CIRCUIT DIAGNOSIS >

POWER SUPPLY AND GROUND CIRCUIT CHECK (KING CAB)

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

3.

 CHECK GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect main power window and door lock/unlock switch.

3. Check continuity between main power window and door lock/

unlock switch connector and ground.

Is the inspection result normal?

YES

>> Replace main power window and door lock/unlock

switch. Refer to

PWC-115, "Removal and Installation"

.

NO

>> Repair or replace harness.

4.

 CHECK BCM OUTPUT SIGNAL

1. Connect BCM.

2. Turn ignition switch ON.

3. Check voltage between BCM connector and ground.

Is the measurement value within the specification?

YES

>> GO TO 5

NO

>> Replace BCM. Refer to

BCS-52, "Removal and Installation"

.

5.

 CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

Check main power window and door lock/unlock switch.
Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

.

NO

>> Replace main power window and door lock/unlock switch. Refer to

PWC-115, "Removal and

Installation"

.

FRONT POWER WINDOW SWITCH
FRONT POWER WINDOW SWITCH : Description

INFOID:0000000009878954

• BCM supplies power.

• Front power window motor RH will be operated if power window and door lock/unlock switch RH is operated.

FRONT POWER WINDOW SWITCH : Component Function Check

INFOID:0000000009878955

Power Window And Door Lock/Unlock Switch RH

1.

 CHECK FRONT POWER WINDOW MOTOR RH FUNCTION

Does front power window motor RH operate with power window and door lock/unlock switch RH operation?

BCM connector

Terminal

Ground

Continuity

M20 (A)

68

No

69

Main power window and door lock/

unlock switch connector

Terminal

Ground

Continuity

D15

15

Yes

LIIA0604E

Terminals

Voltage (V)

(Approx.)

(+)

(–)

BCM connector

Terminal

M20

68

Ground

Battery voltage

69

LIIA0917E

POWER SUPPLY AND GROUND CIRCUIT CHECK (KING CAB)

PWC-23

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

Is the inspection result normal?

YES

>> Power window and door lock/unlock switch RH power supply and ground circuit are OK.

NO

>> Refer to

PWC-23, "FRONT POWER WINDOW SWITCH : Diagnosis Procedure"

.

FRONT POWER WINDOW SWITCH : Diagnosis Procedure

INFOID:0000000009878956

Regarding Wiring Diagram information, refer to

PWC-81, "Wiring Diagram - King Cab"

.

1.

 CHECK POWER SUPPLY CIRCUIT

1. Turn ignition switch ON.

2. Check voltage between power window and door lock/unlock

switch RH connector and ground.

Is the measurement value within the specification?

YES

>> GO TO 3

NO

>> GO TO 2

2.

 CHECK HARNESS CONTINUITY

1. Turn ignition switch OFF.

2. Disconnect BCM and power window and door lock/unlock switch

RH.

3. Check continuity between BCM connector (A) and power win-

dow and door lock/unlock switch RH connector (B).

4. Check continuity between BCM connector (A) and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

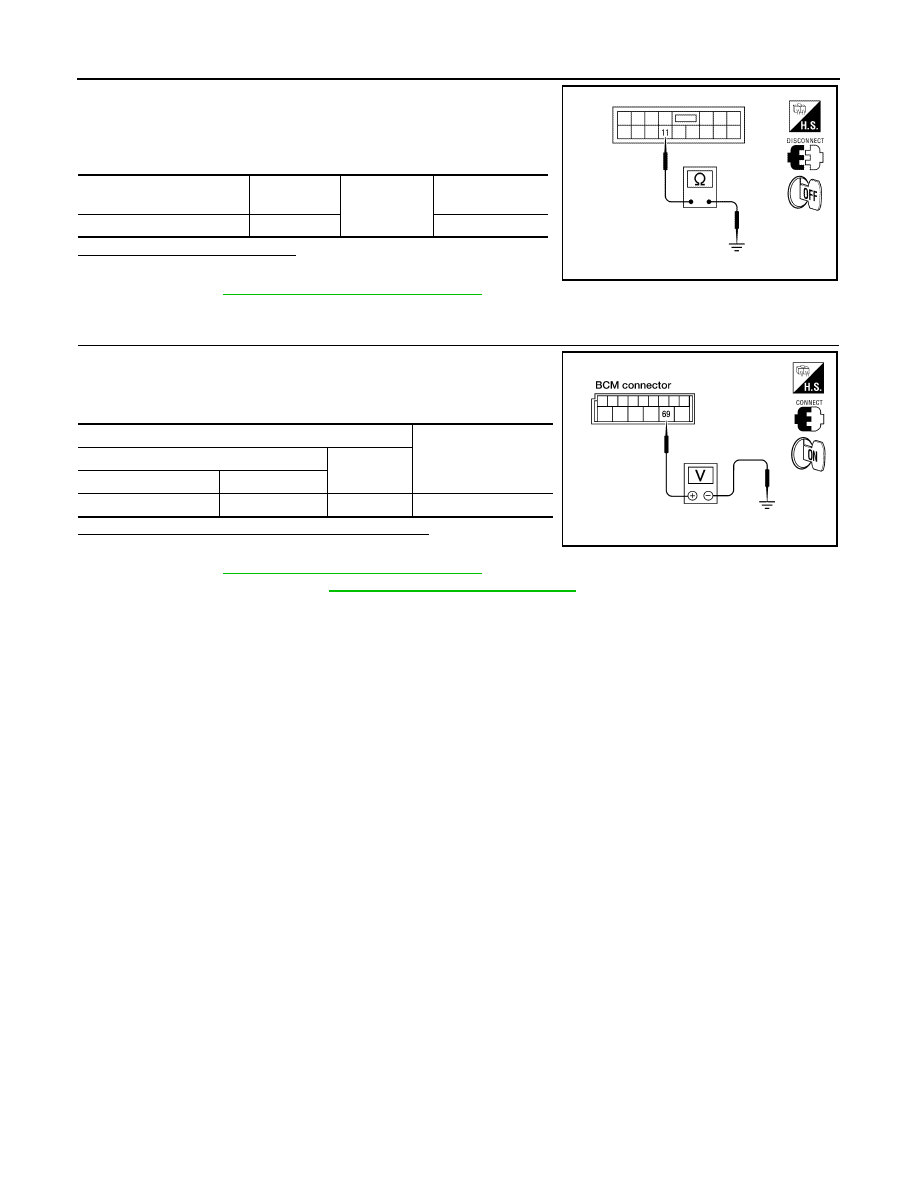

3.

 CHECK GROUND CIRCUIT

Terminal

Voltage (V)

(Approx.)

(+)

(–)

Power window and door lock/

unlock

switch RH connector

Terminal

D105

10

Ground

Battery voltage

ALKIA0301ZZ

BCM connector

Terminal

Power window and

door lock/unlock

switch RH connector

Terminal

Continuity

M20 (A)

69

D105 (B)

10

Yes

BCM connector

Terminal

Ground

Continuity

M20 (A)

69

No

LIIA2364E

PWC-24

< DTC/CIRCUIT DIAGNOSIS >

POWER SUPPLY AND GROUND CIRCUIT CHECK (KING CAB)

1. Turn ignition switch OFF.

2. Disconnect power window and door lock/unlock switch RH.

3. Check continuity between power window and door lock/unlock

switch RH connector and ground.

Is the inspection result normal?

YES

>> Replace power window and door lock/unlock switch RH.

Refer to

PWC-116, "Removal and Installation"

.

NO

>> Repair or replace harness.

4.

 CHECK BCM OUTPUT SIGNAL

1. Connect BCM.

2. Turn ignition switch ON.

3. Check voltage between BCM connector and ground.

Is the measurement value within the specification?

YES

>> Replace power window and door lock/unlock switch RH.

Refer to

PWC-116, "Removal and Installation"

.

NO

>> Replace BCM. Refer to

BCS-52, "Removal and Installation"

.

Power window and door

lock/unlock switch RH

Terminal

Ground

Continuity

D105

11

Yes

ALKIA0303ZZ

Terminals

Voltage (V)

(Approx.)

(+)

(-)

BCM connector

Terminal

M20

69

Ground

Battery voltage

WIIA0508E
