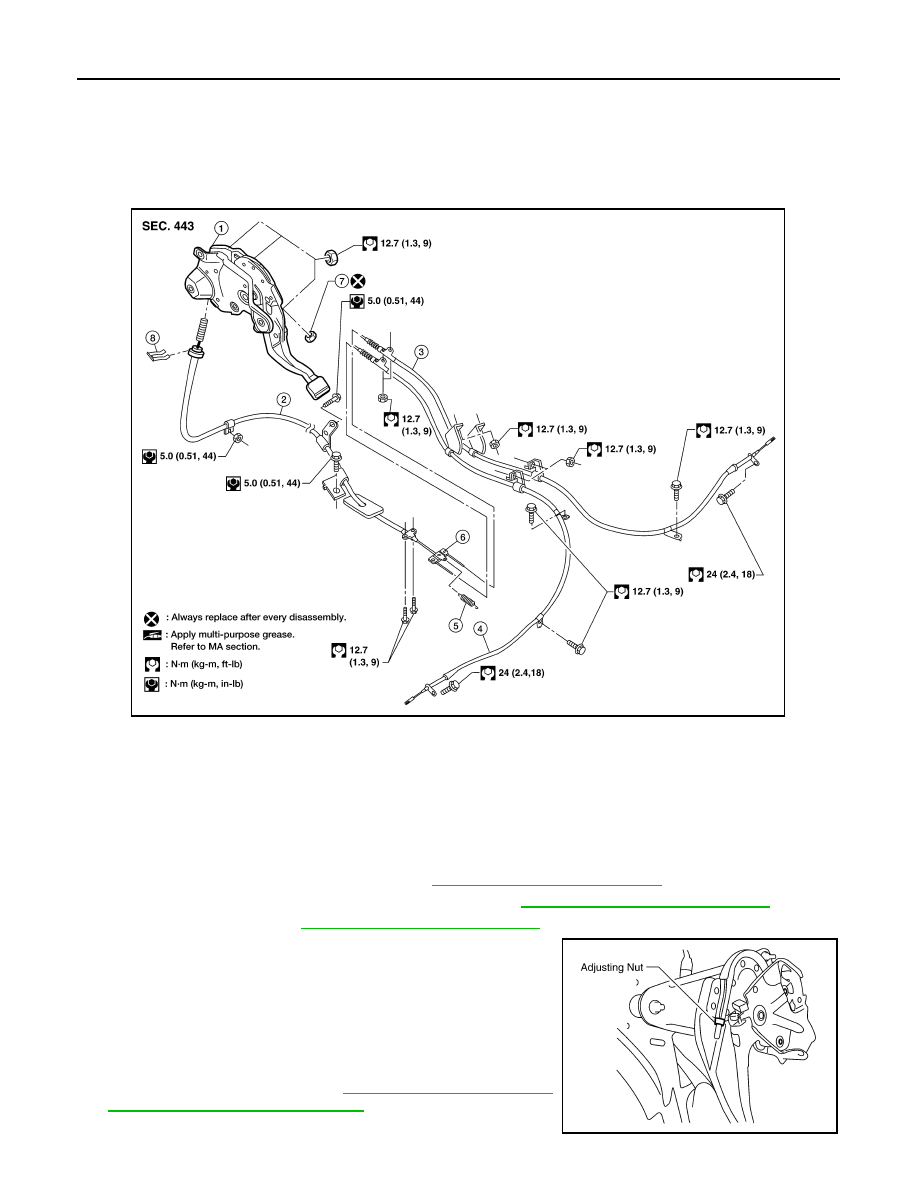

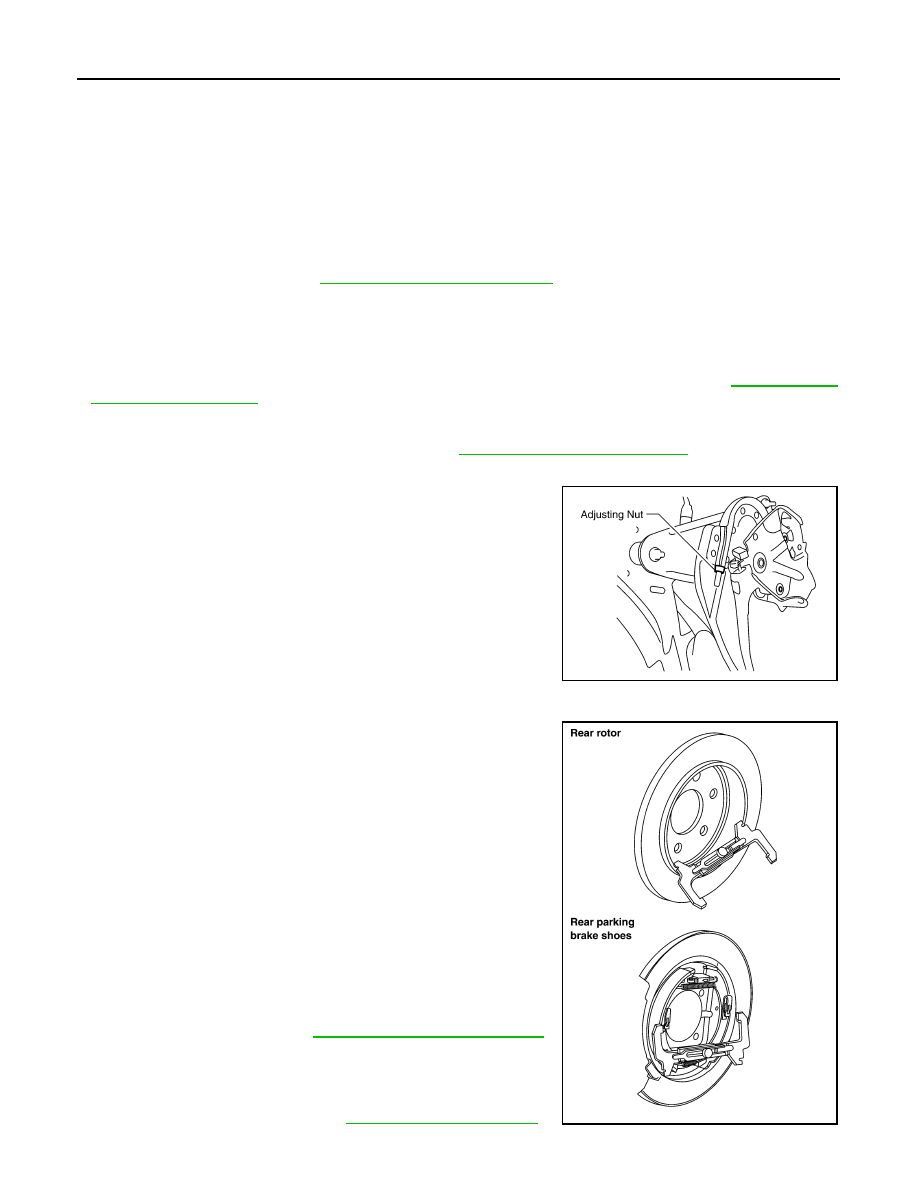

PB-4 < PERIODIC MAINTENANCE > PARKING BRAKE SYSTEM PERIODIC MAINTENANCE PARKING BRAKE SYSTEM On-Vehicle Service INFOID:0000000009883572 PEDAL STROKE • When parking brake pedal is operated with the specified force, make sure the stroke is within the specified number of notches. Check by listening and counting the ratchet clicks. INSPECTION • Make sure the components are attached properly, checking for looseness or backlash. • Check parking brake pedal assembly for bends, damage and cracks, and replace if necessary. • Check cable for wear and damage, and replace if necessary. • Check parking brake warning lamp switch for malfunction, and replace if necessary. Refer to . ADJUSTMENT 1. Remove the instrument lower panel (LH). Refer to IP-17, "Removal and Installation" 2. Partially engage parking brake pedal to access adjusting nut. cable sufficiently. Then, disengage the parking brake pedal. 4. Remove the wheel and tire using power tool. point using suitable tool. 6. Transfer measurement less 0.6 mm (0.024 in) to the parking brake shoes and adjust accordingly. 7. Using wheel nuts, secure the disc rotor to the hub to prevent it from tilting. 8. Rotate the disc rotor to make sure there is no drag. 44 lb-f). b. Rotate adjusting nut with deep socket to adjust pedal stroke to specification. c. With parking brake pedal completely disengaged, make sure there is no drag on the parking brake. 10. Install the disc rotor. Pedal stroke : Refer to PB-11, "Parking Brake Control" . WFIA0165E Tool number : — (J-21177-A) Pedal stroke : Refer to PB-11, "Parking Brake Control" . WFIA0166E |
