Nissan Titan. Manual - part 447

IP-14

< REMOVAL AND INSTALLATION >

CLUSTER LID C

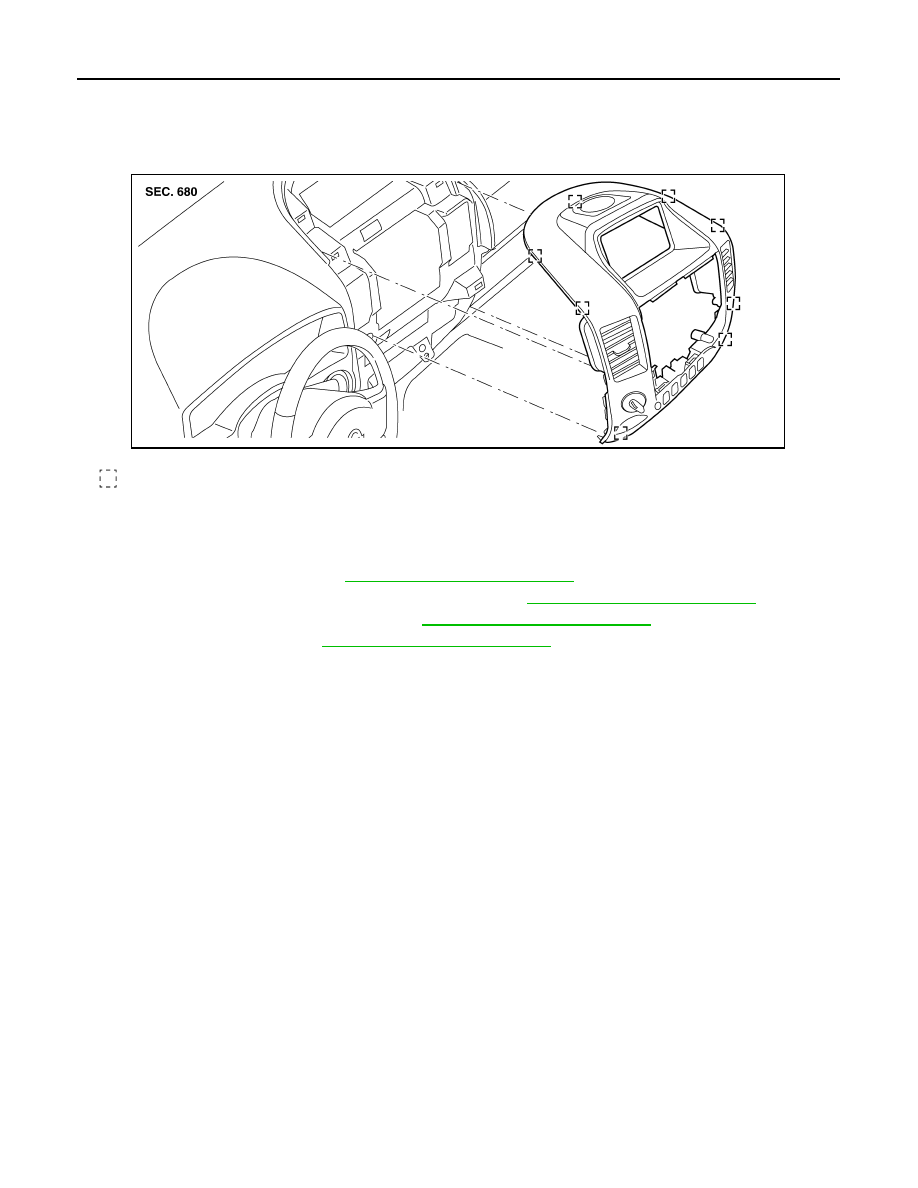

CLUSTER LID C

Exploded View

INFOID:0000000009881988

Removal and Installation

INFOID:0000000009881989

REMOVAL

1. Remove the A/T finisher. Refer to

IP-18, "Removal and Installation"

.

2. Remove instrument lower panel RH and glove box. Refer to

IP-16, "Removal and Installation"

.

3. Remove instrument lower panel LH. Refer to

IP-17, "Removal and Installation"

.

4. Remove cluster lid D. Refer to

IP-15, "Removal and Installation"

.

5. Pull cluster lid C rearward to release the clips.
6. Disconnect the harness connector(s), then remove cluster lid C.

INSTALLATION

Installation is in the reverse order of removal.

Metal clip

ALJIA0102ZZ

CLUSTER LID D

IP-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

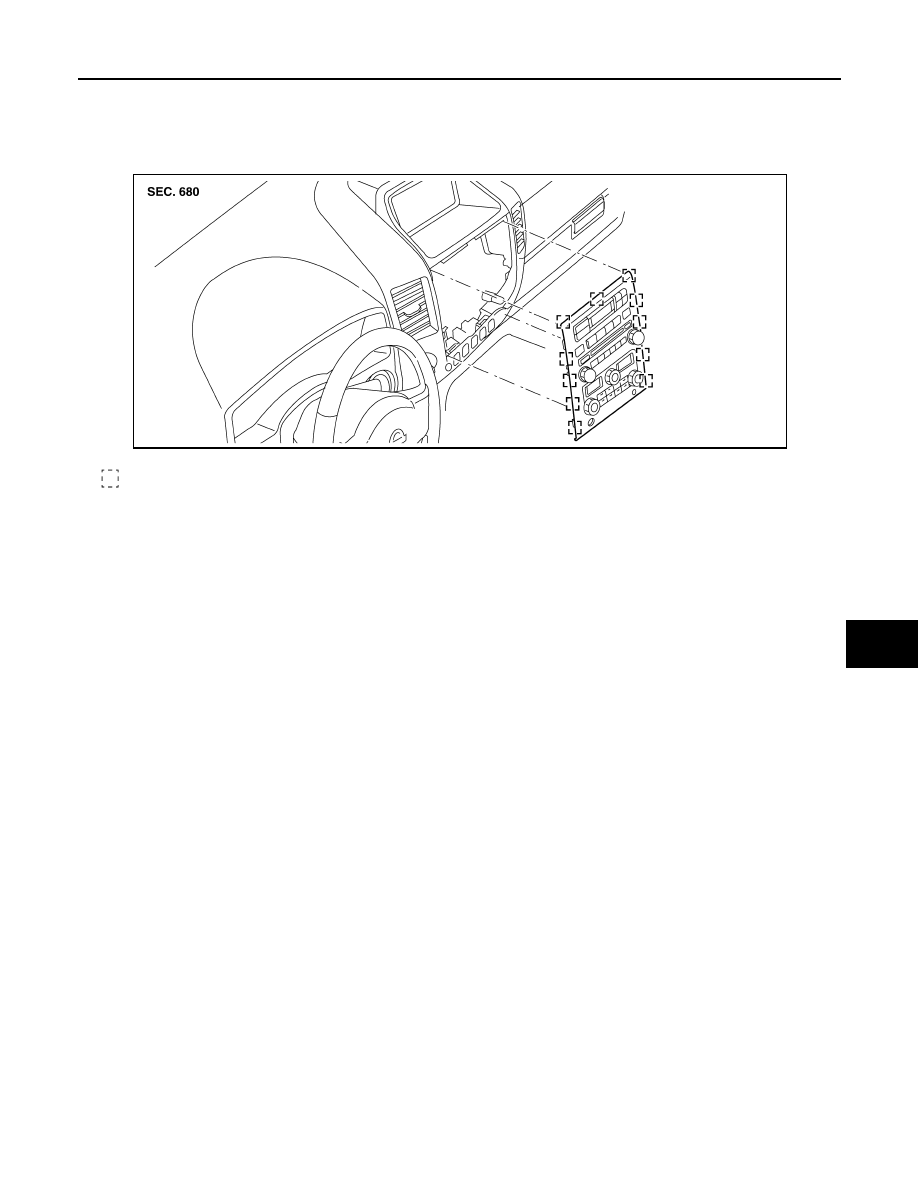

CLUSTER LID D

Exploded View

INFOID:0000000009881990

Removal and Installation

INFOID:0000000009881991

REMOVAL

1. Pull cluster lid D rearward to release the clips.
2. Disconnect the harness connector(s), then remove cluster lid D.

INSTALLATION

Installation is in the reverse order of removal.

Metal clip

ALJIA0101ZZ

IP-16

< REMOVAL AND INSTALLATION >

INSTRUMENT LOWER PANEL RH AND GLOVE BOX

INSTRUMENT LOWER PANEL RH AND GLOVE BOX

Removal and Installation

INFOID:0000000009881992

REMOVAL

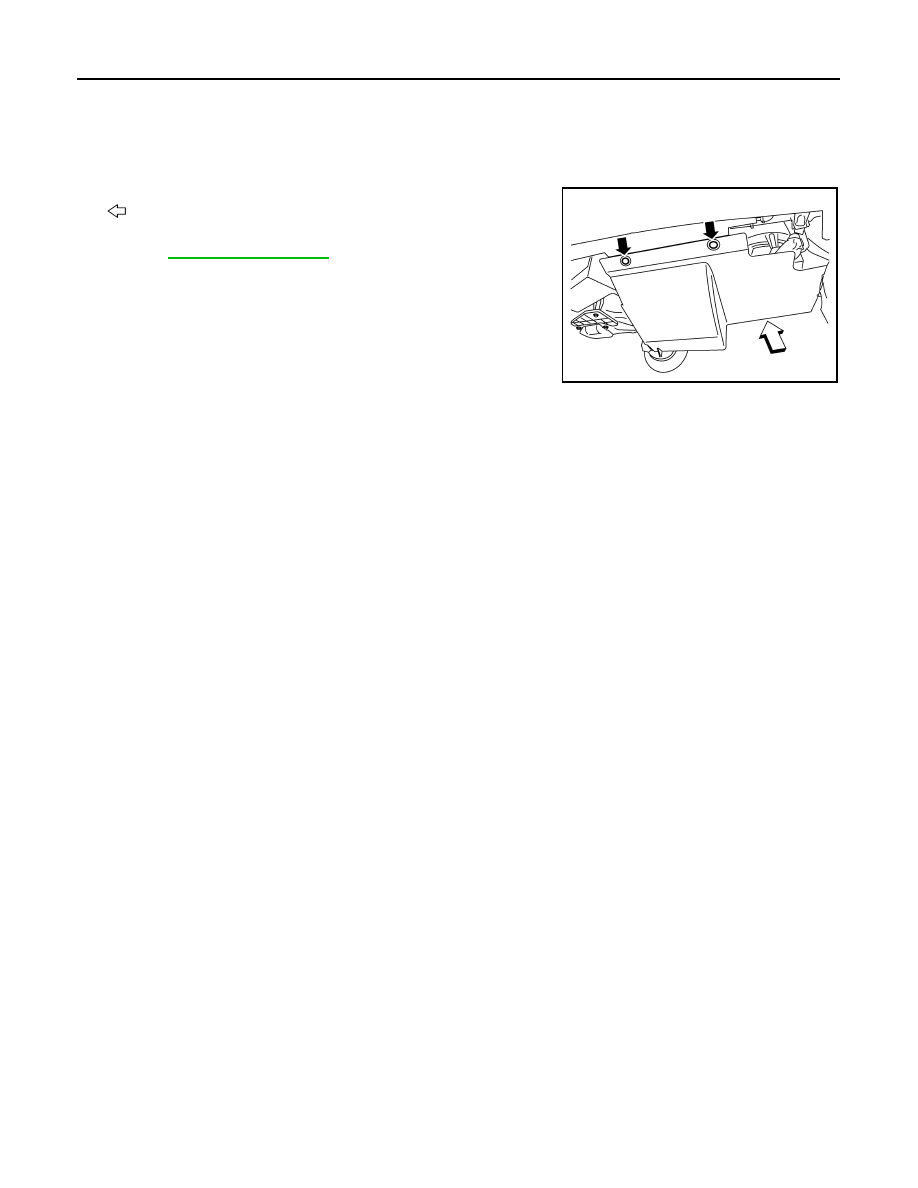

1. Release the clips, then remove instrument lower cover RH.

: Front

2. Remove instrument lower panel RH and glove box screws.

Refer to

IP-21, "Exploded View"

.

3. Disconnect the harness connector, then remove the instrument

lower panel RH and glove box.

INSTALLATION

Installation is in the reverse order of removal.

AWJIA0003ZZ

INSTRUMENT LOWER PANEL LH

IP-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

INSTRUMENT LOWER PANEL LH

Removal and Installation

INFOID:0000000009881993

REMOVAL

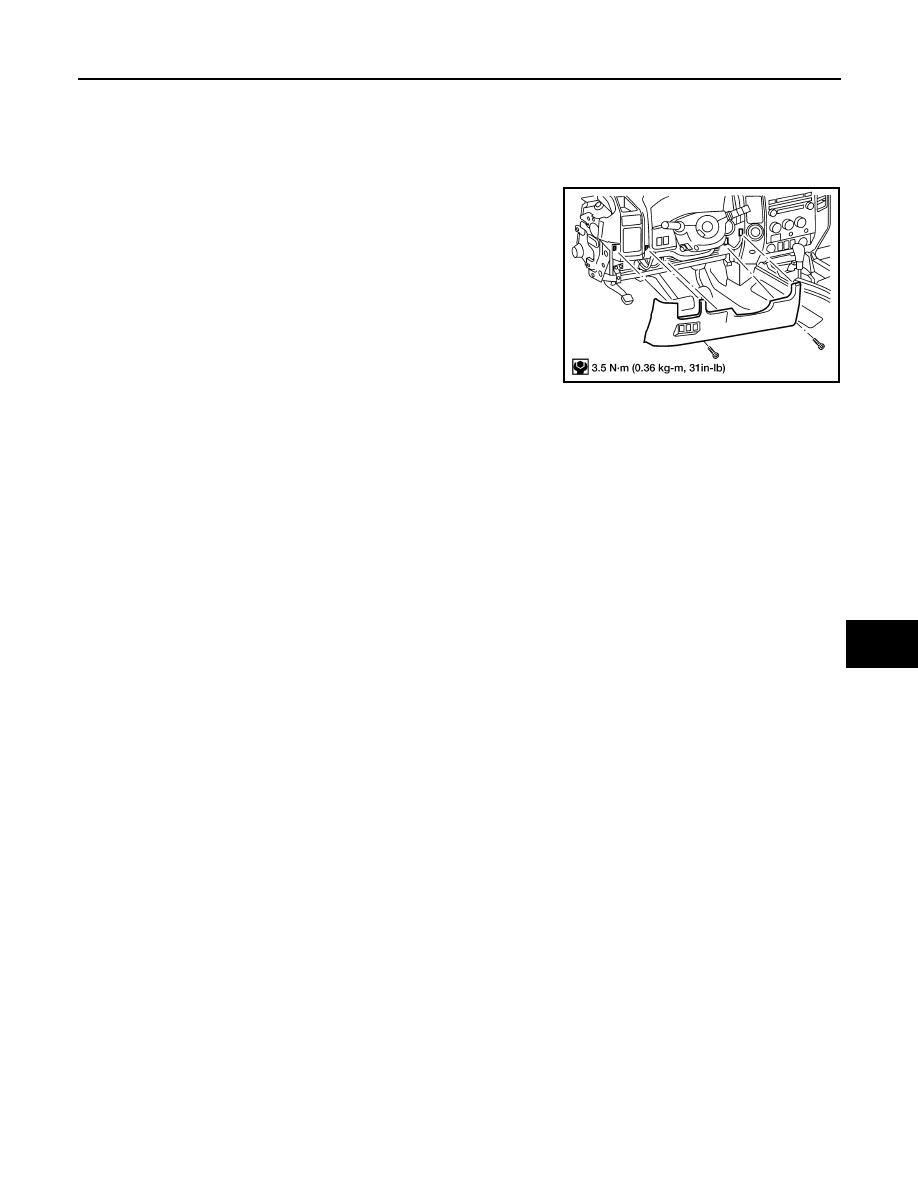

1. Remove instrument lower panel LH screws.
2. Pull instrument lower panel LH rearward to release the clips.
3. Disconnect the harness connector(s), then remove instrument

lower panel LH.

INSTALLATION

Installation is in the reverse order of removal.

LIIA1327E
