IP-10

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

REMOVAL AND INSTALLATION

INSTRUMENT PANEL ASSEMBLY

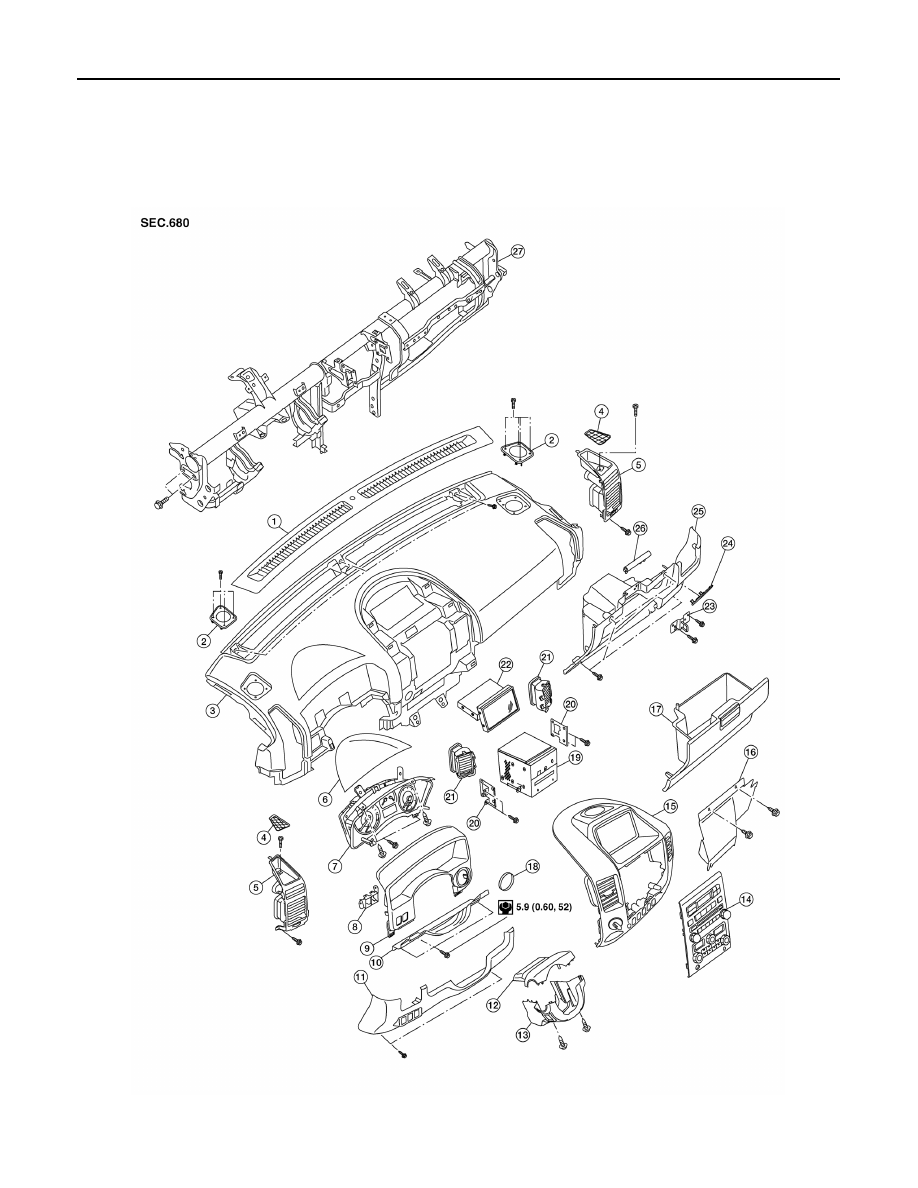

Exploded View

INFOID:0000000009881984

AWJIA0658ZZ

INSTRUMENT PANEL ASSEMBLY

IP-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

Removal and Installation

INFOID:0000000009881985

REMOVAL

CAUTION:

Disconnect both the negative and positive battery terminals, then wait at least three minutes.
1. Disconnect the negative and positive battery terminals, then wait at least three minutes.
2. Remove the A/T finisher. Refer to

IP-18, "Removal and Installation"

.

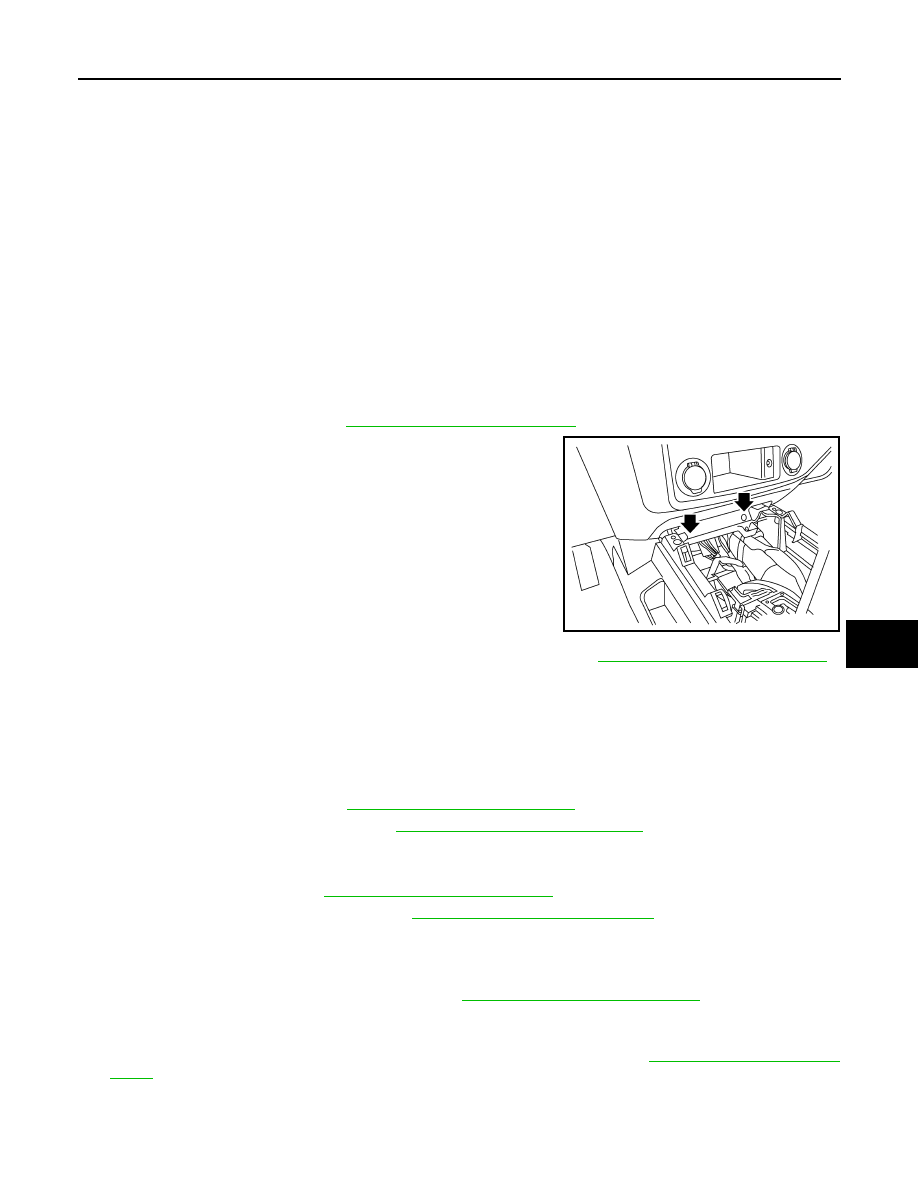

3. Remove the front center console assembly upper screws.

4. Remove instrument lower panel RH and glove box assembly. Refer to

IP-16, "Removal and Installation"

.

5. Remove center console lower cover RH/LH, then remove front center console assembly lower screws.
6. Open the console lid assembly and remove console bin mat, then remove the rear inner screws.
7. Move front seats forward.
8. Remove lower center console assembly screws at the rear.
9. Move the center console assembly rearward slightly to create additional clearance when removing the

instrument panel and pad assembly.

10. Remove the spiral cable. Refer to

SR-6, "Removal and Installation"

.

11. Remove the combination meter. Refer to

MWI-93, "Removal and Installation"

.

12. Release instrument panel upper cover clips and remove instrument panel upper cover.
13. Disconnect rear sonar speaker harness connector (if equipped).
14. Remove cluster lid C. Refer to

IP-14, "Removal and Installation"

.

15. Remove display unit (if equipped). Refer to

AV-342, "Removal and Installation"

16. Release the defroster grille clips and pawls, disconnect the optical sensor harness connector and remove

defroster grille.

17. Remove side ventilator assembly bolts and side ventilator assemblies (RH/LH).
18. Remove the front pillar finishers (RH/LH). Refer to

INT-14, "Removal and Installation"

.

19. Disconnect the speaker harness connectors (RH/LH/center) through the openings of removed compo-

nents.

20. Remove the passenger air bag nuts and disconnect the connectors. Refer to

SR-8, "Removal and Instal-

lation"

.

21. Disconnect remaining optional equipment harness connectors (if equipped).
22. Remove instrument panel and pad assembly.

1.

Defroster grille

2.

Speaker grille RH/LH

3.

Instrument panel and pad assembly

4.

Deck pocket mat RH/LH

5.

Side ventilator assembly RH/LH

6.

Instrument panel upper cover

7.

Combination meter

8.

Switch assembly

9.

Cluster lid A

10. Lower knee protector

11.

Instrument lower panel LH

12. Steering column upper cover

13. Steering column lower cover

14.

Cluster lid D

15. Cluster lid C

16. Instrument lower cover RH

17.

Glove box

18. Ignition switch escutcheon

19. Audio unit

20.

Audio bracket RH/LH

21. Center ventilator assembly RH/LH

22. Display assembly (if equipped)

23.

Glove box lid striker

24. Fuse block cover

25. Instrument lower panel RH

26.

Glove box damper (if equipped)

27. Steering member

ALJIA0084ZZ

IP-12

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

INSTALLATION

Installation is in the reverse order of removal.

CLUSTER LID A

IP-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

CLUSTER LID A

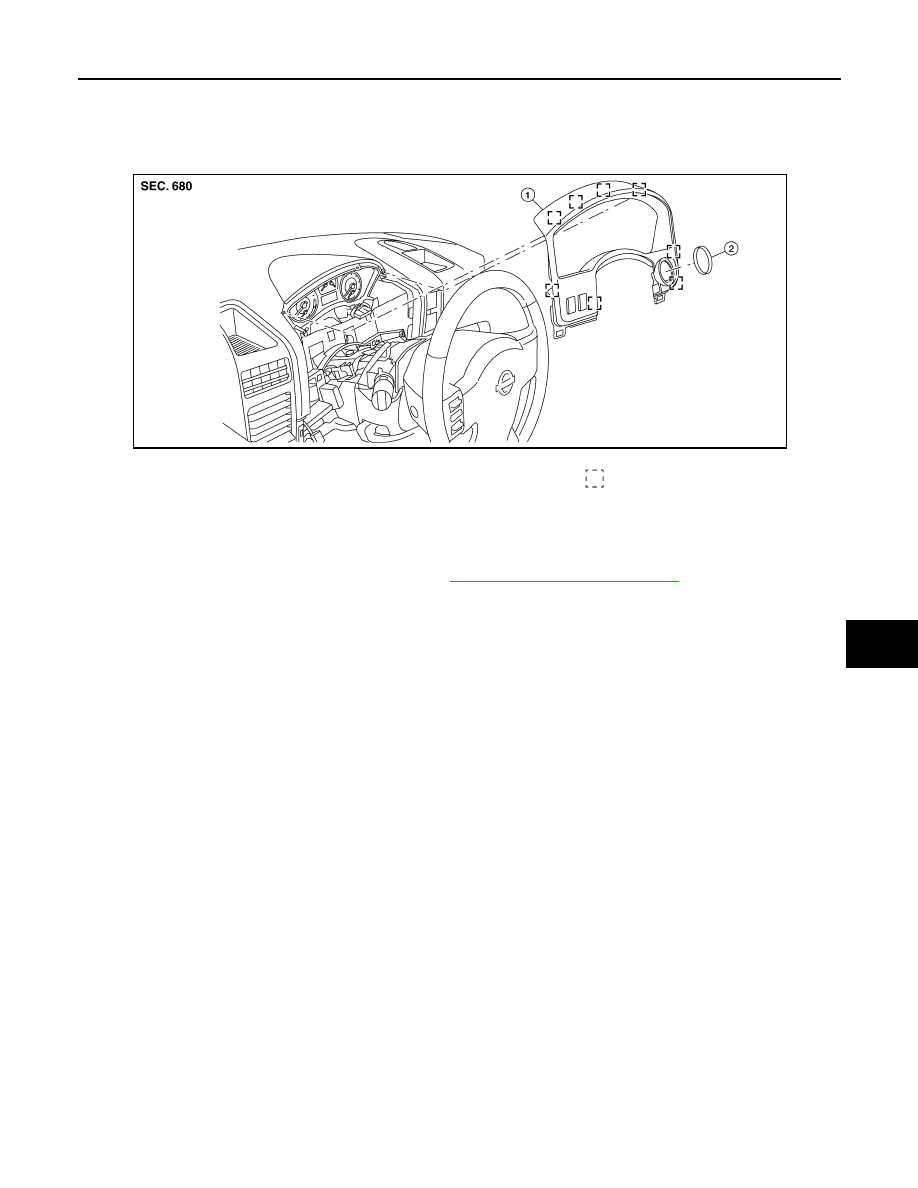

Exploded View

INFOID:0000000009881986

Removal and Installation

INFOID:0000000009881987

REMOVAL

1. Remove the instrument lower panel LH. Refer to

IP-17, "Removal and Installation"

.

2. Tilt the steering wheel to the lowest position, then remove steering column upper cover.
3. Remove ignition switch escutcheon.
4. Pull cluster lid A rearward in vehicle to release the clips.
5. Disconnect the harness connector(s), then remove cluster lid A.

INSTALLATION

Installation is in the reverse order of removal.

1.

Cluster lid A

2.

Ignition switch escutcheon

Metal Clip

AWJIA0374ZZ
