FUEL TANK

1. Turn the ignition switch ON but do not start engine, then check the fuel pipe and hose connections for

leaks while applying fuel pressure to the system.

2. Start the engine and rev it above idle speed, then check that there are no fuel leaks at any of the fuel pipe

and hose connections.

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

FL-11

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

Removal and Installation

INFOID:0000000009886960

REMOVAL

WARNING:

Follow the “General Precautions” before working on the fuel system. Refer to

FL-3, "General Precau-

tion"

.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.
1. Remove the fuel filler cap to release the pressure from inside the fuel tank.

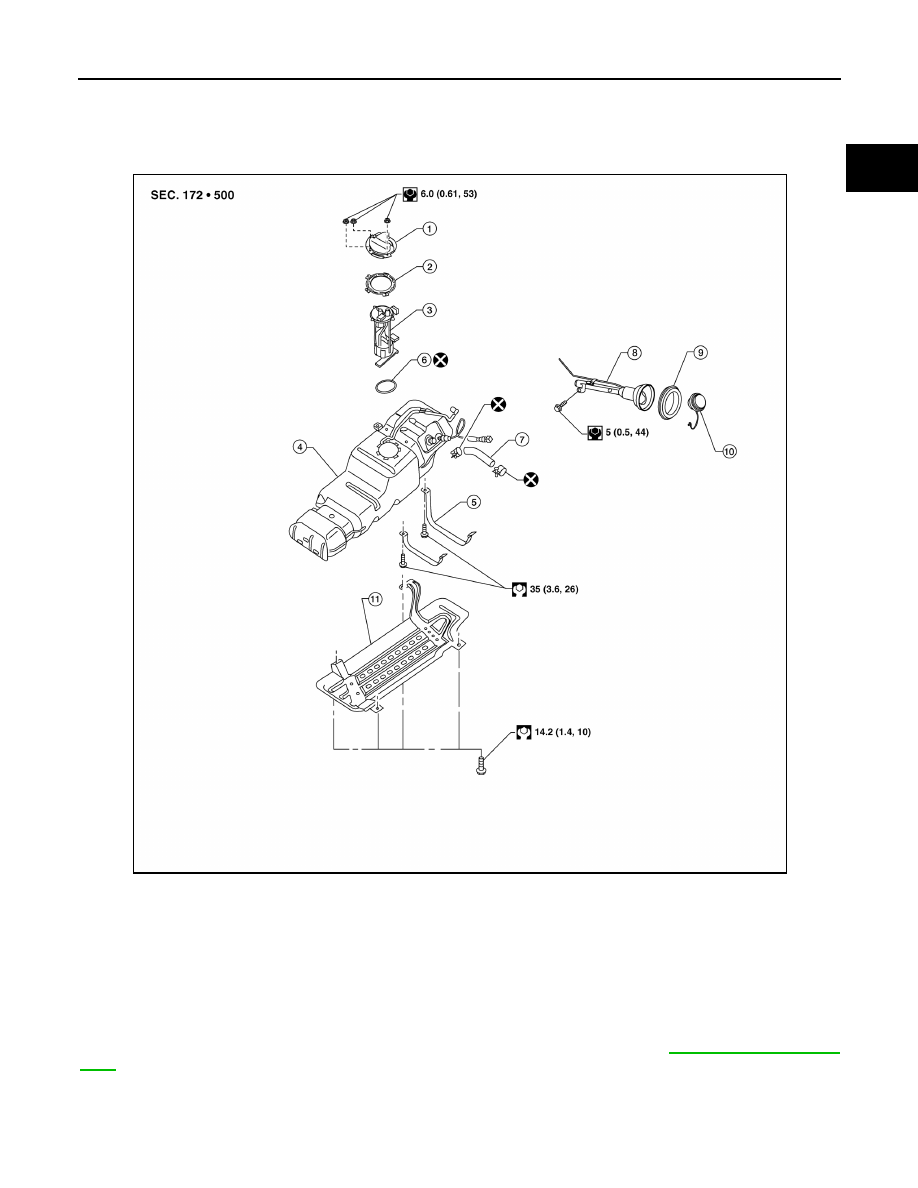

1.

Fuel line pump protector

2.

Lock ring

3.

Fuel level sensor, fuel filter, and fuel
pump assembly

4.

Fuel tank

5.

Fuel tank straps

6.

O-ring

7.

Fuel filler hose

8.

Fuel filler pipe

9.

Fuel filler pipe grommet

10. Fuel filler cap

11.

Fuel tank shield

AWBIA1081GB

FL-12

< UNIT REMOVAL AND INSTALLATION >

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

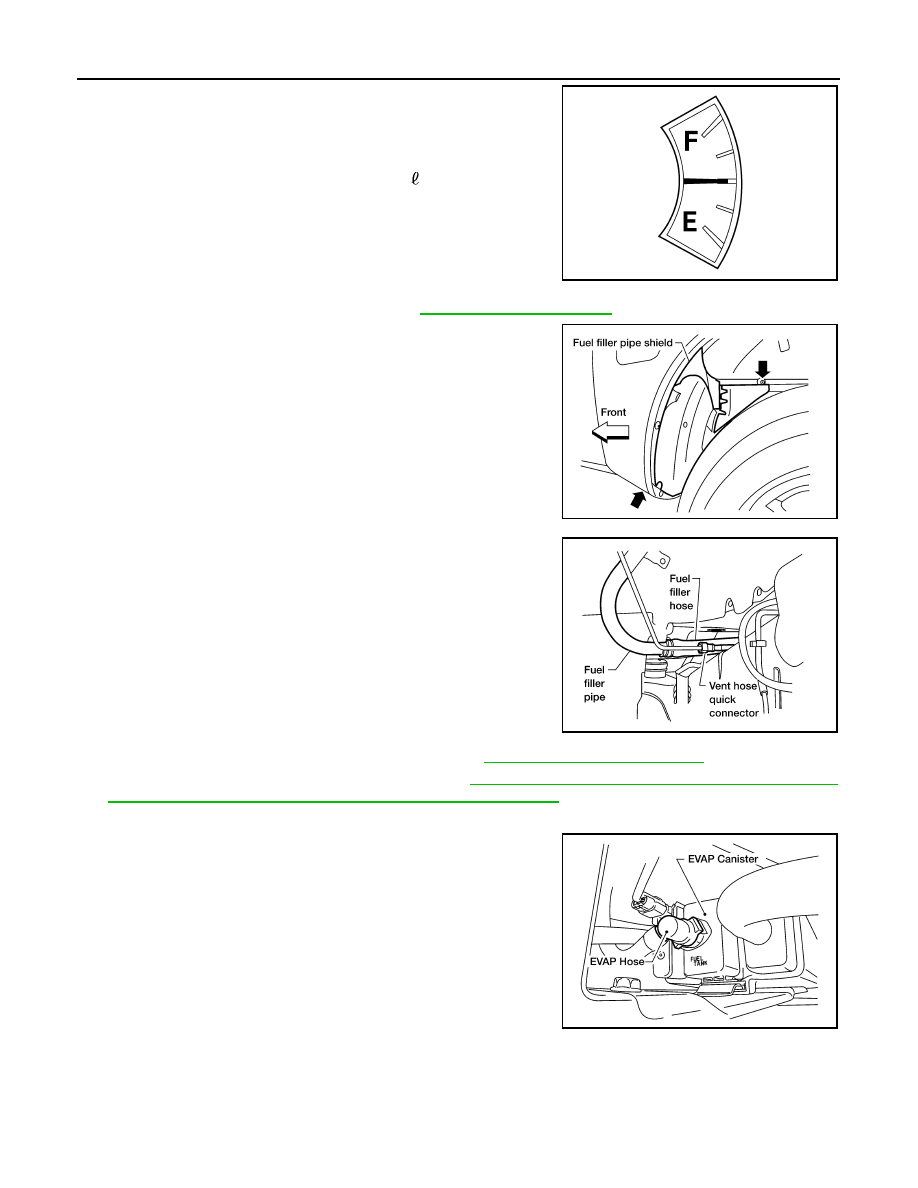

2. Check the fuel level on level gauge. If the fuel gauge indicates

more than the level as shown (half tank), drain the fuel from the

fuel tank until the fuel gauge indicates the level as shown, or

less.

• As a guide, the fuel level reaches the fuel gauge position

shown, or less, when approximately 52.9   (14 US gal, 11-5/8

Imp gal) of fuel is drained from a full tank.

• If the fuel pump does not operate, use the following procedure

to drain the fuel to the specified level.

a. Insert a suitable hose of less than 15 mm (0.59 in) diameter into

the fuel filler pipe through the fuel filler opening to drain the fuel

from fuel filler pipe.

b. Remove the LH rear wheel and tire. Refer to

WT-48, "Balancing Wheels"

.

c.

Remove the fuel filler pipe shield.

d. Disconnect the fuel filler hose from the fuel filler pipe and dis-

connect the vent hose quick connector.

e. Insert a suitable hose into the fuel tank through the fuel filler

hose to drain the fuel from the fuel tank.

3. Release the fuel pressure from the fuel lines. Refer to

EC-489, "Fuel Pressure Check"

.

4. Disconnect the battery negative terminal. Refer to

PG-7, "ADDITIONAL SERVICE WHEN REMOVING

BATTERY NEGATIVE TERMINAL : Special Repair Requirement"

.

5. Remove the three nuts and remove fuel line pump protector.
6. Disconnect the EVAP hose at the EVAP canister.

AWBIA0161ZZ

LBIA0437E

LBIA0386E

LBIA0405E

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

FL-13

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

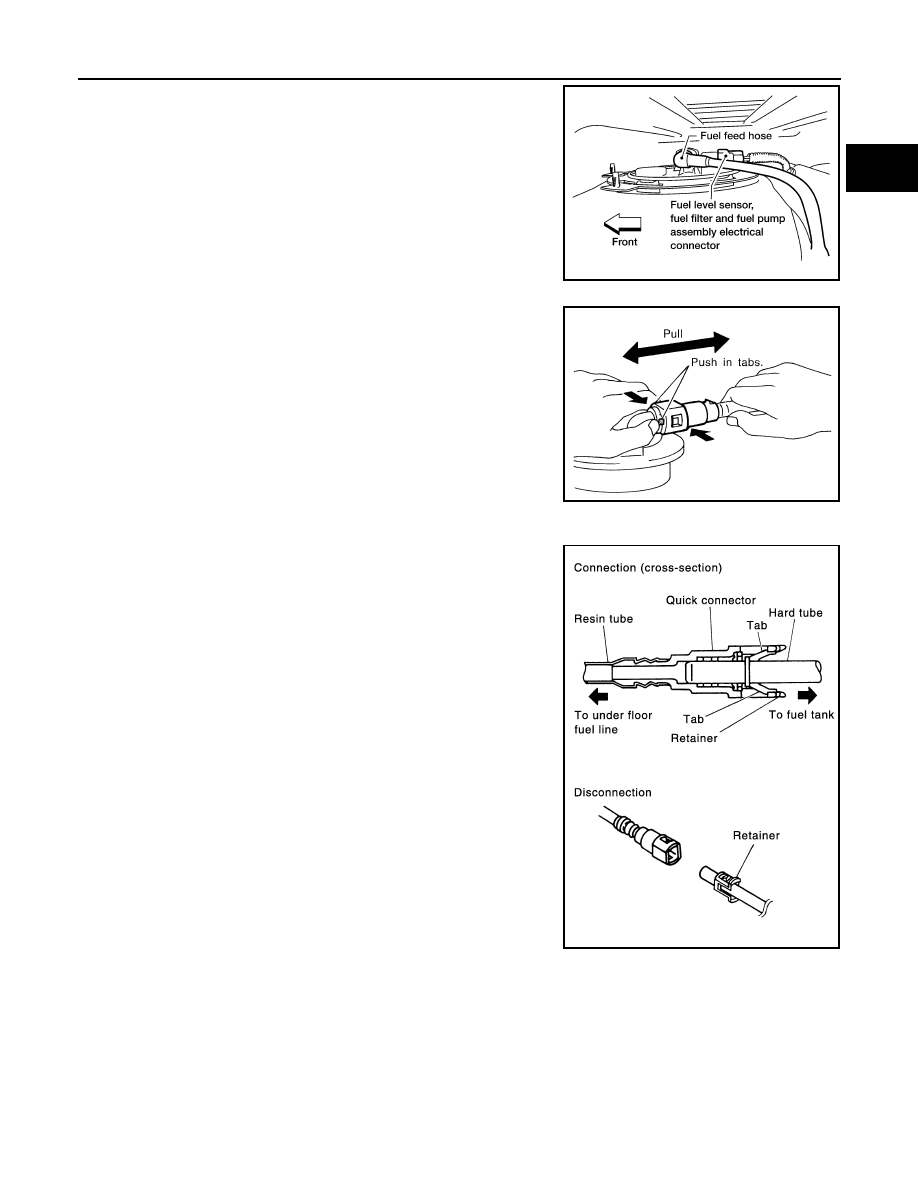

7. Disconnect the fuel level sensor, fuel filter, and fuel pump

assembly harness connector and the fuel feed hose.

Disconnect the quick connector as follows:

• Hold the sides of the connector, push in tabs and pull out the

tube.

• If the connector and the tube are stuck together, push and pull

several times until they start to move. Then disconnect them

by pulling.

CAUTION:

• The quick connector can be disconnected when the tabs

are completely depressed. Do not twist the quick connec-

tor more than necessary.

• Do not use any tools to disconnect the quick connector.

• Keep the resin tube away from heat. Be especially careful

when welding near the tube.

• Prevent any acid liquids such as battery electrolyte, from

getting on the resin tube.

• Do not bend or twist the resin tube during connection.

• Do not remove the remaining retainer on the hard tube (or

the equivalent) except when the resin tube or the retainer

is replaced.

• When the resin tube or hard tube, or the equivalent, is

replaced, also replace the retainer with a new one (white

colored retainer).

LBIA0406E

SFE562A

PBIC1268E
