DLN-164

< REMOVAL AND INSTALLATION >

[FRONT FINAL DRIVE: M205]

FRONT OIL SEAL

FRONT OIL SEAL

Removal and Installation

INFOID:0000000009886077

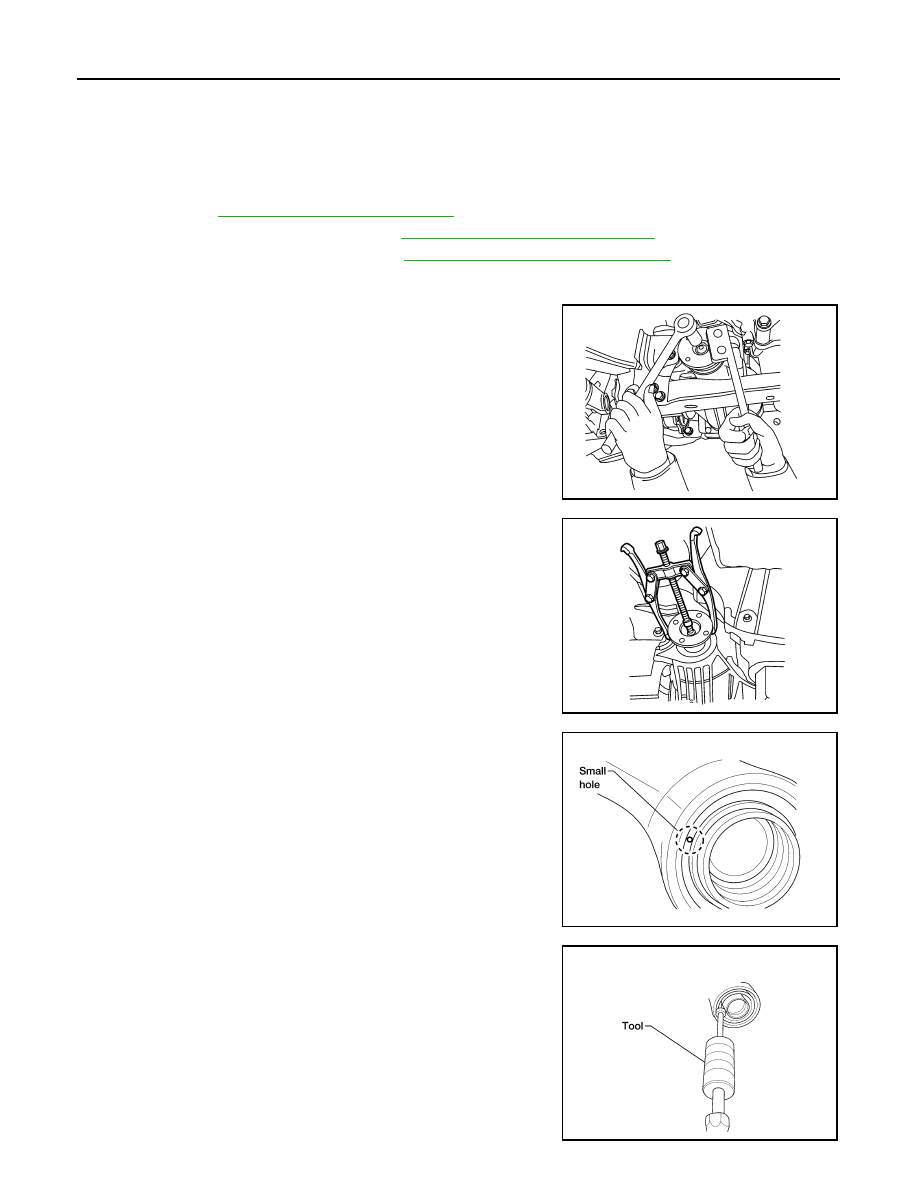

REMOVAL

1. Separate the (RH) and (LH) drive shafts from the front final drive assembly. Properly support the drive

shafts. Refer to

FAX-8, "Removal and Installation"

 for companion flange bolt torque specification.

2. Remove the front propeller shaft. Refer to

DLN-130, "Removal and Installation"

.

3. Measure the total preload torque. Refer to

DLN-185, "Inspection and Adjustment"

.

NOTE:

Record the total preload torque measurement.

4. Remove the drive pinion lock nut using suitable tool.
5. Put matching marks on the companion flange and drive pinion

using paint.

CAUTION:

Use paint to make the matching marks. Do not damage the

companion flange or drive pinion.

6. Remove companion flange using suitable tool.

7. Place a small hole in the front oil seal case using suitable tool.

8. Remove the front oil seal using suitable tool as shown.

BDIA0001E

LDIA0171E

LDIA0129E

LDIA0130E

FRONT OIL SEAL

DLN-165

< REMOVAL AND INSTALLATION >

[FRONT FINAL DRIVE: M205]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

INSTALLATION

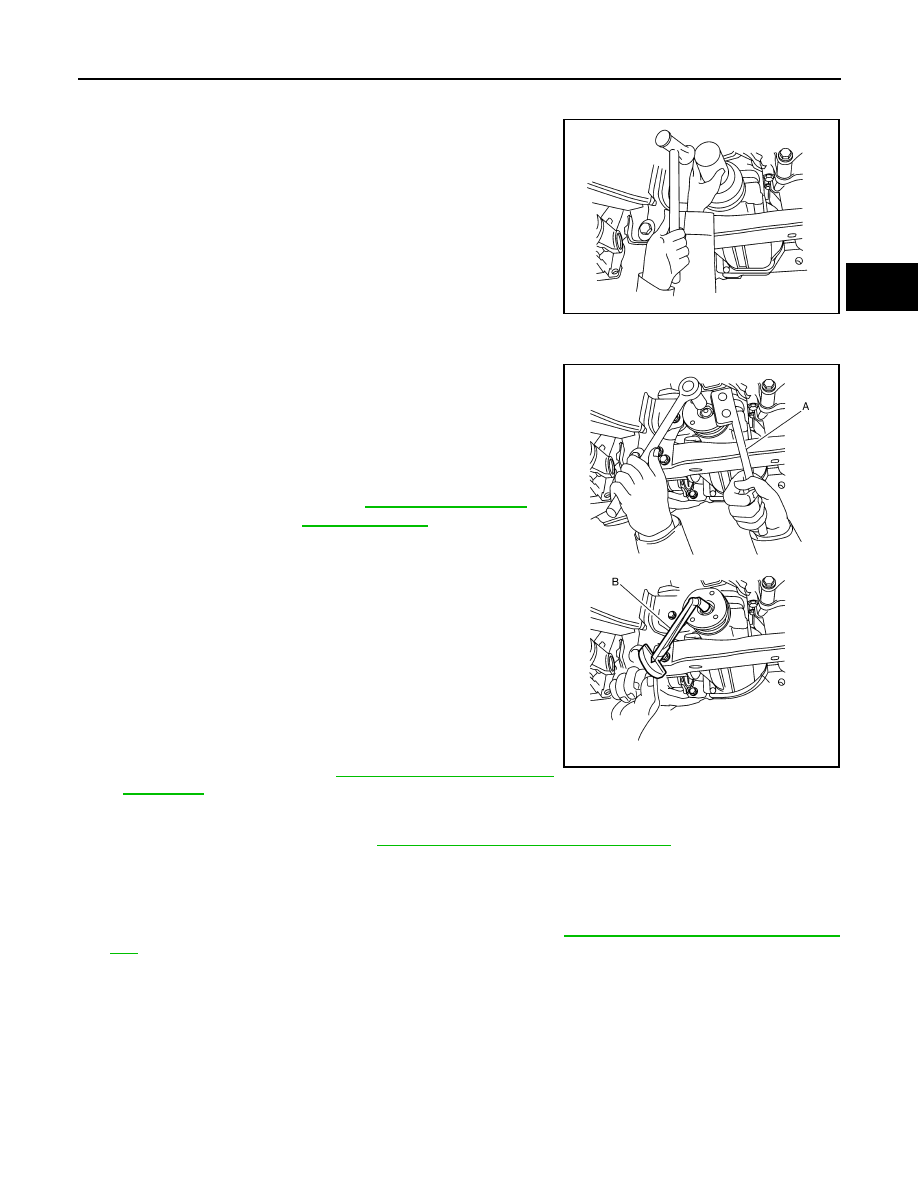

1. Apply multi-purpose grease to the lips of the new front oil seal.

Then drive the new front oil seal in evenly to the gear carrier

using Tool.

CAUTION:

• Do not reuse front oil seal.

• Do not incline the new front oil seal when installing.

• Apply multi-purpose grease to the lips of the new front oil

seal.

2. Install the companion flange to the drive pinion while aligning the matching marks.
3. Apply anti-corrosive oil to the threads of the drive pinion and the

seating surface of the new drive pinion lock nut. Then adjust the

drive pinion lock nut tightening torque using suitable tool (A),

and check the total preload torque using Tool (B).

• The total preload torque should be within the total preload

torque specification. When not replacing the collapsible

spacer, it should also be equal to the measurement taken dur-

ing removal plus an additional 0.56 N·m (0.06 kg-m, 5 in-lb).

• If the total preload torque is low, tighten the drive pinion lock

nut in 6.8 N·m (0.69 kg-m, 60 in-lb) increments until the total

preload torque is met.

CAUTION:

• Do not reuse drive pinion lock nut.

• Apply anti-corrosive oil to the threads of the drive pinion

and the seating surface of the new drive pinion lock nut.

• Adjust the drive pinion lock nut tightening torque to the

lower limit first. Do not exceed the drive pinion lock nut

specified torque. Refer to

DLN-169, "Disassembly and

Assembly"

.

• Do not loosen drive pinion lock nut to adjust the total preload torque. If the drive pinion lock nut

torque or the total preload torque exceeds the specifications, replace the collapsible spacer and

tighten it again to adjust. Refer to

DLN-169, "Disassembly and Assembly"

.

• After adjustment, rotate drive pinion back and forth 2 to 3 times to check for unusual noise, rota-

tion malfunction, and other malfunctions.

4. Installation of the remaining components is in the reverse order of removal.

CAUTION:

Check the differential gear oil level after installation. Refer to

DLN-162, "Checking Differential Gear

Oil"

.

Tool number

: KV38100500 (J-25273)
: KV38102200 ( — )

BDIA0003E

Tool number

(B): ST3127S000 (J-25765-A)

Total preload torque: Refer to

DLN-185, "Inspection

and Adjustment"

.

WDIA0381E

DLN-166

< REMOVAL AND INSTALLATION >

[FRONT FINAL DRIVE: M205]

CARRIER COVER

CARRIER COVER

Removal and Installation

INFOID:0000000009886078

REMOVAL

1. Drain differential gear oil. Refer to

DLN-162, "Changing Differential Gear Oil"

.

2. Remove the front final drive assembly. Refer to

DLN-167, "Removal and Installation"

.

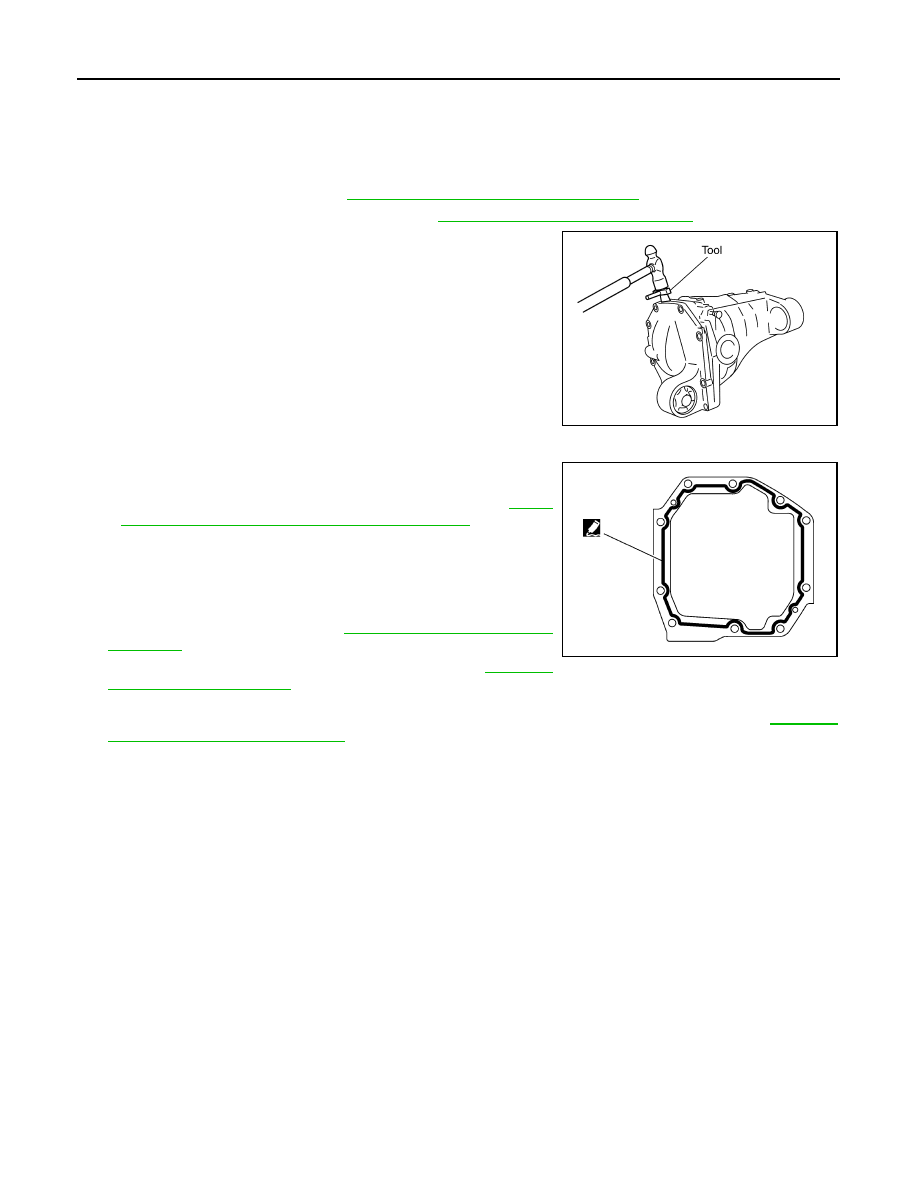

3. Remove the carrier cover bolts and separate the carrier cover

from the gear carrier using Tool.

CAUTION:

• Do not damage the mating surface.

• Do not insert flat-bladed screwdriver, this will damage the

mating surface.

INSTALLATION

1. Apply 3 mm (0.12 in) bead of sealant to the mating surface of

the carrier cover as shown.

• Use Genuine Silicone RTV or equivalent. Refer to

GI-21,

"Recommended Chemical Products and Sealants"

.

CAUTION:

Remove any old sealant adhering to the mating surfaces.

Also remove any moisture, oil, or foreign material adhering

to the application and mating surfaces.

2. Install the carrier cover to the gear carrier. Tighten the bolts to

the specified torque. Refer to

DLN-169, "Disassembly and

Assembly"

.

3. Install the front final drive assembly. Refer to

DLN-167,

"Removal and Installation"

.

CAUTION:

Fill the front final drive assembly with recommended differential gear oil. Refer to

DLN-162,

"Checking Differential Gear Oil"

.

Tool number

: KV10111100 (J-37228)

PDIA0699E

SDIA3204E

FRONT FINAL DRIVE

DLN-167

< UNIT REMOVAL AND INSTALLATION >

[FRONT FINAL DRIVE: M205]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

UNIT REMOVAL AND INSTALLATION

FRONT FINAL DRIVE

Removal and Installation

INFOID:0000000009886079

REMOVAL

1. Remove the under cover (if equipped).
2. Remove the drive shafts from the front final drive assembly. Refer to

FAX-8, "Removal and Installation"

.

3. Remove the front cross member.
4. Remove the front propeller shaft from the front final drive assembly. Refer to

DLN-130, "Removal and

Installation"

.

5. Disconnect the vent hose from the front final drive assembly.
6. Support the front final drive assembly using a suitable jack.

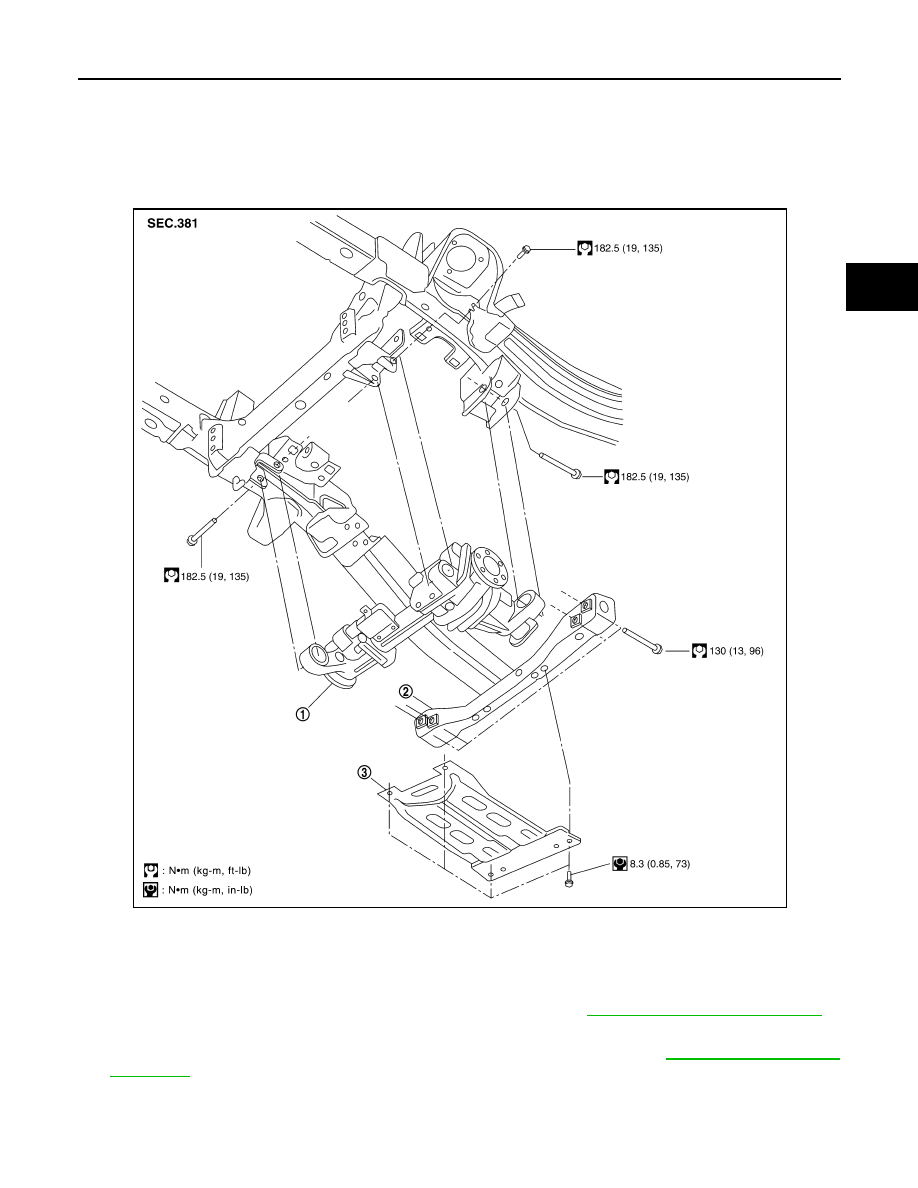

1.

Front final drive assembly

2.

Front cross member

3. Under cover (if equipped)

SDIA3220E
