Nissan Titan. Manual - part 80





DOOR SWITCH

DLK-29

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

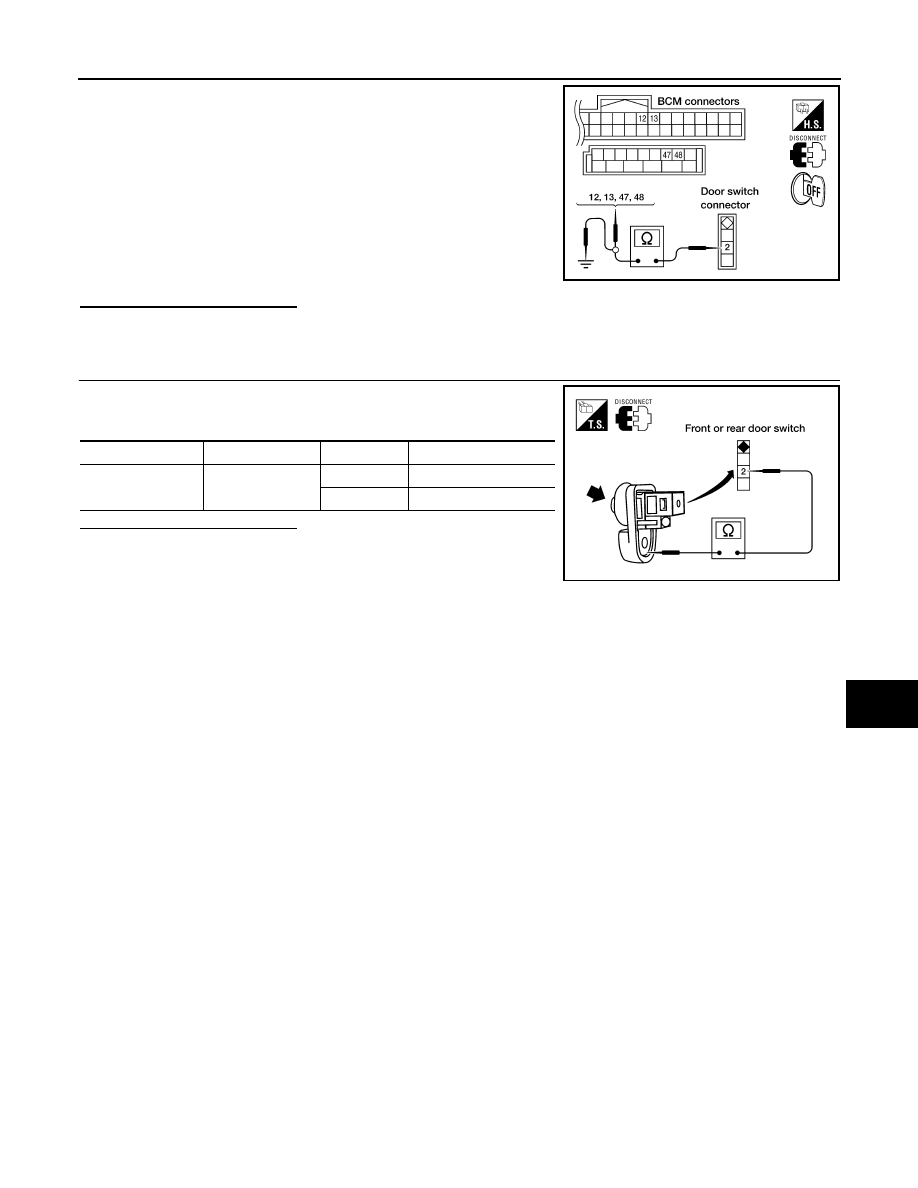

4. Check continuity between door switch connector B8 (Front LH),

B108 (Front RH), B18 (Rear LH), B116 (Rear RH) terminal 2 and

ground.

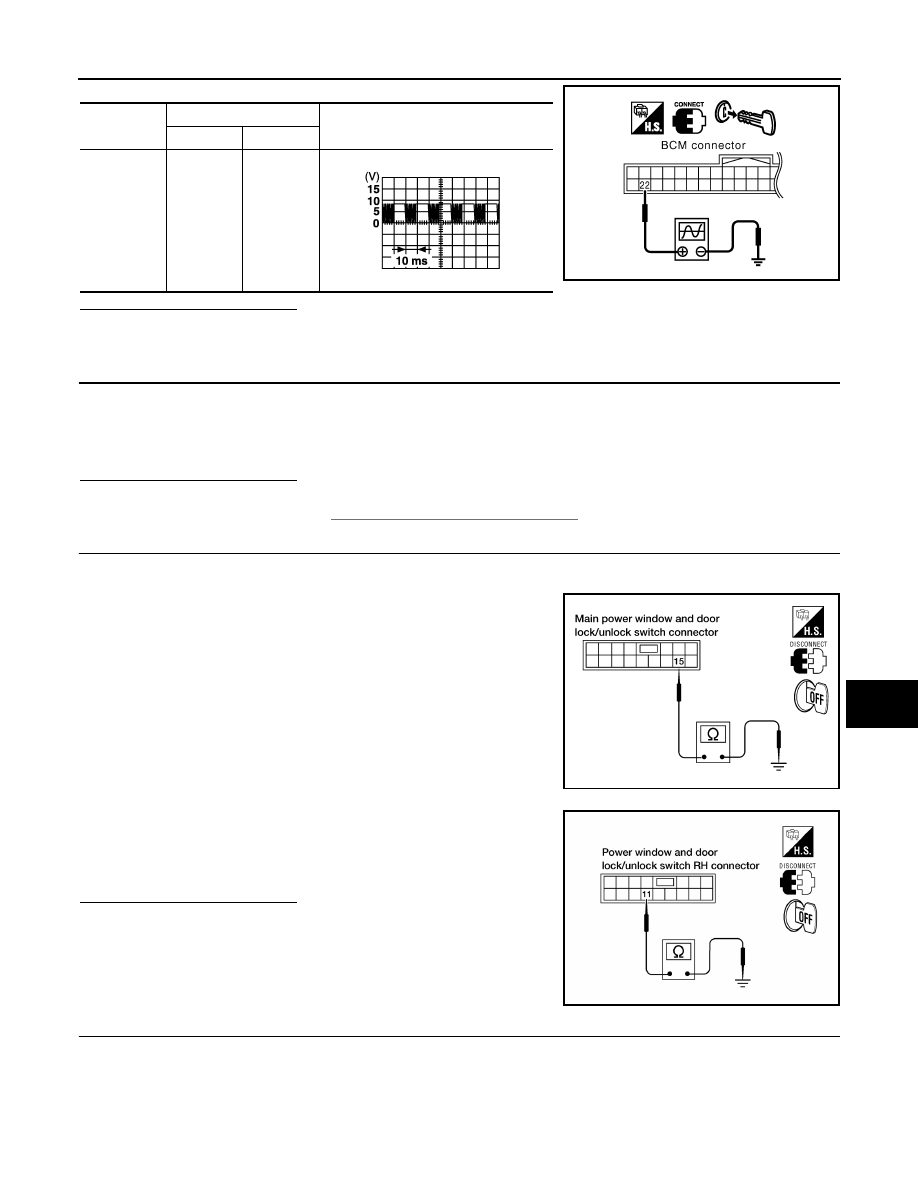

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

CHECK DOOR SWITCHES

Check continuity between door switch terminal 2 and exposed metal

of switch while pressing and releasing switch.

Is the inspection result normal?

YES

>> Check door switch case ground condition.

NO

>> Replace door switch.

2 - 47

:Continuity should exist

2 - 12

:Continuity should exist

2 - 48

:Continuity should exist

2 - 13

:Continuity should exist

2 - Ground

:Continuity should not exist

LIIA1178E

Terminals

Condition

Continuity

Door switch (front

and rear)

2 – Ground

Released

Yes

Pressed

No

WIIA0644E

DLK-30

< DTC/CIRCUIT DIAGNOSIS >

DOOR LOCK AND UNLOCK SWITCH

DOOR LOCK AND UNLOCK SWITCH

KING CAB
KING CAB : Description

INFOID:0000000009878769

Transmits door lock/unlock operation to BCM.

KING CAB : Component Function Check

INFOID:0000000009878770

1.

CHECK FUNCTION

With CONSULT

Check CDL LOCK SW, CDL UNLOCK SW in Data Monitor mode with CONSULT.

Is the inspection result normal?

YES

>> Door lock and unlock switch is OK.

NO

>> refer to

DLK-30, "KING CAB : Diagnosis Procedure"

.

KING CAB : Diagnosis Procedure

INFOID:0000000009878771

Regarding Wiring Diagram information, refer to

DLK-76, "Wiring Diagram - King Cab"

.

1.

CHECK DOOR LOCK/UNLOCK SWITCH INPUT SIGNAL

With CONSULT

Check door lock/unlock switch ("CDL LOCK SW", "CDL UNLOCK SW") in DATA MONITOR mode in CON-

SULT. Refer to

DLK-19, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)"

.

• When door lock/unlock switch is turned to LOCK:

• When door lock/unlock switch is turned to UNLOCK:

Without CONSULT

1. Remove key from ignition key cylinder.

2. Check the signal between BCM connector M18 terminal 22 and ground with oscilloscope when door lock/

unlock switch is turned to LOCK or UNLOCK.

3. Make sure the signals which are shown in the figure below can be detected during 10 seconds just after

the door lock/unlock switch is turned to LOCK or UNLOCK.

Monitor item

Condition

CDL LOCK SW

LOCK

: ON

UNLOCK

: OFF

CDL UNLOCK SW

LOCK

: OFF

UNLOCK

: ON

CDL LOCK SW

:ON

CDL UNLOCK SW

:ON

DOOR LOCK AND UNLOCK SWITCH

DLK-31

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Is the inspection result normal?

YES

>> Door lock and unlock switch circuit is OK.

NO

>> GO TO 2

2.

CHECK BCM OUTPUT SIGNAL

1. Turn ignition switch OFF.

2. Using the vehicle operational key fob, press and hold the UNLOCK button for more than 3 seconds.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Replace BCM. Refer to

BCS-52, "Removal and Installation"

.

3.

CHECK DOOR LOCK/UNLOCK SWITCH GROUND HARNESS

1. Disconnect main power window and door lock/unlock switch or power window and door lock/unlock switch

RH.

2. Check continuity between main power window and door lock/

unlock switch connector D15 terminal 15 and ground.

3. Check continuity between power window and door lock/unlock

switch RH connector D105 terminal 11 and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

CHECK POWER WINDOW SERIAL LINK CIRCUIT

1. Disconnect BCM.

Connector

Terminals

Signal

(Reference value)

(+)

(–)

M18

22

Ground

PIIA6379E

PIIA1297E

The front windows should be lowered?

15 - Ground

: Continuity should exist

LIIA0604E

11 - Ground

: Continuity should exist

LIIA1140E

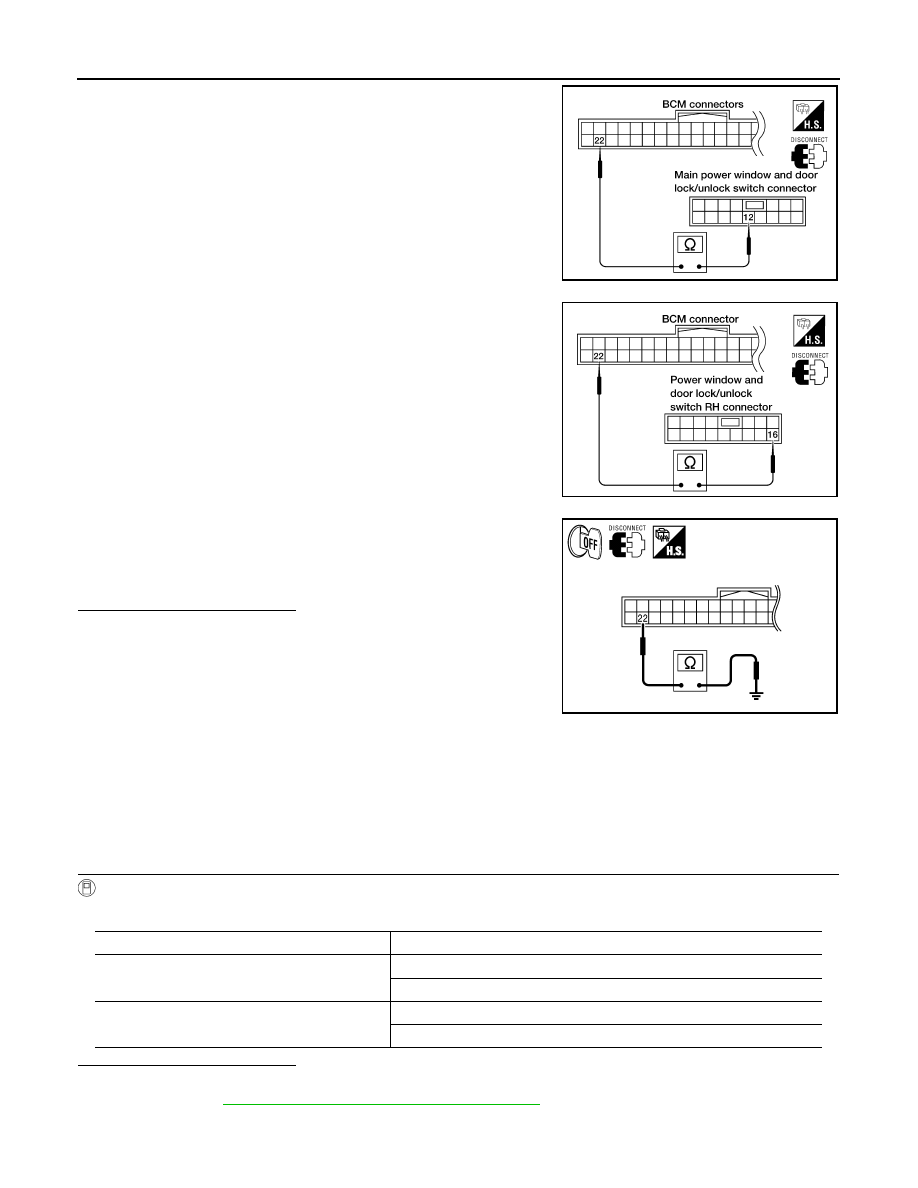

DLK-32

< DTC/CIRCUIT DIAGNOSIS >

DOOR LOCK AND UNLOCK SWITCH

2. Check continuity between BCM connector M18 terminal 22 and

main power window and door lock/unlock switch connector D15

terminal 12.

3. Check continuity between BCM connector M18 terminal 22 and

power window and door lock/unlock switch RH connector D105

terminal 16.

4. Check continuity between BCM connector M18 terminal 22 and

ground.

Is the inspection result normal?

YES

>> Replace main power window and door lock/unlock

switch or power window and door lock/unlock switch

RH.

NO

>> Repair or replace harness.

CREW CAB
CREW CAB : Description

INFOID:0000000009878772

Transmits door lock/unlock operation to BCM.

CREW CAB : Component Function Check

INFOID:0000000009878773

1.

CHECK FUNCTION

With CONSULT

Check CDL LOCK SW, CDL UNLOCK SW in Data Monitor mode with CONSULT.

Is the inspection result normal?

YES

>> Door lock and unlock switch is OK.

NO

>> Refer to

DLK-33, "CREW CAB : Diagnosis Procedure"

.

22 - 12

: Continuity should exist

LIIA0649E

22 - 16

: Continuity should exist

WIIA0598E

22 - Ground

: Continuity should not exist

LIIA2359E

Monitor item

Condition

CDL LOCK SW

LOCK

: ON

UNLOCK

: OFF

CDL UNLOCK SW

LOCK

: OFF

UNLOCK

: ON
