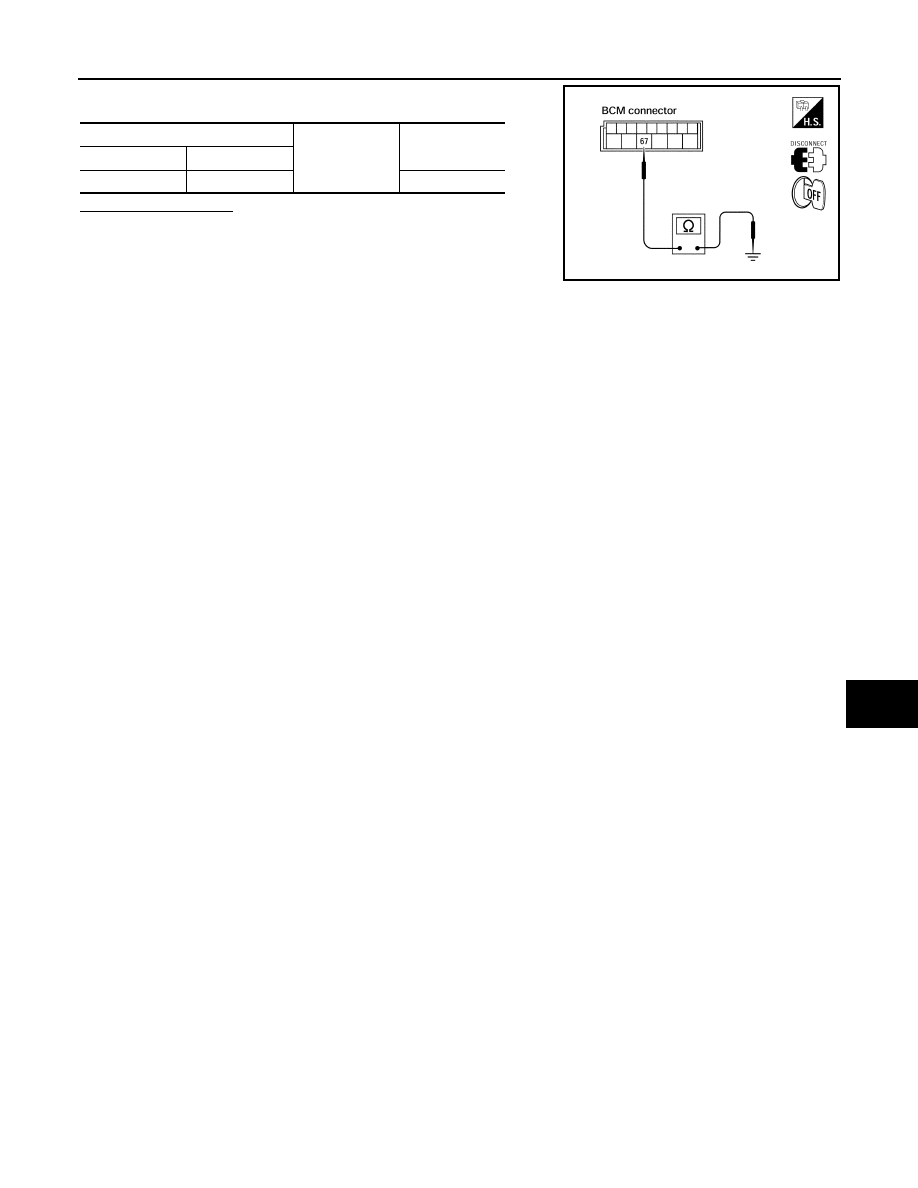

Check continuity between BCM harness connector and ground.

Does continuity exist?

YES

>> Inspection End.

NO

>> Repair or replace harness.

BCM

Ground

Continuity

Connector

Terminal

M20

67

Yes

LIIA0915E

DLK-26

< DTC/CIRCUIT DIAGNOSIS >

DOOR SWITCH

DOOR SWITCH

KING CAB
KING CAB : Description

INFOID:0000000009878763

Detects door open/close condition.

KING CAB : Component Function Check

INFOID:0000000009878764

1.

CHECK FUNCTION

With CONSULT

Check door switches in data monitor mode with CONSULT.

Is the inspection result normal?

YES

>> Door switch is OK.

NO

>> Refer to

DLK-26, "KING CAB : Diagnosis Procedure"

.

KING CAB : Diagnosis Procedure

INFOID:0000000009878765

Regarding Wiring Diagram information, refer to

DLK-76, "Wiring Diagram - King Cab"

.

1.

CHECK DOOR SWITCHES INPUT SIGNAL

With CONSULT

Check door switches ("DOOR SW-DR", "DOOR SW-AS") in DATA MONITOR mode with CONSULT. Refer to

DLK-19, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)"

.

• When doors are open:

• When doors are closed:

Without CONSULT

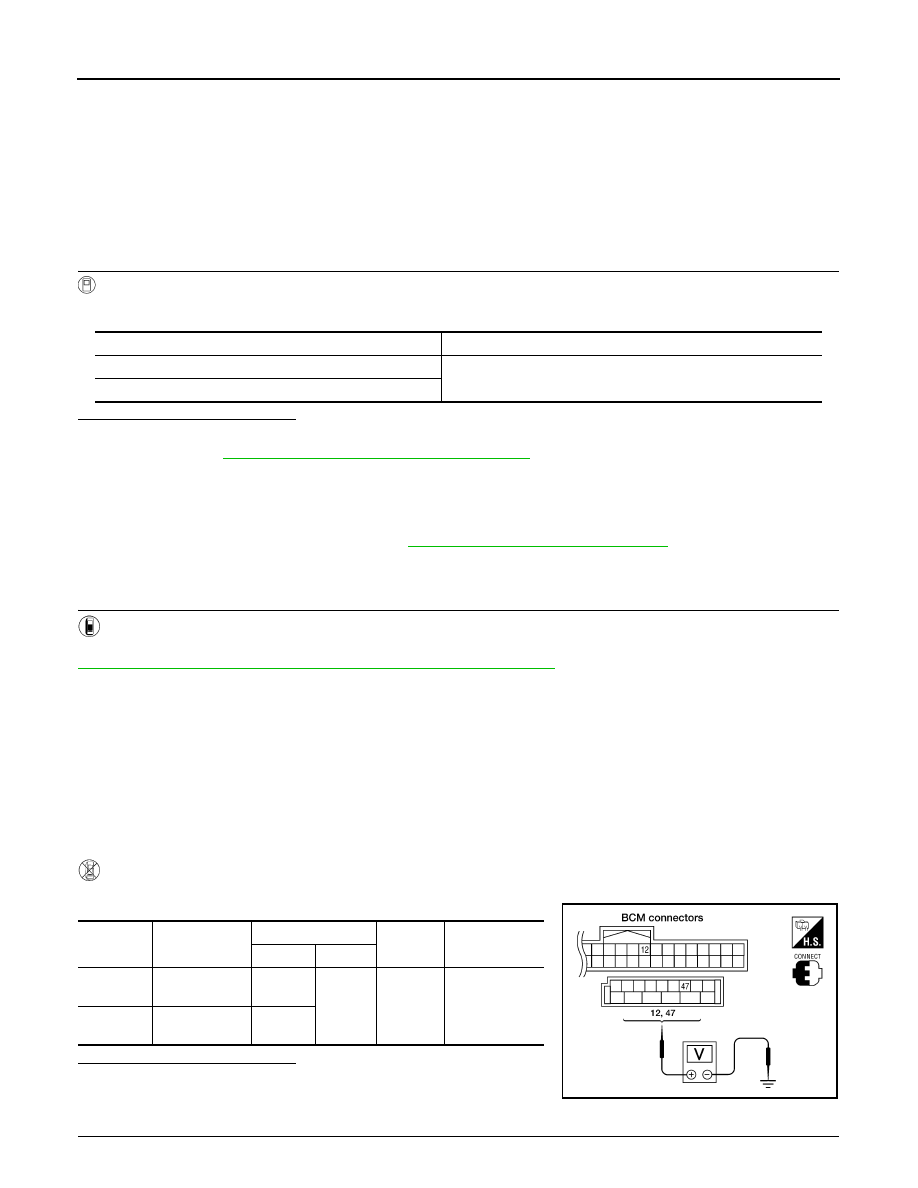

Check voltage between BCM connector M18 or M19 terminals 12, 47 and ground.

Is the inspection result normal?

YES

>> Door switch circuit is OK.

NO

>> GO TO 2

2.

CHECK DOOR SWITCH CIRCUIT

Monitor item

Condition

DOOR SW-DR

CLOSE

→ OPEN: OFF → ON

DOOR SW-AS

DOOR SW-DR

:ON

DOOR SW-AS

:ON

DOOR SW-DR

:OFF

DOOR SW-AS

:OFF

Connector

Item

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(–)

M19

Door switches

LH

47

Ground

Open

Closed

0

Battery voltage

M18

Door switches

RH

12

LIIA1174E

DOOR SWITCH

DLK-27

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1. Turn ignition switch OFF.

2. Disconnect door switch and BCM.

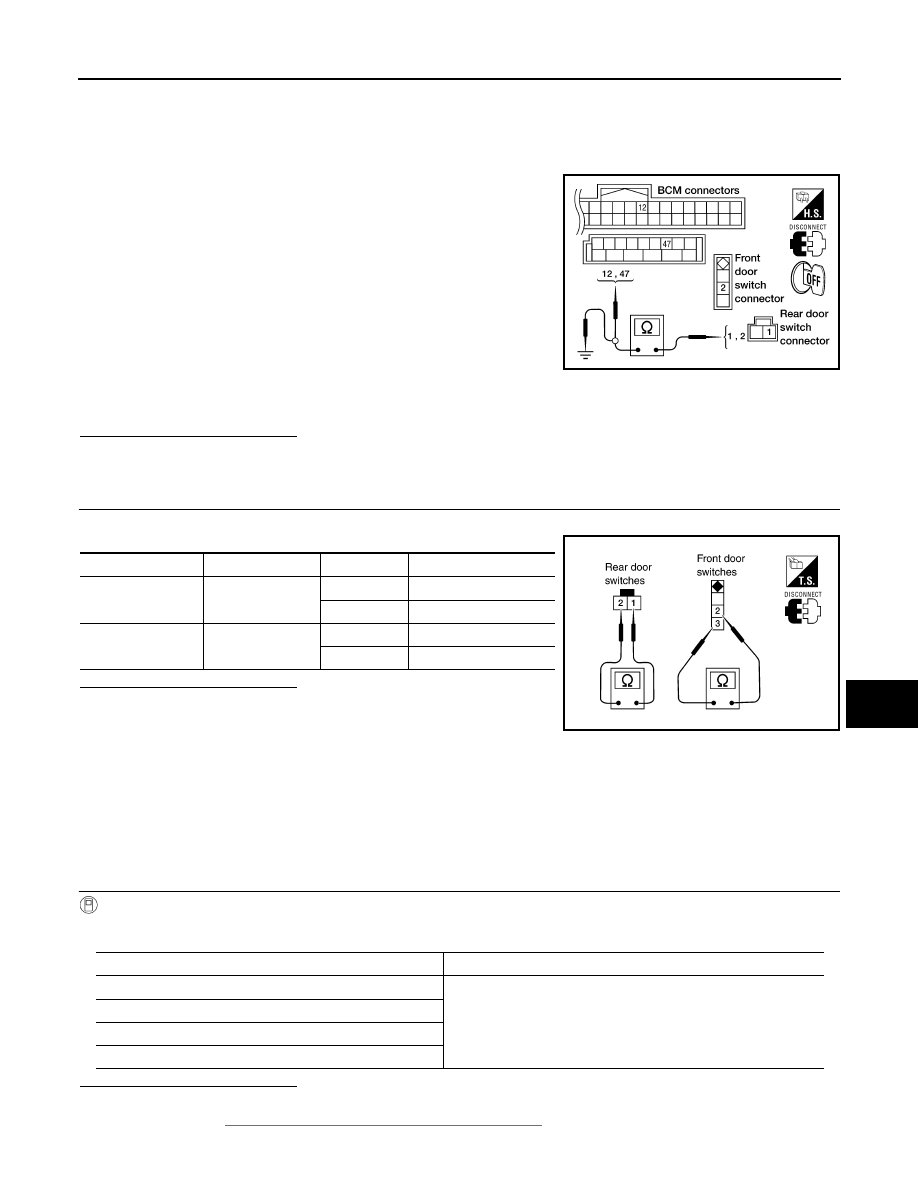

3. Check continuity between door switch connector B8 (Front LH), B108 (Front RH) terminal 2, B73 (Rear

upper LH), B156 (Rear upper RH), B74 (Rear lower LH), B157 (Rear lower RH) terminal 1 and BCM con-

nector M18, M19 terminals 12, and 47.

4. Check continuity between door switch connector B8 (Front LH),

B108 (Front RH) terminal 2, B73 (Rear upper LH), B156 (Rear

upper RH), B74 (Rear lower LH), B157 (Rear lower RH) terminal

1 and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

CHECK DOOR SWITCHES

Check continuity between door switch terminals.

Is the inspection result normal?

YES

>> Repair or replace harness.

NO

>> Replace door switch.

CREW CAB
CREW CAB : Description

INFOID:0000000009878766

Detects door open/close condition.

CREW CAB : Component Function Check

INFOID:0000000009878767

1.

CHECK FUNCTION

With CONSULT

Check door switches in data monitor mode with CONSULT.

Is the inspection result normal?

YES

>> Door switch is OK.

NO

>> Refer to

DLK-28, "CREW CAB : Diagnosis Procedure"

.

2 - 47

:Continuity should exist

2 - 12

:Continuity should exist

1 - 47

:Continuity should exist

1 - 12

:Continuity should exist

2 - Ground

:Continuity should not exist

1 - Ground

:Continuity should not exist

LIIA1175E

Item

Terminals

Condition

Continuity

Door switches

(front)

2 – 3

Open

No

Closed

Yes

Door switches (rear

upper and lower)

1 – 2

Open

No

Closed

Yes

WIIA0595E

Monitor item

Condition

DOOR SW-DR

CLOSE

→ OPEN: OFF → ON

DOOR SW-AS

DOOR SW-RL

DOOR SW-RR

DLK-28

< DTC/CIRCUIT DIAGNOSIS >

DOOR SWITCH

CREW CAB : Diagnosis Procedure

INFOID:0000000009878768

Regarding Wiring Diagram information, refer to

DLK-84, "Wiring Diagram - Crew Cab"

.

1.

CHECK DOOR SWITCHES INPUT SIGNAL

With CONSULT

Check door switches ("DOOR SW-DR", "DOOR SW-AS", "DOOR SW-RL", "DOOR SW-RR") in DATA MONI-

TOR mode with CONSULT. Refer to

DLK-19, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)"

.

• When doors are open:

• When doors are closed:

Without CONSULT

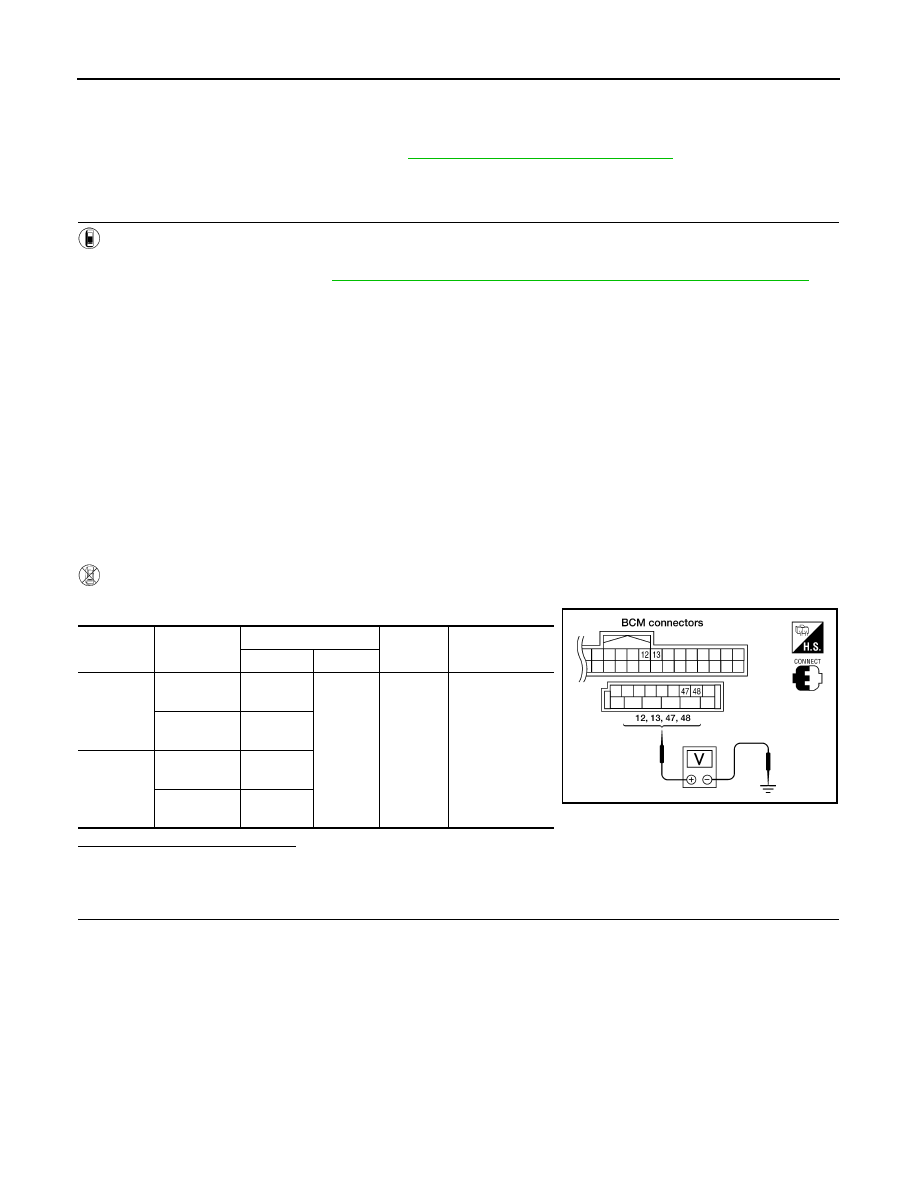

Check voltage between BCM connector M18 or M19 terminals 12, 13, 47, 48 and ground.

Is the inspection result normal?

YES

>> Door switch circuit is OK.

NO

>> GO TO 2

2.

CHECK DOOR SWITCH CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect door switch and BCM.

3. Check continuity between door switch connector B8 (Front LH), B108 (Front RH), B18 (Rear LH), B116

(Rear RH) terminal 2 and BCM connector M18, M19 terminals 12, 13, 47 and 48.

DOOR SW-DR

:ON

DOOR SW-AS

:ON

DOOR SW-RL

:ON

DOOR SW-RR

:ON

DOOR SW-DR

:OFF

DOOR SW-AS

:OFF

DOOR SW-RL

:OFF

DOOR SW-RR

:OFF

Connector

Item

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(–)

M19

Front door

switch LH

47

Ground

Open

Closed

0

Battery voltage

Rear door

switch LH

48

M18

Front door

switch RH

12

Rear door
switch RH

13

LIIA1177E
