Nissan Titan. Manual - part 18

VDC

BRC-13

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

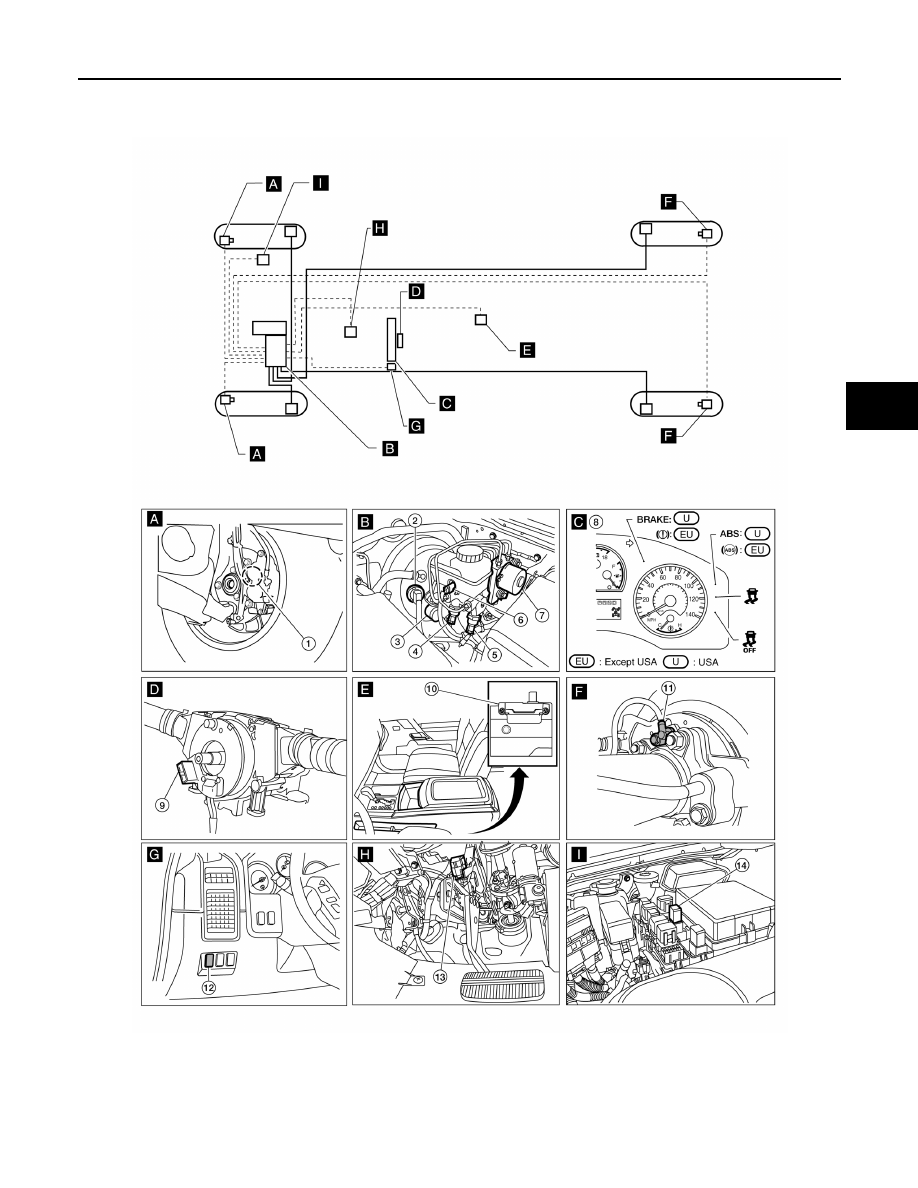

Component Parts Location

INFOID:0000000009883589

1.

Front wheel sensor LH E18
Front wheel sensor RH E117

2.

Delta stroke sensor E114

3.

Active booster E49

4.

Front pressure sensor E31

5.

Rear pressure sensor E32

6.

Brake fluid level switch E21

7.

ABS actuator and electric unit (con-
trol unit) E125

8.

Combination meter M24

9.

Steering angle sensor M17 (view
with steering wheel removed)

AWFIA0950GB

BRC-14

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

VDC

Component Description

INFOID:0000000009883590

10. Yaw rate/side/decel G sensor M108 11. Rear wheel sensor LH C11

Rear wheel sensor RH C10

12. VDC OFF switch M148

13. Stop lamp switch E38 (column shift),

E42 (floor shift)

14. Stop lamp relay E12

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-38, "Description"

Motor

Actuator relay

BRC-54, "Description"

Solenoid valve

BRC-47, "Description"

VDC switch-over valve
(CV1, CV2, SV1, SV2)

BRC-68, "Description"

Wheel sensor

BRC-29, "Description"

Yaw rate/side/decel G sensor

BRC-40, "Description"

Stop lamp switch

BRC-45, "Description"

Front pressure sensor

BRC-56, "Description"

Rear pressure sensor

Steering angle sensor

BRC-59, "Description"

Brake fluid level switch

BRC-62, "Description"

Active booster

BRC-71, "Description"

Delta stroke sensor

BRC-74, "Description"

VDC OFF switch

BRC-78, "Description"

ABS warning lamp

BRC-80, "Description"

Brake warning lamp

BRC-81, "Description"

VDC OFF indicator lamp

BRC-82, "Description"

SLIP indicator lamp

BRC-84, "Description"

TCS

BRC-15

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

TCS

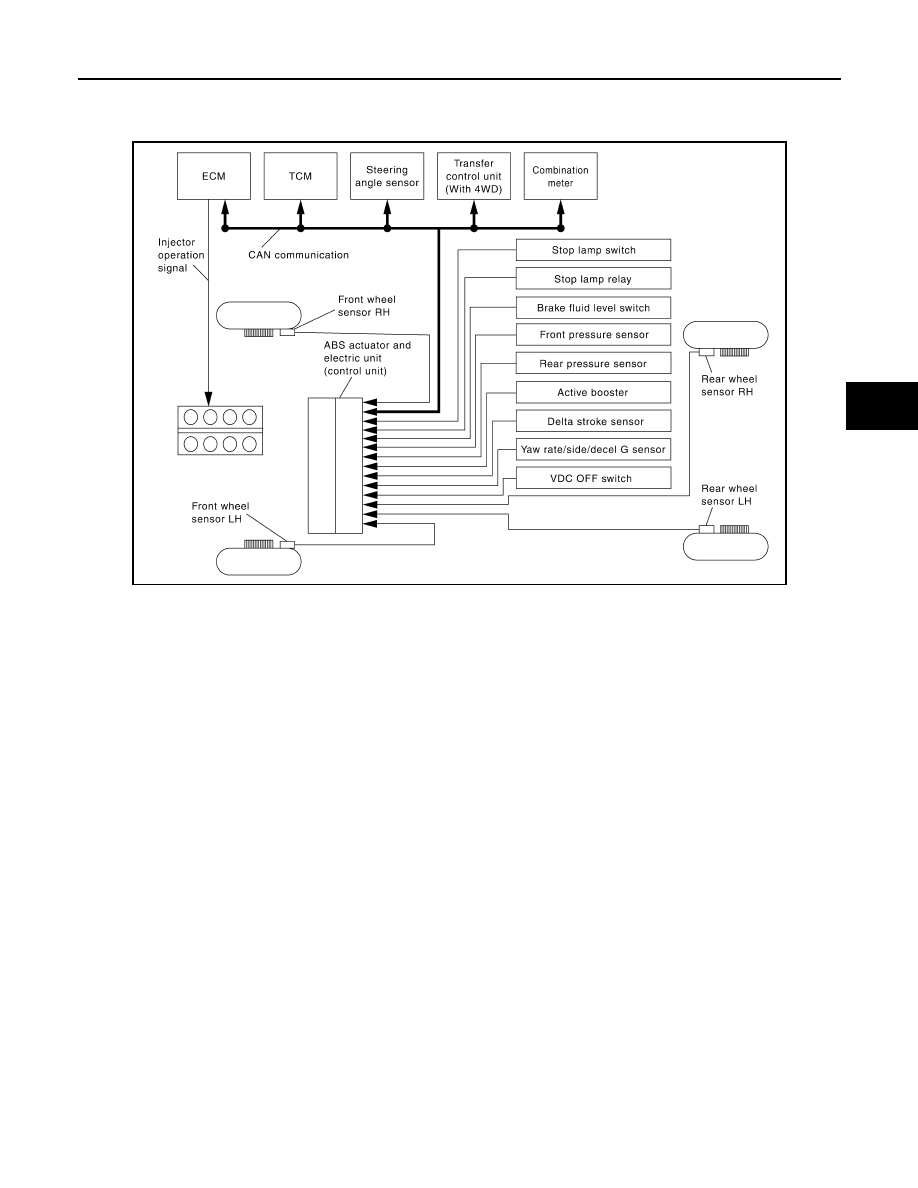

System Diagram

INFOID:0000000009883591

System Description

INFOID:0000000009883592

• Traction Control System is a function that electronically controls engine torque, brake fluid pressure and A/T

gear position to ensure the optimum slippage ratio at drive wheels by computing wheel speed signals from 4

wheel sensors. When ABS actuator and electric unit (control unit) detects a spin at drive wheels (rear

wheels), it compares wheel speed signals from all 4 wheels. At this time, LH and RH rear brake fluid pres-

sure are controlled, while fuel being cut to engine and throttle valve being closed to reduce engine torque by

the control unit. Further more, throttle position is continuously controlled to ensure the optimum engine

torque at all times.

• During TCS operation, it informs driver of system operation by flashing SLIP indicator lamp.

• Electrical system diagnosis by CONSULT is available.

AWFIA0461GB

BRC-16

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

TCS

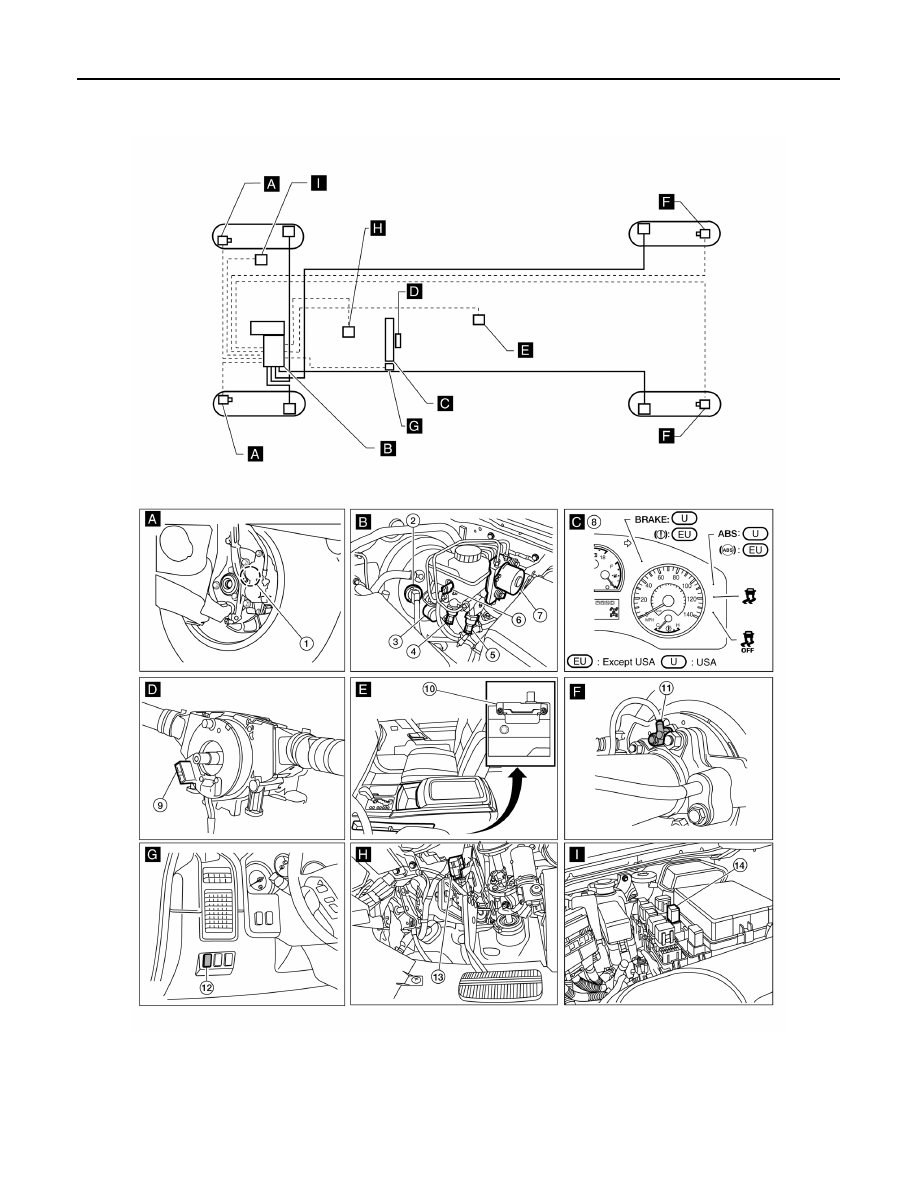

Component Parts Location

INFOID:0000000009883593

1.

Front wheel sensor LH E18
Front wheel sensor RH E117

2.

Delta stroke sensor E114

3.

Active booster E49

4.

Front pressure sensor E31

5.

Rear pressure sensor E32

6.

Brake fluid level switch E21

7.

ABS actuator and electric unit (con-
trol unit) E125

8.

Combination meter M24

9.

Steering angle sensor M17 (view
with steering wheel removed)

AWFIA0950GB
